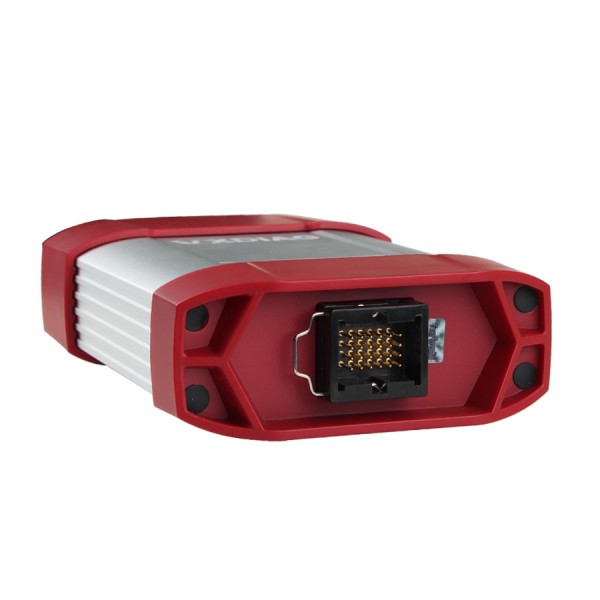

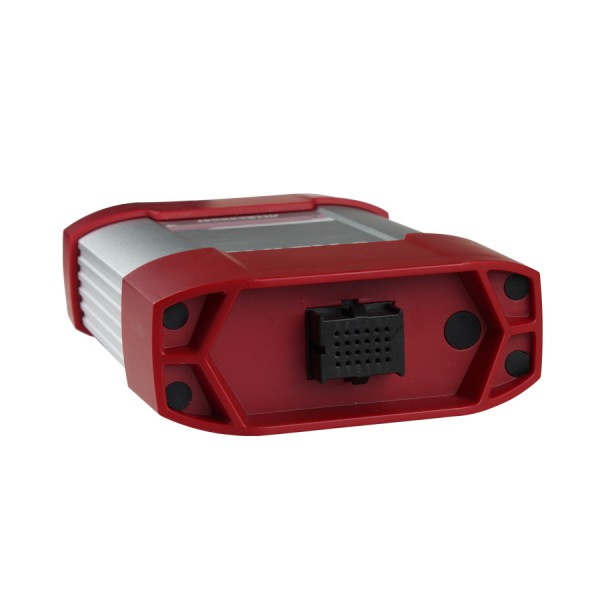

    VXDIAG SUBARU SSM-III Multi Diagnostic Tool V2018.10 with WIFI

    • Item No.  A356
    • History: 50  sold
    • Market Price: US$306.00
      Shop Price: US$255.00You save US$51.00
      Express Shipping Service    Estimated delivery time: 3-5 days »
    • Quantity:  287
    • Weight:  5.0KG
    • Rank:  comment rank 4 () Write a Review
      Rated 4/5 based on 3 customer reviews

    • Member Benefits  Shipping  Return Policy

    Related Products




    Technical Support


    VXDIAG SUBARU SSM-III Multi Diagnostic Tool  V2018.10 with WIFI

    Top 7 Reasons to Get VXDIAG SUBARU SSM-III:

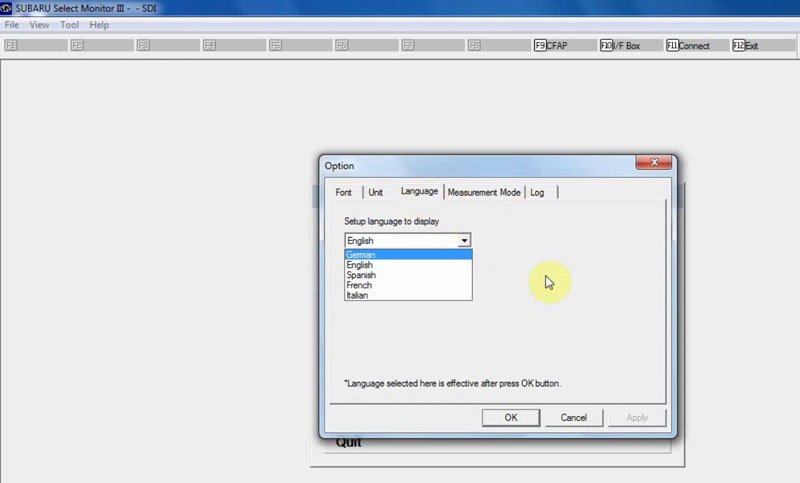

    1.Support language: English, German, Spanish, French, Italian
    2.Subaru SSM-III Software Version: V2018.10, Support SUBARU Till Year 2018
    3.Can Pay to Add Toyota, Honda, Porsche, JLR Software to the Same Device
    4.Fully Compatible with SAE-J2534
    5.Support both 12V and 24V Gasoline and Diesel Car
    6.Supports programming Subaru smart key
    7.Supports wifi

    SUBARU SSM-III Software Feature:
    1. Special dual cell processor for automotive, full compliant with all vehicles protocols.
    2. Self-determination design for adapters and cables

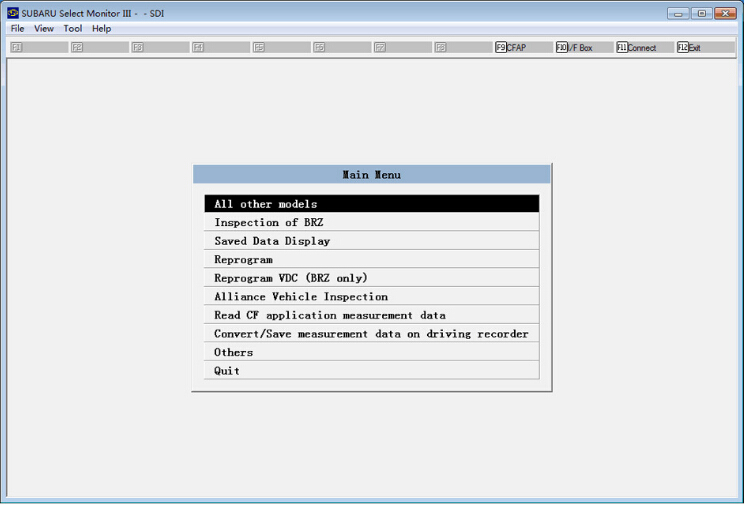

    SUBARU SSM-III Software Function:
    VXDIAG SUBARU SSM-III Multi Diagnostic Tool

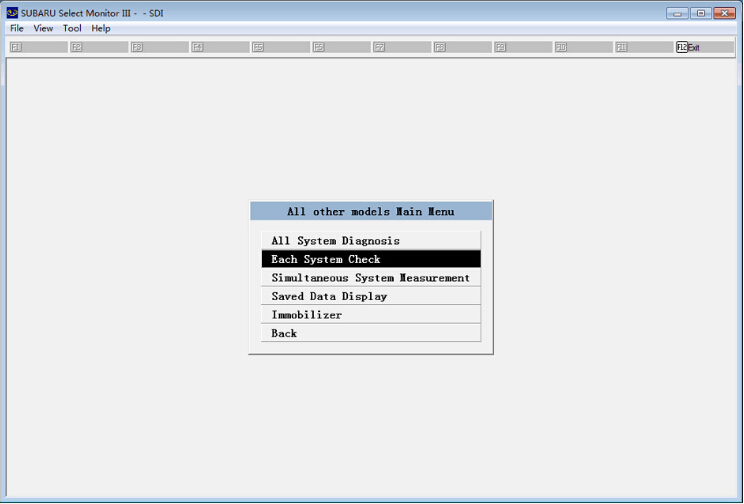

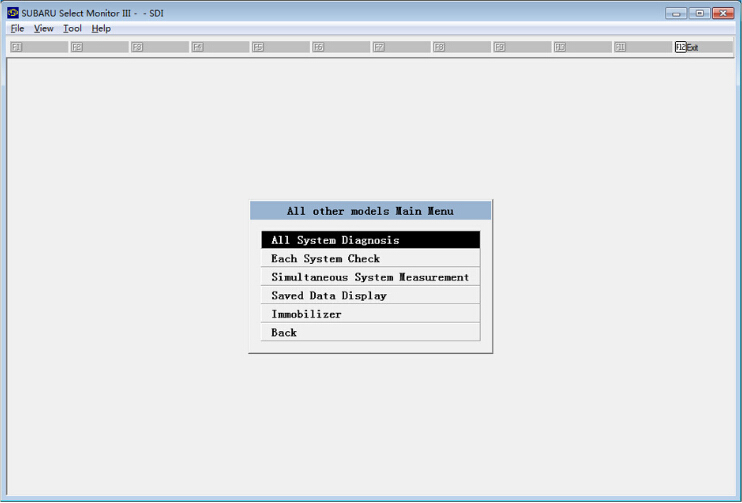

    1. All System Diagnosis. Selecting this item displays on a single screen the fault detect status of all control system control modules for which SSMΙΙΙ diagnosis is supported, and memorized diagnostic codes.

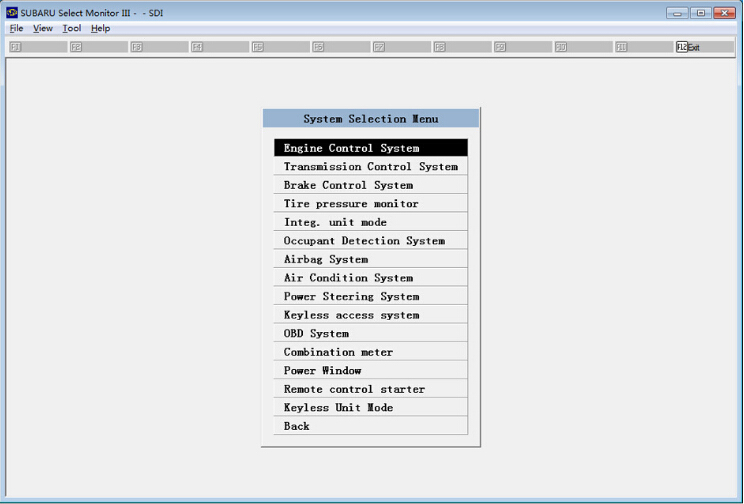

    2. Each System Check. Selecting this item makes it possible to select a particular system from among the control systems forwhich SSMΙΙΙ diagnosis is supported, and perform fault diagnosis.
    This item can be used to view input/output data of the system control modules that perform fault diagnosis, memorized diagnostic codes, and other data on the PC display. This menu item is also used after repair work is complete to delete diagnostic codes, to configure control module settings, etc.
    3. Saved Data Display. This item can be used to save various data sampled during fault diagnosis operations, and to load data for viewing after work is complete.
    4. Immobilizer. This item performs immobilizer registration.

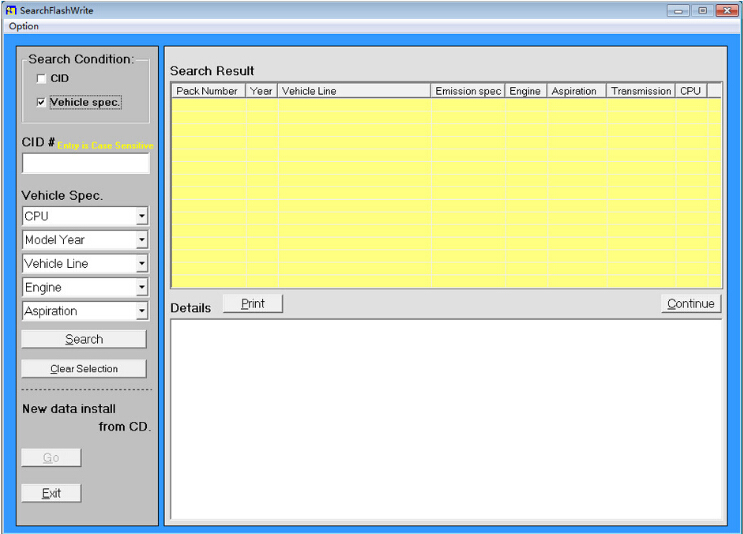

    5. Reprogram. This item performs reprogramming of the control module.
    6. Read CF application measurement data. This item performs reading stand alone measurement data saved in a CF card to hard disk of your PC.
    7. Convert/Save measurement data on driving recorder. Loads data sampled on the driving recorder to the PC from the CF card, and converts and saves that data.

    8. Oscilloscope. After attaching the optional pulse/analog cartridge to SDI, connect the pulse/analog box to the SDI and using pulse/analog probe to perform analog sampling.

    9.Program Subaru smart key


    Subaru SSM installation guide:

    1.Click Launcher.exe, first to install SSM3, then to install SSM4

    2.Save Subaru.exe to folder of C or D, Install it on win 7 or up, right click to run

    3.Restart laptop, click SSM3 to test car after connecting device to laptop and car.

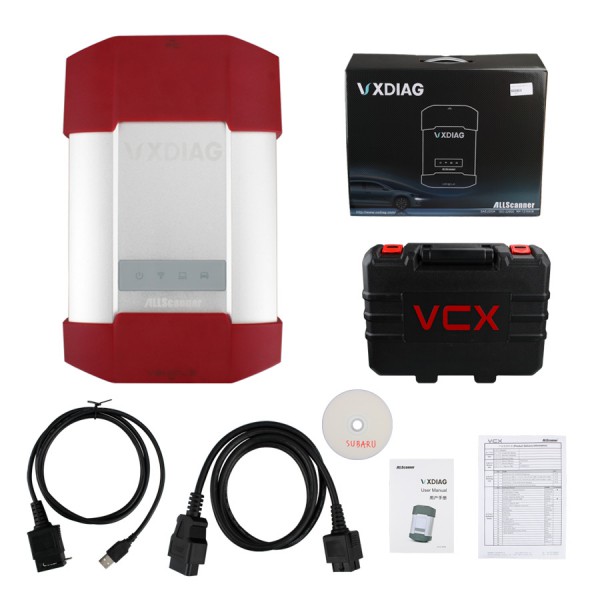

    Packing List:

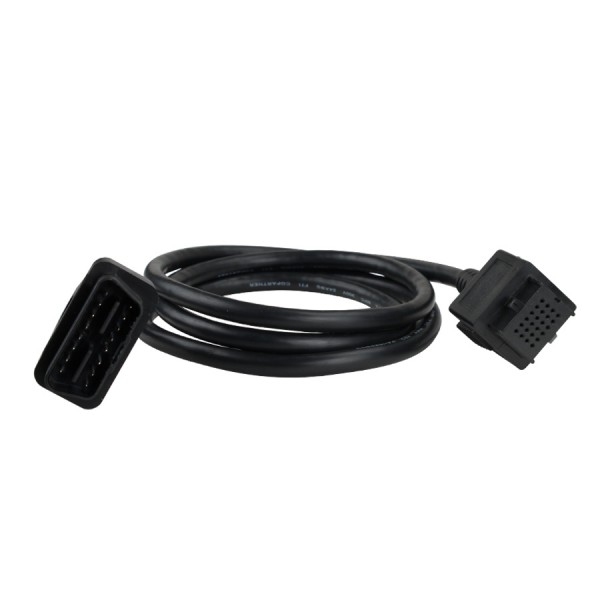

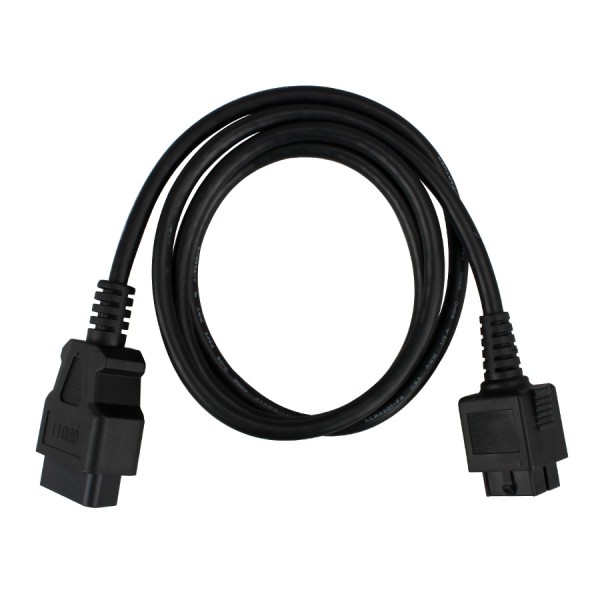

    1pc x OBDII Cable

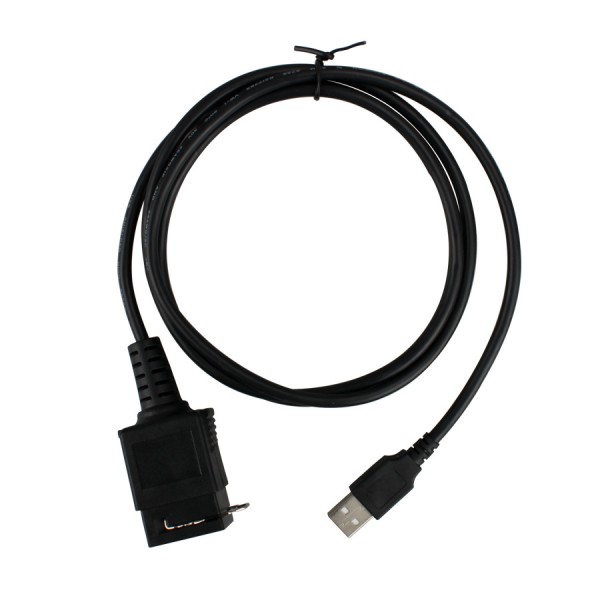

    1pc x USB Cable
    1pc x CD

    User Comment(Total 3 User Comment Num)

    • by richard plemmons,Apr 11,2020

      Used a week,so far it’s been a good tool.

      Reply #1 by Vivian Apr 11,2020
      Thanks for your feedback


    • by Wesley Henry,Aug 12,2019

      Can I program Subaru smart key with this vxdiag subaru?

      Reply #1 by Kelly Aug 13,2019
      Hello,yes, VXDIAG Subaru will program Subaru smart keys.
      Any further questions please feel free to contact us.
      Best regards!


    • by Sharon Kanas ,Mar 15,2018

      Fast delivery.Received in a week.

      Reply #1 by Vivian Mar 15,2018
      Thank you for your feedback
