    LAUNCH X831T 3D Wheel Aligner 4-Post Car Alignment Lifts Platform Classic Fixed Height Type 32inch Display Screen Dual-S

    • Item No.  IC036
    • History: 20  sold
    • Different version:


    • Market Price: US$4,798.80
      Shop Price: US$3,999.00You save US$799.80
      Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 3-5 days »
      continue
    • Quantity:  15
    • Weight:  195.0KG
    • Rank:  comment rank 5 () Write a Review

    • Member Benefits  Shipping  Return Policy

    Related Products

    Description

    Attribute

    Review

    Technical Support

    Video

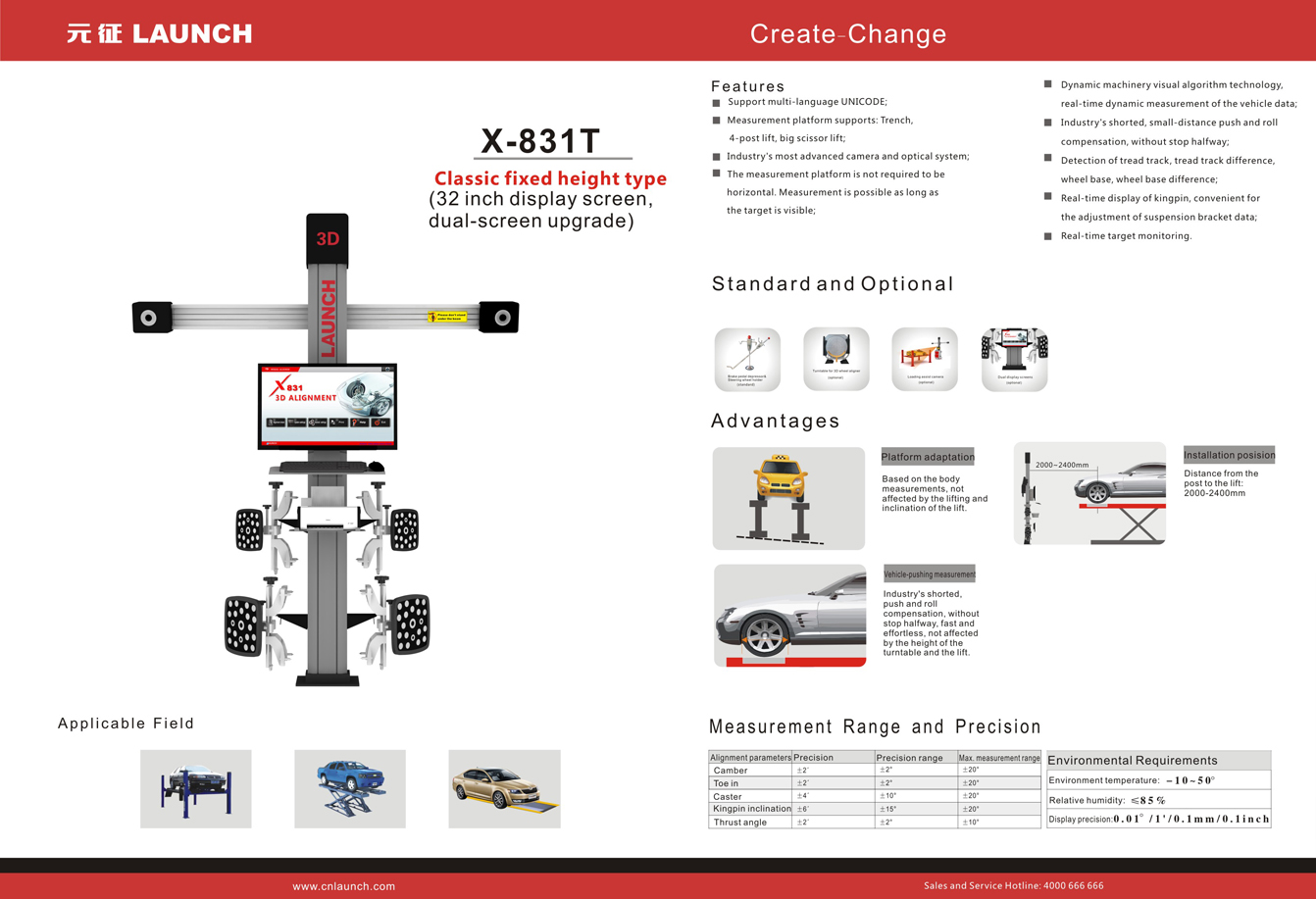

    LAUNCH X831T 3D Wheel Aligner 4-Post Car Alignment Lifts Platform Classic Fixed Height Type 32inch Display Screen Dual-Screen Upgrade



    The device is available in English and Russian. Please choose the version you need when purchasing. Please contact our customer service if you need a different language version.

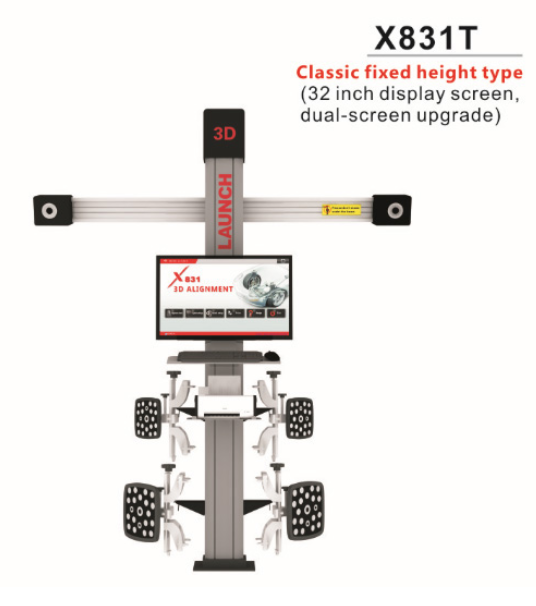

    Classic fixed height type
    (32 inch display screen, dual-screen upgrade)



    LAUNCH X831T  Features:

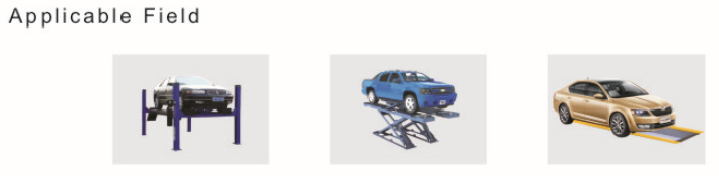

    Measurement platform supports: Trench, 4-post lift, big scissor lift.
    Industry's most advanced camera and optical system;
    The measurement platform is not required to be horizontal. Measurement is possible as long as the target is visible.
    Dynamic machinery visual algorithm technology real-time dynamic measurement of the vehicle data
    Industry's shorted, small-distance push and roll compensation, without stop halfway.
    Detection of tread track, tread track difference wheel base wheel base difference.
    Real-time display of kingpin, conventent for the adjustment of suspension bracket data.
    Real-time target monitoring.

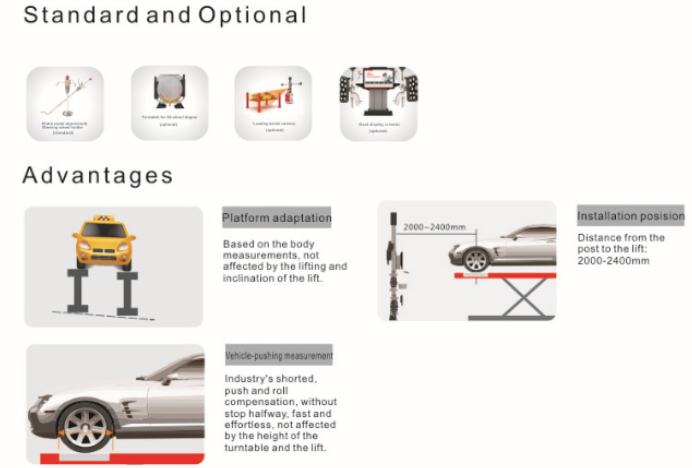

    Platform adaptation
    Based on the body measurements, not affected by the lifting and inclination of the lift.


    Installation posision
    Distance from the post to the lift: 2000-2400mm


    Vehicle-pushing measurement
    Industry 's shorted, push and roll compensation, without stop halfway, fast andeffortless. not affected by the height of the turntable and the lift.




    Package List:
    1set X LAUNCH X831T 3D 4-Post Car  Alignment Lift Platform
