KTM BENCH Read&Write ECU Via Boot/Bench No Open ECU PCMFlash V1.1.99 KTM-Bench Flash EEPROM Newest Professional ECU Programmer

Software Version:PCMFlash V1.99

Note: Please disconnect internet,do not update yourself . If locked,buyer need pay cost to send back repair. Do not risk this ,thank you .

KTM BENCH Functions:

1. NO LIMITS of the car model and year + NO NEED disassemble ECUs Read and write Bosch ECUs (Infineon's chips) incl. flash and eeprom

2. LESS RISK to clone/copy ECUs Able to modify data or do chip tuning to achieve superior performance

3. MUCH CHEAPER, compared with the same functional tools The price is 1/10 of other programming tools in the market



KTM BENCH Support:

Cover BMW N20, N55, N63, etc. to change or read/write ISN codes (done with other tools)

Cover Bentley MED17.1.1 to read/write immo data

Cover the latest Jaguar MED17.8.32

Cover VW MED17.5.5, MED17.5.22, MED17.5.25

...

ALL can be done without ECU disassembling Good equipment of high quality and with the best technology

Professional service and good efficiency



Read and write an ECU in two ways: BOOT and Bench

R/W an ECU via BOOT:

Infineon: TC1762/TC1766 MICRO (1504KB) (permanent)

Infineon: TC1762/TC1766 EEPROM (32KB) (permanent)

Infineon: TC1792/TC1796 MICRO (2048KB) (permanent)

Infineon: TC1796 MICRO+EXT (4096KB/6144KB) (permanent)

Infineon: TC1796 EXT (2048KB/4096KB) (permanent)

Infineon: TC1796 EEPROM (128KB) (permanent)

Infineon: TC1792 EEPROM (64KB) (permanent)

Infineon: TC1738/TC1767 MICRO (2048KB) (permanent)

Infineon: TC1738/TC1767 EEPROM (64KB) (permanent)

Infineon: TC1797 MICRO (4096KB) (permanent)

Infineon: TC1797 MICRO+EXT (6144KB/8192KB) (permanent)

Infineon: TC1797 EXT (2048KB/4096KB) (permanent)

Infineon: TC1797 EEPROM (64KB) (permanent)

Infineon: TC1724/TC1728 MICRO (1536KB) (permanent)

Infineon: TC1724/TC1728 EEPROM (64KB) (permanent)

Infineon: TC1782/TC1784 MICRO (2560KB) (permanent)

Infineon: TC1782/TC1784 EEPROM (128KB) (permanent)

Infineon: TC1793/TC1798 MICRO (4096KB) (permanent)

Infineon: TC1793/TC1798 MICRO+EXT (6144KB/8192KB) (permanent)

Infineon: TC1793/TC1798 EXT (2048KB/4096KB) (permanent)

Infineon: TC1793/TC1798 EEPROM (192KB) (permanent)

Bosch: BMW/MB/VAG GPT (permanent)

Bosch: Ford/Opel/Volvo GPT (permanent)

Bosch: BMW TPROT8+ (permanent)

Bosch: VAG TPROT8+ (permanent)

Bosch: Kia/Hyundai/Honda TPROT8+ (permanent)

Bosch: Chrysler/Jeep/Dodge/Fiat TPROT8+ [Test] (permanent)

Bosch: VAZ/UAZ ME17.9.71 (permanent)

Bosch: China ME17.8.8 (permanent)

Continental: Kia/Hyundai/SsangYong SIM2K-24X/C201 (permanent)

Continental: Ford EMS2204 (permanent)

Continental: Ford EMS2207 (permanent)

Continental: Ford EMS2211 (permanent)

Continental: Ford SID208 (permanent)

Continental: Ford SID209 (permanent)

Continental: Ford Mondeo 4 SID807EVO (permanent)

Continental: Ford Focus 3/Transit Connect SID807EVO (permanent)

Continental: Citroen/Peugeot SID208 (permanent)

Kia/Hyundai: Delphi MT86 EEPROM (16KB) (permanent)

Mercedes-Benz: Delphi CRD3.1 EEPROM (32KB) (permanent)



R/W an ECU on BENCH (without disassembling an ECU)

ECUs covered:

BOSCH_MED17.1.62_IROM_TC1793_EGPT_VAG

BOSCH_EDC17C60_IROM_TC1793_EGPT_PSA

BOSCH ME17.5.26 TC1724 VAG e-GPT

BOSCH_EDC17CP57_IROM_TC1793_EGPT_MERCEDES

BOSCH_EDC17C69_IROM_TC1793_EGPT_FCA

BOSCH_EDC17CP04_IROM_TC1796_EGPT_VAG

BOSCH_EDC17CP14_XROM_TC1796_EGPT_VAG

BOSCH_EDC17C19_IROM_TC1792_EGPT_OPEL

BOSCH_EDC17CP02_IROM_TC1766_EGPT_BMW

BOSCH_EDC17CP10_XROM_TC1796_EGPT_MEB

BOSCH_EDC17CP09_XROM_TC1796_EGPT_BMW

BOSCH_EDC17CP01_IROM_TC1796_EGPT_MEB

BOSCH_EDC17CP22_XROM_TC1796_EGPT_VOLVO

BOSCH_EDC17CP24_XROM_TC1796_EGPT_VAG

BOSCH_EDC17C08_IROM_TC1766_EGPT _KIA_HYUNDAI

BOSCH_EDC17CP20_XROM_TC1796_EGPT_VAG

BOSCH_EDC17CP07_IROM_TC1766_EGPT_TOYOTA

BOSCH_MEDV174_IROM_TC1766_EGPT_PSA

BOSCH_EDC17CP05_XROM_TC1796_EGPT_FORD

BOSCH_MEDV174_XROM_TC1796_EGPT_PSA

BOSCH_MEVD17.2_IROM_TC1797_EGPT_BMW

BOSCH_MED17.1_XROM_TC1796_EGPT_VAG

BOSCH_EDC17C10_IROM_TC1797_EGPT_PSA

BOSCH_EDC17CP45_IROM_TC1797_EGPT_BMW

BOSCH_EDC17CP10_XROM_TC1796_EGPT_MEB

BOSCH_EDC17CV52_IROM_TC1797_EGPT_DEUTZ

BOSCH_EDC17C18_IROM_TC1766_EGPT_OPEL

BOSCH_EDC17C10_IROM_TC1797_EGPT_FORD

BOSCH_MED17.1.1_IROM_TC1796_EGPT_VAG

BOSCH_EDC17C46_IROM_TC1767_EGPT_VAG

BOSCH_ME17.9.11_IROM_TC1762_EGPT _KIA_HYUNDAI

BOSCH_EDC17CP52_IROM_TC1797_EGPT _ALL_BRAND

BOSCH_EDC17C08_IROM_TC1766_EGPT_PIAGGIO

BOSCH_MED17.1.1_IROM_TC1797_EGPT_VAG

BOSCH_EDC17C42_IROM_TC1767_EGPT_NISSAN

BOSCH_EDC17CP22_XROM_TC1796_EGPT_VOLVO

BOSCH_EDC17CV54_IROM_TC1767_EGPT _ALLBRAND

KEFICO_MEG17.9.12_IROM_TC1762_EGPT_KIA

BOSCH_EDC17CV54_IROM_TC1767_EGPT _ALLBRAND

BOSCH_ME172_BMSX_IROM_TC1797_EGPT_BMW _MOTORRAD

BOSCH_EDC17C53_IROM_TC1767_EGPT_MAHINDRA

BOSCH_EDC17C55_IROM_TC1767_EGPT_MAHINDRAV

BOSCH_EDC17C49_IROM_TC1797_EGPT_ALL_BRAND

BOSCH_ME17.7.8_TC1797_EGPT_IROM_MEB

BOSCH_ME17.9.21_IROM_TC1724_EGPT_KTM

BOSCH_EDC17CP14_IROM_TC1796_EGPT _HYUNDAI_KIA

BOSCH_EDC17C53_IROM_TC1767_EGPT_MAHINDRA

BOSCH_EDC17CV54_IROM_TC1767_EGPT_ALLBRAND

BOSCH_MED17.0.1_IROM_TC1767_EGPT_FORD

BOSCH_E86_IROM_TC1797_EGPT_CHEVROLET_GMC

BOSCH_EDC17CV42_IROM_TC1797_EGPT

BOSCH_EDC17CV41_IROM_TC1797_EGPT _ALLBRAND

BOSCH ME17.3.0 TC1724 EGPT FAL

BOSCH_MED17.3.3_IROM_TC1793_EGPT_FAL

BOSCH_EDC17C53_IROM_TC1767_EGPT_SAME

BOSCH_MED17.1.61_IROM_TC1793_EGPT_VAG

BOSCH_EDC17CP14_XROM_TC1796_EGPT_VAG

BOSCH_EDC17C41_IROM_TC1797_EGPT_BMW

BOSCH_E86_XROM_TC1796_EGPT _CHEVROLET_GMC

BOSCH_EDC17C50_IROM_TC1797_EGPT_BMW

BOSCH_EDC17C56_IROM_TC1797_EGPT_BMW

BOSCH_EDC17CP49_IROM_TC1797_EGPT_BMW

BOSCH_ME17.9.74_IROM_TC1762_EGPT_POLARIS

BOSCH_EDC17C64_IROM_TC1797_EGPT_VAG

BOSCH_MEVD172G_IROM_TC1797_EGPT_BMW

BOSCH_MEVD1728_IROM_TC1797_EGPT_BMW

BOSCH_EDC17CP48_IROM_TC1797_EGPT_VOLVO

BOSCH_EDC17C57_IROM_TC1793_EGPT _KIA_HYUNDAI

BOSCH_MED17.8.31_IROM_TC1797_EGPT_JAGUAR_LR

BOSCH_EDC17C59_IROM_TC1767_EGPT_OPEL

BOSCH_MED17.5.2_IROM_TC1767_EGPT_VAG

BOSCH_MED17.5.21_IROM_TC1782_EGPT_VAG

BOSCH_MED17.5.5_IROM_TC1767_EGPT_VAG

BOSCH_ME17.5.24_IROM_TC1724_EGPT_VAG

BOSCH_ME17.2.4.2_BMSO_IROM_TC1793_EGPT _BMW_MOTORRAD

BOSCH_EDC17C74_IROM_TC1793_EGPT_VAG

BOSCH_ME17.8.3_IROM_TC1797_EGPT_MCLAREN

BOSCH_MED17.3.4_IROM_TC1797_EGPT_MASERATI

BOSCH_EDC17C66_IROM_TC1793_EGPT_MERCEDES

BOSCH_MED17.7.5_IROM_TC1793_EGPT_MERCEDES

BOSCH_MED17.5.5_IROM_TC1766_EGPT_VAG

BOSCH_EDC17CP14_XROM_TC1796_EGPT_VAG

BOSCH_EDC17CP47_IROM_TC1797_EGPT_OPEL

BOSCH_MEVD17.2.3_IROM_TC1793_EGPT_BMW_MINI

BOSCH_MED17.1_IROM_TC1796_EGPT_VAG

BOSCH_EDC17C84_IROM_TC1782_EGPT_NISSAN

BOSCH_MED17.5.25_IROM_TC1782_EGPT_VAG

BOSCH_MED17.8.31_IROM_TC1797_EGPT _ASTONMARTIN

BOSCH_MED17.4.4_IROM_TC1793_EGPT_PSA

BOSCH_EDC17CP68_IROM_TC1797_EGPT_VOLVO

BOSCH_ME17.9.21_IROM_TC1724_EGPT_DUCATI

BOSCH_EDC17C73_IROM_TC1793_EGPT_TOYOTA

BOSCH_ME17.5.6_IROM_TC1767_EGPT_VAG

BOSCH_ME17.1.1_IROM_TC1796_EGPT_VAG

BOSCH_MED17.1.11_IROM_TC1797_EGPT_PORSCHE

BOSCH_MED17.1.21_IROM_TC1793_EGPT_VAG

BOSCH_EDC17CP50_IROM_TC1797_EGPT_HONDA

BOSCH_MED17.9.3_IROM_TC1793_EGPT_HONDA

BOSCH_EDC17C79_IROM_TC1797_EGPT_FCA

BOSCH_MED17.3.5_IROM_TC1793_EGPT_FCA

BOSCH_MED17.9.7_IROM_TC1767_EGPT_JAGUAR_LRV

BOSCH_EDC17CV42_IROM_TC1797_EGPT_MAN

BOSCH_MEDC17.9_IROM_TC1793_EGPT_JAGUAR_LR

BOSCH_EDC17CP55_IROM_TC1793_EGPT_JAGUAR

BOSCH_EDC17CP62_IROM_TC1793_EGPT _KIA_HYUNDAI

BOSCH_EDC17C70_IROM_TC1793_EGPT_FORD

BOSCH_EDC17C53_IROM_TC1767_EGPT_KIA_HYUNDA

BOSCH_MED17.2_IROM_TC1767_EGPT_FORD

BOSCH_MED17.1.27_IROM_TC1793_EGPT_VAG

BOSCH_MED17.9.63_IROM_TC1793_EGPT_SUZUKI

BOSCH_EDC17C49_IROM_TC1797_EGPT_ALL_BRAND

BOSCH_EDC17C76_IROM_TC1793_EGPT_BMW

BOSCH_ME17.5.20_IROM_TC1767_EGPT_VAG

BOSCH_EDC17C54_IROM_TC1797_EGPT_VAG

BOSCH_EDC17C53_IROM_TC1767_EGPT_MAHINDRA

BOSCH_EDC17CP65_IROM_TC1793_EGPT_FORD

BOSCH_EDC17C69_IROM_TC1793_EGPT_FCA

BOSCH_ME17.9.64_IROM_TC1724_EGPT_SUZUKI

BOSCH_ME17.9.52_IROM_TC1782_EGPT_TOYOTA

BOSCH_ME17.9.71_IROM_TC1724_EGPT_PSA

BOSCH_ME17.9.23_IROM_TC1724_EGPT

BOSCH_ME17.7_XROM_TC1796_EGPT_MEB

BOSCH_MED17.1.10_IROM_TC1793_EGPT_VAG

BOSCH_ME17.9.71_IROM_TC1724_EGPT_PSA

BOSCH ME17.5.22 TC1724 VAG e-GPT

BOSCH_EDC17CP05_IROM_TC1797_EGPT_FORD

BOSCH_ME17.2.4_BMSMP_IROM_TC1793_EGPT _BMW_MOTORRAD

BOSCH_MED17.0.7_IROM_TC1782_EGPT_FORD

BOSCH_MEVD1784_IROM_TC1797_EGPT_BMW

BOSCH_EDC17C83_IROM_TC1793_EGPT_ISUZU

BOSCH_MED17.8.32_IROM_TC1793_EGPT_JAGUAR_LR

BOSCH_MED17.7.7_IROM_TC1793_EGPT_MEB

BOSCH_ME17.9.53_IROM_TC1782_EGPT_TOYOTA

BOSCH_ME17.8.33_IROM_TC1793_MCLAREN



If buyer need details supported list ,please contact us ,we will send you .

We have details Wiring Diagram to conenct with this tool For Bosch and PDF files to show connection with different ECU Computer.Please contact  us to send you weblink .

What is differences between KTMBENCH ,KTMFLASH and KTMOBD?

KTM Bench Boot is the latest ECU programming tool for ECU read and write via Boot mode or on bench.

KTMFlash ECU programmer can read the chip data, read & write ECU data. read transmission data etc. at a high speed.

KTMOBD programmer was born for reading chip data, reading and writing data of ECUs and a few types

ECU programming tool	KTM BENCH	KTMOBD	KTMFLASH
Language	English, Russian	English, Russian	English, Russian
Software	PCMFlash	PCMFlash	PCMFlash
Run	USB Dongle and software	USB Dongle and software	USB Dongle and software
Operating system	Window XP;	Window XP;	Window XP;
	Windows 7;	Windows 7;	Windows 7;
	Windows 10;	Windows 10;	Windows 10;
Speed	High	High	High
Risk	Less risk	Less risk	Risky
Method	via Boot	via OBD	Most ECUs need to be disassembled for r/w
	on Bench
	(no need to open the cover)
ECU disassemble	NO	NO	Most yes!
ECU read/write	Yes	Yes	Yes
Gearbox or transmission read/write	NO	Yes, only a few	Yes
Chip read/write	NO	Yes	Yes

In conclusion:

All programming tools above can be used for ECU read and write, but differs in ECU coverage and Read/Write method.

There is NO LIMITS of the car model and year when using KTM bench to read/write data.

But if you have chips and gearboxes to read and write, you should have a KTM flash. The bad is: disassembling is required. KTM bench doesn’t cover chips and gearboxes and KTM OBD cannot not work good for gerabox Read/Write.

So, you’d better check the ECU/gearbox/chip before your purchase.

Check each car list on corresponding product page.

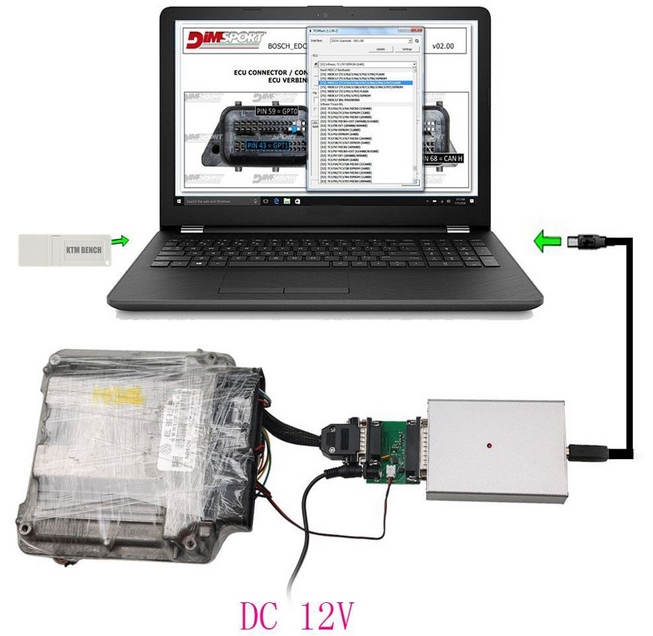

KTM Bench ECU Connection Display:

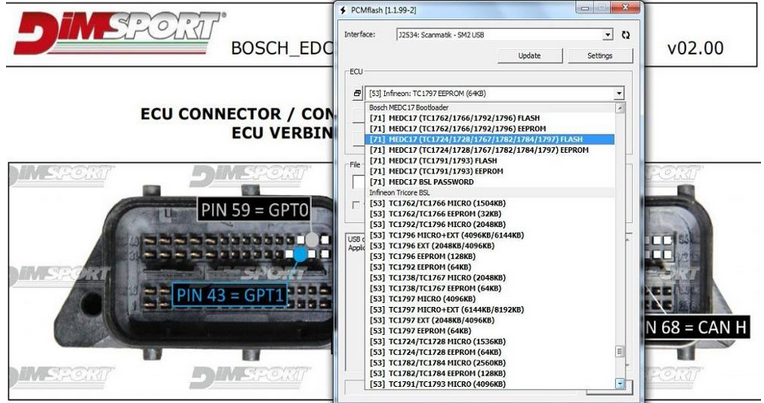

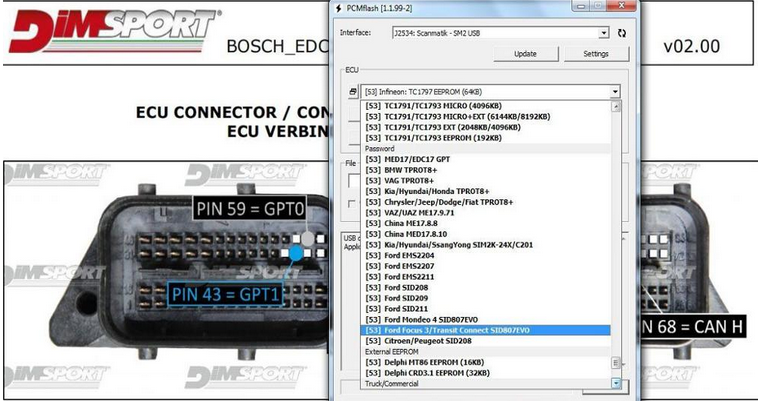

KTM Bench ECU Software Display:

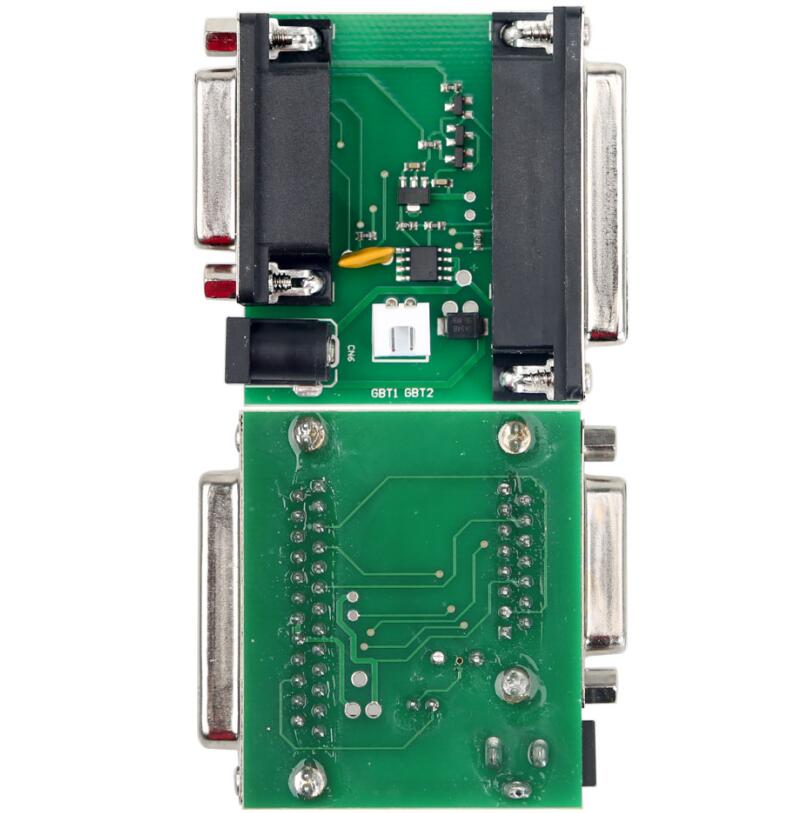

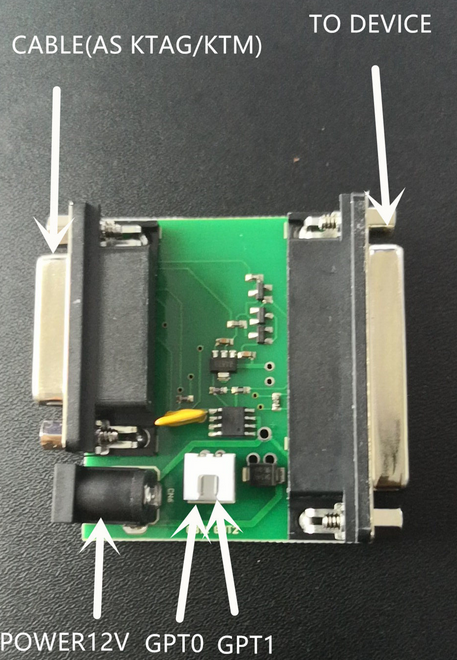

Green Board Adapter Connection:

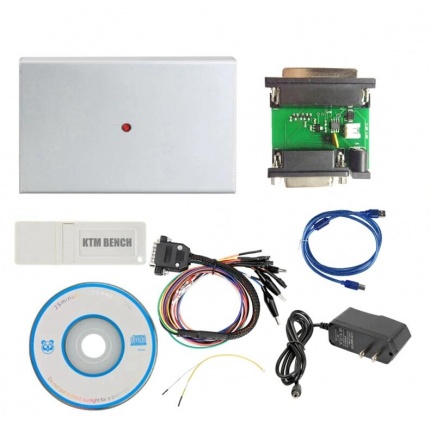

Package list:

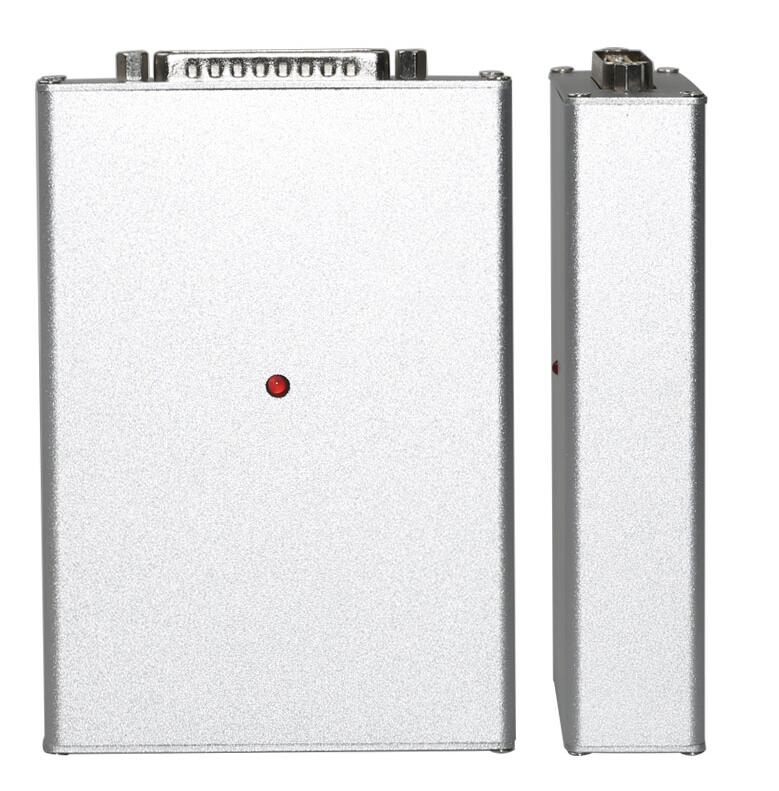

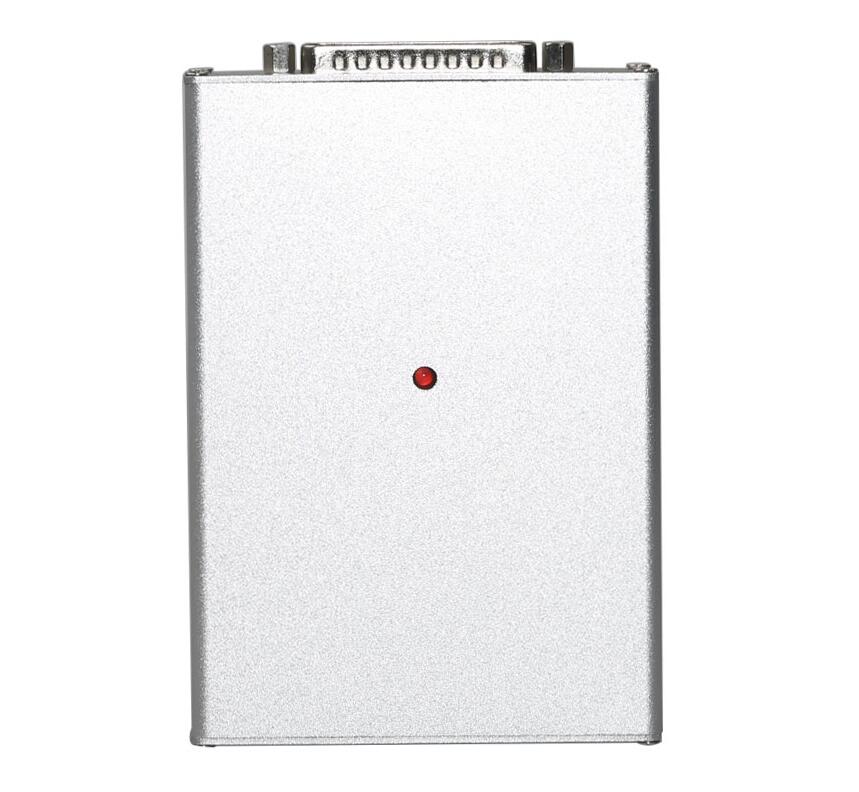

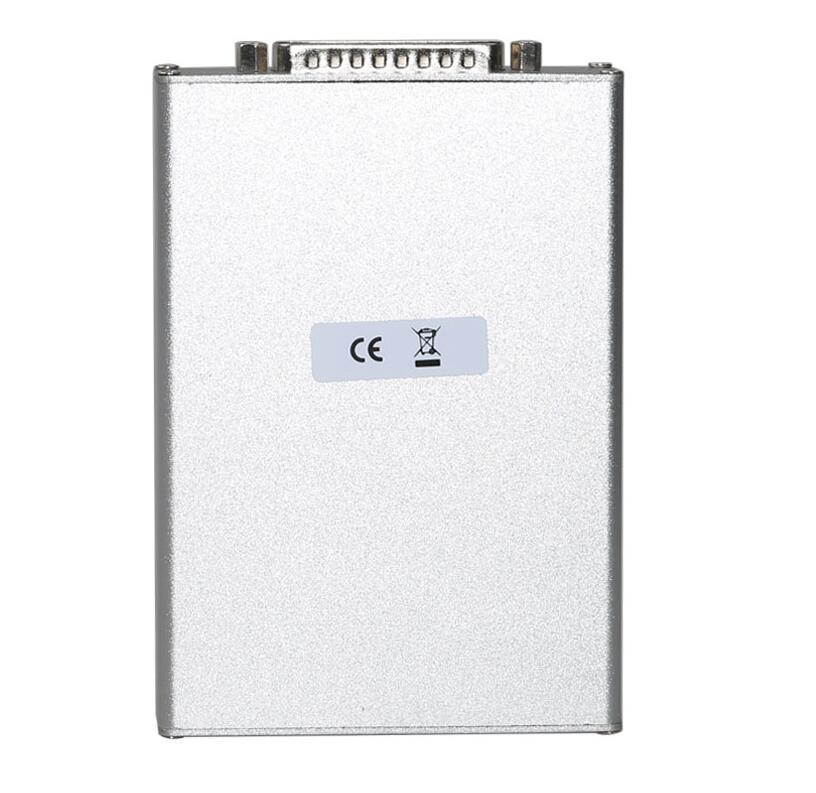

1 x KTM BENCH Unit

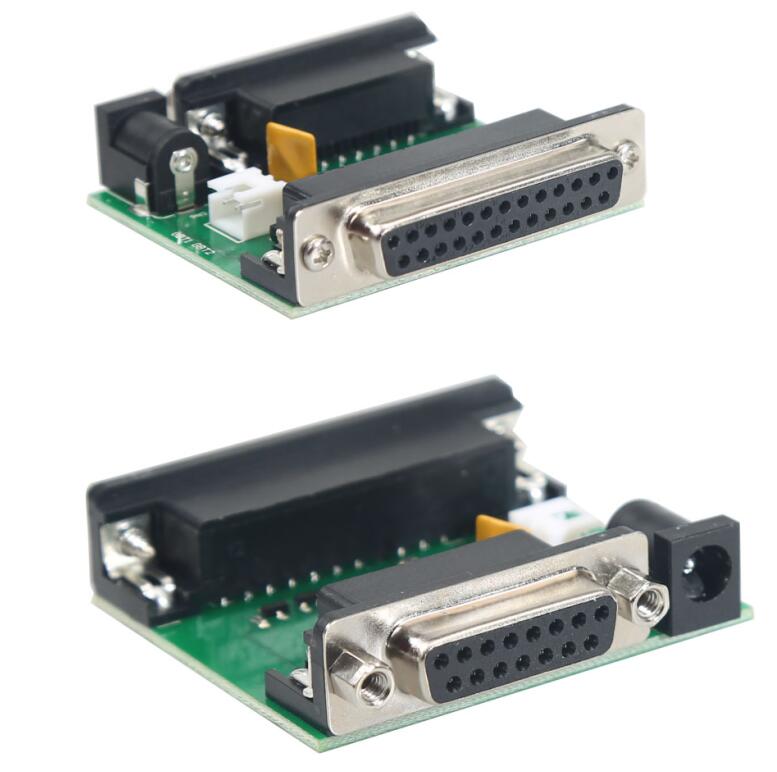

1 x Green PCB Adapter

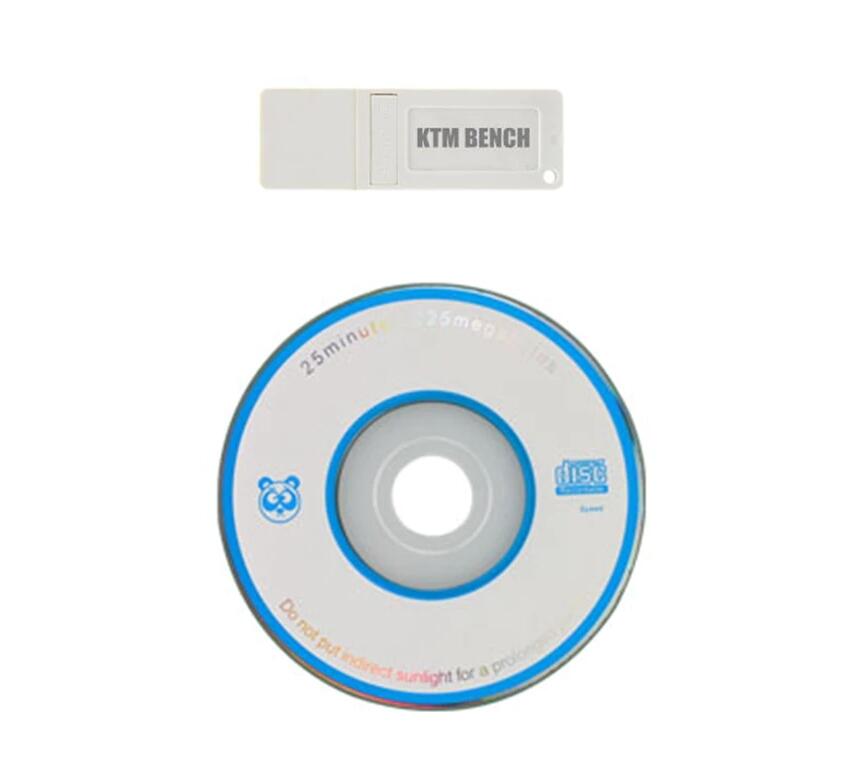

1 x USB Dongle

1 x DB15 Color Wire

1 x Charger Power

1 x USB Cable

1 x CD Software
