GODIAG K101 Hand-held Key Programmer for Mazda Subaru

GODIAG K101 Product Description
GODIAG K101 is an auto key programmer which is specially designed to program auto key for latest Mazda vehicles.
It covers a wide range of vehicles, most of which can be supported up to year 2016, 2017 and even some models are available up to year 2018.
For hardware, it adopts updated main board, making operation easy, fast and better customer experience, which can be widely applied to after market, auto technicians, individuals.

K101 Software Highlights:
-MAZDA 3(Axela) proximity 2018- read pin code, add keys, all key lost, program remote
-MAZDA 6(Atenza) 2017-2018  read pin code, add keys, all key lost, program remote
-MAZDA CX-3/ CX-4/ CX-5/ CX-7/ CX-8/ CX-9 2018- read pin code, add keys, all key lost, program remote

K101 Feature:
1. Fast and Stable Operation
2. HD Color Display Screen
3. Shockproof and Durable Design
4. Support High Capacity TF Card or USB

K101 Support models list:

Brand	Area	Model	Key Type	Year	Show key count	Pin Code Read	No Need PinCode	Add Keys	All key Lost	Program Remote	Other Function
SUBARU	AFRICA	FORESTER	BLADE	1998-2002			✔		✔	✔
SUBARU	AFRICA	OUTBACK	BLADE	1998-2004			✔		✔	✔
SUBARU	AFRICA	TREZIA	PROXIMITY	2010-2015	✔		✔	✔	✔	✔	Reset Smart Key ECU/Program ID Box With Steering Lock/Remote Engine Start
SUBARU	ASIA	BAJA	BLADE	2005-2007			✔		✔	✔
SUBARU	ASIA	FORESTER	BLADE	2003-2008	✔		✔		✔	✔
SUBARU	ASIA	NEW FORESTER	BLADE				✔	✔		✔	ECM Programming/ICM Programming
SUBARU	ASIA	IMPREZA	BLADE	1998-2011			✔		✔	✔
SUBARU	ASIA	LEGACY	BLADE	2003-2009			✔		✔	✔
SUBARU	ASIA	OUTBACK	BLADE	2013		✔		✔		✔
SUBARU	ASIA	OUTBACK	BLADE	2005-			✔		✔	✔
SUBARU	ASIA	OUTBACK BP	BLADE				✔		✔	✔
SUBARU	ASIA	TRIBECA	BLADE		✔		✔		✔	✔
SUBARU	ASIA	TRIBECA B9	BLADE				✔		✔	✔
SUBARU	ASIA	XV	BLADE		✔		✔	✔		✔	ECM Programming/ICM Programming
SUBARU	ASIA	OTHER	BLADE				✔		✔	✔
SUBARU	AUSTRALIA	BRZ	BLADE	2013-			✔	✔	✔	✔
SUBARU	AUSTRALIA	BRZ	PROXIMITY	2013-			✔	✔		✔
SUBARU	AUSTRALIA	FORESTER	BLADE	1998-2012	✔		✔		✔	✔
SUBARU	AUSTRALIA	FORESTER	PROXIMITY	2013-			✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	AUSTRALIA	IMPREZA	BLADE	1997-2012	✔		✔		✔	✔
SUBARU	AUSTRALIA	IMPREZA	PROXIMITY	2013-			✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	AUSTRALIA	IMPREZA	PROXIMITY	2007-2014		✔		✔		✔	Intelligent ECM Programming
SUBARU	AUSTRALIA	LEVORG	PROXIMITY	2016-			✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	AUSTRALIA	LIBERTY	BLADE	2009-2012			✔		✔	✔
SUBARU	AUSTRALIA	LIBERTY	PROXIMITY	2013-			✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	AUSTRALIA	LIBERTY	PROXIMITY	2007-2014		✔		✔		✔	Intelligent ECM Programming
SUBARU	AUSTRALIA	OUTBACK	BLADE	2015-2017			✔	✔		✔	ECM Programming/ICM Programming
SUBARU	AUSTRALIA	OUTBACK	BLADE	2000-2011			✔		✔	✔
SUBARU	AUSTRALIA	OUTBACK	PROXIMITY	2015-2017	✔		✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	AUSTRALIA	TRIBECA	BLADE	2006-2012			✔		✔	✔
SUBARU	AUSTRALIA	WRX	BLADE	2014-	✔		✔	✔		✔	ECM Programming/ICM Programming
SUBARU	AUSTRALIA	WRX	PROXIMITY	2014-			✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	AUSTRALIA	XV	BLADE	2014-			✔	✔		✔	ECM Programming/ICM Programming
SUBARU	AUSTRALIA	XV	PROXIMITY	2017-			✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	EUROPE	FORESTER	BLADE	2013-			✔	✔		✔	ECM Programming/ICM Programming
SUBARU	EUROPE	FORESTER	BLADE	1998-2012			✔	✔		✔
SUBARU	EUROPE	FORESTER	PROXIMITY	2010-2015		✔		✔		✔	Intelligent ECM Programming
SUBARU	EUROPE	IMPREZA	BLADE	2002-2009	✔		✔		✔	✔
SUBARU	EUROPE	IMPREZA	PROXIMITY	2013-			✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	EUROPE	IMPREZA	PROXIMITY	2008-2012	✔	✔		✔		✔	Intelligent ECM Programming
SUBARU	EUROPE	IMPREZA HATCHBACK	BLADE				✔		✔	✔
SUBARU	EUROPE	IMPREZA STI	PROXIMITY	2013-		✔		✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	EUROPE	IMPREZA STI	PROXIMITY	2008-2012		✔		✔		✔	Intelligent ECM Programming
SUBARU	EUROPE	LEGACY	BLADE	2009-	✔		✔		✔	✔
SUBARU	EUROPE	LEGACY	PROXIMITY	2011-2014			✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	EUROPE	LEVORG	PROXIMITY	2015-	✔		✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	EUROPE	OUTBACK	BLADE	2014-			✔	✔		✔	ECM Programming/ICM Programming
SUBARU	EUROPE	OUTBACK	BLADE	2005-2009			✔		✔	✔
SUBARU	EUROPE	OUTBACK	BLADE	1998-2003			✔		✔	✔
SUBARU	EUROPE	TRIBECA	BLADE	2007			✔		✔	✔
SUBARU	EUROPE	WRX	PROXIMITY	2014-			✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	EUROPE	XV	BLADE	2013-			✔	✔		✔	ECM Programming/ICM Programming
SUBARU	EUROPE	XV	PROXIMITY	2013-			✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	MIDDLE EAST	B4	PROXIMITY	2009-		✔		✔		✔	Intelligent ECM Programming
SUBARU	MIDDLE EAST	FORESTER	BLADE	2012-2016	✔		✔	✔		✔	ECM Programming/ICM Programming
SUBARU	MIDDLE EAST	IMPREZA	BLADE	2013-	✔		✔	✔		✔	ECM Programming/ICM Programming
SUBARU	MIDDLE EAST	IMPREZA	PROXIMITY	2008-	✔	✔		✔		✔	Intelligent ECM Programming
SUBARU	MIDDLE EAST	OUTBACK	PROXIMITY	2008-	✔	✔		✔		✔	Intelligent ECM Programming
SUBARU	MIDDLE EAST	XV	BLADE	2013-	✔		✔	✔		✔	ECM Programming/ICM Programming
SUBARU	NORTH AMERICA	BAJA	BLADE	2006			✔		✔	✔
SUBARU	NORTH AMERICA	BRZ	BLADE	2013-2015	✔		✔	✔	✔	✔
SUBARU	NORTH AMERICA	BRZ	PROXIMITY	2013-2015	✔		✔	✔		✔
SUBARU	NORTH AMERICA	CROSSTREK	BLADE	2014-2016	✔		✔	✔		✔	ECM Programming/ICM Programming
SUBARU	NORTH AMERICA	CROSSTREK	PROXIMITY	2014-2016	✔		✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	NORTH AMERICA	FORESTER	BLADE	2005-2013			✔		✔	✔
SUBARU	NORTH AMERICA	FORESTER	REMOTE	2005-2012						✔
SUBARU	NORTH AMERICA	FORESTER XT	BLADE	2005-2008			✔		✔	✔
SUBARU	NORTH AMERICA	FORESTER XT	REMOTE							✔
SUBARU	NORTH AMERICA	IMPREZA	BLADE	2013-2016	✔		✔	✔		✔	ECM Programming/ICM Programming
SUBARU	NORTH AMERICA	IMPREZA	BLADE	2005-2012			✔		✔	✔
SUBARU	NORTH AMERICA	IMPREZA	PROXIMITY	2013-2016	✔		✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	NORTH AMERICA	IMPREZA	REMOTE	2008-2012						✔
SUBARU	NORTH AMERICA	IMPREZA	REMOTE	2005-2012						✔
SUBARU	NORTH AMERICA	IMPREZA WRX	BLADE	2006-			✔		✔	✔
SUBARU	NORTH AMERICA	IMPREZA WRX	REMOTE	2006-						✔
SUBARU	NORTH AMERICA	IMPREZA WRX STI	BLADE	2005-2012			✔		✔	✔
SUBARU	NORTH AMERICA	IMPREZA WRX STI	REMOTE	2005-2012						✔
SUBARU	NORTH AMERICA	LEGACY	BLADE	2015-2016	✔		✔	✔		✔	ECM Programming/ICM Programming
SUBARU	NORTH AMERICA	LEGACY	BLADE	2006-2013			✔		✔	✔
SUBARU	NORTH AMERICA	LEGACY	PROXIMITY	2014-2016	✔		✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	NORTH AMERICA	LEGACY	REMOTE	2006-2014						✔
SUBARU	NORTH AMERICA	LEGACY GT	BLADE	2005-2010			✔		✔	✔
SUBARU	NORTH AMERICA	LEGACY GT	REMOTE	2005-2010						✔
SUBARU	NORTH AMERICA	OUTBACK	BLADE	2015-2016	✔		✔	✔		✔	ECM Programming/ICM Programming
SUBARU	NORTH AMERICA	OUTBACK	BLADE	2006-2012			✔		✔	✔
SUBARU	NORTH AMERICA	OUTBACK	PROXIMITY	2015-2016	✔		✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	NORTH AMERICA	OUTBACK	REMOTE	2006-2015						✔
SUBARU	NORTH AMERICA	OUTBACK XT	BLADE	2005			✔		✔	✔
SUBARU	NORTH AMERICA	OUTBACK XT	REMOTE	2005						✔
SUBARU	NORTH AMERICA	STI	BLADE	2005-2010			✔		✔	✔
SUBARU	NORTH AMERICA	TRIBECA	BLADE	2008-2012			✔		✔	✔
SUBARU	NORTH AMERICA	TRIBECA	REMOTE	2008-2012						✔
SUBARU	NORTH AMERICA	TRIBECA B9	BLADE	2006-2007			✔		✔	✔
SUBARU	NORTH AMERICA	TRIBECA B9	REMOTE	2006-2007						✔
SUBARU	NORTH AMERICA	WRX	BLADE	2015-2016	✔		✔	✔		✔	ECM Programming/ICM Programming
SUBARU	NORTH AMERICA	WRX	PROXIMITY	2015-2016	✔		✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
SUBARU	NORTH AMERICA	XV CROSSTREK	BLADE	2013-2016	✔		✔	✔		✔	ECM Programming/ICM Programming
SUBARU	NORTH AMERICA	XV CROSSTREK	PROXIMITY	2013-2016	✔		✔	✔		✔	ESCL Programming/ECM Programming/Read Program History
MAZDA	ALL	B SERIES	BLADE	2007-	✔	✔		✔	✔	✔
MAZDA	ALL	BT50	BLADE	2012-	✔	✔		✔	✔	✔
MAZDA	ALL	MAZDA 121	BLADE		✔	✔		✔	✔	✔
MAZDA	ALL	MAZDA 2	PROXIMITY		✔	✔		✔	✔	✔
MAZDA	ALL	MAZDA 2	BLADE		✔	✔		✔	✔	✔
MAZDA	ALL	MAZDA 2	PROXIMITY	2014-		✔		✔	✔	✔
MAZDA	ALL	MAZDA 2	PROXIMITY	2017		✔		✔	✔	✔
MAZDA	ALL	MAZDA 2	PROXIMITY	2018		✔		✔	✔	✔
MAZDA	ALL	MAZDA 3	BLADE		✔	✔		✔	✔	✔	Synchronous Engine And Immobiliser ECU
MAZDA	ALL	MAZDA 3(Axela)	PROXIMITY	2013-		✔		✔	✔	✔
MAZDA	ALL	MAZDA 3(Axela)	PROXIMITY	2017		✔		✔	✔	✔
MAZDA	ALL	MAZDA 3(Axela)	PROXIMITY	2018-		✔		✔	✔	✔
MAZDA	ALL	MAZDA 5	BLADE		✔	✔		✔	✔	✔	Synchronous Engine And Immobiliser ECU
MAZDA	ALL	MAZDA 6	PROXIMITY			✔		✔	✔	✔
MAZDA	ALL	MAZDA 6	BLADE			✔		✔	✔	✔	Spare Key Setting Valid/Spare Key Setting Invalid
MAZDA	ALL	MAZDA 6(Atenza)	PROXIMITY	2013-		✔		✔	✔	✔
MAZDA	ALL	MAZDA 6(Atenza)	PROXIMITY	2017		✔		✔	✔	✔
MAZDA	ALL	MAZDA 6(Atenza)	PROXIMITY	2018-		✔		✔	✔	✔
MAZDA	ALL	MAZDA 6(New MAZDA 6)	PROXIMITY			✔		✔	✔	✔
MAZDA	ALL	MAZDA 6(New MAZDA 6)	BLADE			✔			✔	✔
MAZDA	ALL	MAZDA 8	PROXIMITY			✔		✔	✔	✔
MAZDA	ALL	MAZDA 8	BLADE			✔		✔	✔	✔	Spare Key Setting Valid/Spare Key Setting Invalid
MAZDA	ALL	MAZDA CX-3	PROXIMITY	2018-		✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-3	PROXIMITY	2017		✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-3	PROXIMITY	2013-2016		✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-4	PROXIMITY	2013-		✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-4	PROXIMITY	2017		✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-4	PROXIMITY	2018-		✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-5	PROXIMITY	2018-		✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-5	PROXIMITY	2017		✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-5	PROXIMITY	2013-2016		✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-7	PROXIMITY	2018-		✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-7	PROXIMITY	2017		✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-7	PROXIMITY	-2016		✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-7	BLADE	2004-2009	✔	✔		✔	✔	✔	Synchronous Engine And Immobiliser ECU
MAZDA	ALL	MAZDA CX-7	BLADE	2009-		✔		✔	✔	✔	Spare Key Setting Valid/Spare Key Setting Invalid
MAZDA	ALL	MAZDA CX-8	PROXIMITY	2018-		✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-9	PROXIMITY	2018-		✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-9	PROXIMITY	2017		✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-9	PROXIMITY	-2013		✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-9	BLADE	2009-2016	✔	✔		✔	✔	✔
MAZDA	ALL	MAZDA CX-9	BLADE	2004-2009	✔	✔		✔	✔	✔	Synchronous Engine And Immobiliser ECU
MAZDA	ALL	MAZDA DEMIO	BLADE	2017-		✔		✔	✔	✔
MAZDA	ALL	MAZDA DEMIO	PROXIMITY	2014-		✔		✔	✔	✔
MAZDA	ALL	MAZDA DEMIO	PROXIMITY	2008-2013	✔	✔		✔	✔	✔
MAZDA	ALL	MAZDA DEMIO	BLADE	2008-2013	✔	✔		✔	✔	✔
MAZDA	ALL	MAZDA DEMIO	BLADE	2002-2007	✔	✔		✔	✔	✔
MAZDA	ALL	MAZDA DEMIO	BLADE	-2001	✔	✔		✔	✔	✔
MAZDA	ALL	MAZDA M2	BLADE	2018-		✔		✔	✔	✔
MAZDA	ALL	MAZDA MX-5	BLADE	2018-		✔		✔	✔	✔
MAZDA	ALL	MAZDA MX-5	BLADE	2017-		✔		✔	✔	✔
MAZDA	ALL	MAZDA MX-5	BLADE	2009-2016		✔		✔	✔	✔
MAZDA	ALL	MAZDA MX-5	BLADE	2004-2009	✔	✔		✔	✔	✔	Synchronous Engine And Immobiliser ECU
MAZDA	ALL	MAZDA MX-5 MIATA	BLADE	2005-2013	✔	✔		✔	✔	✔
MAZDA	ALL	MAZDA PREMACY	PROXIMITY	2005	✔	✔		✔	✔	✔
MAZDA	ALL	MAZDA RX-8	PROXIMITY	2009	✔	✔		✔	✔	✔
MAZDA	ALL	MAZDA RX-8	BLADE	2009	✔	✔		✔	✔	✔
MAZDA	ALL	MAZDA RX-8	BLADE	2004-2009	✔	✔		✔	✔	✔
MAZDA	ALL	MAZDA TRIBUTE	BLADE	2009-2011	✔	✔		✔	✔	✔
MAZDA	ALL	MAZDA TRIBUTE	BLADE	2005-2008	✔	✔		✔	✔	✔
MAZDA	ALL	MAZDA TRIBUTE	BLADE	2001-2004	✔	✔		✔	✔	✔

Product Parameters:
CPU: ARM7
Display Screen: TF 320x240
Dimension:202x106x31.6mm
Power Supply: DC12V
Work Voltage: DC12V
Work Temperature:-20-60℃

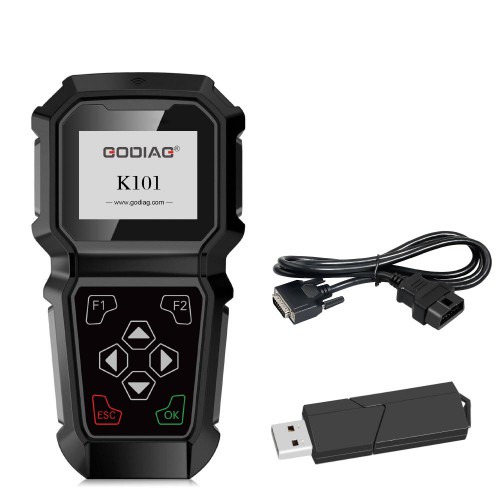

Package includes:

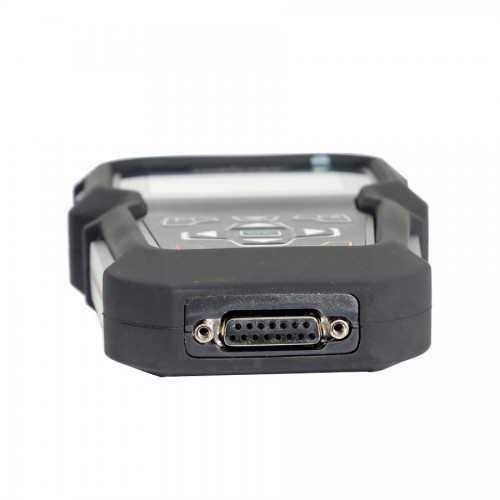

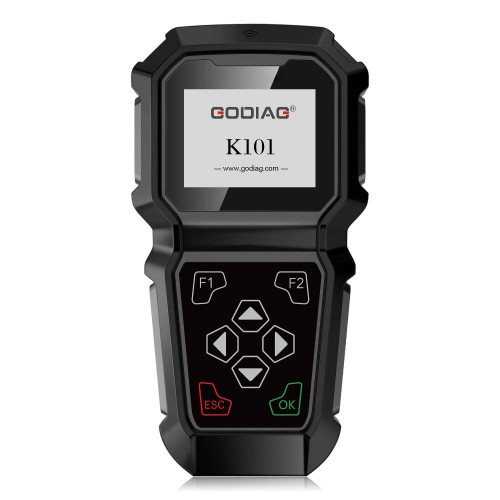

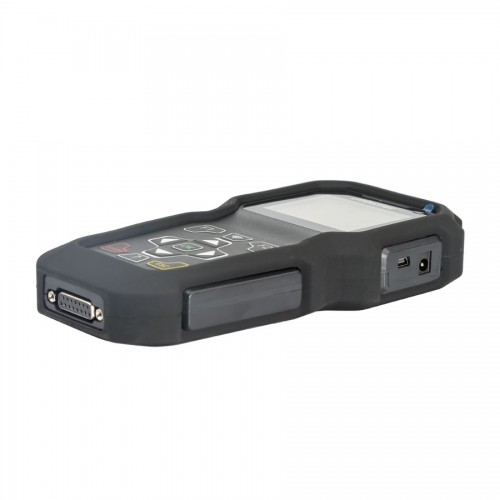

1pc x GODIAG K101 Main Unit

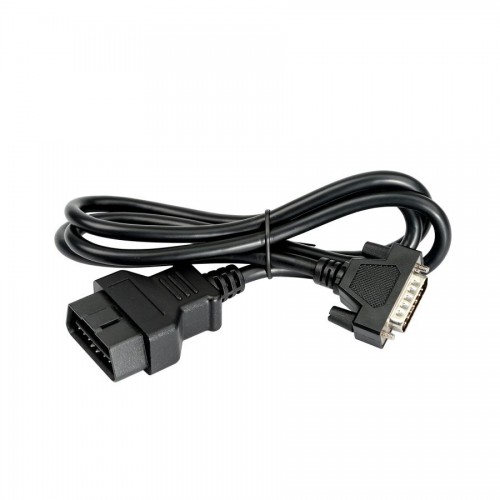

1pc x Main Cable

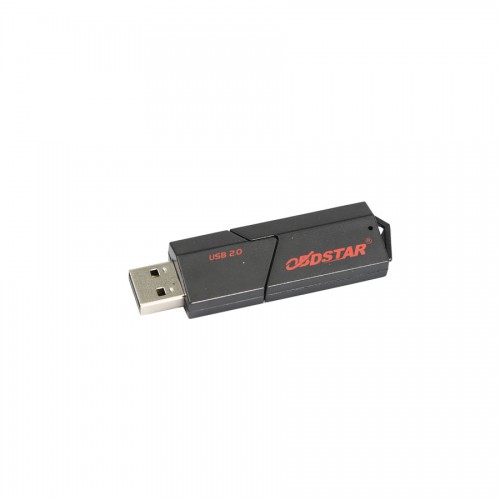

1pc x SD Card Reader
