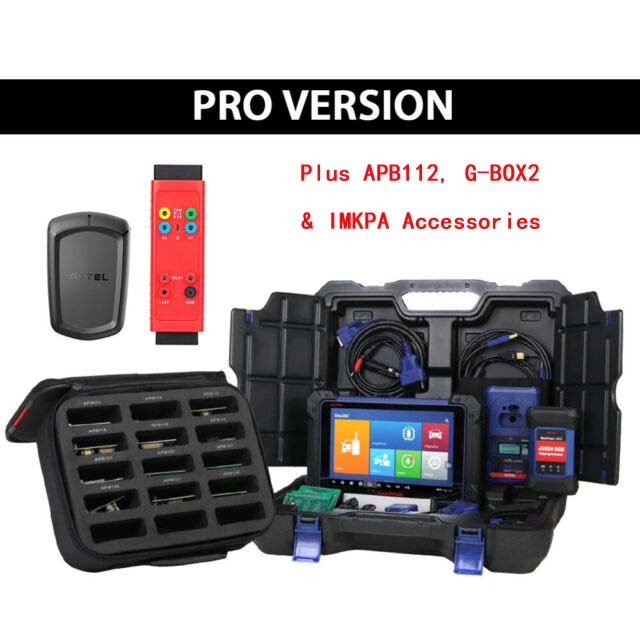

Autel MaxiIM IM608 PRO Auto Key Programmer & Diagnostic Tool Plus APB112, G-BOX2 & IMKPA Accessories for Renew & Unlock

Autel MaxiIM IM608 PRO Highlights:
1. Upgraded Version of Autel IM608 Key Programmer
2. One Year Free Update Online on Autel Official Website
3. Comes with XP400 Pro which adds more functionality for BMW, Mercedes-Benz, as well as EEPROM reading
4. Used with IMKPA Accessories Which adds BMW EWS3 key learning, Benz NEC key learning and Benz ESL_W209 read/write/erase
5. Existing Autel IM508/ IM608 Users Can Upgrade To IM608 Pro by Purchasing XP400 Pro Programmer
6.With Autel APB112 Smart Key Simulator and G-BOX2 Adapter

AUTEL IM608 PRO Functions Supported:
1. IMMO Functions
Auto Detect Make/Model/Year/System
Read PIN (All Key Lost)
Key Learning
IMMO ECU Reset/Adaption
IMMO ECU Refresh/Coding
Remote Learning
AUDI Q5/A4/A5 2015-2017 Key Learning
VW MQB Key Learning
BMW FEM/BDC Key Learning and Adaption
BMW CAS4 Key Learning and Adaption
Mercedes Key Learning
2015-2018 Land Rover & Jaguar write key via dump
Volvo Smart Key Learning/knob-style smart key
 Advanced Programming Functions

EEPROM Read/Write
MCU Read/Write
Key Programming
Mercedes Key Read/Write
Remote Frequency Detect

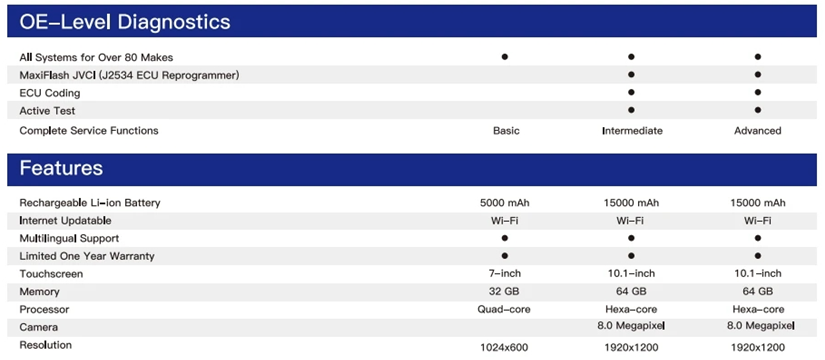

OE-Level Diagnostics

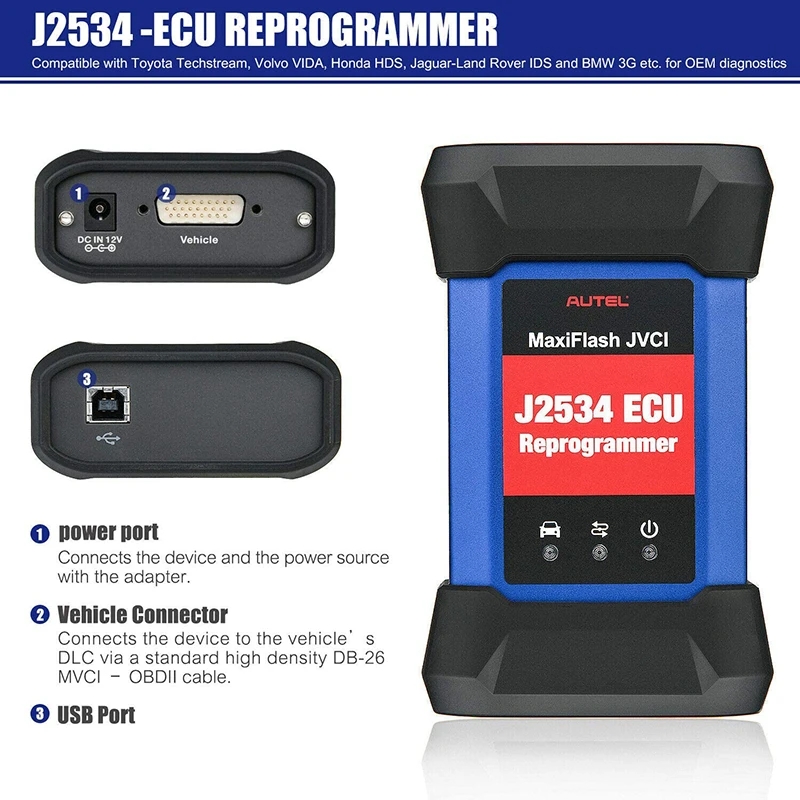

2. All system diagnostics and Advanced Service Functions (Work with the MaxiFlash JVCI (J2534 ECU Reprogrammer))
Oil Service Reset
Parking Brake Pad Relearn After Replacement
Steering Angle Sensor Relearn
Battery Registration and Reset
Diesel Particulate Filter Regeneration
Tire Pressure Monitoring System
Active Test
ECU Coding
VW/Audi Component Protection
Complete Service Functions

XP400Pro adds support for following chips:
EEPROM-->>AMD-->>AM29FXXX series chip
EEPROM-->> FUJITSU-->> MB29FXXX series chip
EEPROM-->> ST-->> M29FXXX series chip
Engine control module-->> ST-->> M29FXXX series chip
IMMO-->> BENZ-->> ESL_W209_W906 (Motorola) read/write/erase function
IMMO-->> BMW-->>EWS3 module read/write function
REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase

XP400 Pro adds support for following adaptor board:
APB113 PCF79XXadaptor board
APB114 EWS3 adaptor board
APB115 NEC Adapter board
APB118 NEC ELV adaptor board
APB119 TB28FXXXadaptor board
APB120 TMS370adaptor board
APB121 AM29FXXX Adapter board
APB122 AM29FXXX adaptor board1
APB123 AM29FXXX adaptor board2
APB126 M35080/D80 adaptor board
APB127 MC68HC0(7)05BXX adaptor board
APB128 MC68HC05X32 adaptor board

IMKPA accessories kit works with the XP400Pro and supports the following functions:
Currently supports over 10 key unlock types
BMW EWS3 key learning
Benz NEC key learning
Benz ESL_W209 read/write/erase

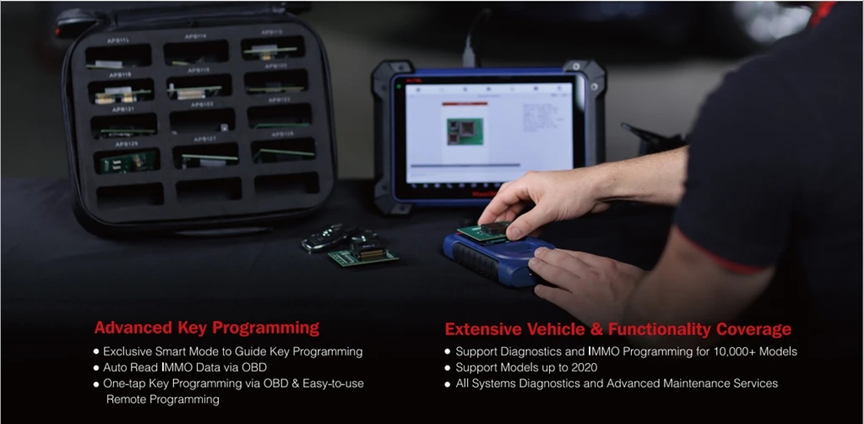

Advanced Key Programming Functions

• Exclusive Smart Mode to guide Key Programming
• Auto Read IMMO Data via OBD
• One-tap Key Programming via OBD & Easy-to-use Remote Programming
• With the newly upgraded key programmer XP400 Pro

Extensive Vehicle & Functionality Coverage

1. Support Diagnostics & IMMO Programming for 10,000+ Models;
2. Support Models Up to 2020;
3. All System Diagnostics and Advanced Maintenance Services;
4. Benz -- 3rd Generation IMMO CAN-Line / K-Line Add Key, All Key Lost via OBD;
5. BMW -- Support EWS3/4; CAS 1/2/3/4, FEM/BDC Add Key / All Key Lost;
6. Volkswagen / Audi -- Add Key / All Key Lost via OBD for 2013 - 2020 Models;
7. GM -- Read IMMO Password, Add Key / All Key Lost up to 2020;
8. Ford -- Add Key / All Key Lost (No PIN Needed) up to 2020;
9. Mazda -- Add Key / All Key Lost (No PIN Needed) up to 2020;
10. FCA -- Read IMMO Password, Add Key / All Key Lost up to 2020;
11. Renault -- Add Key / All Key Lost (No PIN Needed) up to 2020
12. Jaguar LandRover -- Add Key / All Key Lost up to 2019
13. Volvo -- Semi-smart Key Learning via OBD up to 2018; Smart / Blade / Fobik Key Learning via Dump

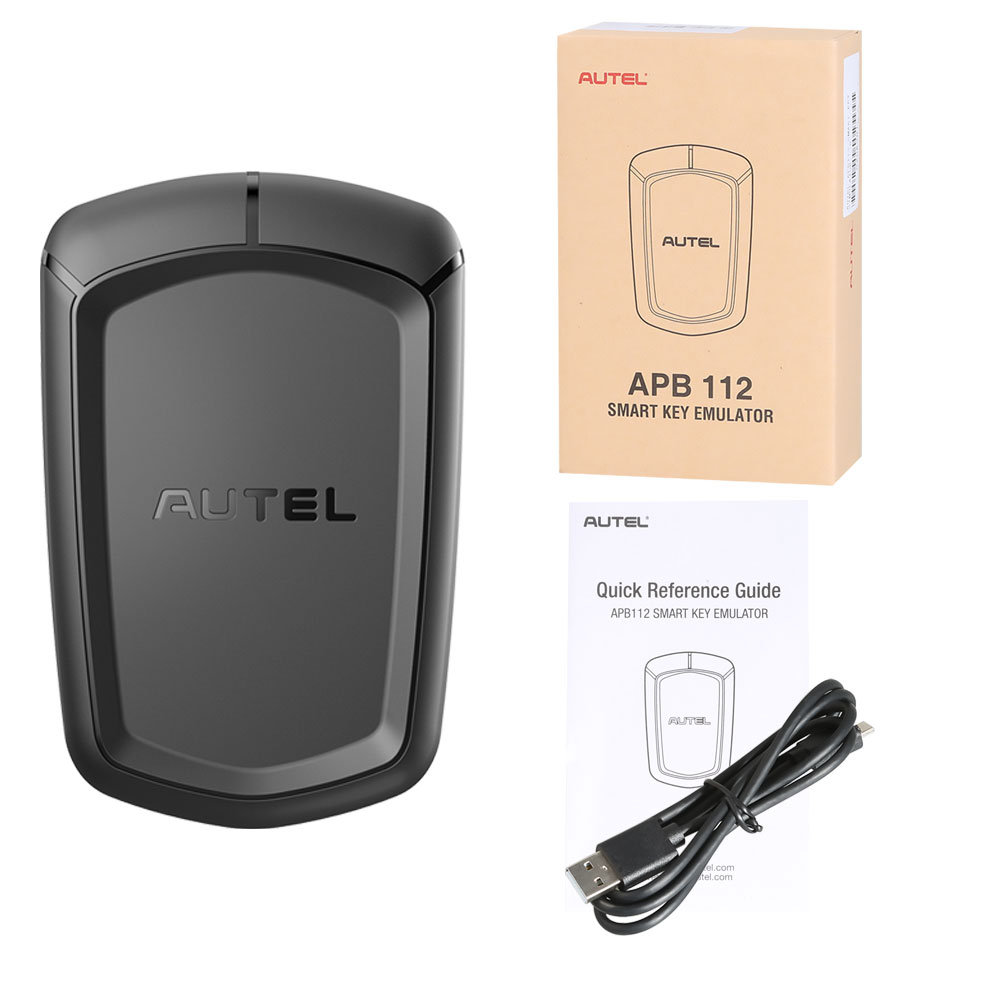

Original AUTEL APB112 Smart Key Simulator
Autel APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip. It can also simulate the vehicle key chip.

APB112 is compatible with IM608, IM508, and MX808IM (If you try to use the APB112 Smart Key Simulator with IM508, you need to have the XP400. Otherwise the APB112 Smart Key Simulator can not work with IM508 )

Autel APB112 Function List:
1. Smart key simulator
2. Compatible with IM608, IM508, and MX808IM
3. Compact but would need to be used with the XP400
4. Cannot be used with the XP200
5. 46, 4D data collection
6. 46 smart key password calculation
7. 46 chip simulation
8. Toyota 4D (94/ D4, 98) smart key simulation
9. Toyota H (88/ A8, A9, 39) smart key simulation
10. Collects data from the ignition coil
11. Identify ignition coil troubles
12. Decode vehicle key chip data
13. Simulate vehicle key chip (ex - 4D chip)
14. Must be used with an Autel diagnostic tool
15. Toyota/ Lexus smart key all key lost
16. Chip decoding (Hyundai 46)

Autel G-BOX2 Function List:
1. Support Mercedes Benz All Key Lost, faster calculate password
2. Work together with both IM608 or IM508 with XP400
3. Used for Faster Mercedes ECU data and EIS password calculation
4. Mercedes DAS3 can EIS/EZS all keys lost
5. Reduces reading time of W204 ECU data & W207 EIS by over 85%
6. No need to remove and reinsert the key for W221 & W164 after 2009 Models

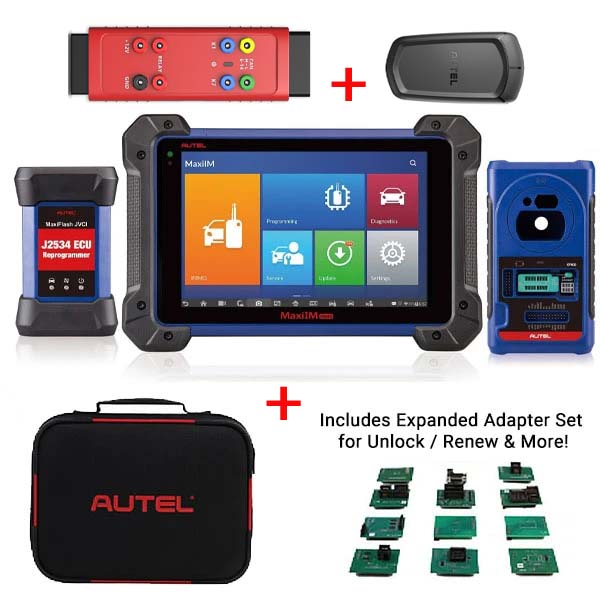

Autel IM608 Pro Packing List:

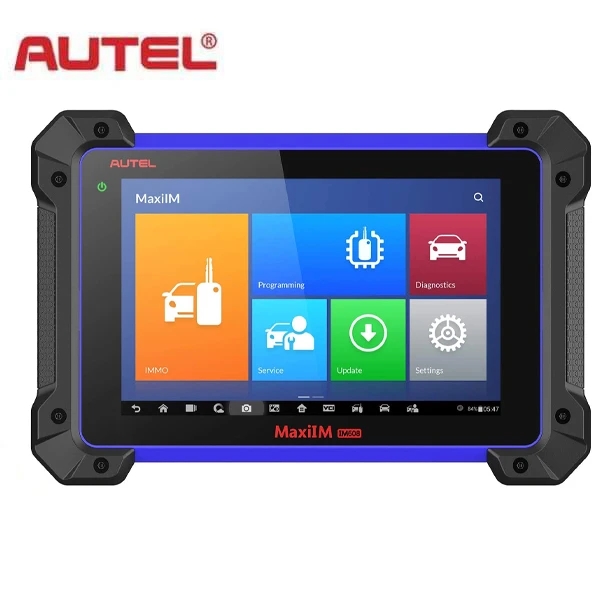

1pc x MaxiIM IM608 Tablet

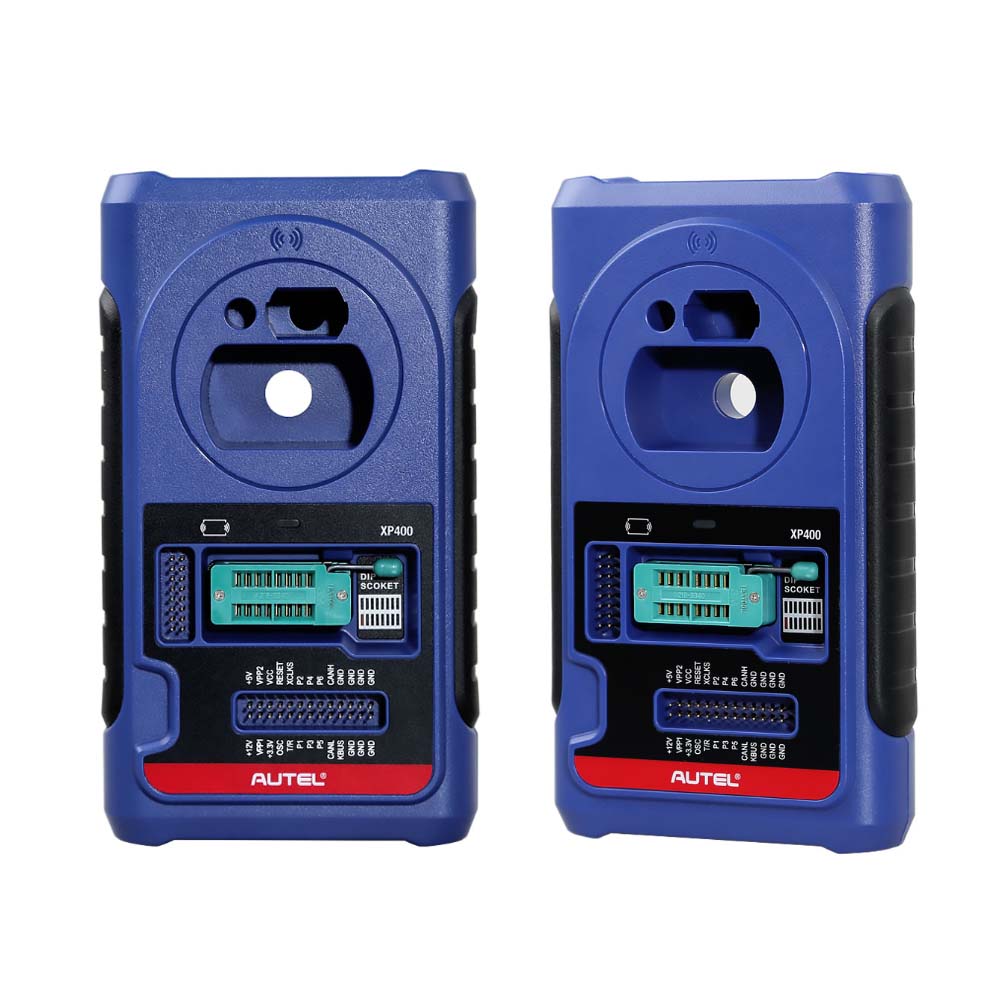

1pc x XP400 Pro Key Programmer
1pc x MaxiFlash JVCI ECU Reprogrammer
1pc x Autel APB112 Smart Key Simulator
1pc x G-BOX2 Adapter
1pc x Carry Case
1pc x Main Cable
1pc x USB Cable (2m)
1pc x Mini USB Cable
1pc x AC/DC Adapter (12V)
1pc x Light Fuse - 6*30mm (2pcs)
1pc x Cigarette Lighter
1pc x AAC001
1pc x APC101 (USB Cable)
1pc x APB129 (EEPROM Adapter)
1pc x APB125 (Mercedes Infrared Collector)
1pc x APB103 (MCU_PLCC52)
1pc x APB104 (MCU_FQFP64)
1pc x APB105 (MCU_FQFP80)
1pc x APB106 (MCU_FQFP112)
1pc x APB107 (MCU_FQFP144)
1pc x APB108 (MCU_FQFP176)
1pc x APB109
1pc x APB110 (MCU_FQFP176)
1pc x APB111 (MCU_FQFP176)
1pc x APA002 (EEPROM Socket)
1pc x APA101 (Signal Cable)
1pc x APA103 (EEPROM Clamp)
1pc x APA107 (ECU Clamp)
1pc x APA108 (MCU Clamp)
1pc x APA109 (MC9S12 Clamp)
1pc x Connect Cable

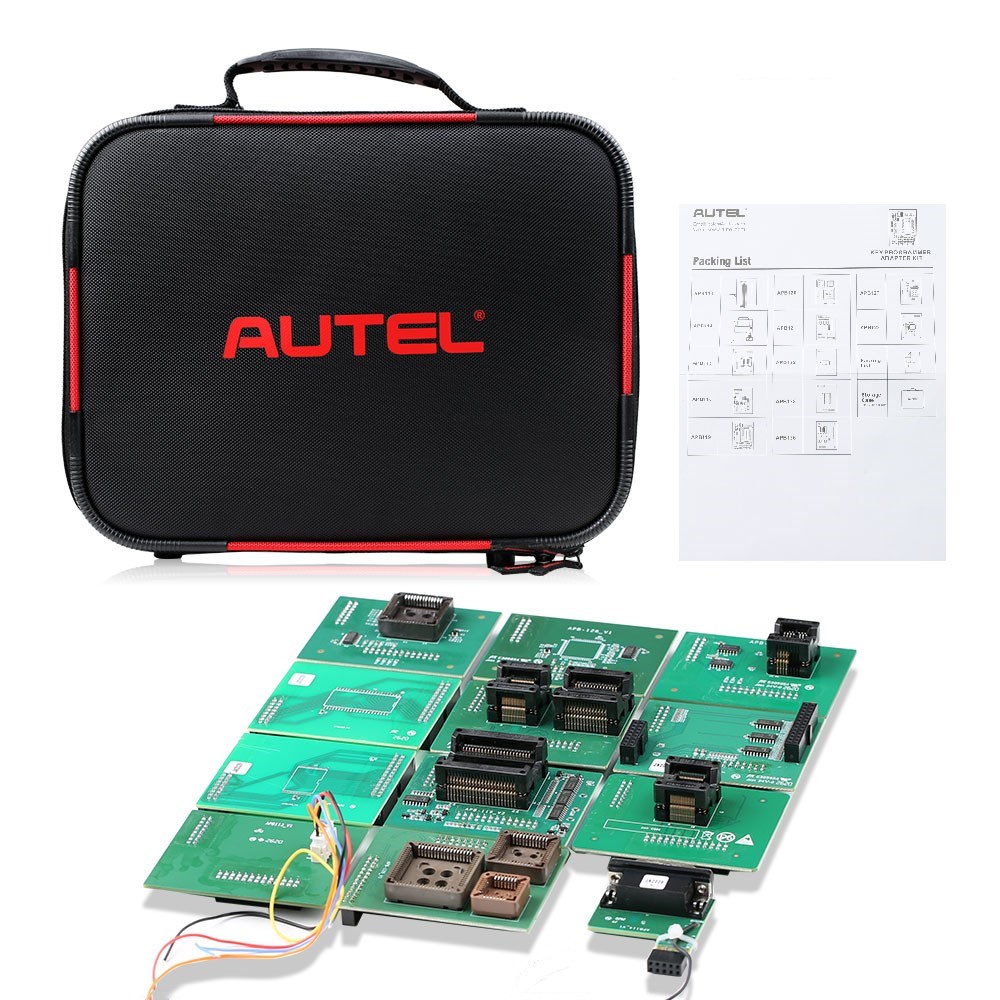

Package List of IMKPA Accessories
1pc x APB113
1pc x APB114
1pc x APB115
1pc x APB118
1pc x APB119
1pc x APB120
1pc x APB121
1pc x APB122
1pc x APB123
1pc x APB126
1pc x APB127
1pc x APB128
1pc x Storage Case
