    Autel MaxiVideo MV480 Inspection Camera 1080P HD Dual-camera Digital Videoscope

    • Item No.  Z249
    • History: 12  sold
    • Market Price: US$417.59
      Shop Price: US$348.00You save US$69.59
      Free Shipping
    • Quantity:  50000
    • Weight:  1.0KG
    • Rank:  comment rank 5 () Write a Review
    • This goods is Free shipping!

    • Member Benefits  Shipping  Return Policy




    Technical Support

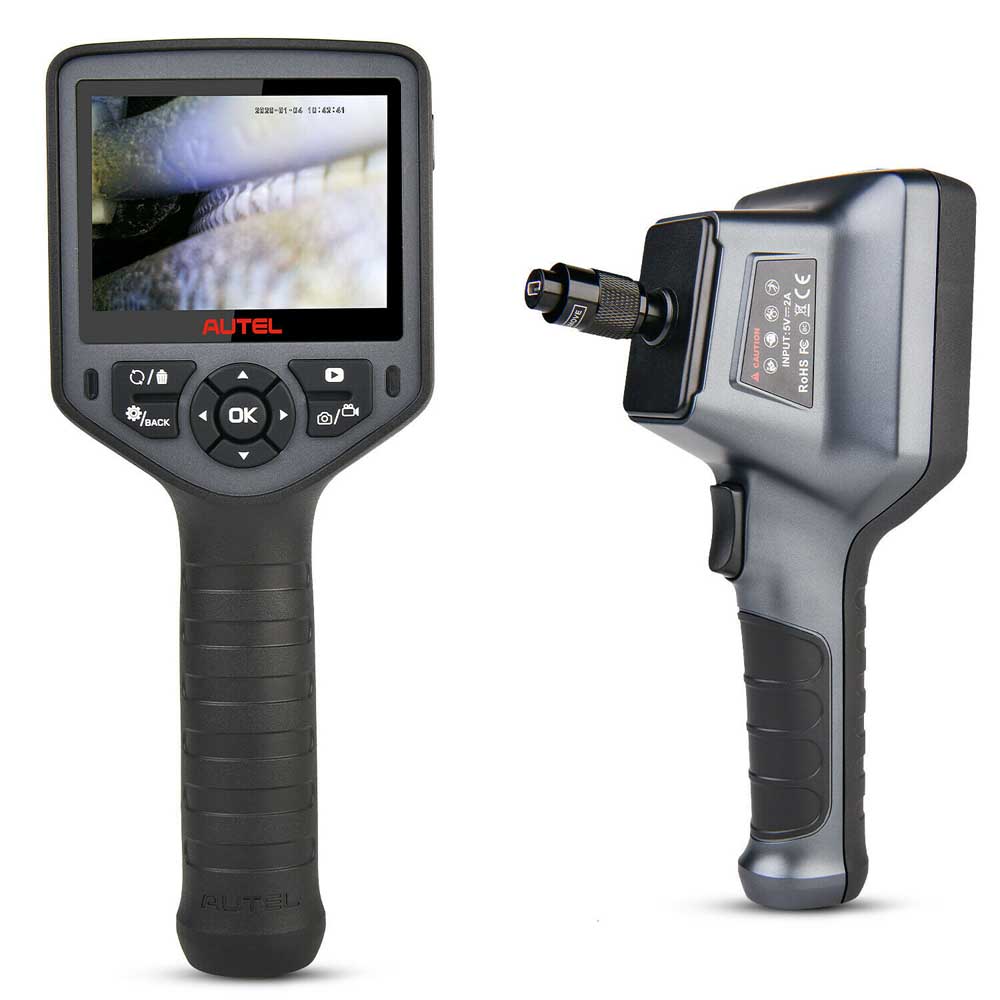

    Autel MaxiVideo MV480 Inspection Camera 1080P HD Dual-camera Digital Videoscope

    Autel MaxiVideo MV480, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light.


    1. High Resolution Images and Videos (1920 x 1080)

    2. 4 Hours Working Time. Built-in 2600mAh battery with up to 4 hours continuous use

    3. Support Multi-Language: English, Spanish, Portuguese, Italian, Duth, German, Polish, French, Janpanese, etc

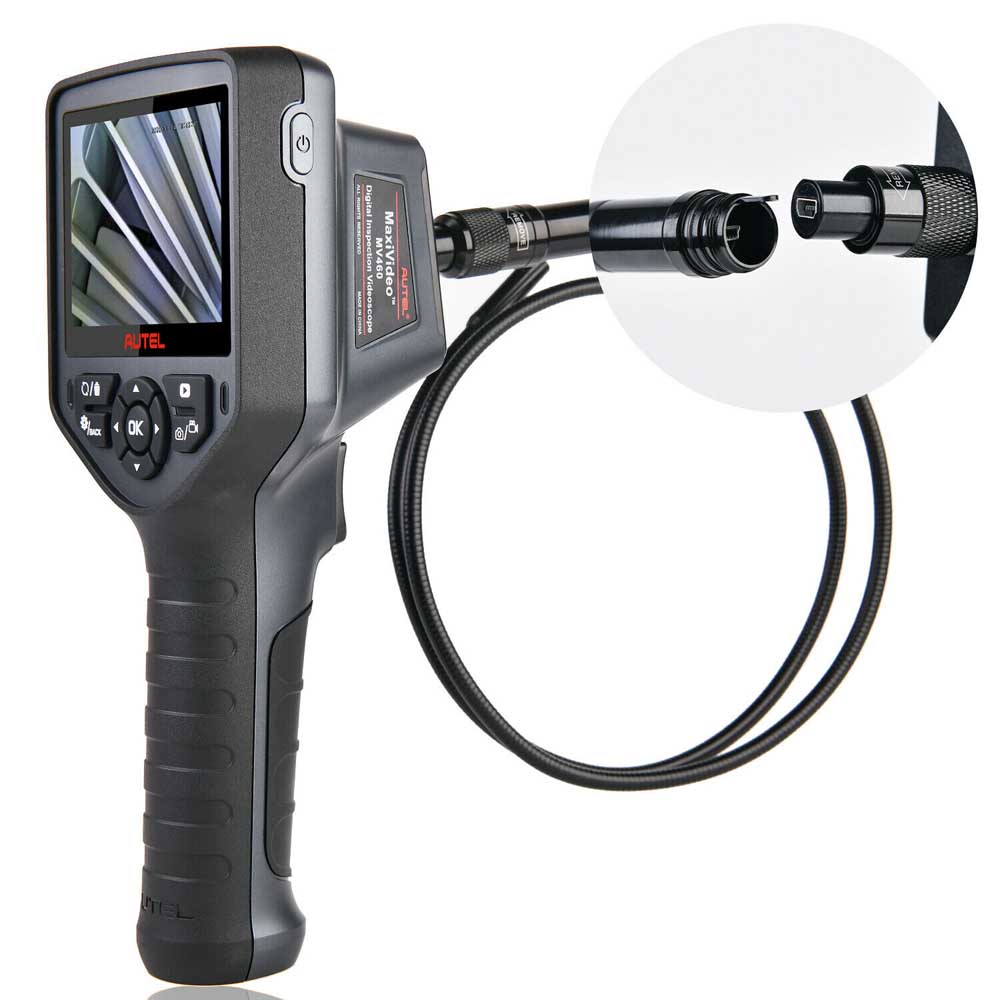

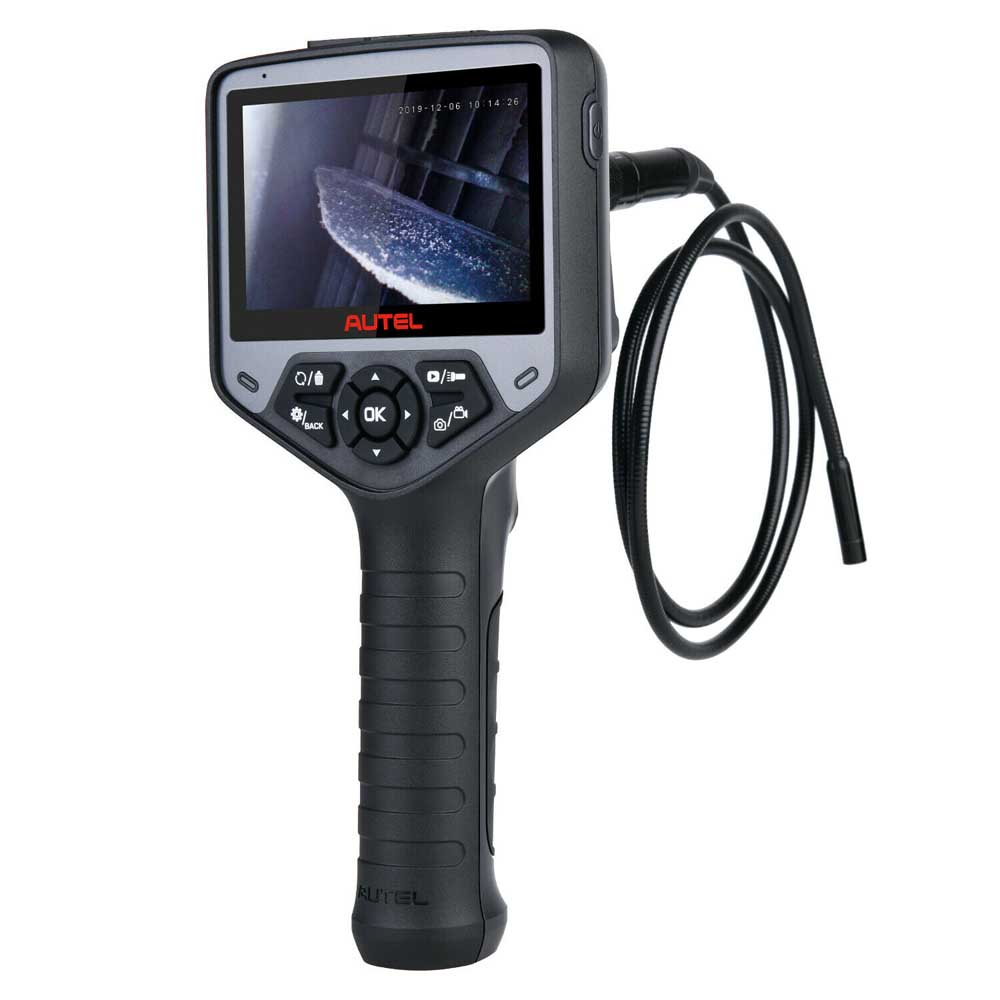

    Autel MaxiVideo MV480, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features dual front and side cameras with 1920×1080 high resolution, a 4.1" 1200×720 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.


    1. High resolution images and videos (1920 x 1080)

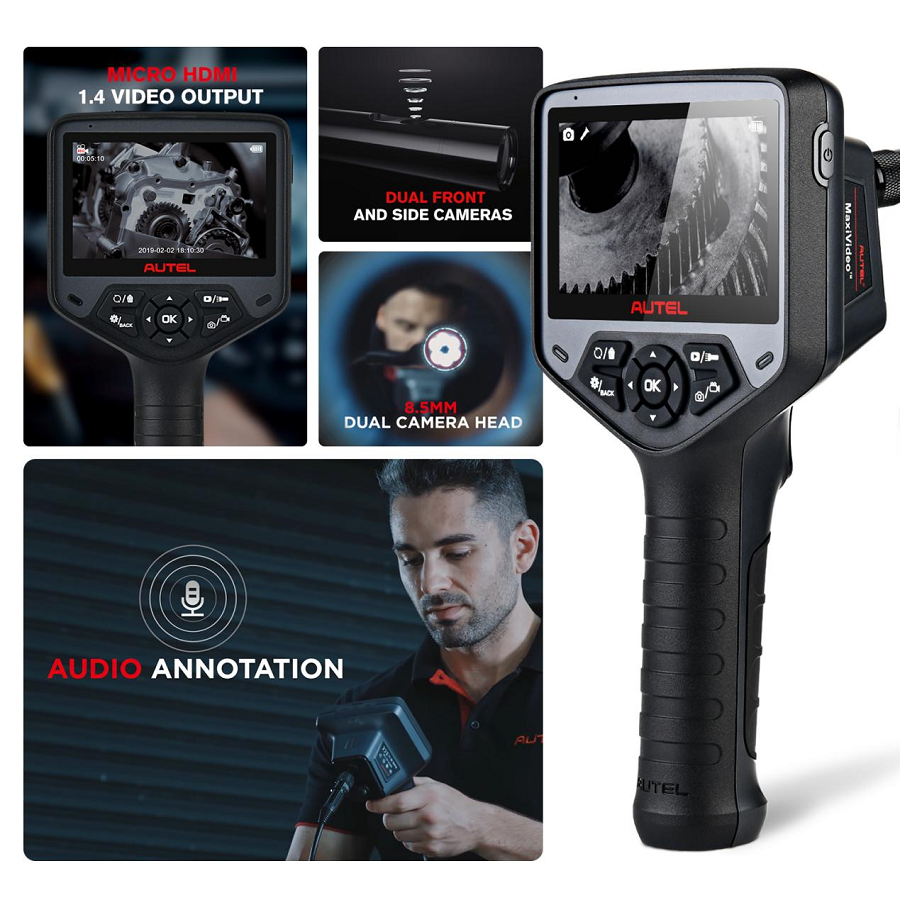

    2. Dual front and side cameras for wider viewing angle

    3. 4.1-inch full color LCD display (1200 x 720)

    4. 1-button quick image capture and video recording

    5. 70-degree field of view for expanded viewing angle

    6. Adds audio annotation for detailed review

    7. Micro HDMI-output enables streaming to larger monitors

    8. Freeze-frame camera stills or video recording

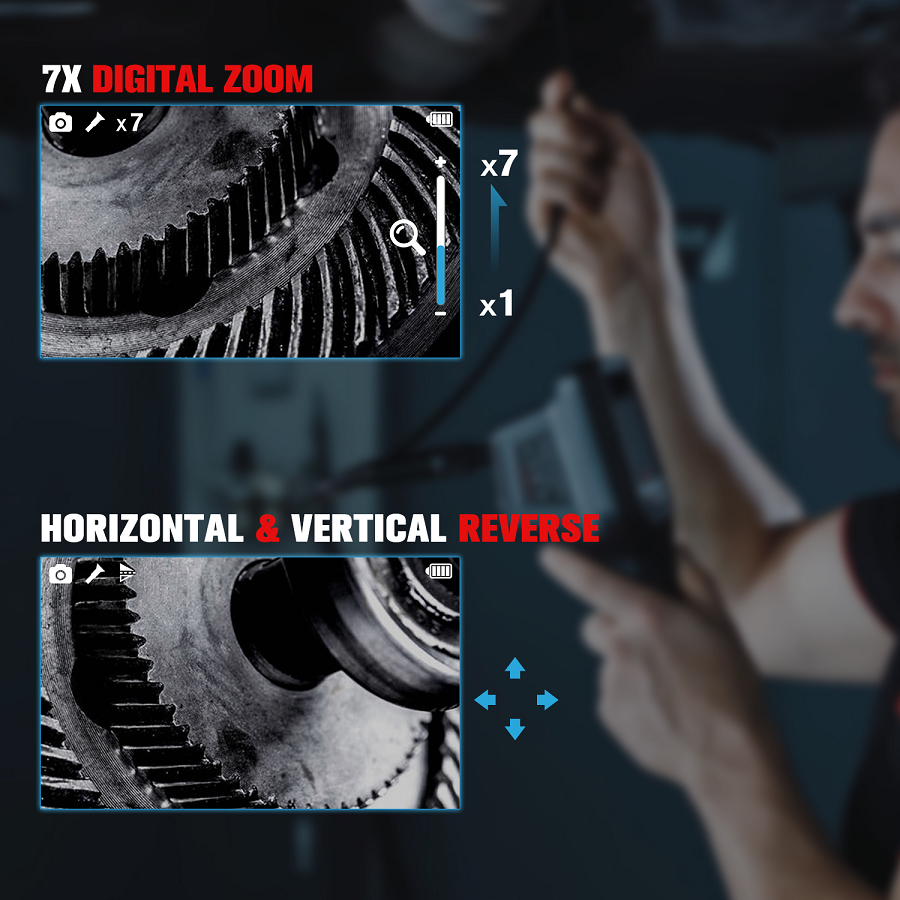

    9. On-screen horizontal/vertical reverse

    10. Records and plays back images and video clips

    11. 7X digital zoom for increased viewing

    12. 8GB Micro SD card (included), supports up to 128GB

    13. Mini-USB cable (included) for uploading images and videos

    14. More than 10,000 lux, adjustable 10-level LED illumination

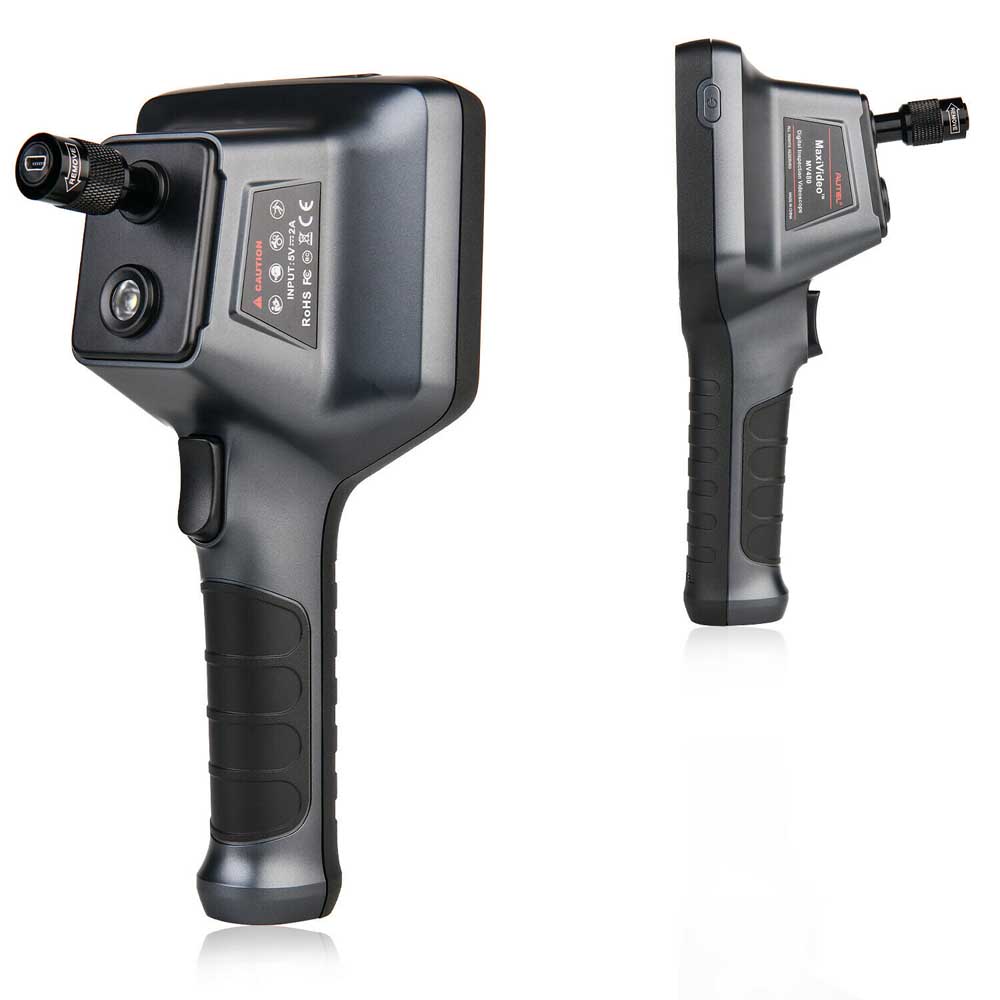

    15. Flashlight for higher visibility in low-light environment

    16. Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use

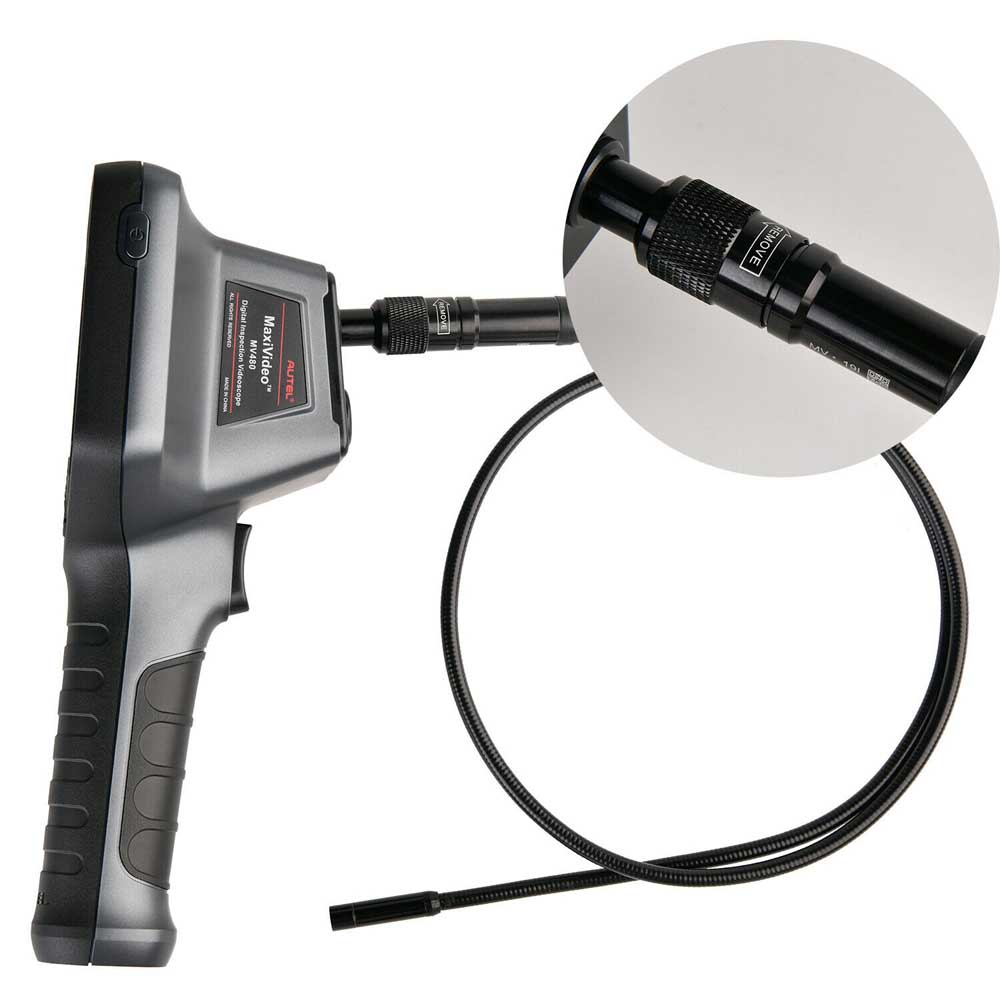

    17. 1m (39.4") semi-rigid, flexible watertight cable

    18. Includes magnet and hook cable accessories

    19. 8.5mm (0.33") probe fits most spark plug holes

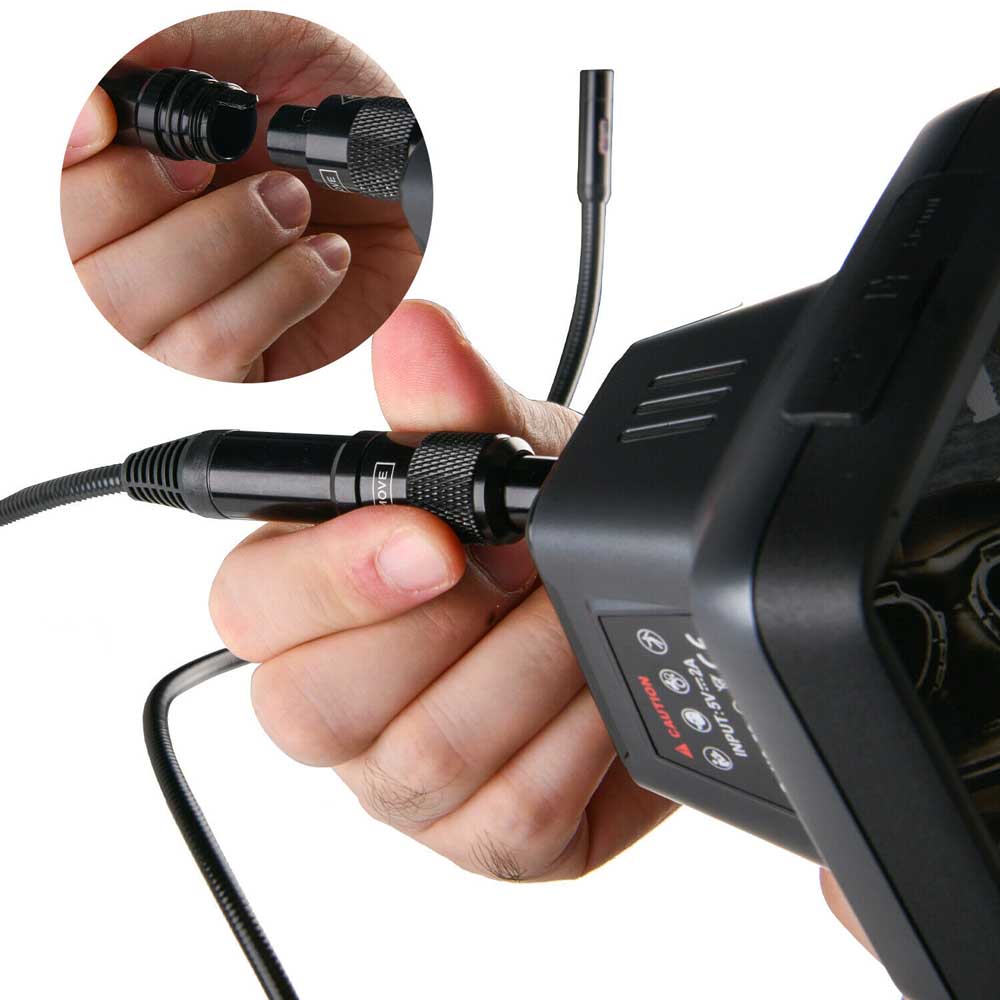

    20. Compatible with 5.5mm (0.22") camera head (not included)

    Comparision of MV400 vs MV500 vs MV480 vs MV460 vs MV160







    High resolution and full color digital LCD display

    3.5" (320×240)

    5 (1280×720)

    4.1" (1200×720)

    3.5'' (640 x 480)


    Record and play back high resolution still images and videos



    1920 x 1080

    1920 x 1080

    1920 x 1080

    Wireless monitor enables remote viewing





    Touchscreen for convenient operation





    Single button for quick photo and video recording



    Add audio annotation for detail presentation



    On-screen photo editing and markup




    Dual cameras see straight ahead or at a 90° angle




    Digital zoom for detailed viewing






    View objects as close as 1"

    BOn-screen horizontal/vertical reverse

    On-screen 90° clockwise rotation


    Built-in & adjustable LED illuminates viewing area

    HDMI port for monitor view



    Mini USB connector for uploading images and videos


    1 m long semi-rigid flexible watertight shaft

    Narrow probe diameter available in both 5.5 mm and 8.5 mm

    8.5 mm

    8.5mm (5.5mm Optional)

    8.5mm (5.5mm Optional)

    8.5mm (5.5mm Optional)

    Micro SD card slot for greater memory capacity


    Oil and scratch resistant tempered glass lens

    Ergonomic and durable tool housing

    Built-in rechargeable Li-ion battery

    Multilingual support

    Water Resistant Camera head



    Recommended use


    Optimal viewing Distance

    0.79" to 2" (2 cm to 5 cm)

    Image capture

    JPG images (1920 x 1080 pixels)
    MP4 videos (1920 x 1080 pixels)

    Screen type display

    4.1" TFT LCD

    Display resolution

    1200 x 720 pixels

    Power supply

    Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh)

    Tested battery life

    Approximately 4 hours of continuous use

    Recording medium

    Micro SD card (8GB Standard/128GB Max)

    Image controls

    Zoom, low light vision


    Fully adjustable LED, Flashlight

    Cable reach

    1m (39.4")

    Imager heads

    8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels)


    To a depth of 1m (39.4") (Imager heads and cable only)

    Additional ports

    TF, Mini USB, Micro HDMI

    Operating temp

    Main unit: 14°F to 122°F (-10°C to 50°C)
    Cable: 14
    °F to 140°F (-10°C to 60°C)

    Storage temp

    -4°F to 158°F (-20°C to 70°C)

    Operating humidity

    5% - 95% non-condensing

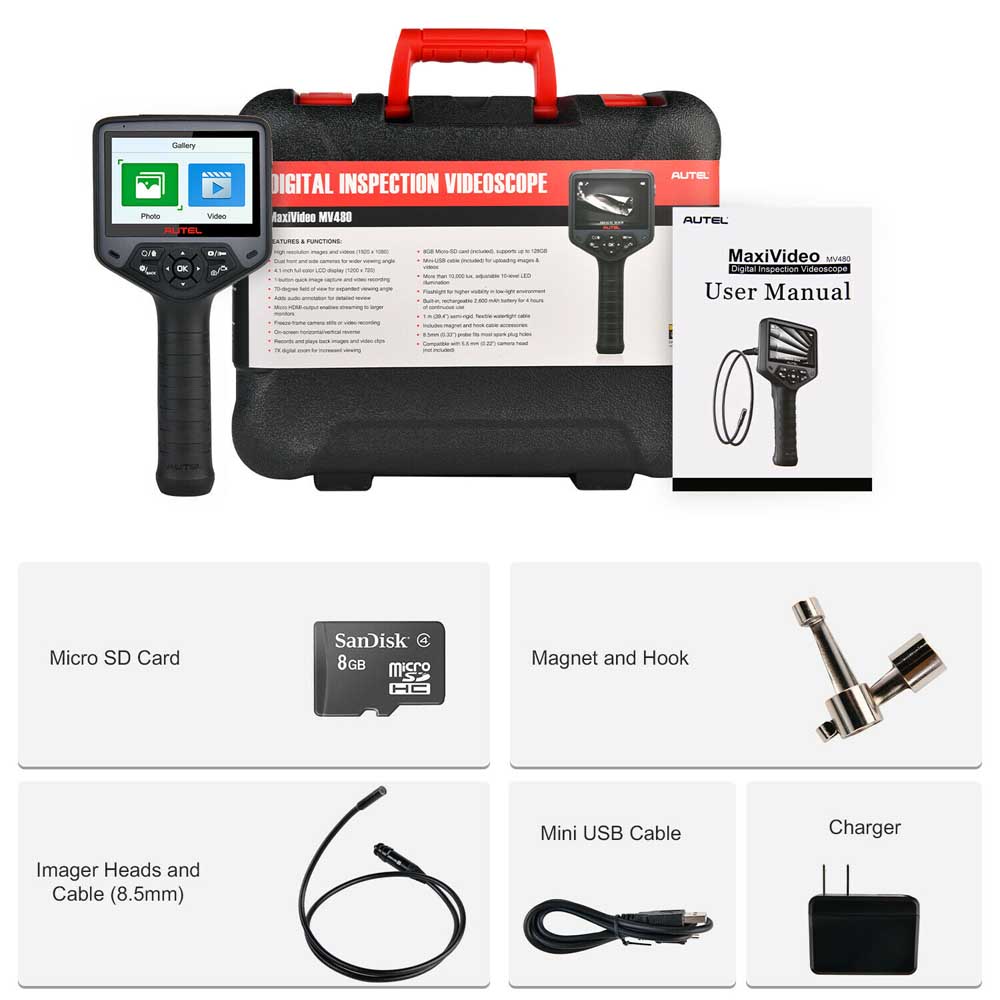

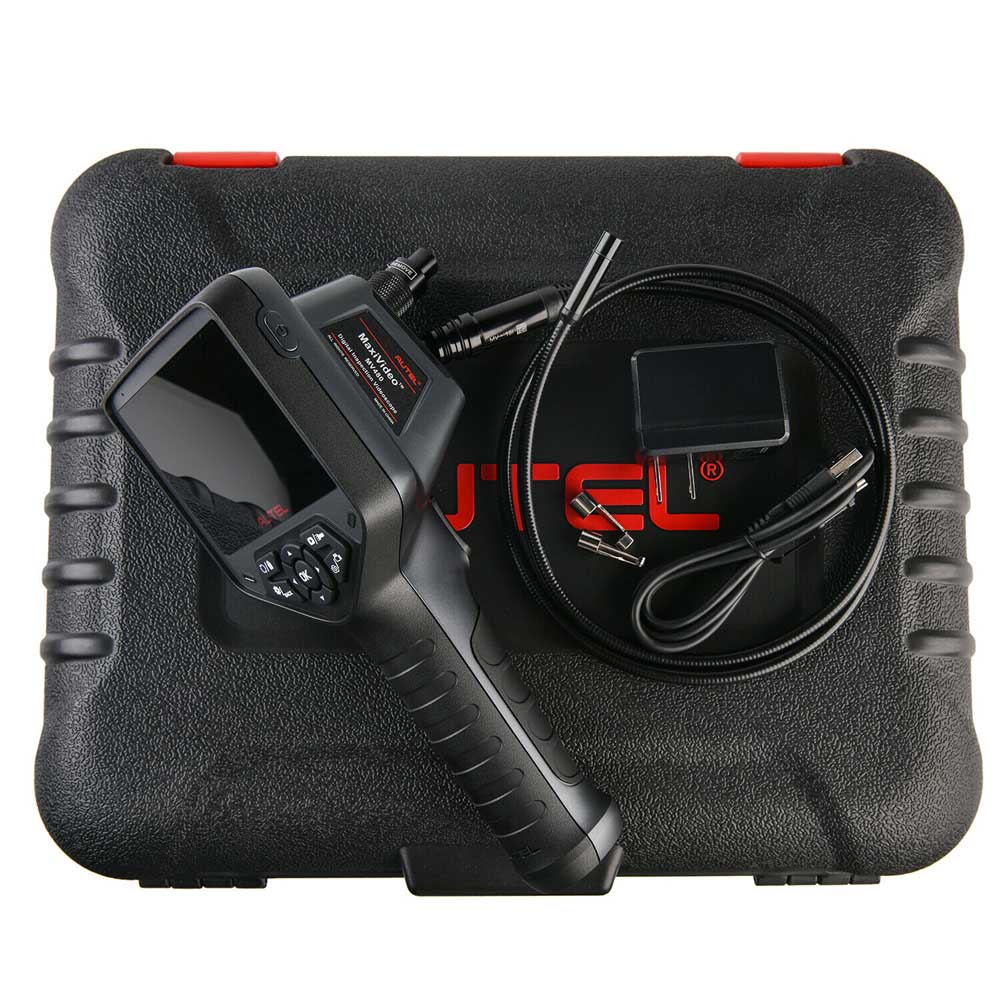

    Package List:

    1x MV480 main Unit
    1x Magnet and Hook
    1x Imager Heads and Cable (8.5 mm)
    1x User Manual

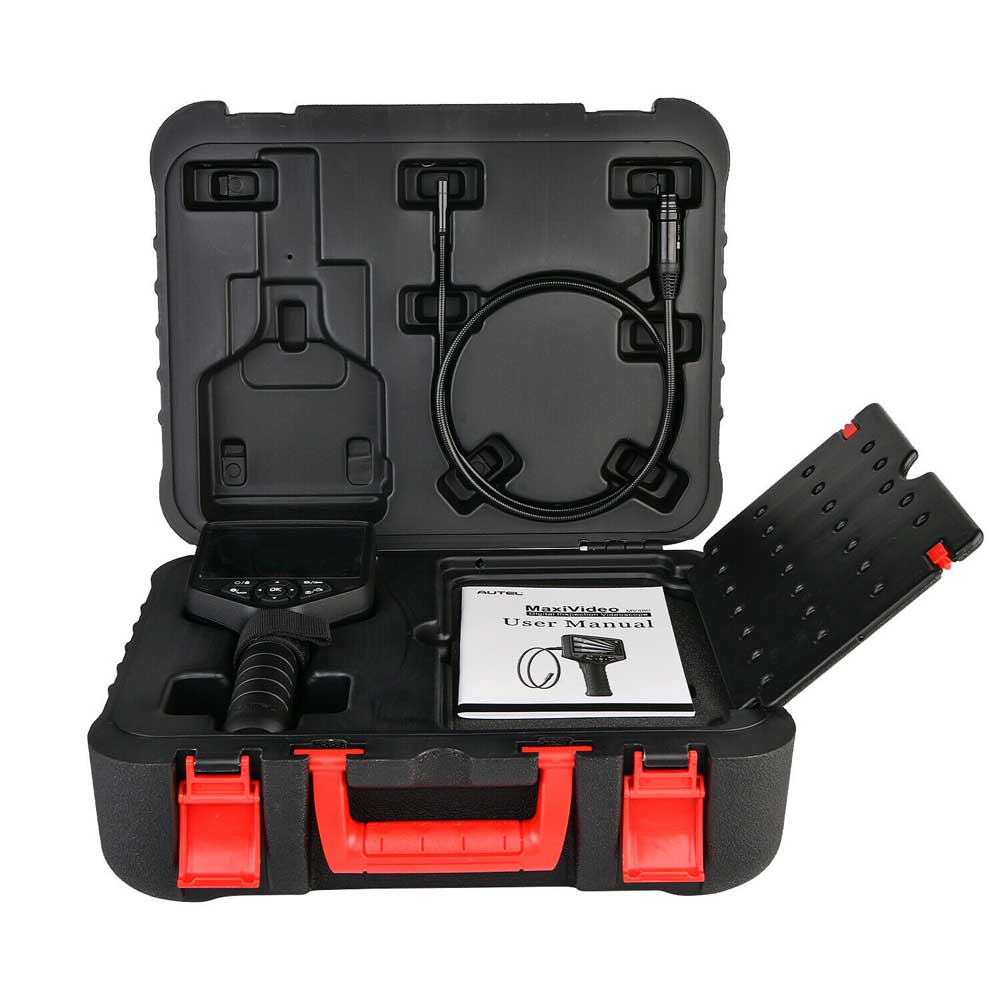

    1x Protective carrying case
    1x Micro SD card
    1x Charger
    1x RS232 Serial Cable

    1x Mini USB Cable
