    Newest 2023A/2019C CAT Caterpillar ET 4 Diagnostic Communication Adapter IV CAT truck Diagnostic Tool

    • Item No.  A154-2
    • History: 14  sold
    • Please choose the software version you need:


    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  999
    • Weight:  3.5KG
    • Rank:  comment rank 5 () Write a Review
      Rated 5/5 based on 3 customer reviews
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    Newest 2023A/2019C CAT Caterpillar ET 4 Diagnostic Communication Adapter IV CAT truck Diagnostic Tool


    CAT 2020-2023 software version include the 10 factory password generator. When you push the Ctrl+F2 shortcut button,then can open the 10 bits of the password generator.

    Top 5 Reasons To Get CAT Caterpillar ET Diagnostic Tool Adapter 4
    1. Latest Version: 2023A/2019C(option)
    2. Supported Operating System: Windows 7 32 bit, Wnidows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit
    3. We will activate it after installing 2023A/2019C version software. (After you installed the software, please contact us, we will activate the software for you via remote tool.)
    4. Supported Language: Chinese(Simplified),Danish,German(Germany),French(France),Portuguese (Portugal),Japanese,Spanish (tradition),Italian(Italy),English(America)
    5. Support caterpillar diagnostic till 2023

    Caterpillar electronic technician 2023A (replaces CAT ET 2022C, 2022B, 2022A, 2021A, 2019C) with WinFlash future is an updated version of the caterpillar dealer diagnostic software that can help technicians to diagnose existing and potential problems with their electronically controlled Caterpillar Engines and Machines.

    2023A Caterpillar Electronic Technician software With CAT ET 3 Cat caterpillar adapter 3 support caterpillar diagnostic till 2023.






    Caterpillar ET 2023A Electronic Technician Diagnostic Software:
    Brand: Caterpillar
    Region: WorldWide
    Support Multi-languages: English, Chinese, Danish, French, German, Italian, Japanese, Portuguese, Russian, Spanish
    Compatible OS: Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit
    Support All cars of CAT

    With the CAT Diagnostic Tool, you can:
    View active and logged diagnostics
    View events where irregularities occurred and were logged by the ECM
    View the status of a group of parameters (temperatures, pressures, etc.) simultaneously
    Record and log performance data
    Graph a group of status parameters
    View the current configuration of an ECM
    Change ECM configurations
    Perform diagnostic tests
    Perform calibrations
    Print reports and diagnostic results
    For some machine and engine products, additional functionality has been included with the service tool program

    Product Description
    CAT Caterpillar ET Diagnostic Tool from Caterpillar provide the capability to access Electronic Control Modules (ECMs) from a personal computer. Many job-critical tasks can be performed with an electronic service tool. The user can display the status of a group of parameters (temperatures, pressures, etc.) simultaneously, view active and clear logged diagnostics, display the current configuration of an ECM and much more. The service tool works with a communication adapter to allow connection to an ECM. A graphical interface makes this software quick to learn and easy to use. A separate pull-down menu for each function enhances the "ease of use." The version and identification of the ECM is automatically retrieved and is displayed on a summary screen when the program is started. Diagnostic tests and calibrations can also be performed.

    CAT Caterpillar ET Diagnostic Tool enable service technicians to reprogram ECMs, reconfigure control system parameters, fine tune performance or diagnose the root cause of a failure the first time. These powerful tools allow service personnel to display and analyze vital performance and health information from any system quickly and accurately. The service tool communicates with any system using ATA (J1708), J1939 or the Caterpillar proprietary data link networks. The service tools provide information and features needed to help a technician diagnose problems and perform repairs and to customize and personalize the operation of a product. By allowing customers to design flexibility and configurability into a product, Caterpillar service tools stretch beyond the capabilities of preprogrammed ECMs or onboard display systems.

    PC, Communication Hardware, and Cable Requirements
    To run the service tool, the next PC, communication hardware, and cable requirements must be met.
    NOTE: The minimum PC Configurations should not be used as a standard when buying new personal computers for service tool purposes. If the existing equipment meets these minimum requirements, it will run the service tool.

    PC Requirements
    Recommended Configurations
    PC containing a 2.0 GHz dual-core processor
    3GB RAM
    3GB of the available hard disk drive
    DVD-ROM drive (optionally)
    15.4-inch XGA Screen (1280x1024 compatible)
    Microsoft Windows™ 7 Professional or Windows 8 Professional, Windows 10 Professional (Not tested with Home Edition) (Note: Windows 8 RT is not supported)
    RS232 port with 16550AF UART or compatible (for use with Comm Adapter II)
    USB 1.1 or 2.0 port (for use with Comm Adapter 3)
    Ethernet RJ45 connector
    Built-in pointing device or mouse
    For security purposes, Microsoft Internet Explorer version 11 or newer or Microsoft Edge is recommended.
    Note: The most recent version of Microsoft Internet Explorer may not be validated to work with the service tool.

    The list of supported CAT machines and engines can be found below:



    Engines:
    Electric Power
    Electric Power Generation
    Industrial
    Marine Power Systems
    Oil and Gas

    Machines:
    Articulated Trucks
    Asphalt Pavers
    Backhoe Loaders
    Cold Planers
    Compactors
    Dozers
    Drills
    Excavators
    Feller Bunchers
    Forest Machines
    Forwarders
    Harvesters
    Hydraulic Mining Shovels
    Knuckleboom Loaders
    Material Handlers
    Motor Graders
    Off-Highway Trucks
    Pipelayers
    Road Reclaimers
    Site Prep Tractors
    Skid Steer and Compact Track Loaders
    Skidders
    Telehandlers
    Track Loaders
    Underground - Hard Rock
    Underground - Longwall
    Underground - Room and Pillar
    Utility Vehicles
    Wheel Dozers
    Wheel Excavators
    Wheel Loaders
    Wheel Tractor-Scrapers

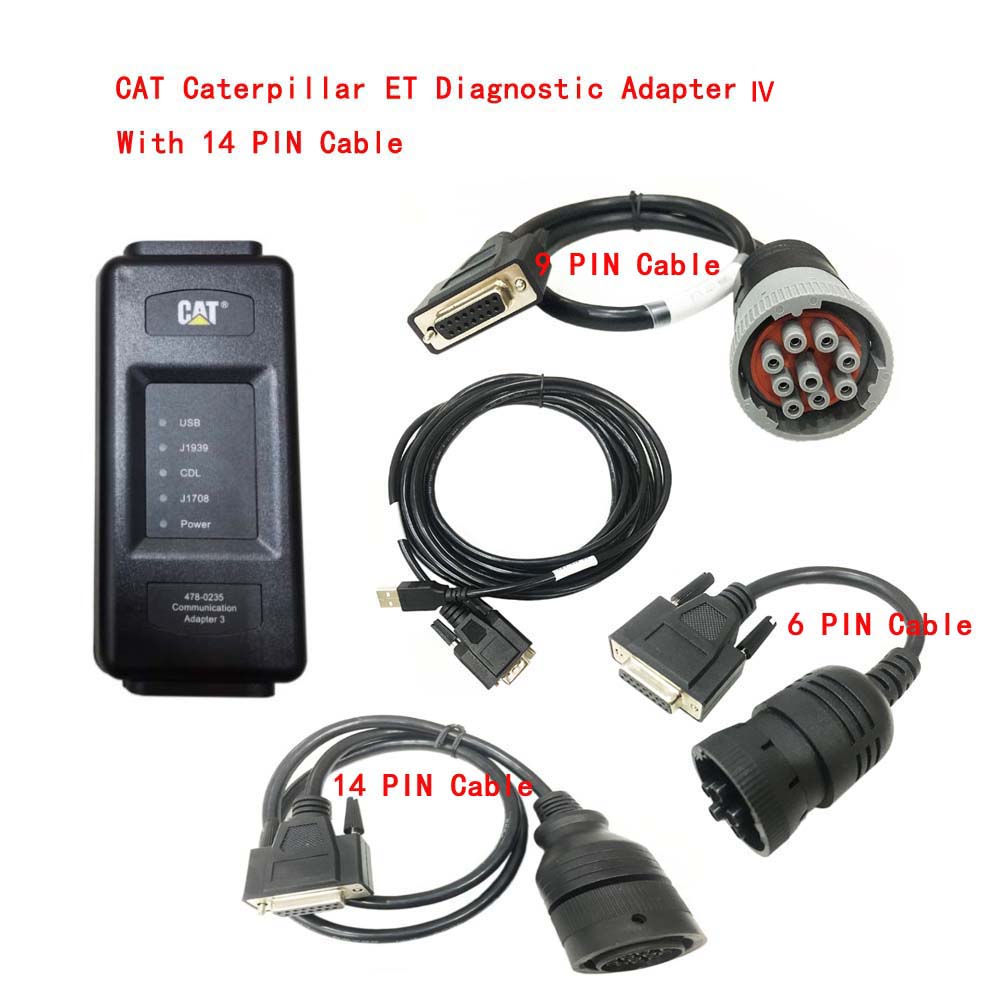

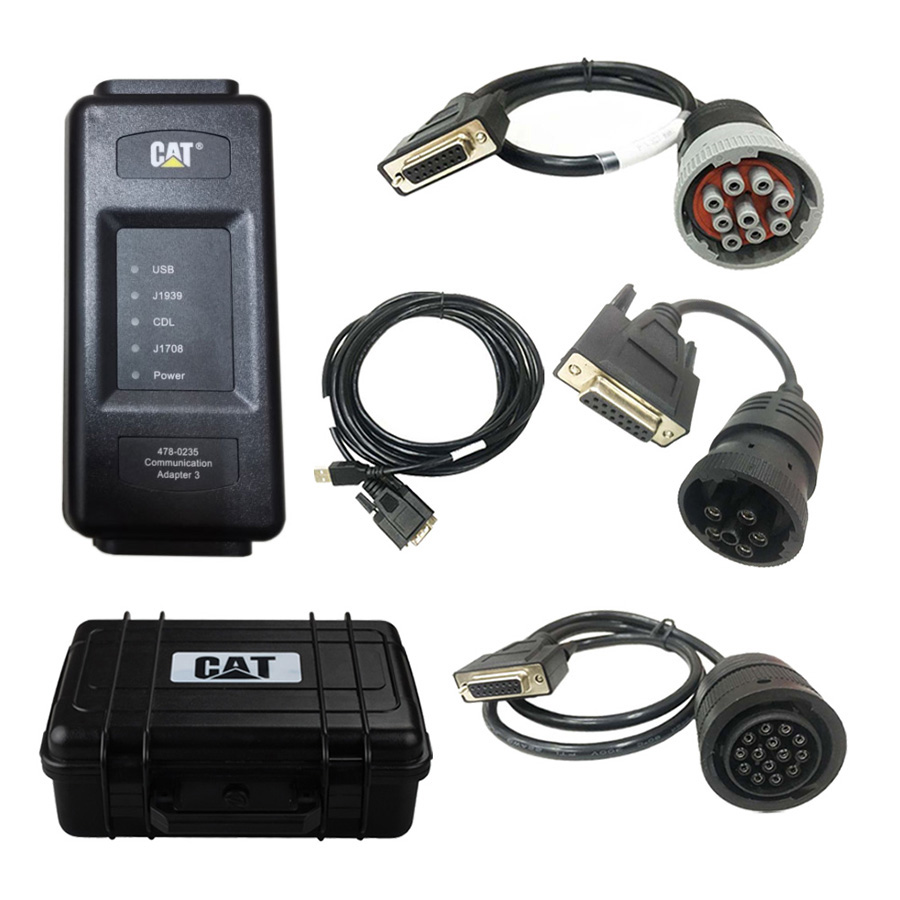

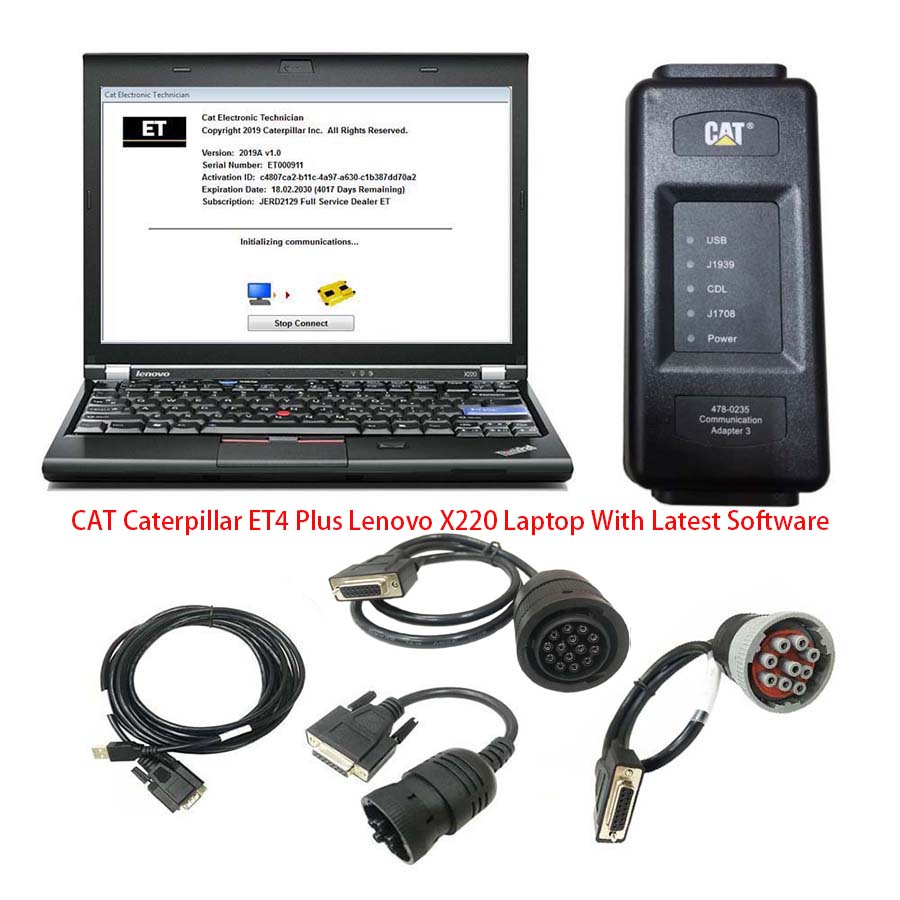

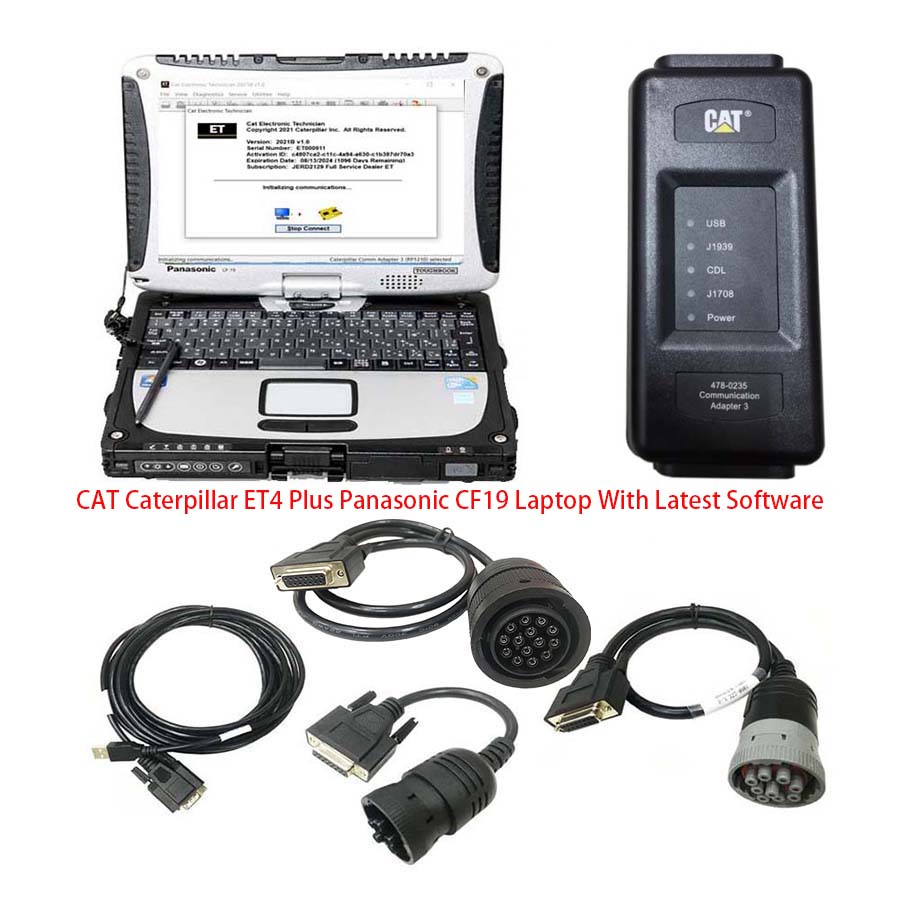

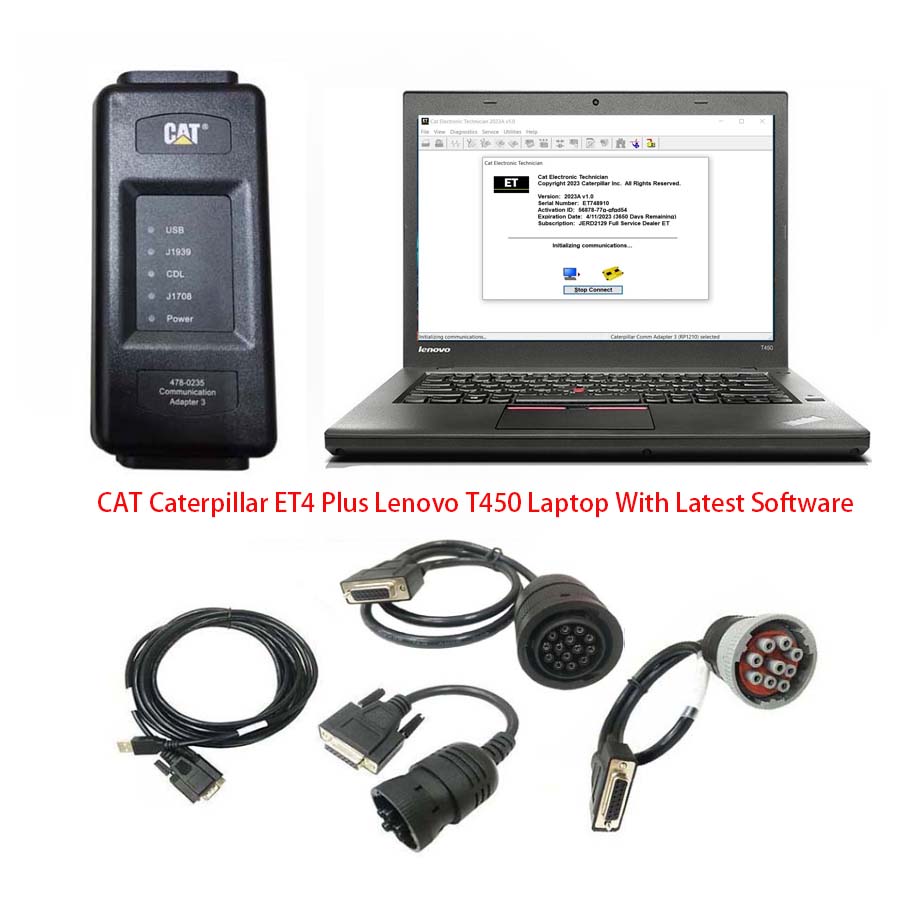

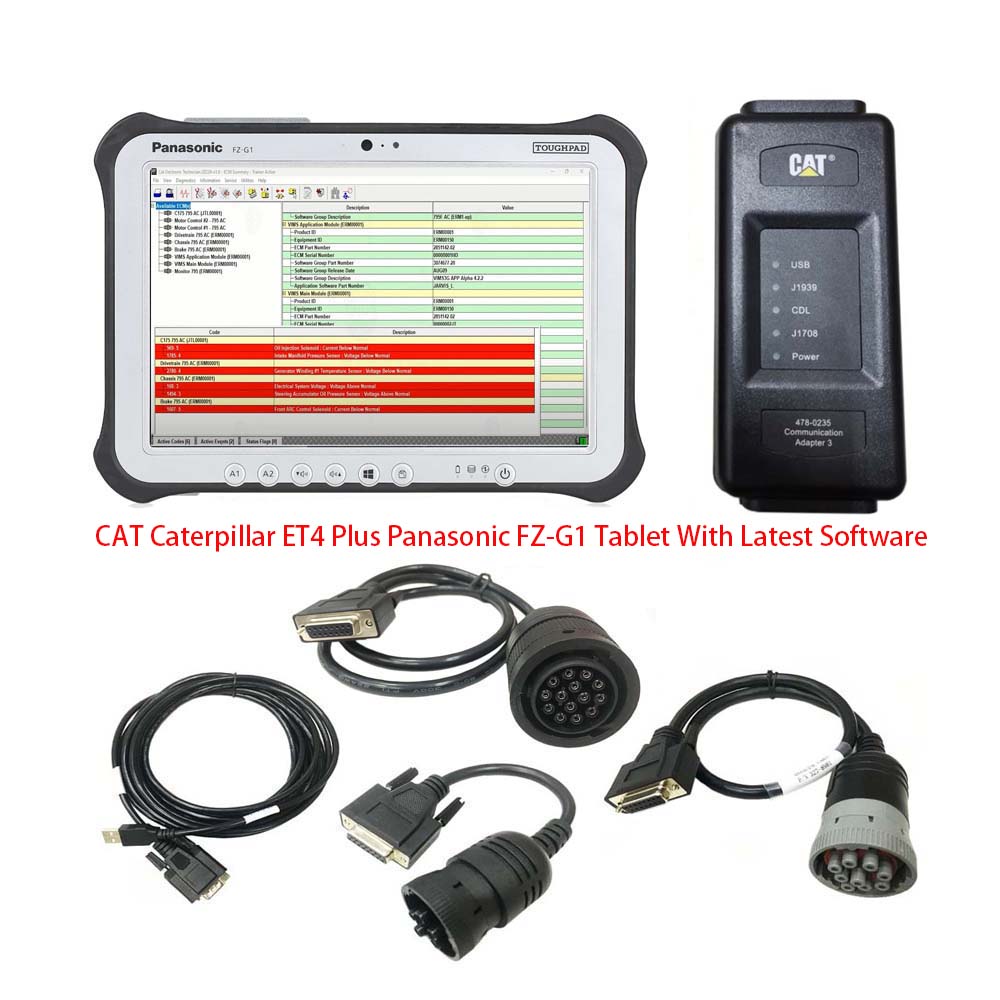

    Package List:

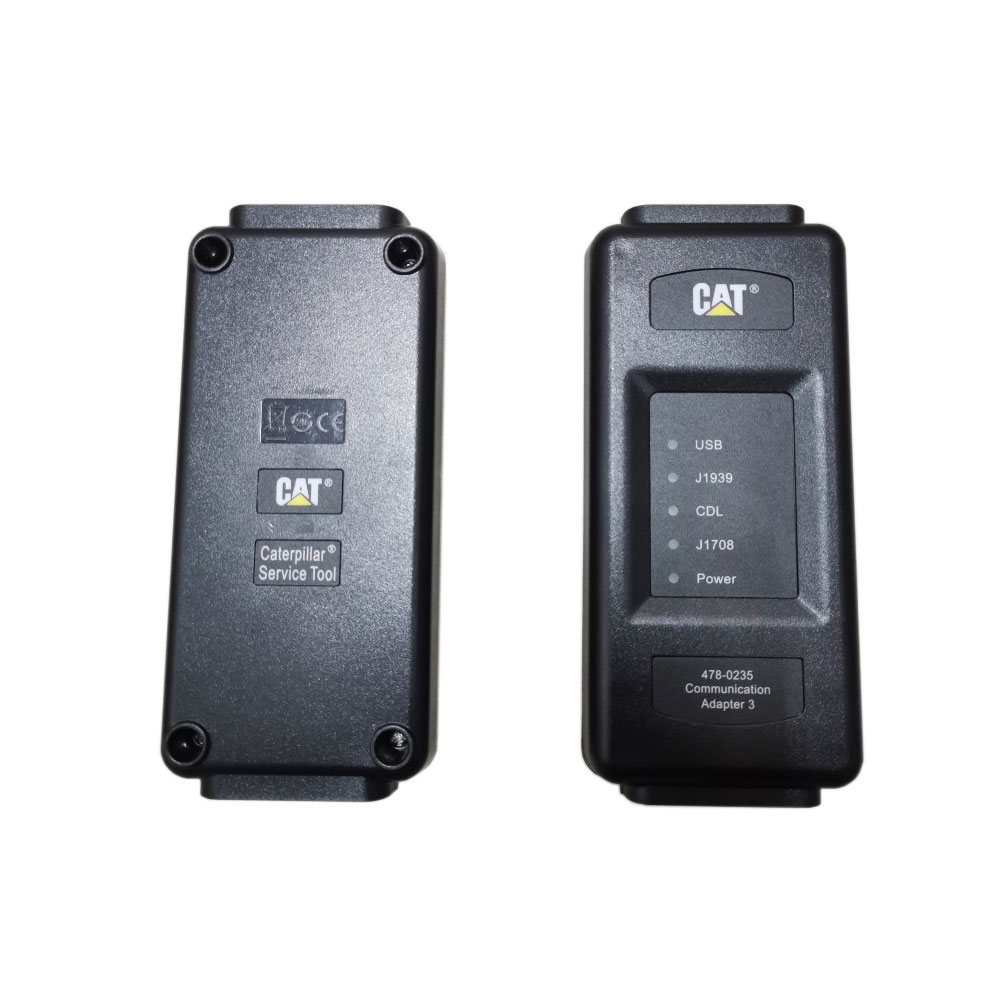

    1.Real CAT et4 Comm Adapter IV

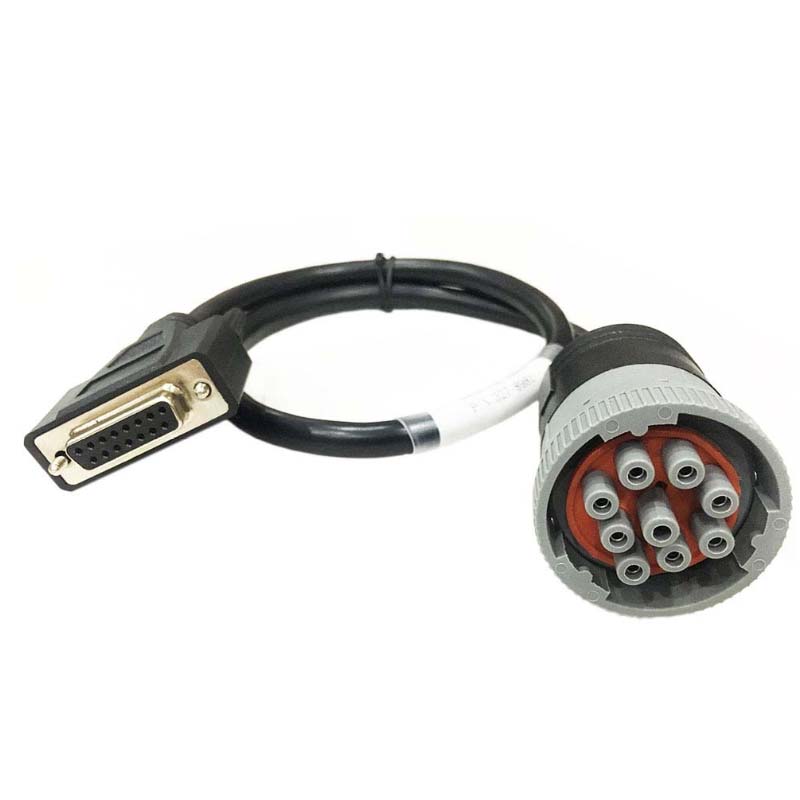

    2.J1939/J1708 9PIN Cable (from device to your truck)
    3.ET software DVD

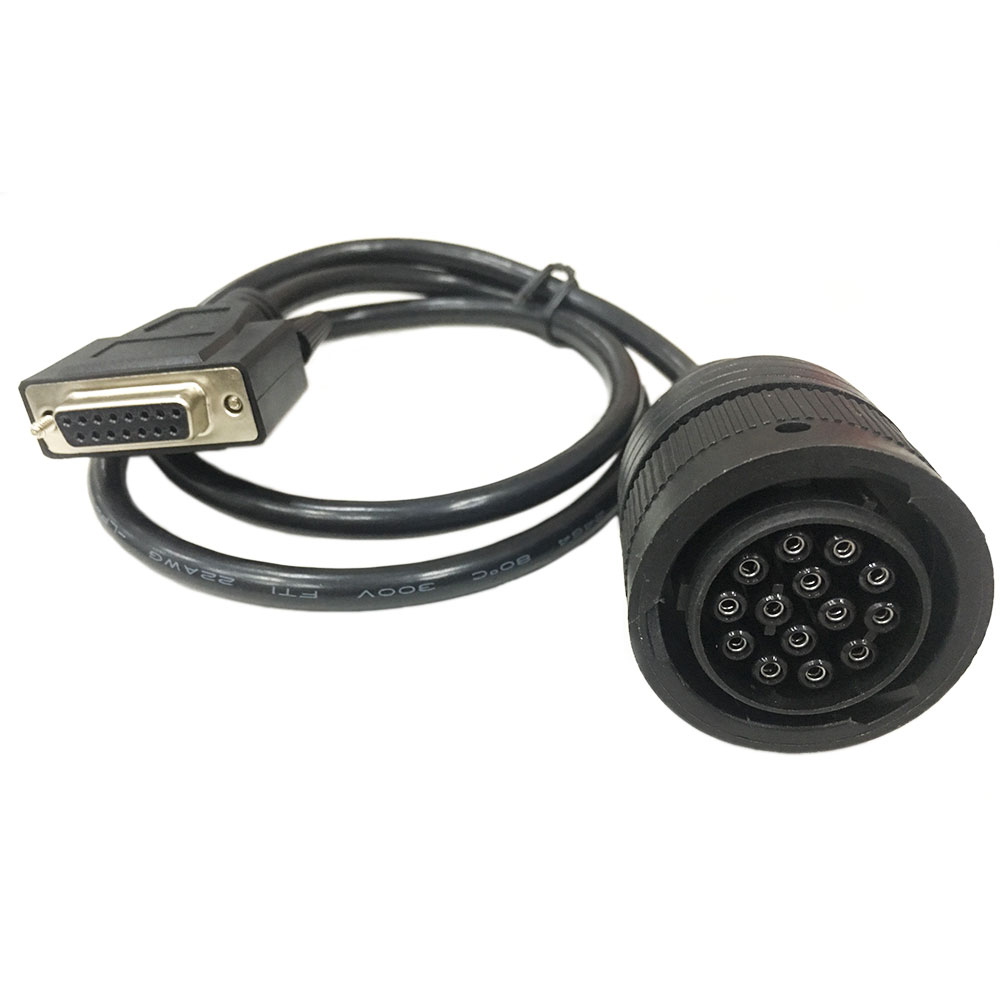

    4.14PIN Cable(for new truck)

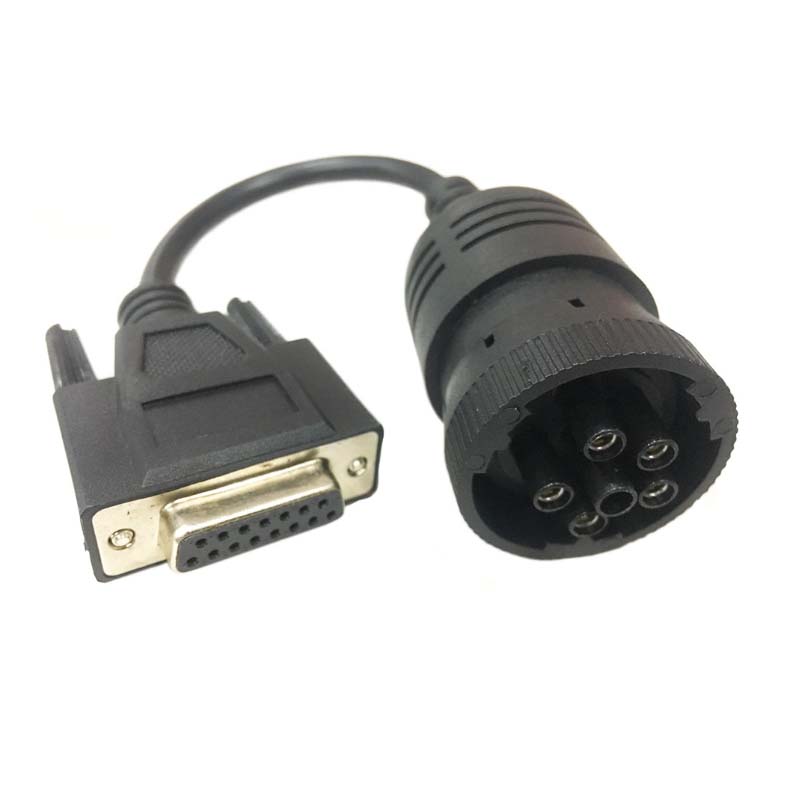

    5.6PIN Cable (for old truck)

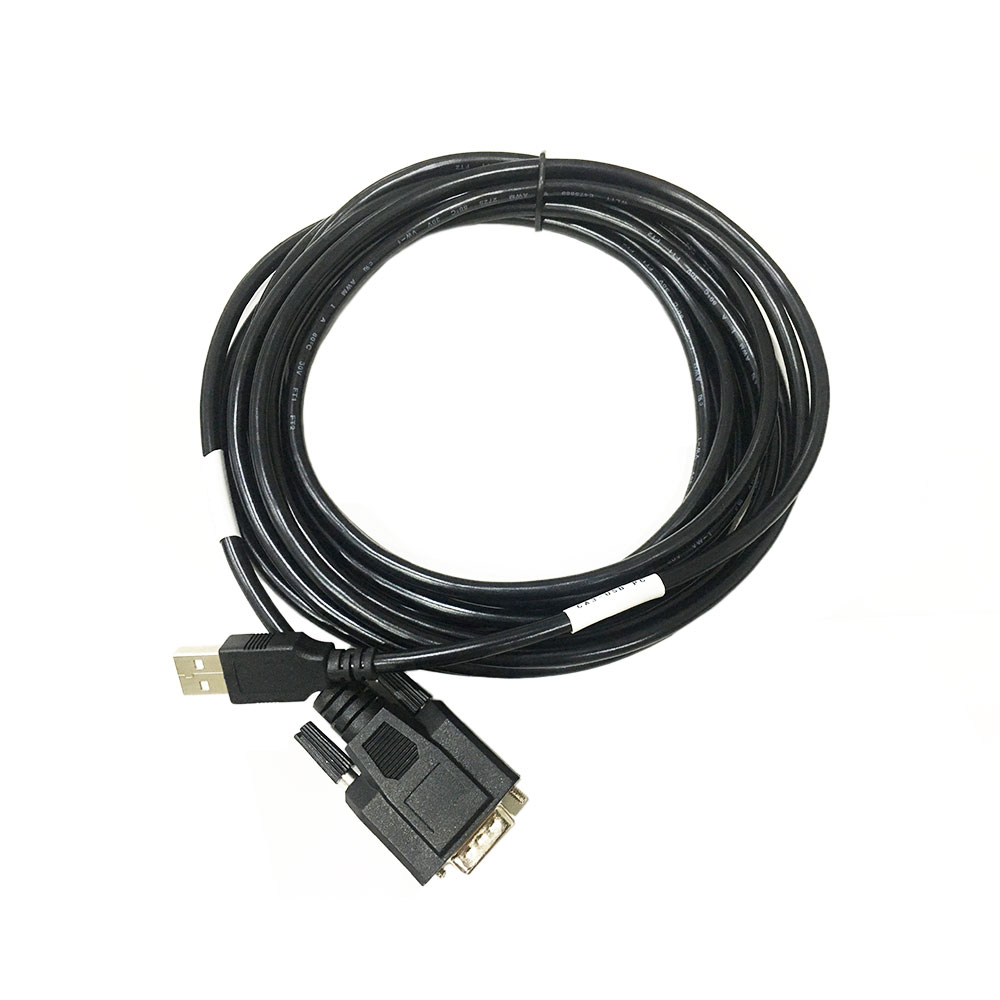

    6.USB Cable (From device to your computer)

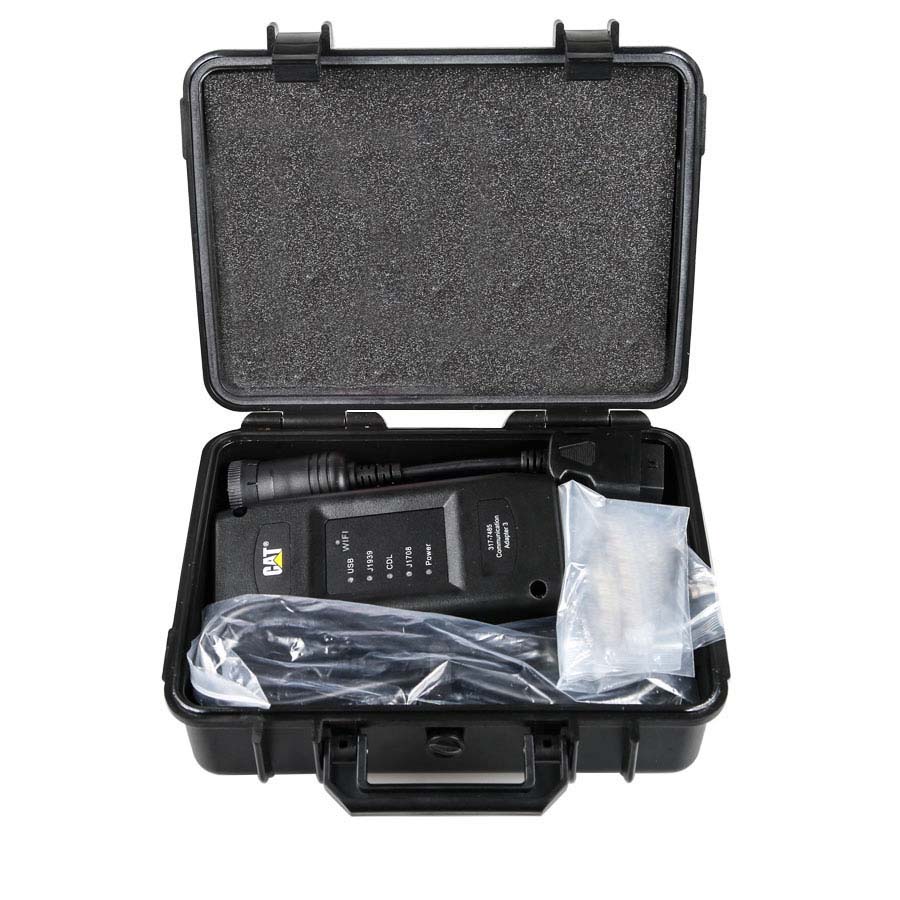

    7.Plastic box

    What's New - 2022A
    Microsoft® Windows™ 11 Compatibility

    Service tool testing has been performed and the service tool is compatible with Windows 11.

    ECM File Replacement Compare Feature

    The service tool now has an ECM Replacement File Compare feature for troubleshooting purposes. This feature allows the user to compare one ECM replacement file with another from within the ECM Replacement feature screen. The feature will highlight the differences between the selected files as a whole or the user may select the “only show differences” checkbox.

    Configuration Group Headings on ECM Replacement Feature

    In order to help the user find ECM replacement configuration items easier, configuration items in the ECM Replacement, Fleet Configuration, and Product ECM features are now grouped under their group sub-headings, as is done in the main configuration feature.

    What's New - 2021C
    Feature Protection System Password Copy

    The Feature Protection System (FPS) has a new "Easy Copy" link to copy passwords in a single operation. The service tool can automatically obtain the passwords from the clipboard and populate the FPS dialog. The service tool dialog also has a new "Easy Paste" button that allows the user to paste data of the correct format from the clipboard. Passwords can still be pasted using customary copy/paste operations, such as the context menu or the CTRL + V hotkey combination.

    Screen Resolution Requirement Update

    The minimum requirement for screen resolution has been updated to 1366x768, or at least 1366 pixels horizontally and at least 768 pixels vertically. The recommended screen resolution is at least 1600x1200. The service tool window displays with a minimum size of 1024x680.

    What's New - 2021B
    End of Support for Windows 8

    Microsoft is ending extended support for Windows 8 as of January 2023. The service tool will be ending support for Windows 8 after the 2021C release.

    Calibration Images

    Images attached to calibration instructions will no longer need to be opened manually to be viewed by a technician. The service tool will now have split user interface windows for calibrations that display pictures. This will allow the technician to see the images without having to navigate away from the instructions. Images may be opened into individual windows and resized for better clarity. The user interface for calibrations that do not display pictures will remain unchanged.

    Default PC Browser

    The service tool will no longer automatically launch web pages in Microsoft Internet Explorer. Web pages will now launch in whatever application is configured as the default internet browser. Certain web pages require a specific browser and may launch in a different browser.

    What's New - 2021A
    No significant new features or feature enhancements

    What's New - 2020C
    No significant new features or feature enhancements

    What's New - 2020B
    Trainer Update – 299D3

    The 299D3 Skid Steer Loader has been added to the Trainer application.

    What's New - 2020A
    Product Status Report Updates

    The Product Status Report has been updated to include throttle configuration information.

    Built-in Factory Password Generator

    The experimental feature allows you to decode (18-Bit passwords not supported) factory passwords

    What's New - 2019C
    Indication of Selected Communications Adapter

    The service tool now displays the selected communications adapter when the service tool is disconnected. The adapter name is displayed in the status area at the bottom right of the service tool window.
