    2022A CAT Caterpillar ET Diagnostic Adapter III CAT Diagnostic Tool PLUS Lenovo X220 laptop With WIFI

    • Item No.  A154-1
    • History: 18  sold
    • Market Price: US$933.59
      Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  995
    • Weight:  7.0KG
    • Rank:  comment rank 5 () Write a Review
      Rated 5/5 based on 5 customer reviews

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    2022A CAT Caterpillar ET Diagnostic Adapter III CAT Diagnostic Tool PLUS Lenovo X220 laptop With WIFI


    We will install the software before ship, so you can get it work directly after you receive it.


    CAT 2022A software version include the 10 factory password generator. When you push the Ctrl+F2 shortcut button,then can open the 10 bits of the password generator.


    WIFI CAT Caterpillar ET Diagnostic Adapter III:
    1. Latest Version: 2022A
    2. Supported Language: Chinese(Simplified),Danish,German(Germany),French(France),Portuguese (Portugal),Japanese,Spanish (tradition),Italian(Italy),English(America)
    3. Support caterpillar diagnostic till 2022
    4. Support: WIFI

    Caterpillar electronic technician 2022A (replaces CAT ET 2021C, 2021B, 2021A, 2020A, 2019C, 2019B) with WinFlash future is an updated version of the caterpillar dealer diagnostic software that can help technicians to diagnose existing and potential problems with their electronically controlled Caterpillar Engines and Machines.

    2022A Caterpillar Electronic Technician software With CAT ET 3 Cat caterpillar adapter 3 support caterpillar diagnostic till 2022.


    Cat et Caterpillar Electronic Technician Software:
    Brand: Caterpillar
    Region: WorldWide
    Support Multi-languages: English, Chinese, Danish, French, German, Italian, Japanese, Portuguese, Russian, Spanish

    Support All cars of CAT

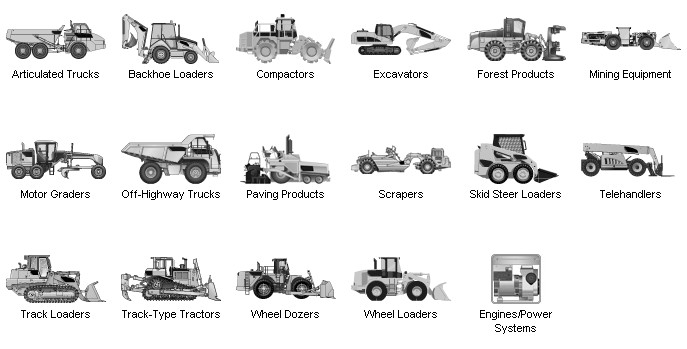

    The list of supported CAT machines and engines can be found below:



    Engines:
    Electric Power
    Electric Power Generation
    Industrial
    Marine Power Systems
    Oil and Gas

    Machines:
    Articulated Trucks
    Asphalt Pavers
    Backhoe Loaders
    Cold Planers
    Compactors
    Dozers
    Drills
    Excavators
    Feller Bunchers
    Forest Machines
    Forwarders
    Harvesters
    Hydraulic Mining Shovels
    Knuckleboom Loaders
    Material Handlers
    Motor Graders
    Off-Highway Trucks
    Pipelayers
    Road Reclaimers
    Site Prep Tractors
    Skid Steer and Compact Track Loaders
    Skidders
    Telehandlers
    Track Loaders
    Underground - Hard Rock
    Underground - Longwall
    Underground - Room and Pillar
    Utility Vehicles
    Wheel Dozers
    Wheel Excavators
    Wheel Loaders
    Wheel Tractor-Scrapers

    Product Descriptio
    CAT Caterpillar ET Diagnostic Tool from Caterpillar provide the capability to access Electronic Control Modules (ECMs) from a personal computer. Many job-critical tasks can be performed with an electronic service tool. The user can display the status of a group of parameters (temperatures, pressures, etc.) simultaneously, view active and clear logged diagnostics, display the current configuration of an ECM and much more. The service tool works with a communication adapter to allow connection to an ECM. A graphical interface makes this software quick to learn and easy to use. A separate pull-down menu for each function enhances the "ease of use." The version and identification of the ECM is automatically retrieved and is displayed on a summary screen when the program is started. Diagnostic tests and calibrations can also be performed.

    CAT Caterpillar ET Diagnostic Tool enable service technicians to reprogram ECMs, reconfigure control system parameters, fine tune performance or diagnose the root cause of a failure the first time. These powerful tools allow service personnel to display and analyze vital performance and health information from any system quickly and accurately. The service tool communicates with any system using ATA (J1708), J1939 or the Caterpillar proprietary data link networks. The service tools provide information and features needed to help a technician diagnose problems and perform repairs and to customize and personalize the operation of a product. By allowing customers to design flexibility and configurability into a product, Caterpillar service tools stretch beyond the capabilities of preprogrammed ECMs or onboard display systems.

    Features
    Display, graph and log status parameters.
    Retrieve prognostic data including histograms, engine totals for fuel used and miles traveled.
    View active diagnostics and clear logged diagnostics. View events where irregularities have occurred and have been logged by the ECM.
     Perform calibrations to enhance performance of the ECM.
     Customize the ECM with application-specific settings.
     Over 100 custom Diagnostic, Information and Service features including:
      - 2D and 3D Histogram plotting capability (engine software
        support required).
      - Custom Status screen groups
      - Snapshots (Download and display snapshot data recorded by the
        ECM)
      - Configuration Aid that allows upload/download of same
        configuration to multiple control modules

    Customised Service Tool Options
    Customized service tool name
    Customized graphics for the splash screen and icons
    Customized installation
    Aftermarket differentiation, i.e., the tool for one customer does not work on the product of another customer.
    Licensing options for customer management
    Flash programming of the ECM(s)

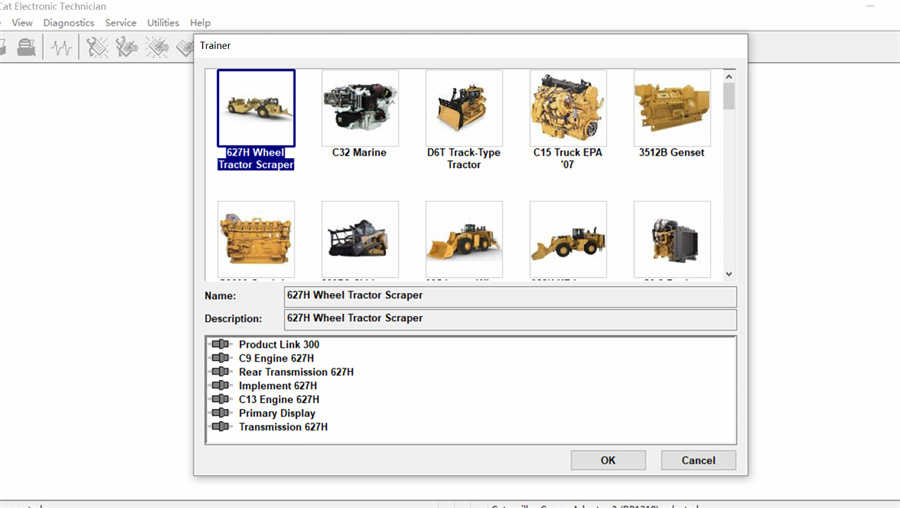

    Training demonstration allows familiarity with the tool's primary functions without connecting to ECM(s)
    Perform customized diagnostic tests to identify harness problems, cylinder or component failures (Automatic Cylinder Cutout with cylinder to cylinder fueling comparison)

    Caterpillar ET Software Function:
    This diagnostic app allows you to:
    View active and logged diagnostics.
    View events where irregularities occurred and were logged by the ECM.
    View the status of a group of parameters (temperatures, pressures, etc.) simultaneously.
    Record and log performance data.
    Graph a group of status parameters.

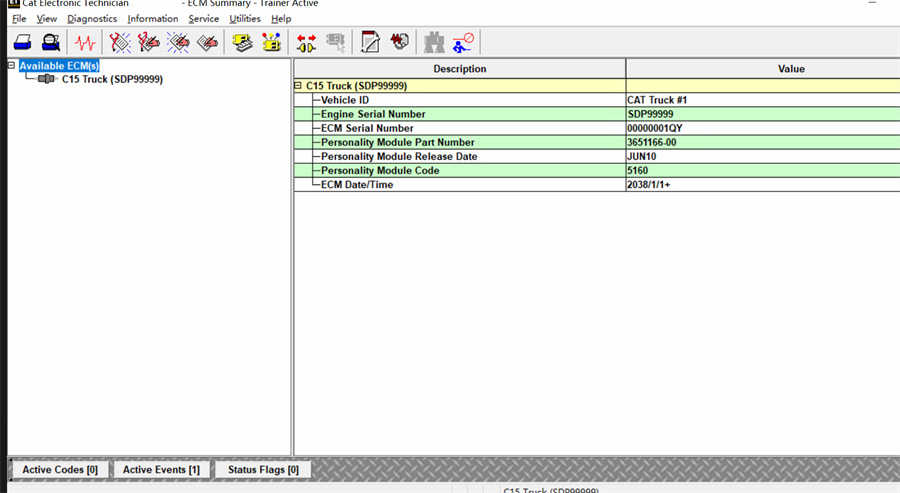

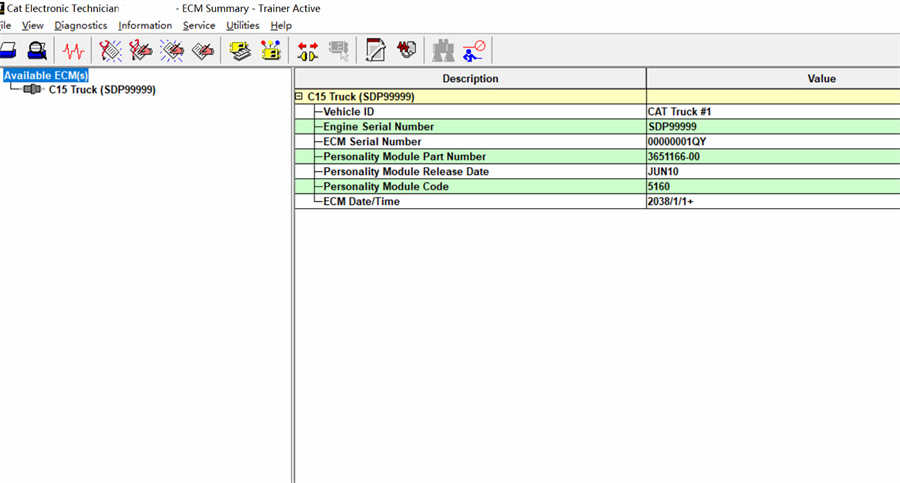

    View the current configuration of an ECM.
    Change ECM configurations.
    Perform diagnostic tests.
    Perform calibrations.
    Print reports and diagnostic results.

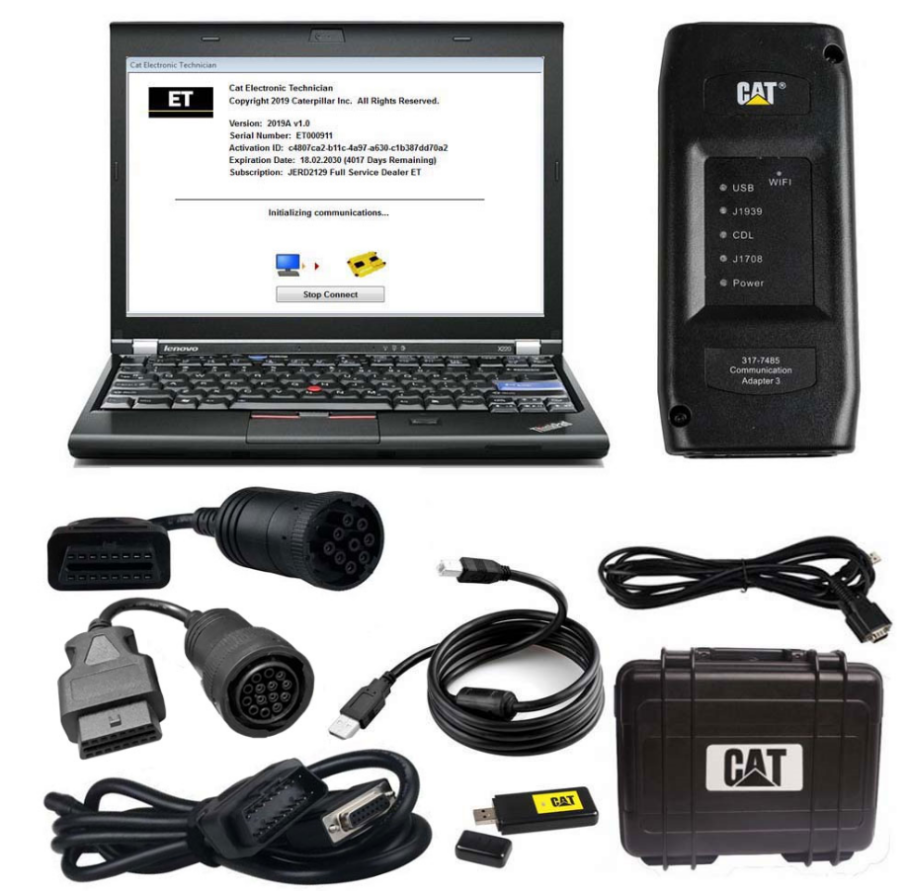

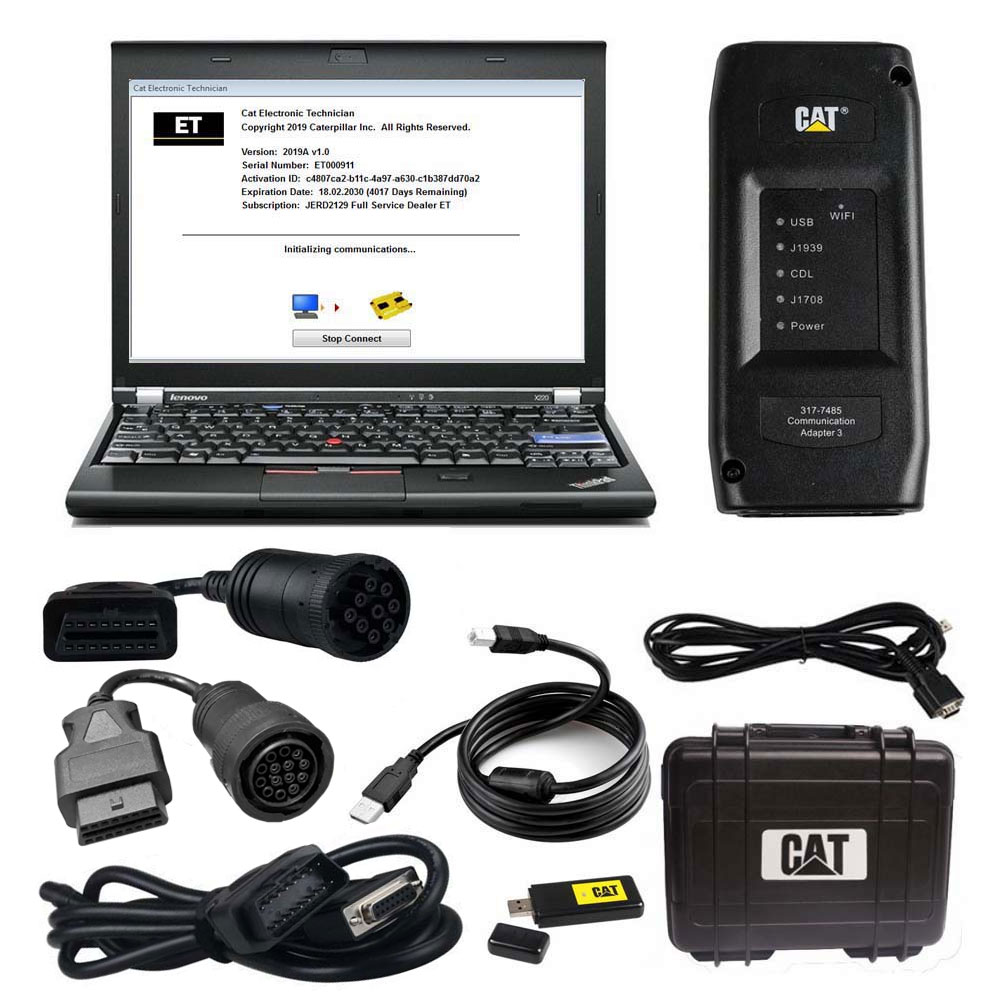

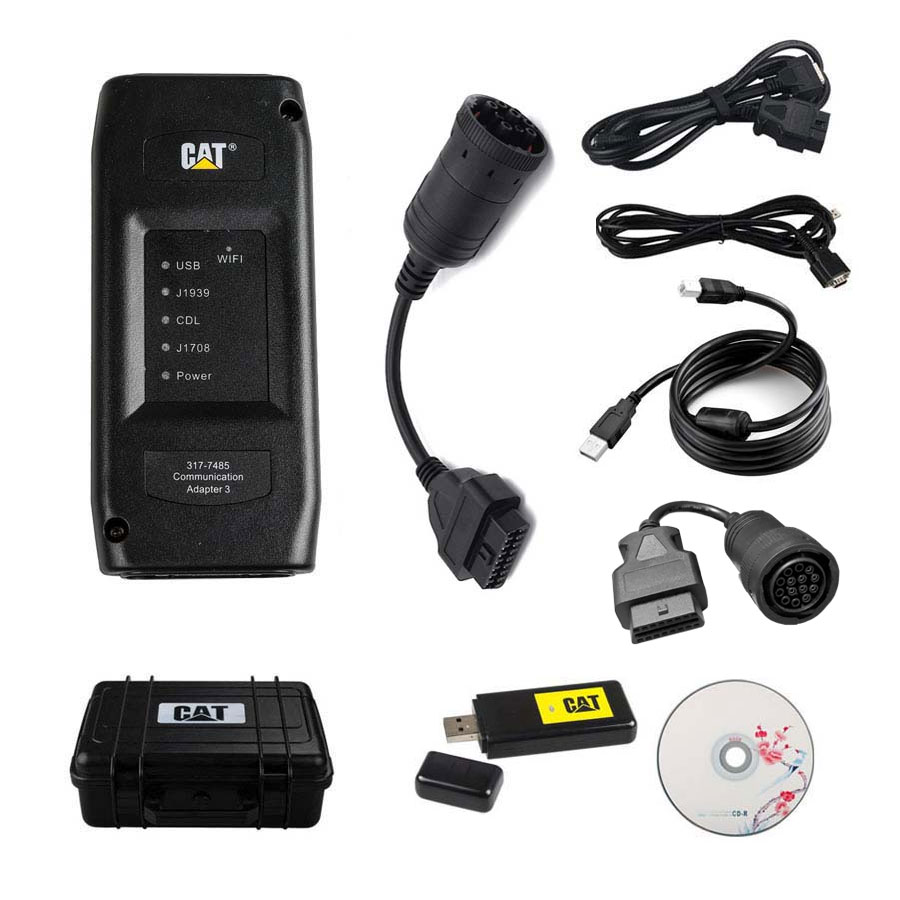

    Package List:
    1pc x Lenovo X220 laptop

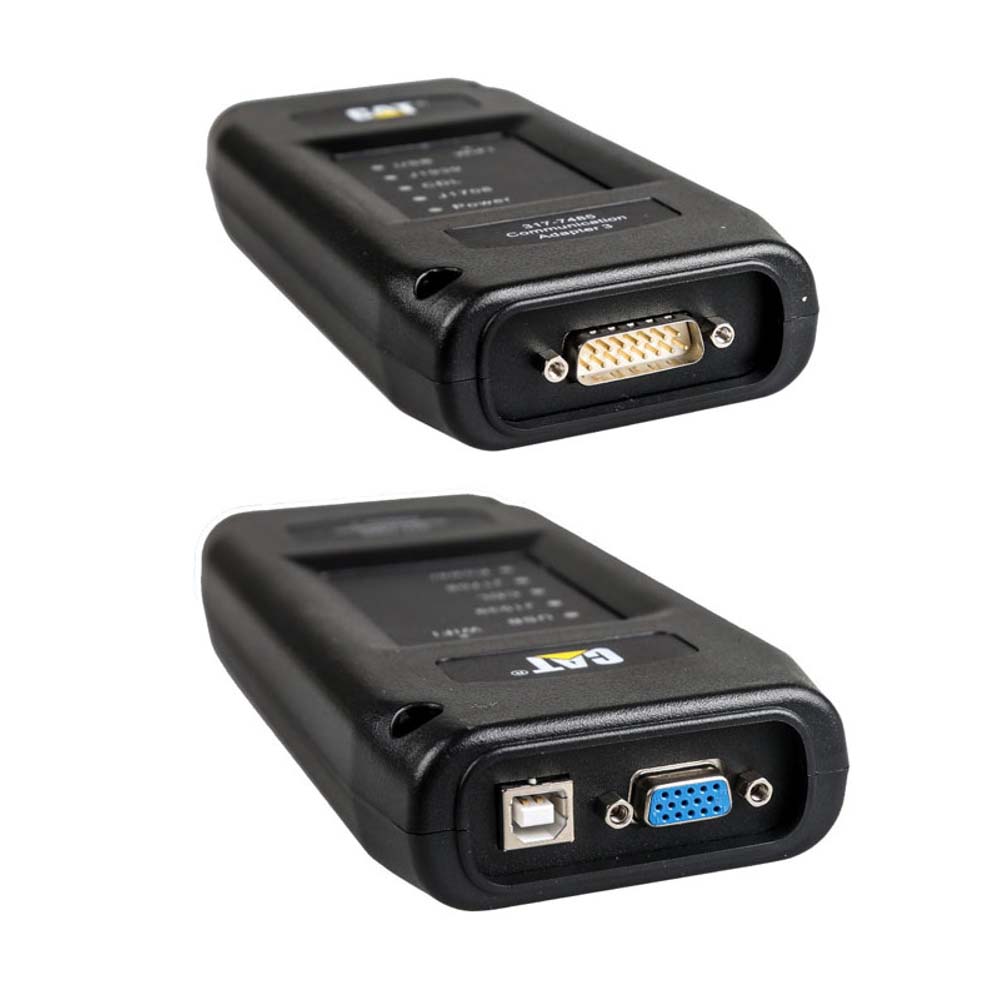

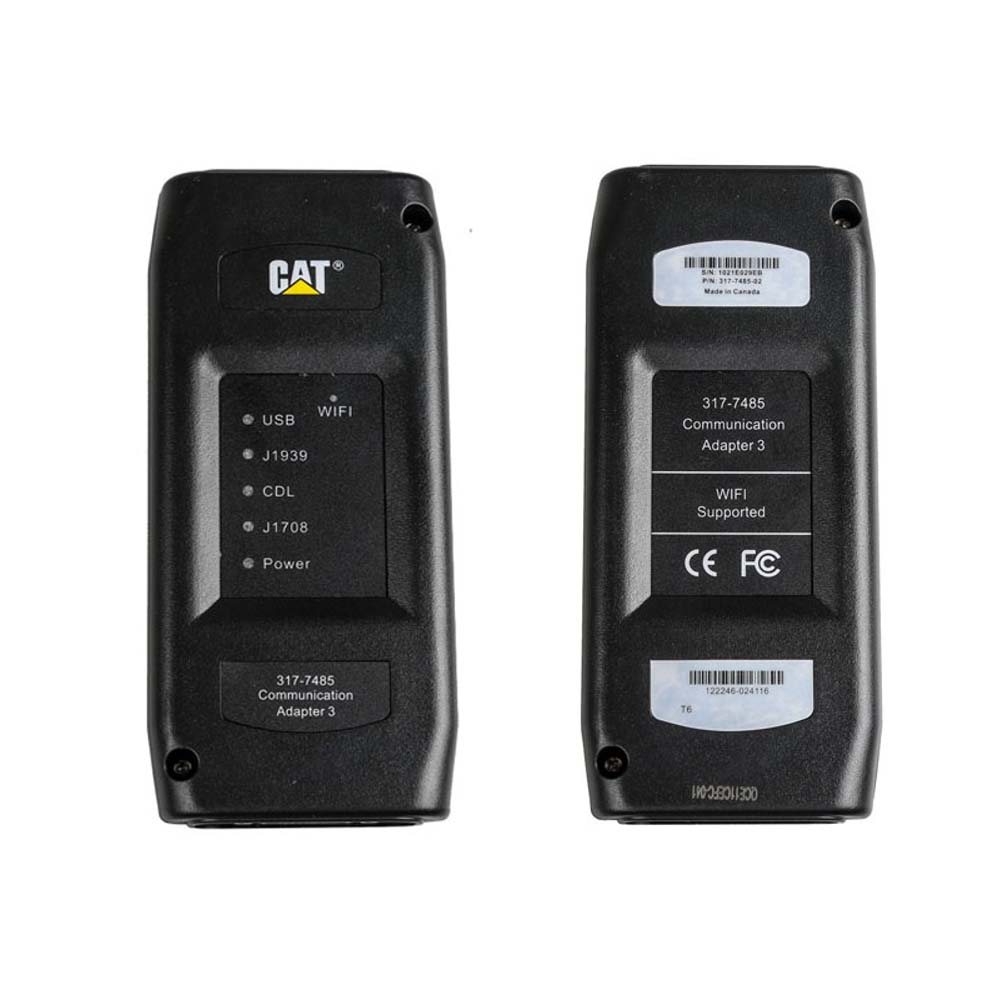

    1pc x CAT Comm Adapter III
    1pc x USB Cable(From device to your computer)
    1pc x J1939/J1708 9PIN Cable

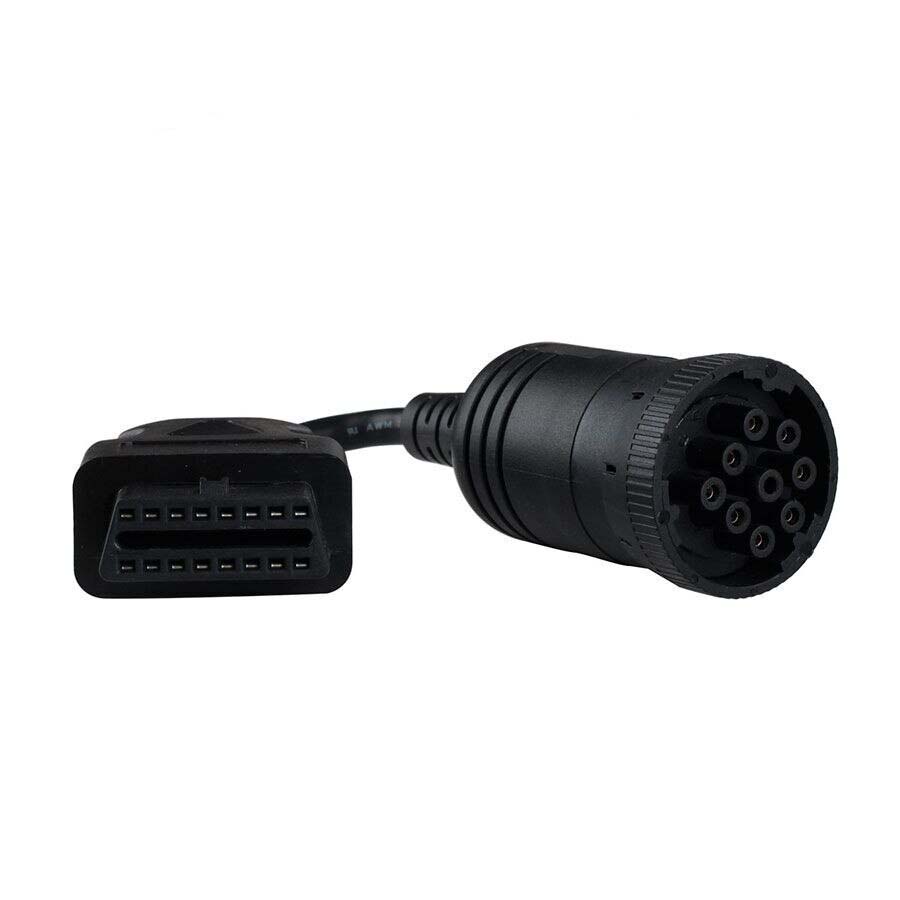

    1pc x 14PIN cable

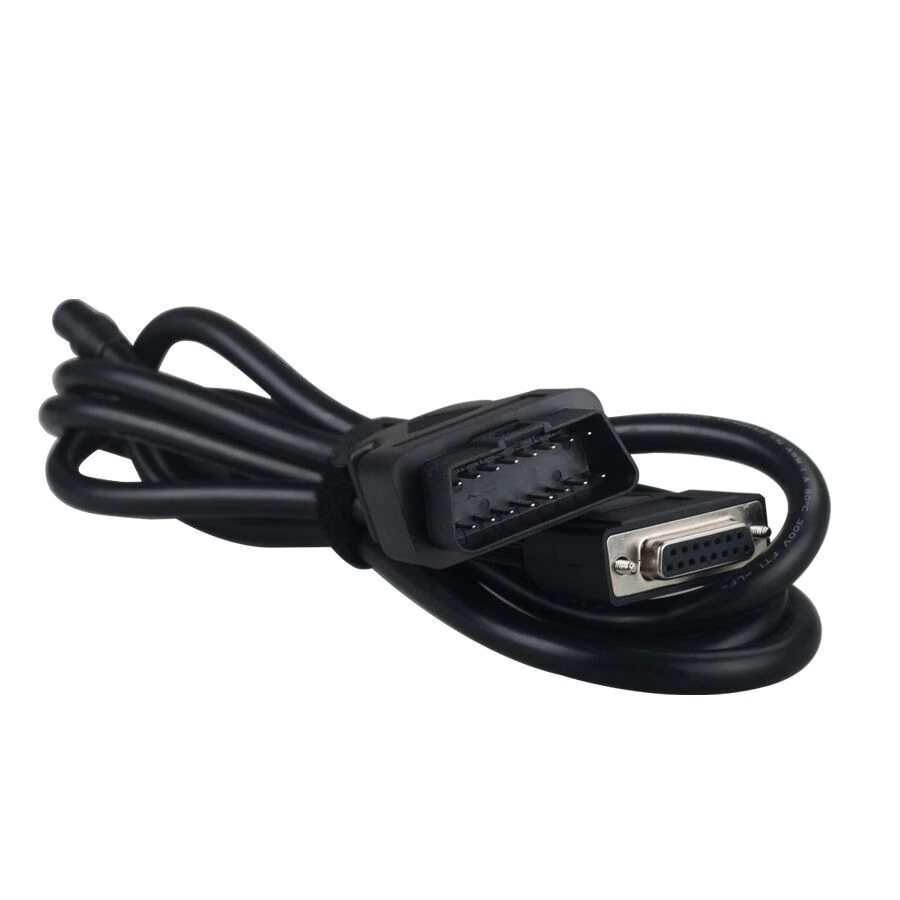

    1pc x The main line 16PIN
    1pc x WIFI adapter
    1pc x Plastic box

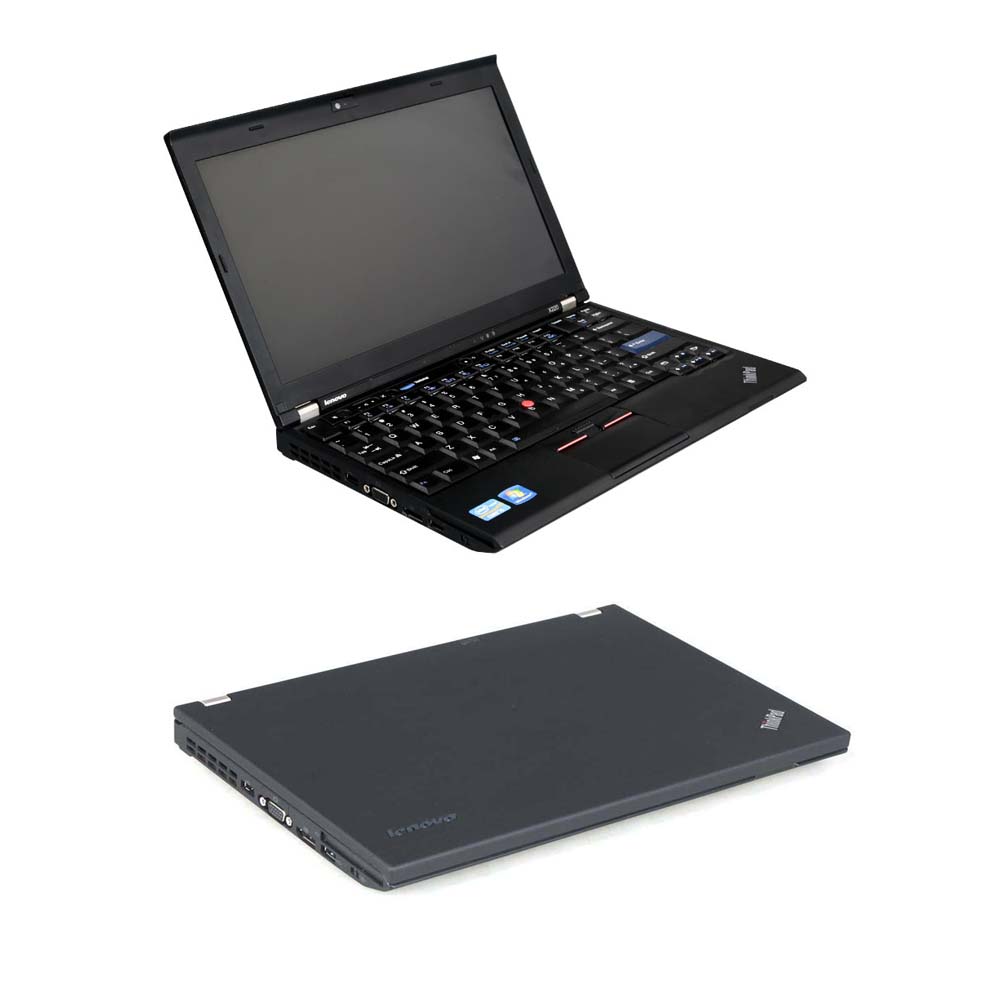

    Lenovo X220 Laptop:
    Brand: Lenovo
    Screen Size: 12.5
    Memory: 4GB
    Memory (RAM): Intel(R)Core(TM)I5 CPU
    Type: Laptop/Notebook
    Condition: Used
    Processor Speed: 2.53GHz


    What's New - 2022A
    Microsoft® Windows™ 11 Compatibility

    Service tool testing has been performed and the service tool is compatible with Windows 11.

    ECM File Replacement Compare Feature

    The service tool now has an ECM Replacement File Compare feature for troubleshooting purposes. This feature allows the user to compare one ECM replacement file with another from within the ECM Replacement feature screen. The feature will highlight the differences between the selected files as a whole or the user may select the “only show differences” checkbox.

    Configuration Group Headings on ECM Replacement Feature

    In order to help the user find ECM replacement configuration items easier, configuration items in the ECM Replacement, Fleet Configuration, and Product ECM features are now grouped under their group sub-headings, as is done in the main configuration feature.

    What's New - 2021C
    Feature Protection System Password Copy

    The Feature Protection System (FPS) has a new "Easy Copy" link to copy passwords in a single operation. The service tool can automatically obtain the passwords from the clipboard and populate the FPS dialog. The service tool dialog also has a new "Easy Paste" button that allows the user to paste data of the correct format from the clipboard. Passwords can still be pasted using customary copy/paste operations, such as the context menu or the CTRL + V hotkey combination.

    Screen Resolution Requirement Update

    The minimum requirement for screen resolution has been updated to 1366x768, or at least 1366 pixels horizontally and at least 768 pixels vertically. The recommended screen resolution is at least 1600x1200. The service tool window displays with a minimum size of 1024x680.

    What's New - 2021B
    End of Support for Windows 8

    Microsoft is ending extended support for Windows 8 as of January 2023. The service tool will be ending support for Windows 8 after the 2021C release.

    Calibration Images

    Images attached to calibration instructions will no longer need to be opened manually to be viewed by a technician. The service tool will now have split user interface windows for calibrations that display pictures. This will allow the technician to see the images without having to navigate away from the instructions. Images may be opened into individual windows and resized for better clarity. The user interface for calibrations that do not display pictures will remain unchanged.

    Default PC Browser

    The service tool will no longer automatically launch web pages in Microsoft Internet Explorer. Web pages will now launch in whatever application is configured as the default internet browser. Certain web pages require a specific browser and may launch in a different browser.

    What's New - 2021A
    No significant new features or feature enhancements

    What's New - 2020C
    No significant new features or feature enhancements

    What's New - 2020B
    Trainer Update – 299D3

    The 299D3 Skid Steer Loader has been added to the Trainer application.

    What's New - 2020A
    Product Status Report Updates

    The Product Status Report has been updated to include throttle configuration information.

    Built-in Factory Password Generator

    The experimental feature allows you to decode (18-Bit passwords not supported) factory passwords

    What's New - 2019C
    Indication of Selected Communications Adapter

    The service tool now displays the selected communications adapter when the service tool is disconnected. The adapter name is displayed in the status area at the bottom right of the service tool window.


    User Comment(Total 5 User Comment Num)

    • by Eric Schm,Oct 20,2021

      How can I get the newest version with laptop?

      Reply #1 by Nancy Oct 21,2021
      Hello friend, you can order it directly, you order today, we can send you 1-2 days.

      Nancy


    • by Tyler Rosene,Oct 11,2021

      Now the 2021B is the newest version of CAT Caterpillar ?

      Reply #1 by Nancy Oct 12,2021
      Hello friend, yes, now the newest version is 2021B.

      Nancy


    • by Andrius Karpis,Sep 19,2021

      I have a adapter and laptop. Do you have a link for just the software the works with on high way engines.

      Reply #1 by Julie Sep 20,2021
      Hello, yes pls kindly check below link, it is just software, we can help you install and activate by remote tool.

      https://www.obd2tool.com/goods-10449-Cat-Caterpillar-ET-Electronic-Technician-Diagnostic-Software.html

      Julie


    • by Justin Calanchi,Sep 06,2021

      This item arrived on time good quality & was as expected..good value for money

      Reply #1 by Julie Sep 06,2021
      Hello, Thank you so much for your feedback.If you have problem to use our tool, Please no hesitate to contact us.

      Julie


    • by Gary Cox,Sep 02,2021

      Very good in help and fast in delivery in cas you issues in setup on line help available

      Reply #1 by Kelly Sep 03,2021
      Hello, Thank you so much for your feedback.If you have problem to use our tool, Please no hesitate to contact us.

      Kelly


    Total 5 records, divided into1 pages. First Prev Next Last
