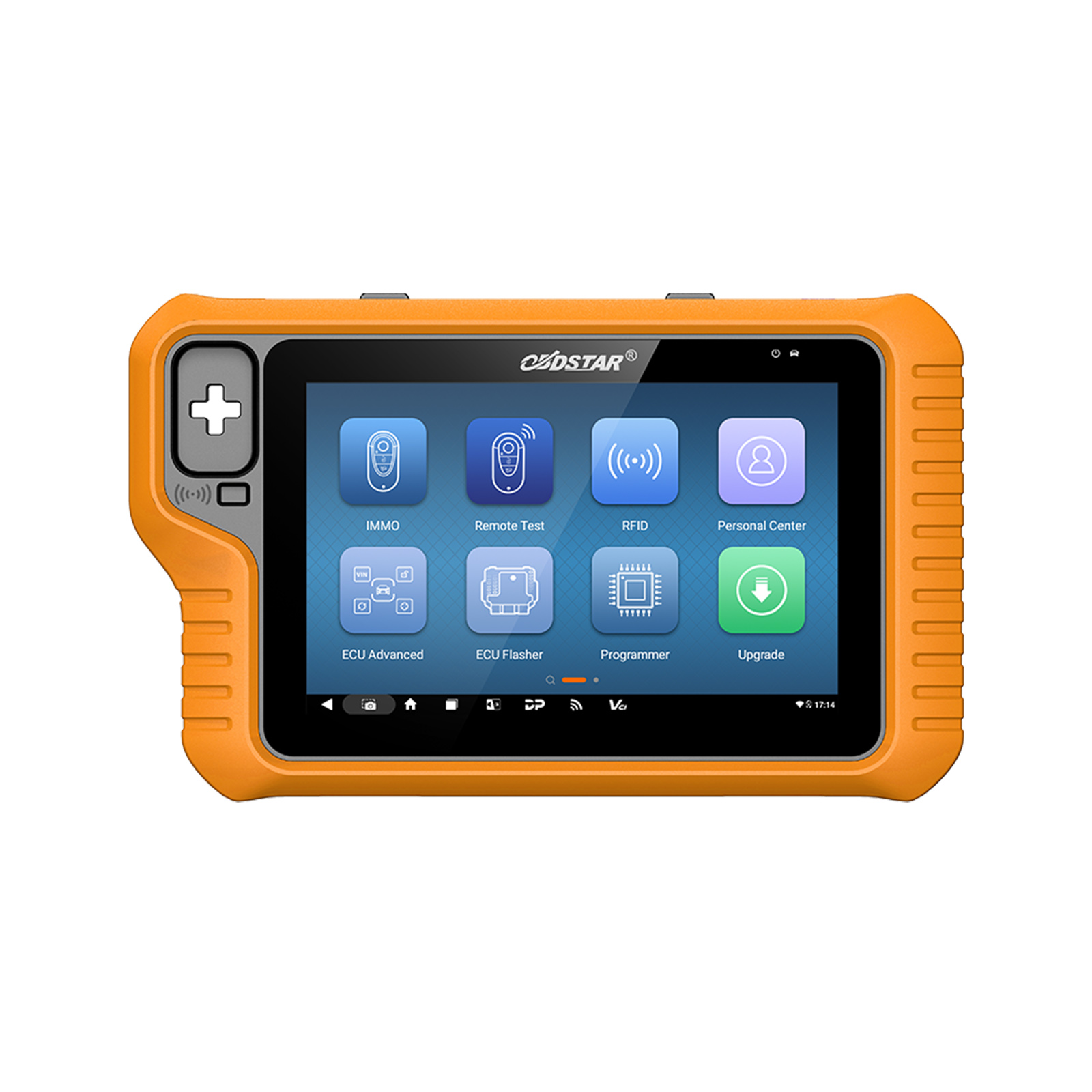

OBDSTAR X300 Classic G3 Key Programmer with Built-in CAN FD DoIP Supports Car, E-Car, HD, Motorcycle, Marine IMMO

OBDSTAR X300 Classic G3 is the new generation intelligent scanner of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, marine (jet-ski), etc. A good helper for automotive locksmith master.

1.2 Years free update
2.Supports built-in CAN FD, DoIP, RFID, Renault converter
3.Supports Car, HD, E-Car, MOTO, Marine (jet-ski) Immobilizer
4.Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.

The G3 expands on the features and functionality of the OBDstar X300 DP Plus key programming series and will have the ability to add the functionality of the OBDstar Odomaster mileage correction, P50 airbag reset, MT series test platform and DC706 ECU ECM TCM BCM BSI cloning tool.

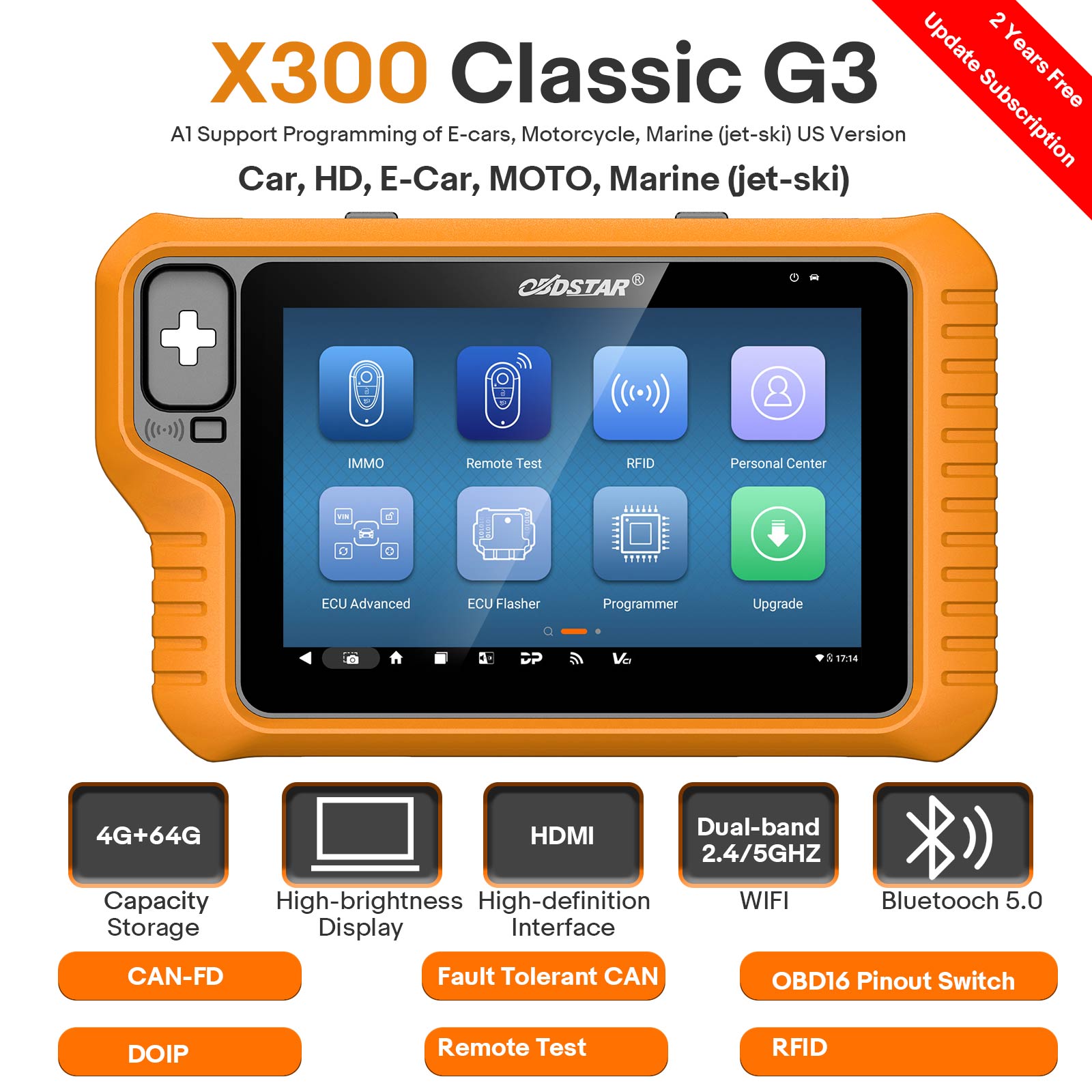

OBDSTAR X300 Classic G3 Key Programmer Specifications:
1.Two Years free update online
2.Update version of X300 DP Plus
3.RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
4.Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID
5.Comes with MP001 (replace P003/P003+ adapter) and P004 adapters in default
6.Language: ONLY English
7.2 years free update.   Software subscription $249 per year later.
8.Paid software activation service for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform and the other functions are available.   Turn device into a all-in-one tool.

OBDSTAR X300 Classic G3 Key Programmer Support Function:
1.Programming IMMO(Keys)
2.IMMO OFF
3.Remote Test
4.R/W EEPROM/MCU
5.R/W Transponder
6.Unlock ECU
7.Make Dealer Keys
8.ECU Advanced
9.Make Start Keys
10.OBDII
11.Renew Key
12.Mileage correction (add-on module)
13.ECU/TCU Cloning (add-on module)
14.Airbag reset (add-on module)
15.Test platform (add-on module)

Supported Vehicle types
Car, HD, E-Car, MOTO, Marine (jet-ski)

Advanced Functions

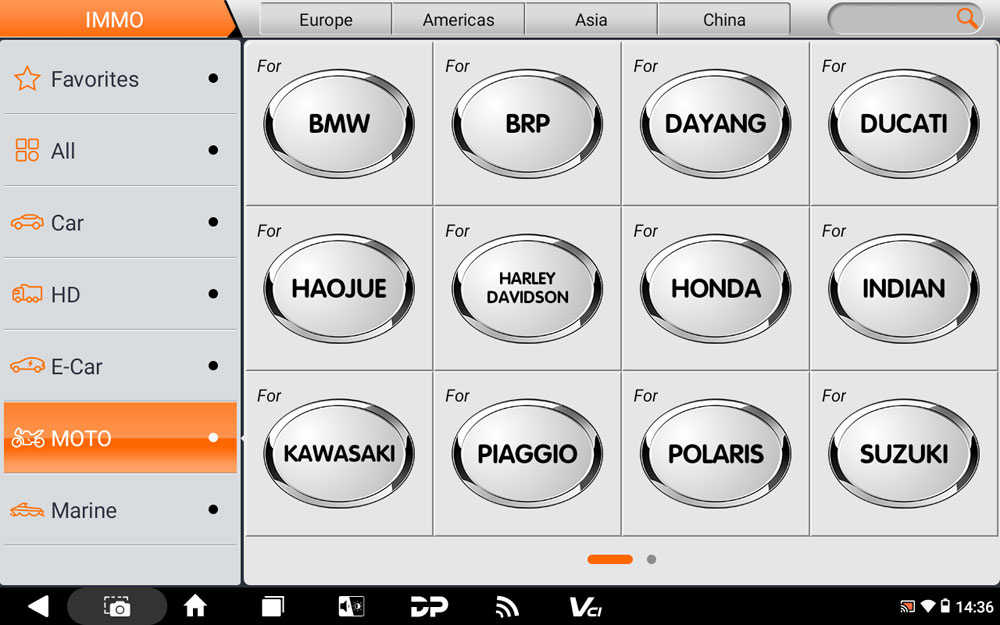

1. Support MOTO key progarmming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;
2. Support Marine key progarmming function for BRP, KAWASAKI, YAMAHA and others;
3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;
4. Support unlock ECU function for ALFA ROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;
5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;
7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models.

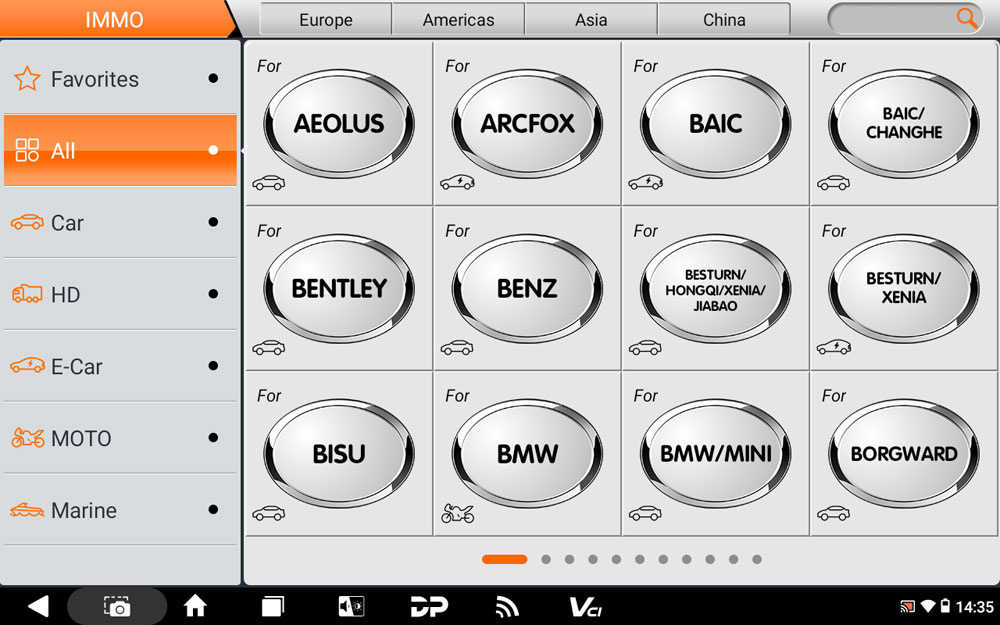

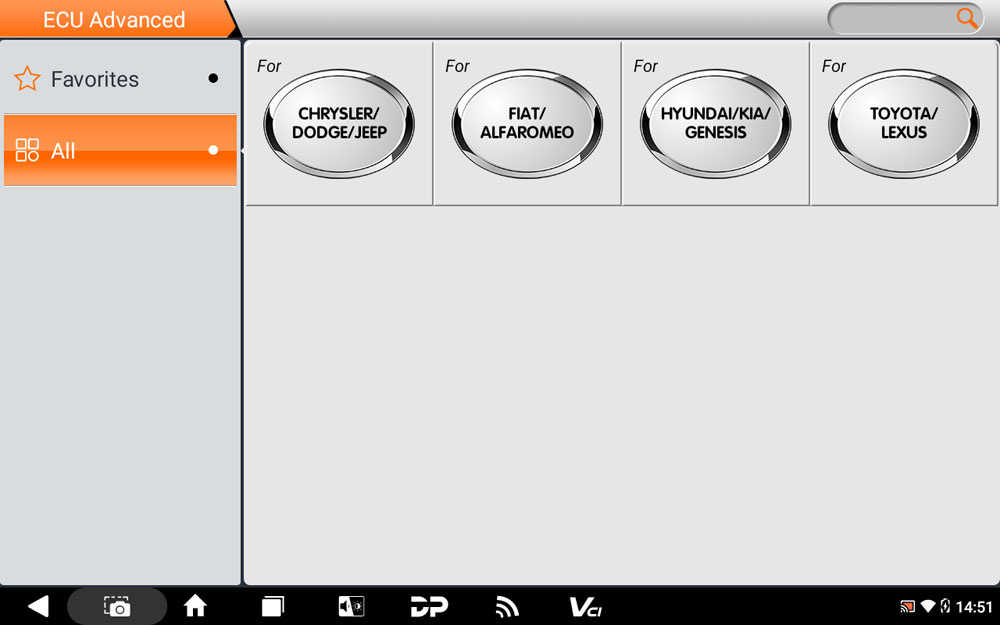

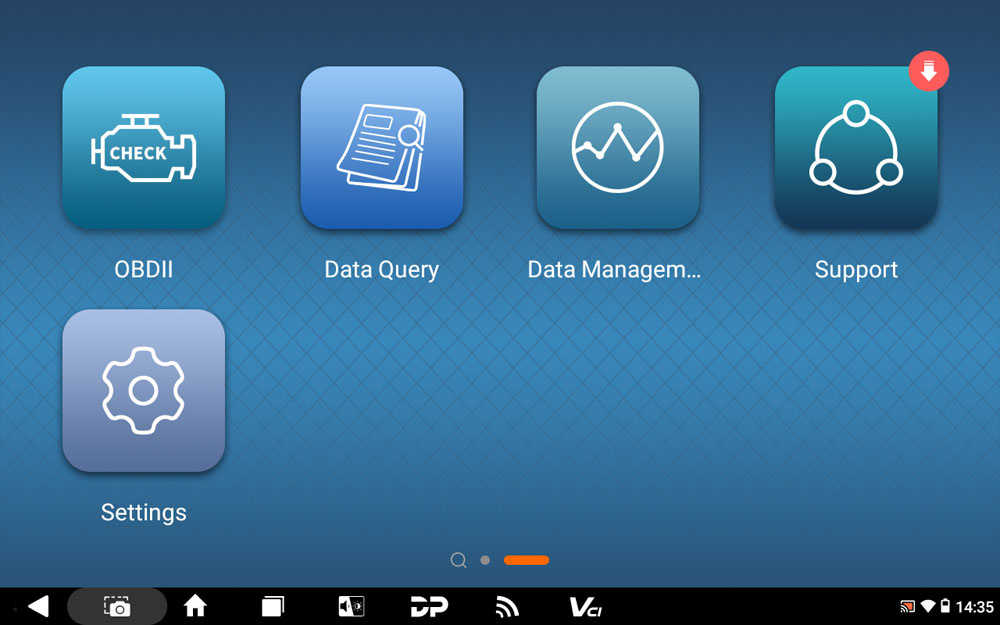

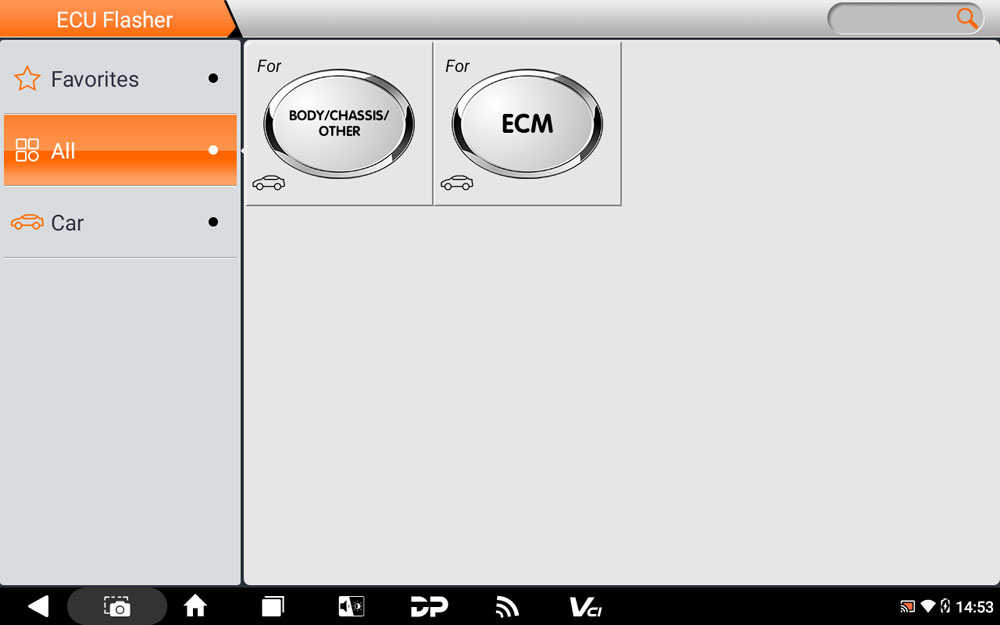

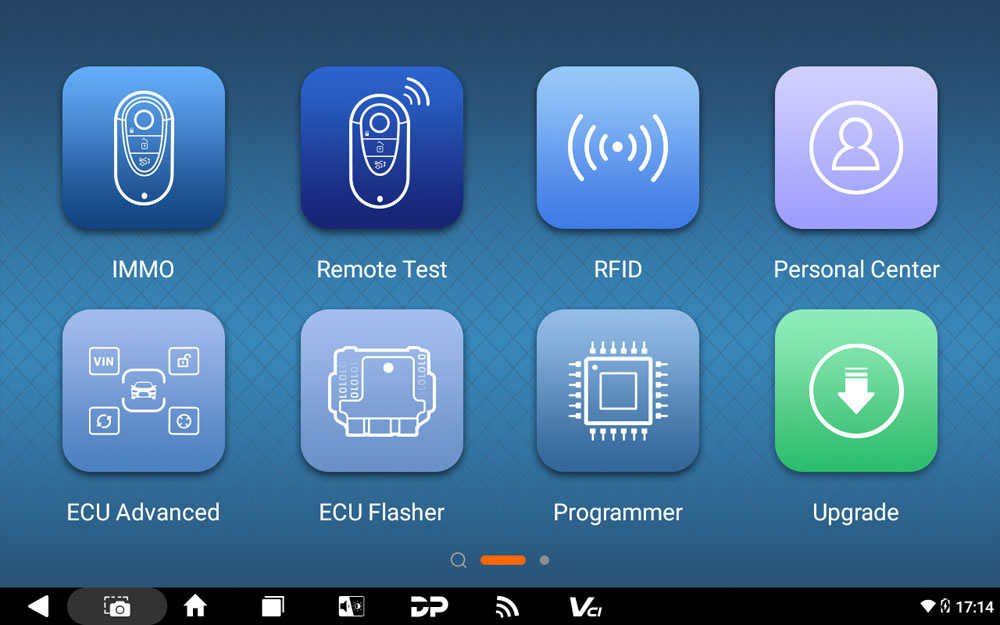

X300 Classic G3 Menu:








OBDSTAR X300 Classic G3 vs X300 DP Plus C pack

Item		X300 DP Plus C	X300 Classic G3
Hardware	Operation system	Android 5.1.1	Android 11
	OTA	x	√
	Screen recording	x	√
	Wireless screen casting	x	√
	CPU	qual core ARM cortex A9 1.4GHz	Quad-core 64-bit Cortex-A55  2.0GHz
	Battery	3700mAh	9000mAh
	Storage capacity	1+32GB	4+64GB
	LCD	8.0 inch	8.0 inch fully laminated sunlight readable screen
	Camera	Rear camera 500W pixels	Rear camera 800W pixels, auto-focus
	Bluetooth	Bluetooth 4.2	Bluetooth 5.0(Compatible with BT 4.2)
	External interfaces	x	RJ-45√
		x	HDMI√
		TYPE-A	TYPE-A,TYPE-C
	WiFi	2.4G	Dual-band 2.4G/5GHZ
	VCI	STM32F105	STM32H723
		CANFD Adapter Required	CANFD built in√
		x	DOIP built in√
		x	Low Speed(Fault Tolerant) CAN  built in√
		x	RS232, RS485  built in√
		All other common protocol types	All other common protocol types
	RFID	P001 Required	Built in√
	Remote Test	RT100 Required	Built in√
	Renault Converter	Renault Converter Required	Built in√
	Weight	About 1kg	1.5kg (main unit)
	Dimension	254mm*174mm*35mm	270.5mm*165mm*39mm
Functions	Diagnosis	√	x
	OBDⅡ	√	√
	Car IMMO	√	√
	MOTO IMMO	√	√
	HD IMMO	√	√
	Marine IMMO	x	√
	E-Car IMMO	x	√
	RFID	x	√
	Make key	x	√
	Unlock Smart key	x	√
	Renew key	√	√
	Read/Write EEPROM MCU	√	√
	ECU advanced (Includes ECU unlock)	x	√
	Oil/Service reset	√	√
	Other service function	√	x
	Remote test	x	√
	ECU flasher IMMO (IMMO OFF, ISN, IMMO DATA)	x	√
	ECU flasher (Clone)	√ Limited supported models, different with DC706 and G3	Paid activation
	Car/Motorcycle cluster recalibration	√	Paid activation
	Airbag reset	√	Paid activation
	Test Platform	x	Paid activation

X300 Classic G3 Recent Update:
Adds Volvo S60, S90, V60, V90, XC40, XC60, XC90 2022- proximity key programmingAdds Ford F250, F350, ECOSPORT proximity key programming till 2022 and many other Ford smart key/blade key programming

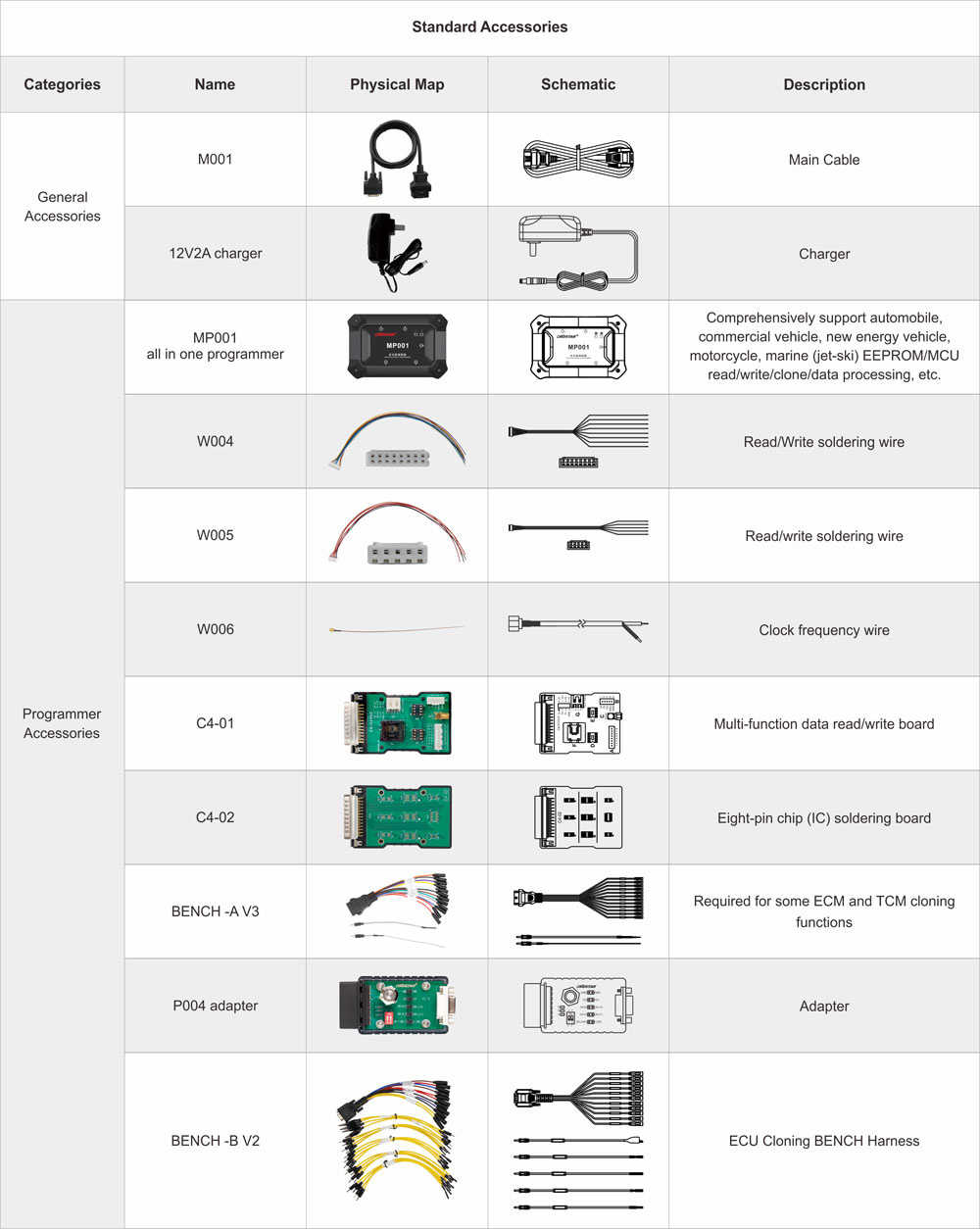

Package Includes:
1pc x M001 main cable
1pc x charger
1pc x MP001 all-in-one programmer
1pc x W004 read/write soldering wire
1pc x W005 read/write soldering wire
1pc x W006 clock frequency wire
1pc x C4-01 multi-function data read/write board
1pc x C4-02 eight-pin chip(IC) soldering board
1pc x BENCH-A V3 for ECM and TCM cloning functions
1pc x P004 adapter
1pc x BENCH-B V2 ECU Cloning BENCH harness




FAQs:
Q: Is X300 Classic G3 compatible with all the functions of X300 DP PLUS?
A: No, X300 Classic G3 is mainly targeted at automotive electronics repairers or professional locksmiths, so it does not include the diagnostic and maintenance functions of X300 DP PLUS (except for Manual Service Lamp Reset), but it adds a lot of new special functions.

Q: Can I use the accessories of an old product I have previously purchased?

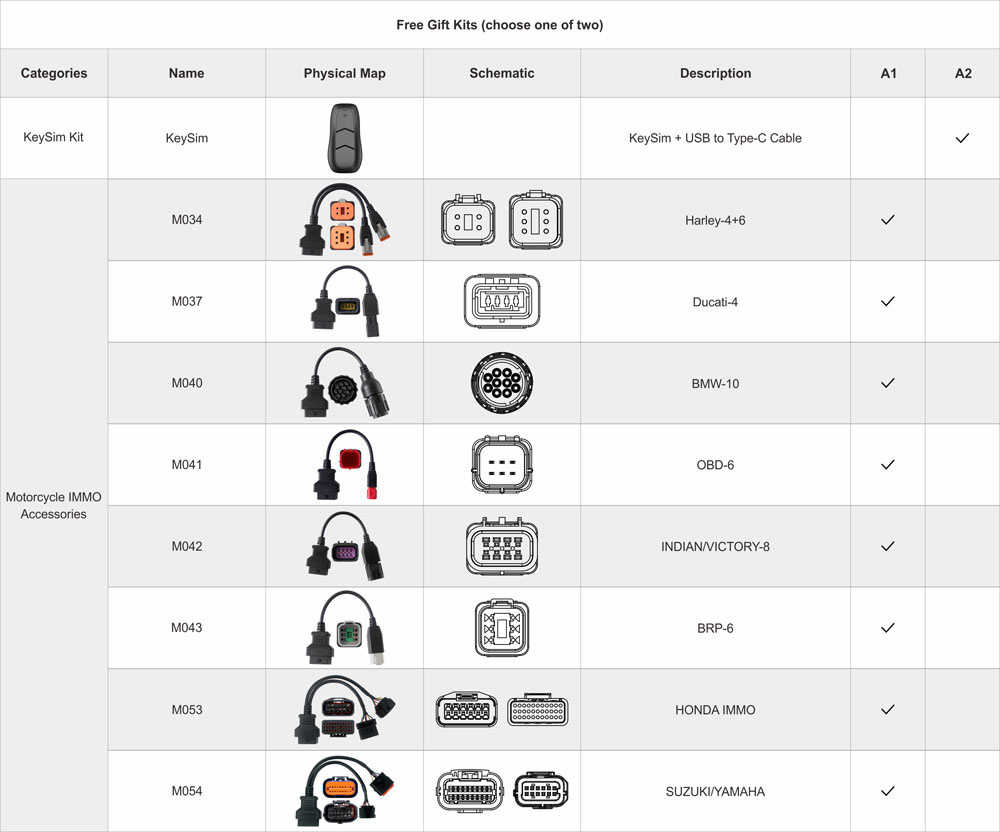

A: Yes, in order to save locksmith costs, X300 Classic G3 is compatible with the following adapters or cables that have been purchased by previous users:
1.   P002 adapter, P003 adapter, Key Sim adapter;
2.   CAN DIRECT KIT, TOYOTA-24/27/30 CABLE;3.   NISSAN-40 BCM CABLE, NISSAN/ RENAULT 16+32 CABLE;
3.   FCA 12+8 CABLE;
4.   TOYOTA 8A cable, FORD all key lost cable.

Q: What is ECU Unlock function of X300 Classic G3?
A: The ECU Unlock fucntion is developed so that used ECU modules can be used in other identical vehicles.   If you install a used ECU into another vehicle without unlocking it, it will report a fault and cannot be used normally.

Paid software activation service for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform and the other functions are available.   Turn device into a all-in-one tool.
1.Test Platform Software License for OBDSTAR X300 Classic G3--USD550
2.ECU TCU Cloning Software License for OBDSTAR X300 Classic G3--USD108
3.Airbag Reset Software License for OBDSTAR X300 Classic G3--USD388
4.Mileage Correction License for OBDSTAR X300 Classic G3--USD588

1.Test Platform Software License for OBDSTAR X300 Classic G3--USD550
For X300 Classic G3. To activate bench test platform function (MT101, MT502, MT501 functions).
Online activation. No real shipping.
License Only. Hardware is not included.
Provide G3 serial number to us after payment.

2.ECU TCU Cloning Software License for OBDSTAR X300 Classic G3--USD108
For X300 Classic G3. To activate ECU/BCM/ECM/TCU cloning function (DC706 function).
Online activation. No real shipping.
License Only. Hardware is not included.
Provide G3 serial number to us after payment.

3.Airbag Reset Software License for OBDSTAR X300 Classic G3--USD388
For X300 Classic G3. To activate airbag reset function (same function as P50).
Online activation. No real shipping.
License Only. Hardware is not included.
Provide G3 serial number to us after payment.

4.Mileage Correction License for OBDSTAR X300 Classic G3--USD588
For X300 Classic G3. To activate odometer/mileage correction function (same function as odomaster full).
Online activation. No real shipping.
License Only. Hardware is not included.
Provide G3 serial number to us after payment.
