OBDSTAR TCM Connector Work with OBDSTAR DC706 X300 Classic G3 and Other TCU Programmers

Transmission dedicated connectors collection, used for transmission ECU cloning, read/write MAP, diagnosis, mileage calibration and other functions, support Volkswagen, Mercedes-Benz, BMW, Porsche and many other brands, can be directly operated by OBD or by BENCH, no jumper connection required, convenient and fast.

for DC706 and X300 Classic G3 ECU TCU Programmer.
It can also be used with other devices (need to use the converter v2)

Advantage
The connectors are all made of special molds, ECU connection is more reliable, better experience.

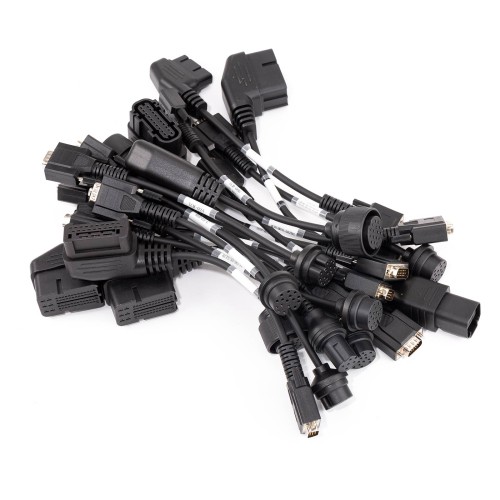

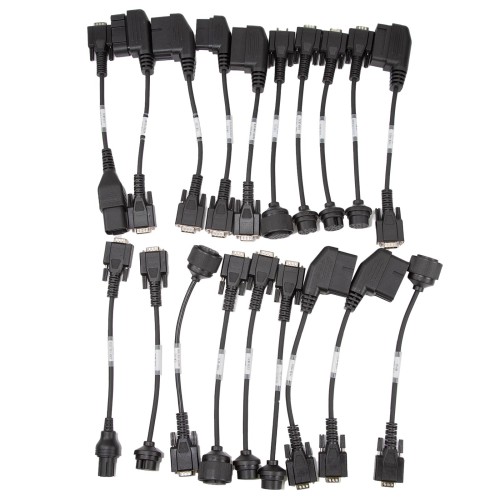

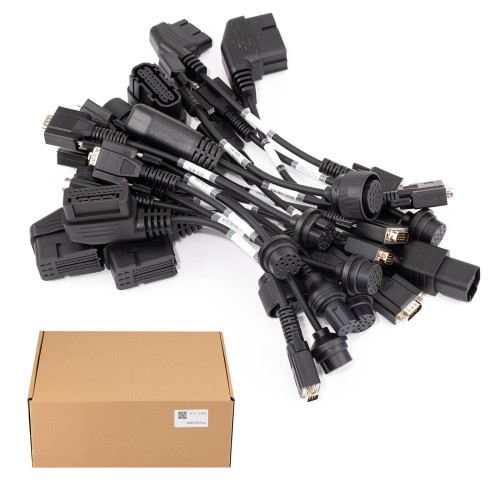

Contains 25 pcs of TCM cables: TCM-001,TCM-002,TCM-003,TCM-004,TCM-005,TCM-006 TCM-008,TCM-009,TCM-010,TCM-011,TCM-012,TCM-013,TCM-017,TCM-018,TCM-019,TCM-020,TCM-021,TCM-022,TCM-023,TCM-024,TCM-025,TCM-026,TCM-027,TCM-029.

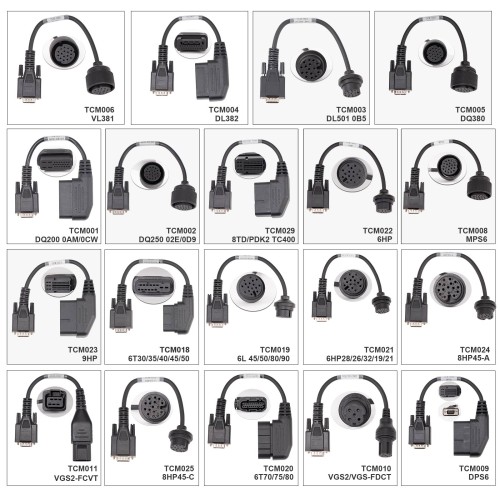

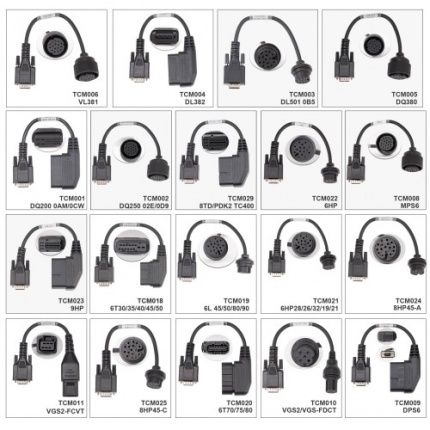

Contains the following gearbox TCM solder free adapters
TCM-001    For DQ200 0AM/0CW
TCM-002    For DQ250 02E/0D9
TCM-003    For DL501 0B5
TCM-004    For DL382
TCM-005    For DQ380
TCM-006    For VL381
TCM-008    For GETRAG MPS6 Chrysler Dodge Ford Land rover Renault Volvo
TCM-009    For Ford GETRAG DPS6
TCM-010    For Benz GETRAG VGS2-FDCT VGS-FDCT
TCM-011    For Benz GETRAG VGS2-FCVT
TCM-012    For Benz VGS3-NAG2 VGS2-VAG2
TCM-013    For Benz VGS3 FDCT
TCM-017    For 7G DCT Gearbox
TCM-018    For GM 6T30 6T35 6T40 6T45 6T50 Buick Chevrolet
TCM-019    For 6L45 6L50 6L80 6L90 Connector
GM Buick Chevrolet Cadillac Ford GMC Lincoln Mazda Mercury Pontiac Saturn
TCM-020    For GM 6T70 6T75 6T80 GM Buick
Chevrolet Cadillac Ford GMC Lincoln Mazda Mercury Pontiac Saturn
TCM-021    For ZF 6HP28 6HP26 6HP32 6HP19 6HP21
TCM-022    For BMW 6HP
TCM-023    ZF 9HP Acura, Chrysler, Dodge, Fiat, Honda, Jaguar, Jeep Land rover
TCM-024    For ZF 8HP45-90, 8HP45 (Gen3 TC277)
TCM-025    For ZF 8HP45 (Gen3 TC275)
TCM-026    For AWF21 AW6A-EL TF-70SC
TCM-027    For AF40-6 AW55 AX6III TF-73SC
TCM-029    For ZF 8DT TC400
TCM-030    For VW Audi DQ400E
