WOYO CTB008 BMW motorcycle OBD2 diagnostic Scanner For BMW Bike Tester

WOYO CTB008 Bluetooth 5.0 Diagnostic scanner Support 2017 - 2023 B.MW Motorcycle supports Android phone

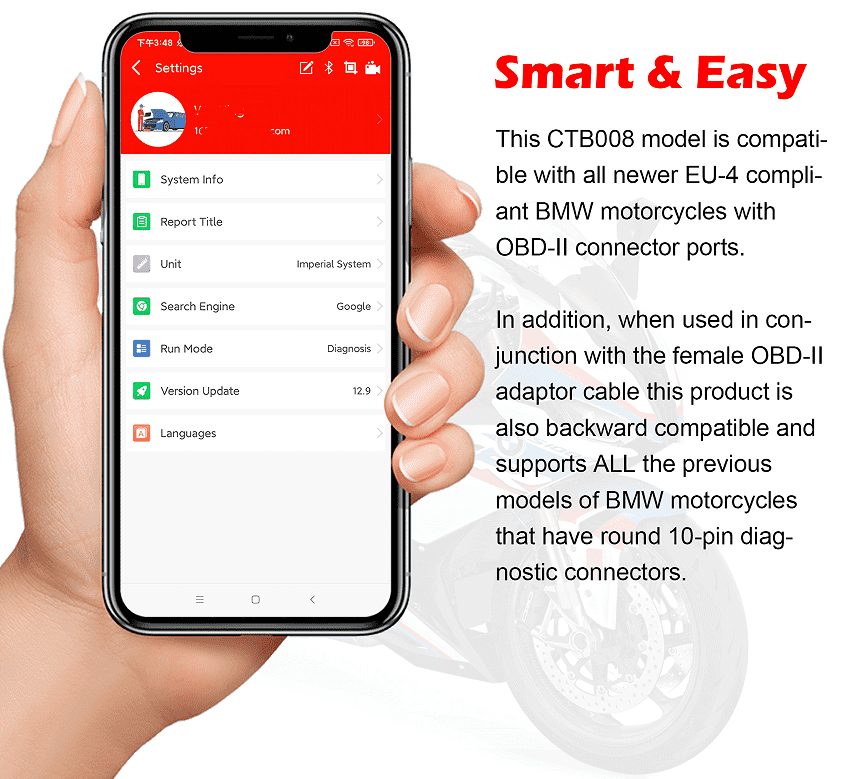

This CTB008 model is compatible with all newer EU-4 compliant BMW motorcycles with OBD-II connector ports.

In addition, when used in conjunction with the female OBD-II adaptor cable this product is also backward compatible and supports ALL the previous models of BMW motorcycles that have round 10-pin diagnostic connectors. Bluetooth connection let you easy to connect outside.


WOYO CTB008 OBD2 diagnostic Scanner Description:
1.Unlimited VIN recognition, suitable for enthusiasts and professional technicians.
2.Comes with an OBD-II to 10-pinadapter, capable of diagnosing all BMW motorcycle models (compatible with models before 2017 with the use of an adapter cable).

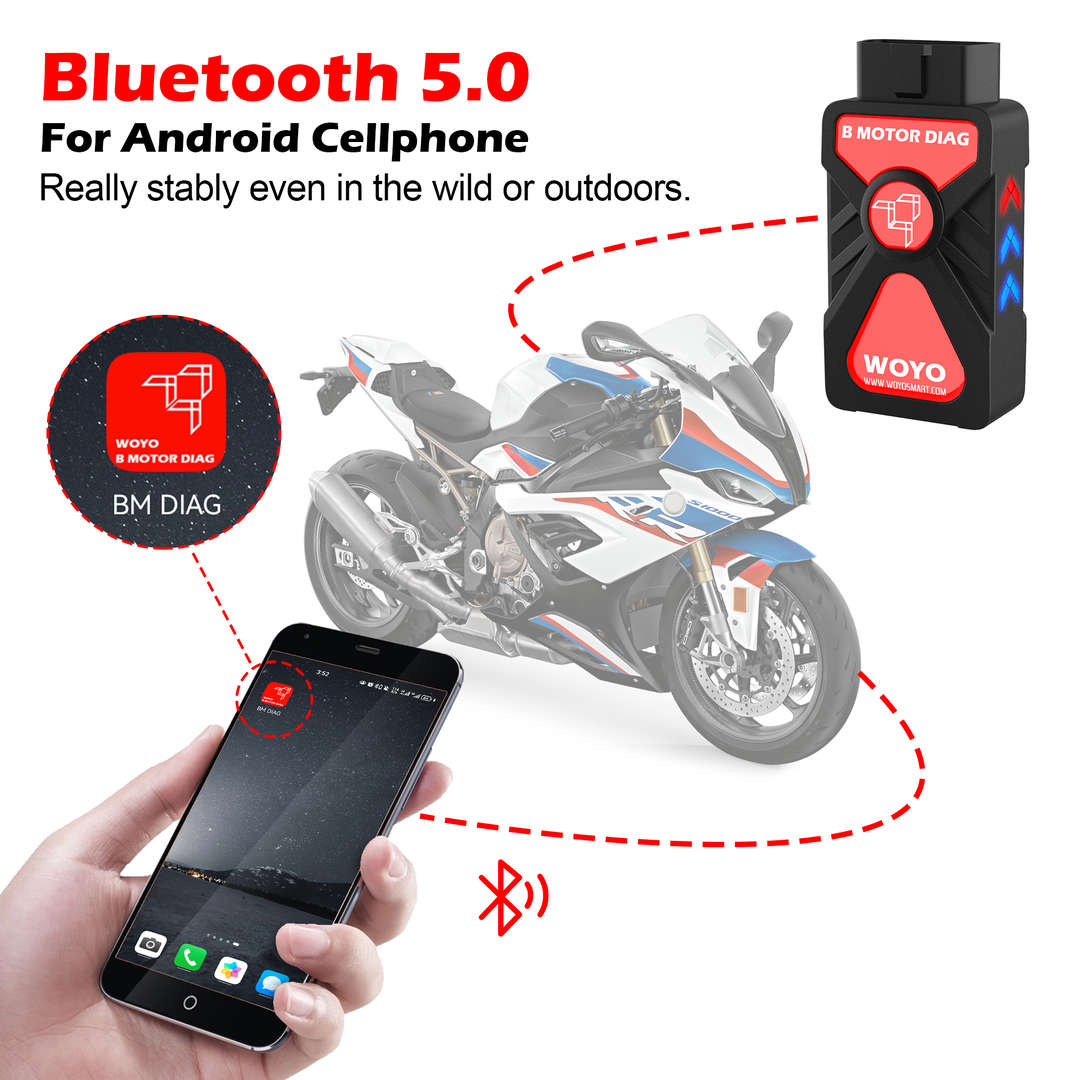

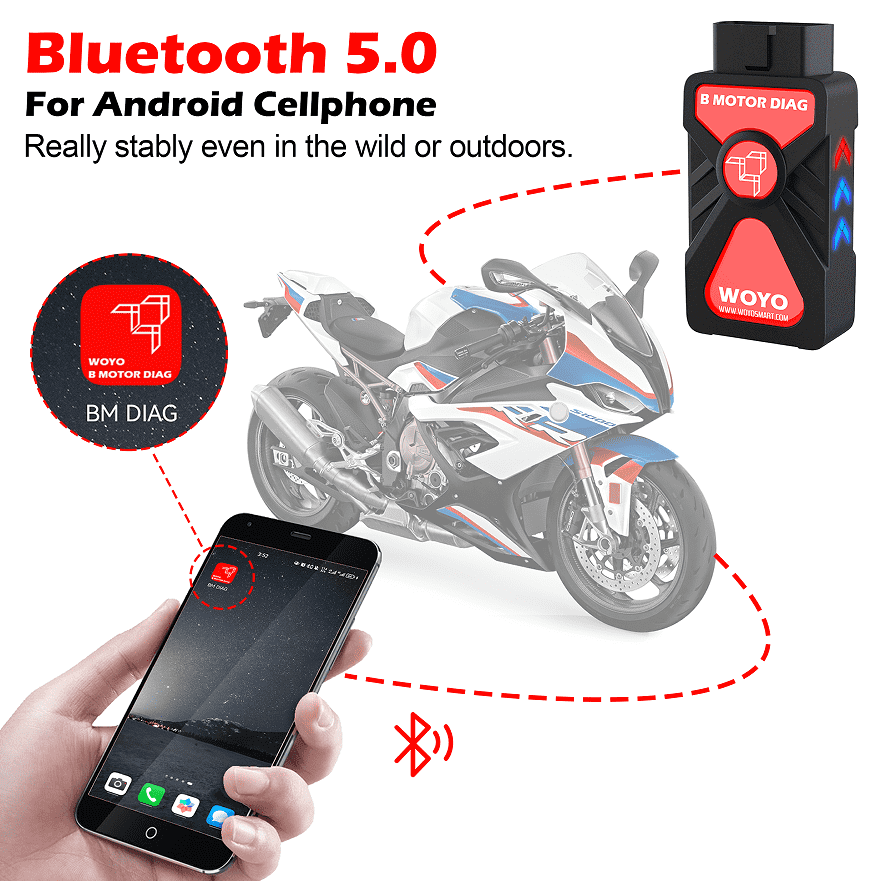

3.After downloading and installing the App, connect your Android phone via Bluetooth (BT 5.0) for use.Each device has an independent username and password (Account Password Card in package), which can be activated by logging in.
4.Before updating the data package, please ensure that your phone has storage memory of at least 3G.
5.The app supports 24 kinds of language options, providing convenience for consumers in different countries.

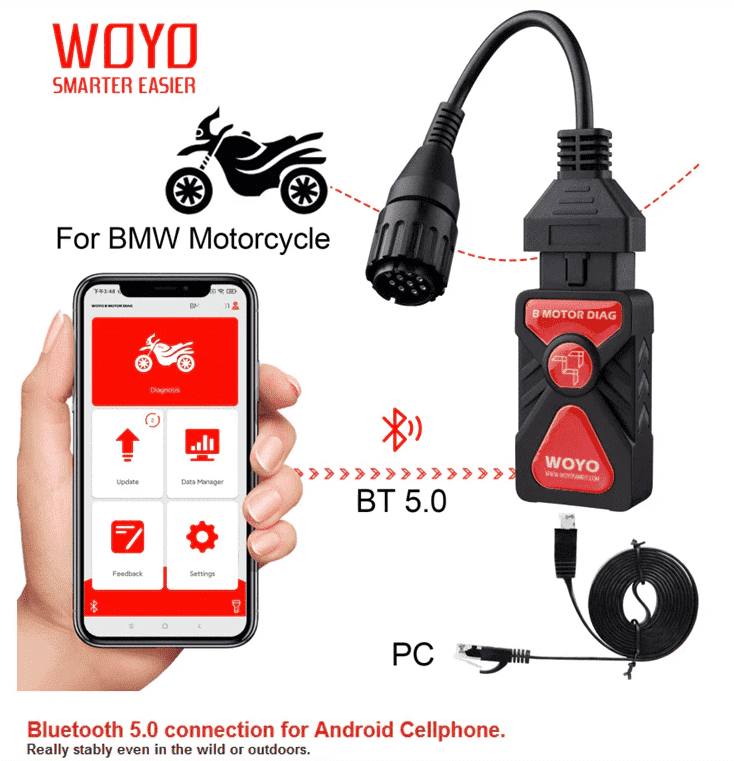

6.Bluetooth transmission, stable signal, compact size, suitable for outdoor use.
7.Provide a 59inch network cable to connect to the computer, and the host hardware supports engineer software.  Due to copyright restrictions, we are unable to provide engineer version software.

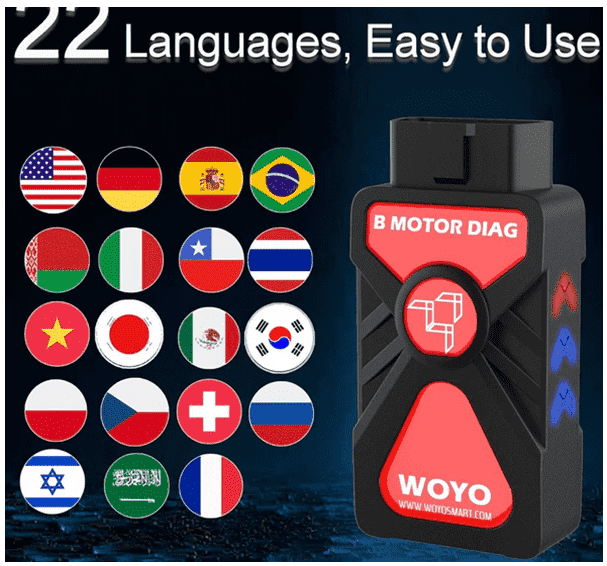

App Support 22 countries languages to choose.

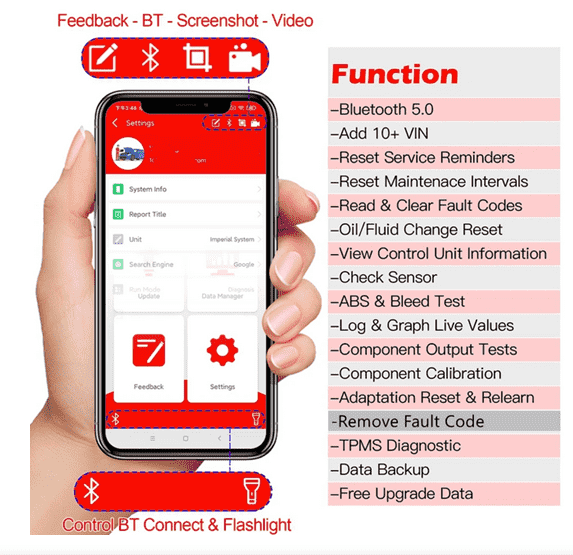

Function:
Bluetooth 5.0
Screenshot & Video
Read and clear fault codes
Reset service reminders
Control unit information
View live sensor values
Log and graph live values
Component output tests
Component calibration
Adaptation reset and relearn
Basic coding
Bleed Tests

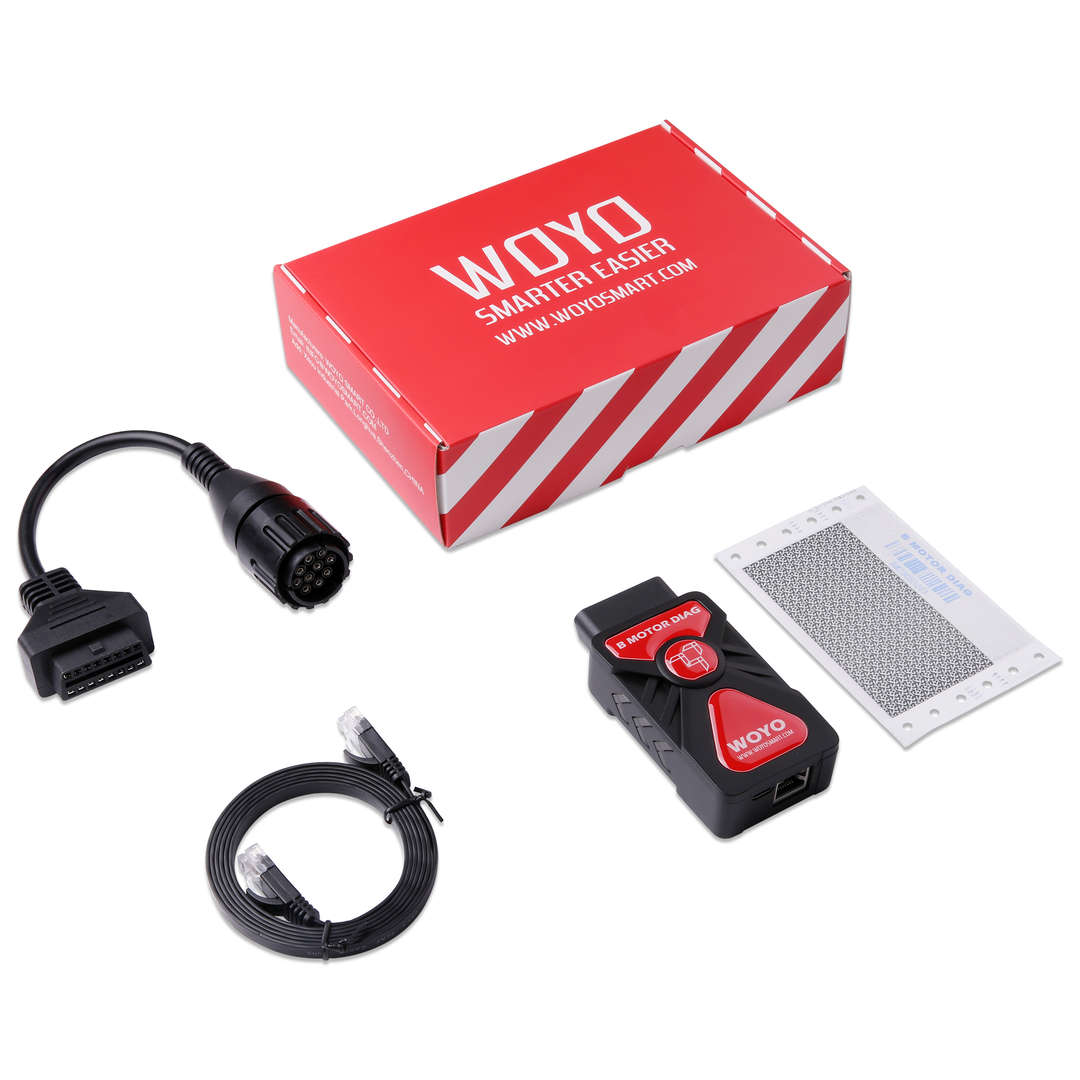

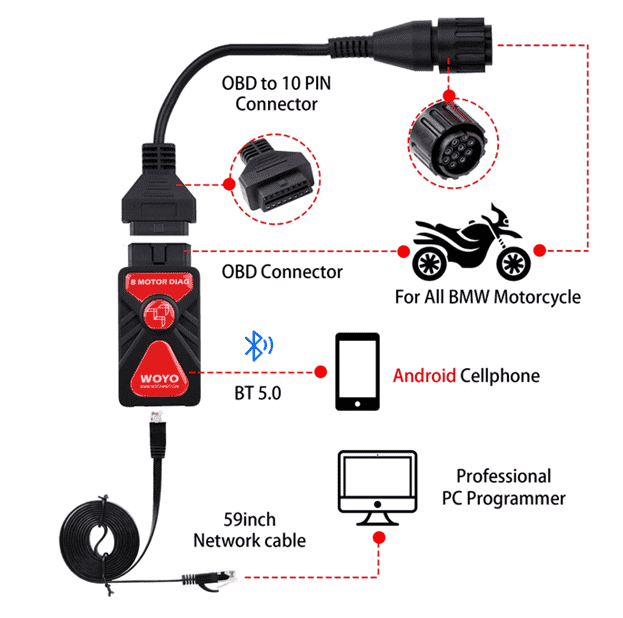

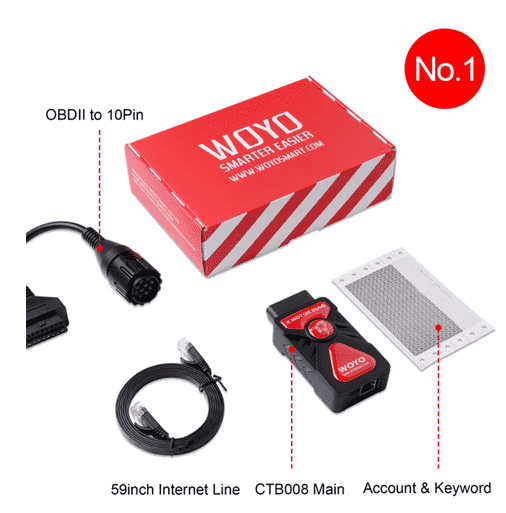

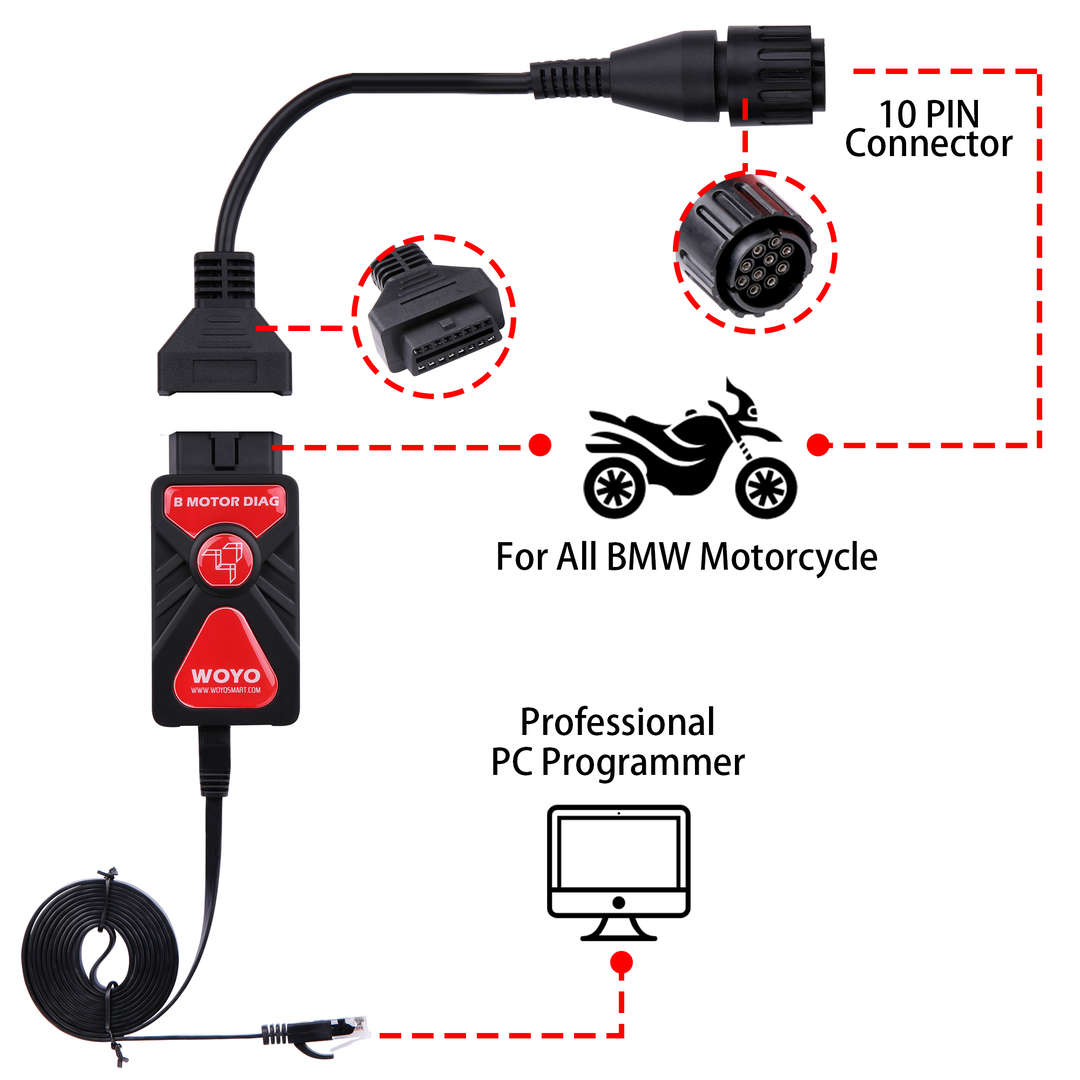

OBD2 to 10PIN Adapter cable for the BMW Bike before 2017.
We send with 59inch network cable, only for the professional workshop.  (We don't provide the software on PC.)

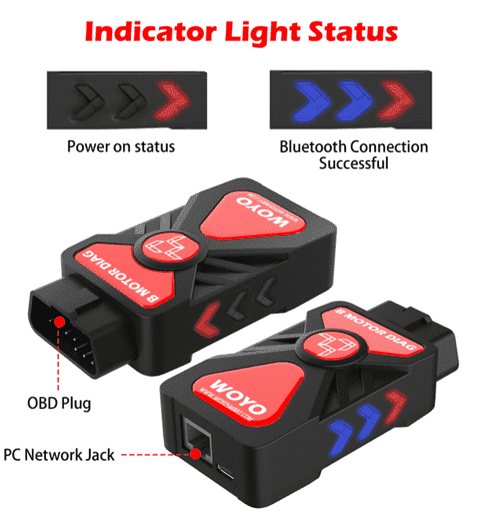

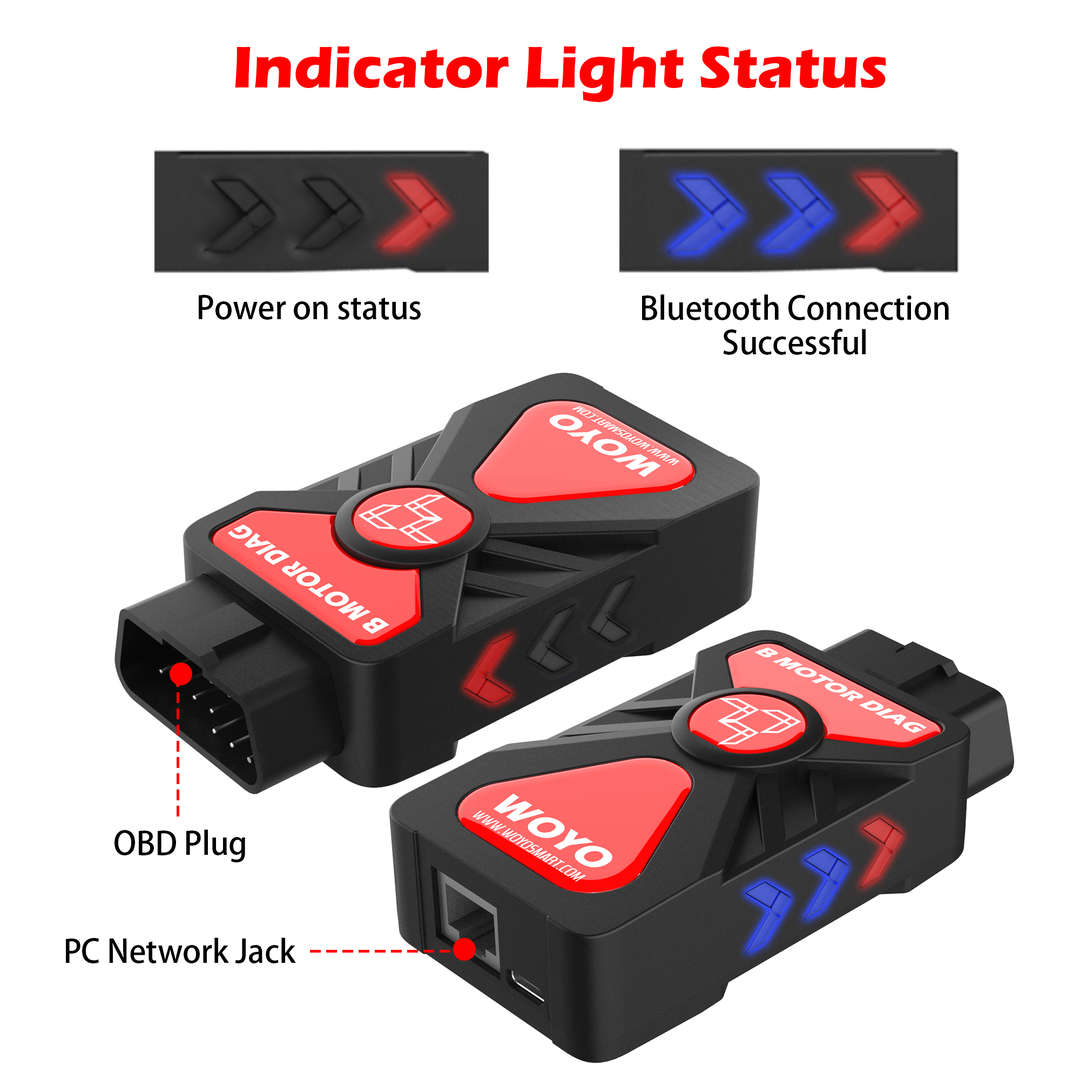

When you connect to the Motorcycle, the third light turn on red.
BT connection Successful, double blue light + one red light

Note: After CTB008 connect to OBD, please start the motorcycle to wake data up.

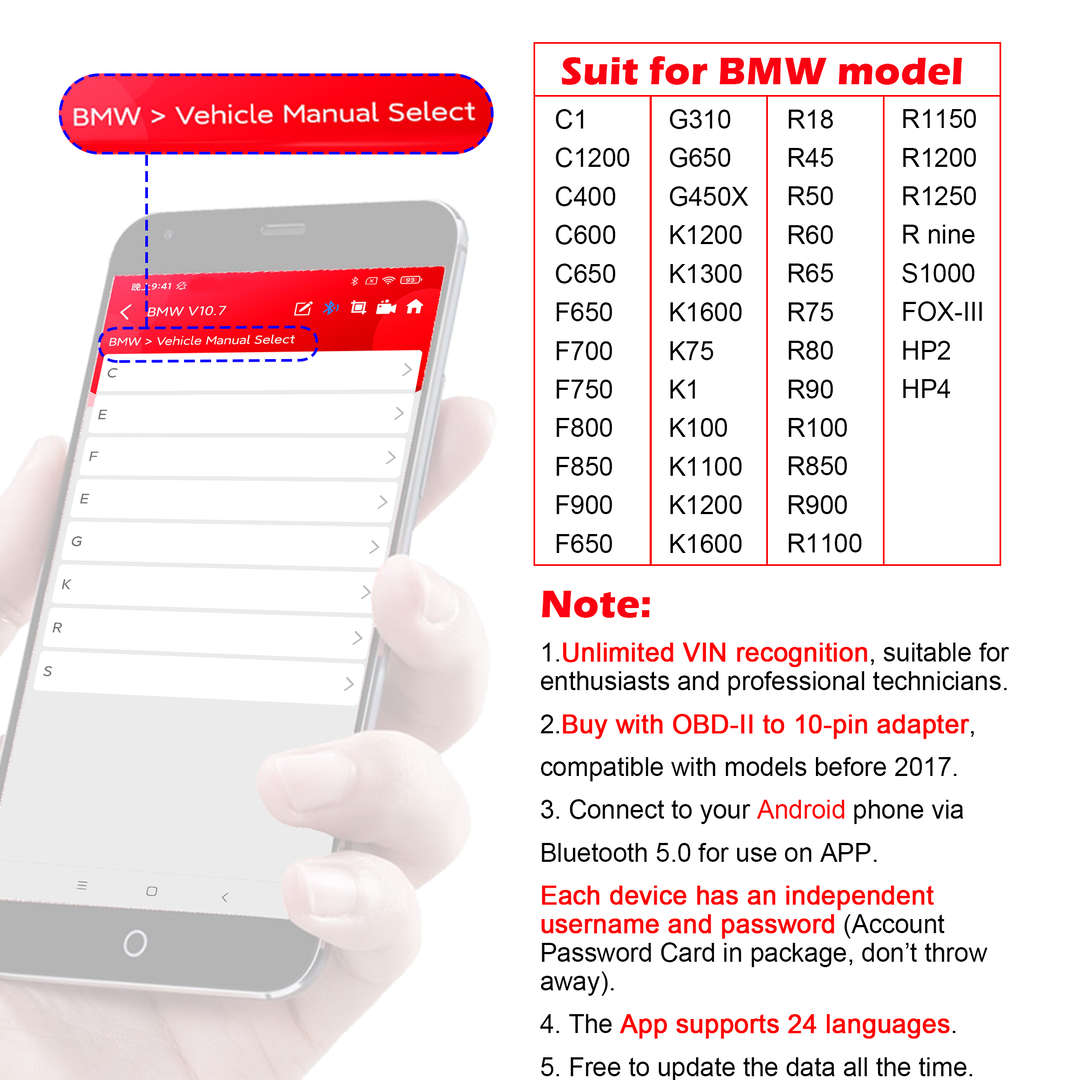

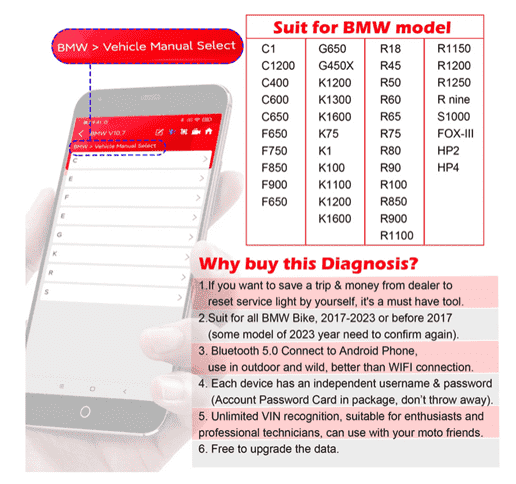

Support all BMW Motorcycle with OBD2 / 10pin Connector (need to purchase with adapter cable):
For BMW Motorcycle model:
C-Series:
C1, C1200, C400GT, C400X, C evolution, C600 SPORT, C650 Sport, C 650GT
F-Series:
F650, F650ST, F650CS, F650GS, F750GS, F850GSM F850 Adv F900RM F900R A2M F900XRM F900XR A2M F650GSM F650GS DAKAR
G-Series:
G650 XCHALLEN, G650 XMOTO, G450X, G650GS
K-Series:
K1200S, K1300S, K1200GT, K1200RS, K1200R, K1200 SPORT, K1300R, K1200GT,
K1300GT, K1600GT, K1600GTL, K75, K75C, K75RT, K75S, K1, K100, K100LT,
K100RS, K100RT, K1100LT, K1100RS, K1200LT, K1200RS, K1600B
R-Series:
R1200GS, R1200RT, R900RT, R1200R, R1200ST, R1200S, R1200CL,
R1200GS, R1250GS, R1200RT, R1200R, R1250RT, R1200RS, R1250RS,
R1150GS, R1150RS, R1150RT, R850RT, R1150R, R850R,
R100, R100/RS, R100/S, R100CS, R100GS, R100M, R100R, R100GS
R100RS, R100RT, R100S, R100T, R100/7, R45, R50, R60, R65, R75, R80, R90,
R1100GS, R1100RT, R850GS, R850RT, R1200C, R850C, R1100R, R850R, R1100S,
R nineT, FOX-111, HP2 ENDURO, HP2 SPORT, R18, HP4, HP4 Race
S-Series:
S1000RR, S1000R, S1000XR, S1000RR, S1000XR


If your motorcycle model is after 2017, you don't need to purchase with the OBD2 to 10pin cable.

But if your motorcycle model before 2017, please purchase with the OBD2 to 10pin adapter cable.

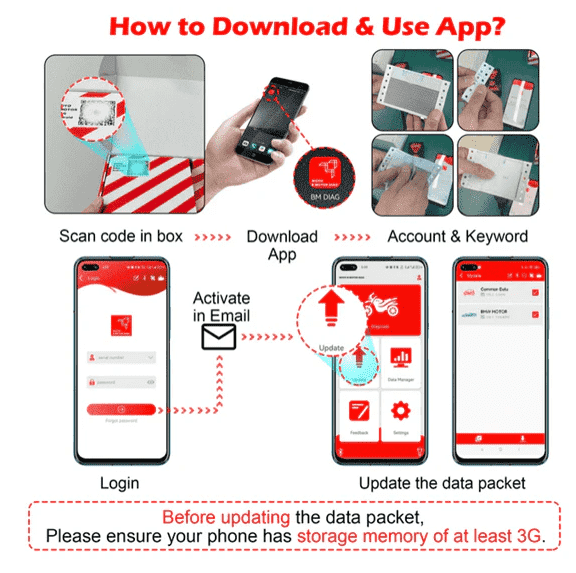

How to Download & Login APP?
1.Scan the code in box, get a link to download the app.
2.Finish installing the app, Tear open the account password card (in box), login on app.
3.Login and get email to activate the account.
4.Confirm your cellphone with at least 3G memory to update the data packet.
5.Use CTB008 connect to motorcycle, one light turn red on CTB008, and then start the motorcycle.
6.Can use the app to read and clean code now.
