    XTOOL X-100 PAD2 Special Functions Plus Xtool X100C for iOS and Android Auto Key Programmer

    • Item No.  T248-3
    • History: 36  sold
    • Quantity
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
    • Quantity:  300
    • Weight:  4.5KG
    • Rank:  comment rank 4.5 () Write a Review
      Rated 4.5/5 based on 6 customer reviews
    • Member Benefits  Shipping  Return Policy




    Technical Support


    Download & Technical Support

    XTOOL X-100 PAD 2 Special Functions Plus Xtool X100C for iOS and Android Auto Key Programmer

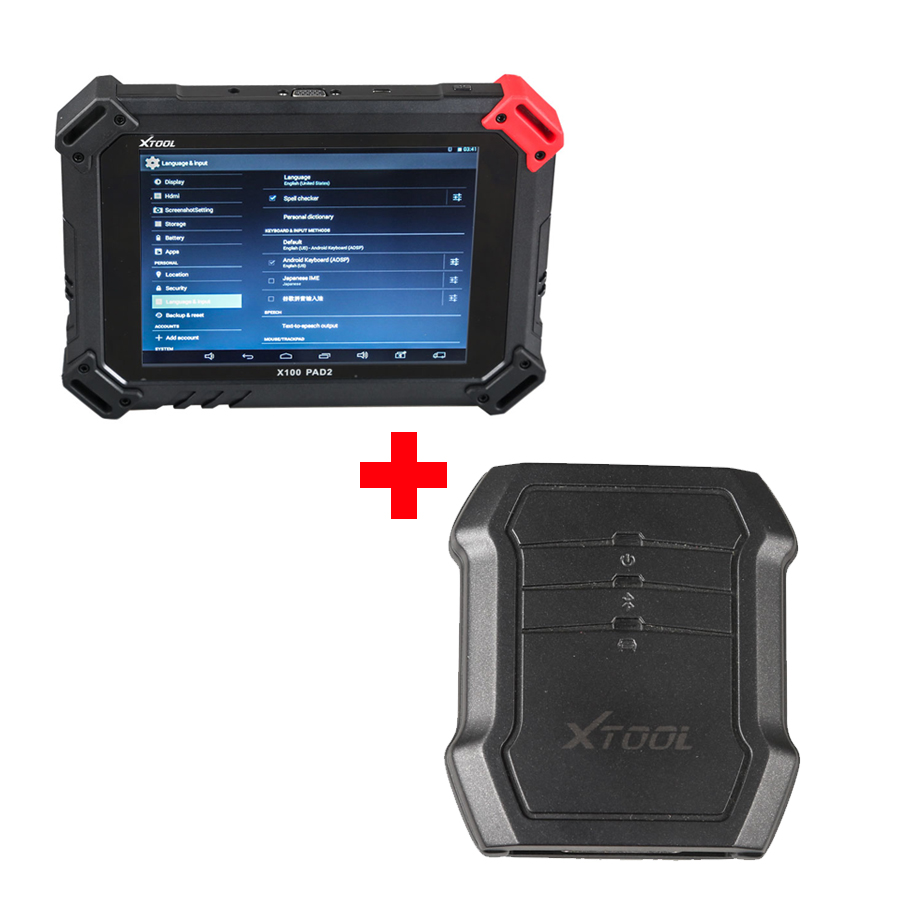

    This is package offer for Xtool X100 PAD2 with Xtool X100C for iOS and Android, which save you a lot to buy together.

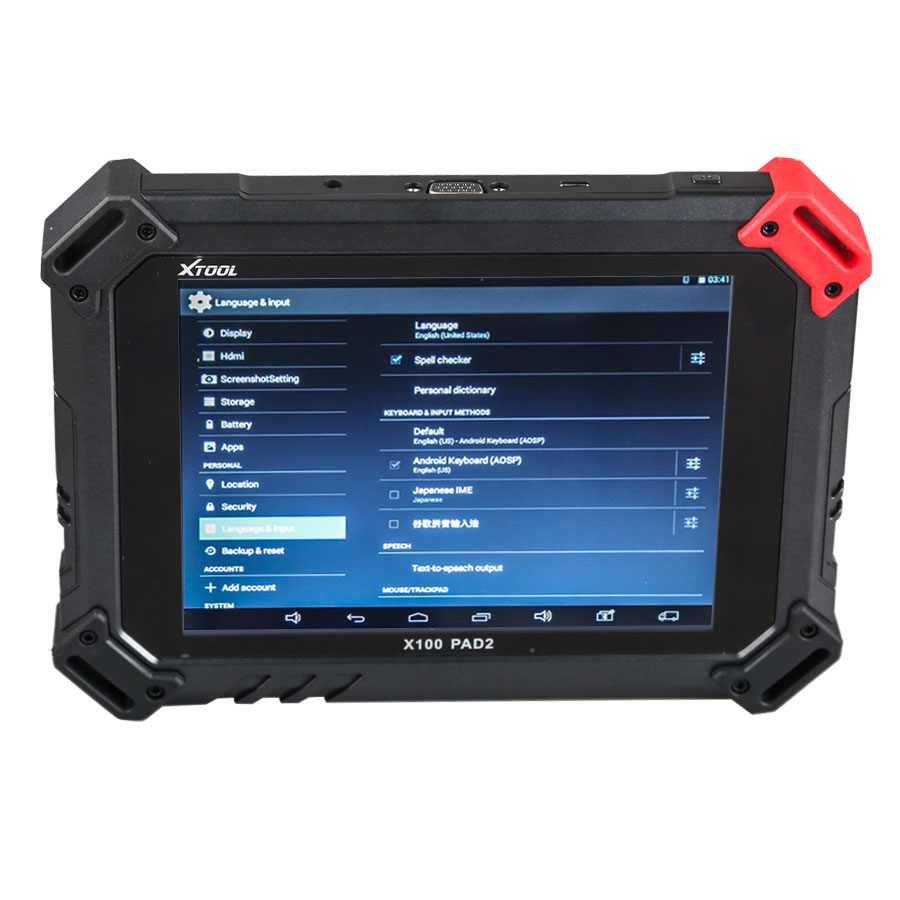

    X-100 PAD 2 Features:
    Key Programming
    Oil Reset/Engine oil light reset
    Odometer Adjustment
    Tire Pressure Warning Light Reset
    Timing belt light reset (Manual Operation)
    EPB Electrical Parking Brake Adaptation
    TPS Throttle Body Adaptation
    Steering Angle Calibration
    Battery Reset
    DPF PIN Code Reading
    Hexadcimal editor(Win Hex)
    OBDII Diagnosis
    Support the latest vehicles with CAN BUS and UDS protocol
    Update Via WIFI (always equip your device with the latest software)

    Operating System: Android 4.4.4
    Memory: 1GB RAM, 16GB Flash
    CPU Quad Core, 1.6 GHz
    Display 8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
    Sensors: Gravity Sensor, Light Sensor

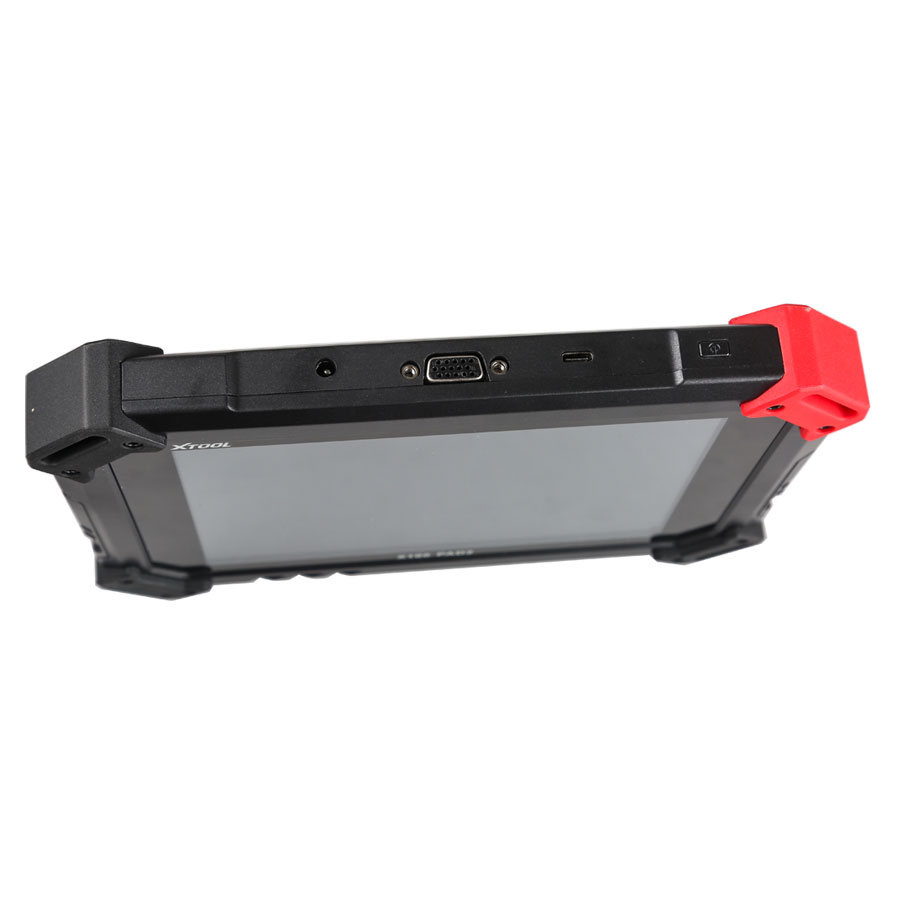

    Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port
    Battery:  4000mAh, 7.4V
    WIFI WIFI 2.4Ghz
    Bluetooth 100 Meters
    Power Voltage:  12V
    Power Consumption: 29.6W
    Operating Temperature: -20 to 50℃(-4 to 126℉)
    Humidity: <90%
    Dimension: (L*W*H): 240*177*30mm

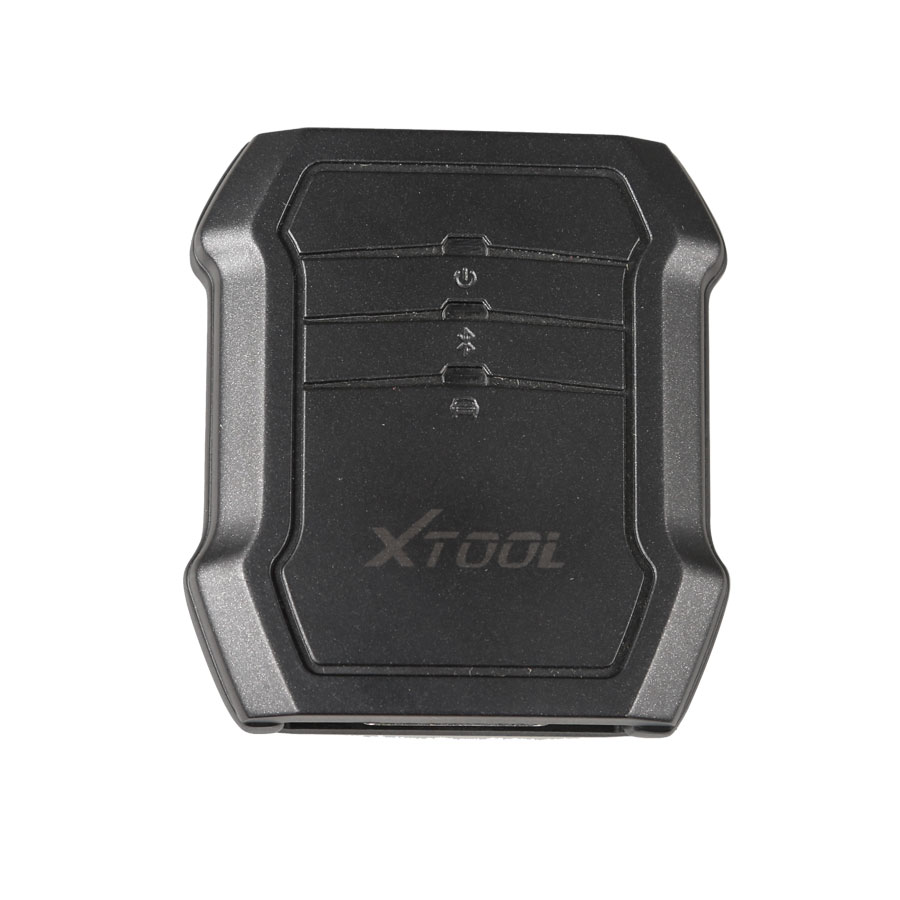

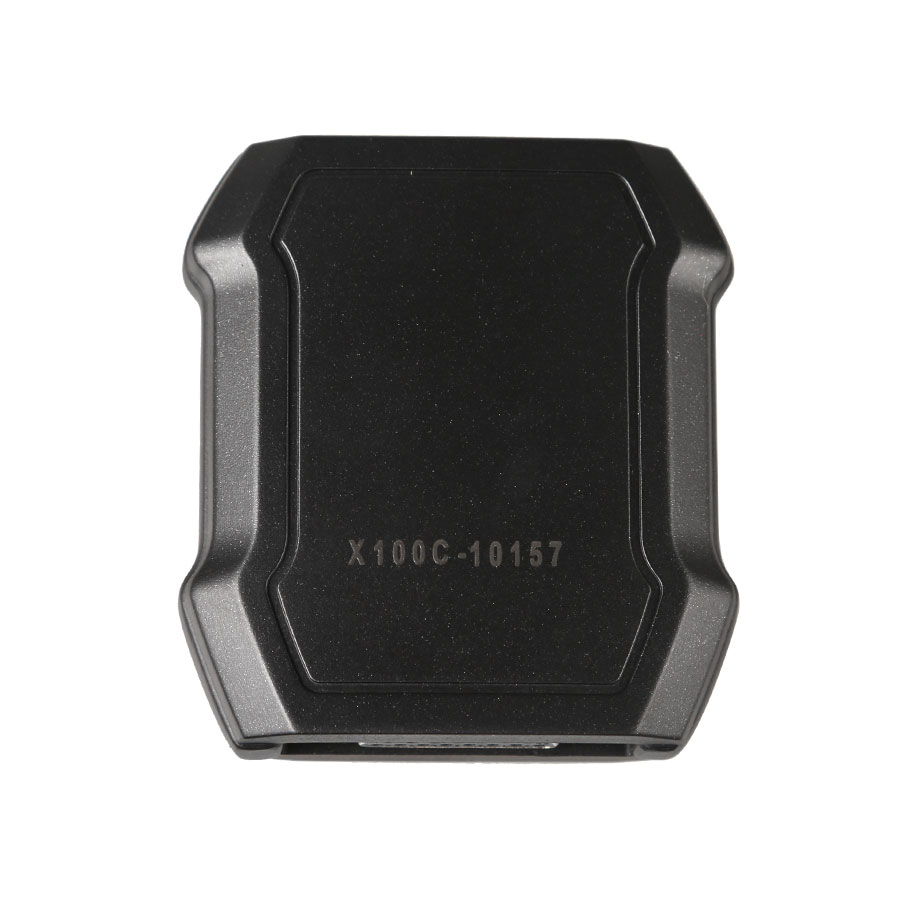

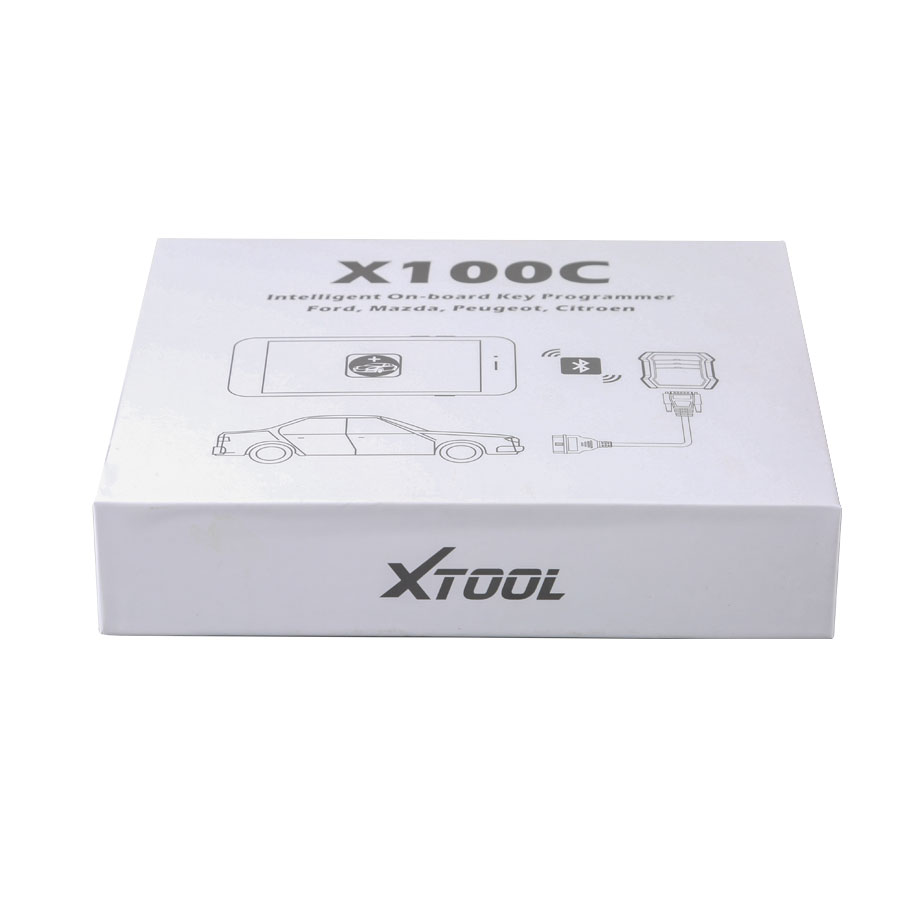

    Xtool X100 C Features:
    Vehicle Compatibility: X-100 C works with four brand cars, they are Ford, Mazda, Peugeot, Citroen and DS
    Bluetooth auto-reconnection: Once the Bluetooth is paired, you don’t need to input the code to pair with your phone anymore.
                                                            The device will reconnect with your phone automatically.
    Connection: Connection via Bluetooth (Android and IOS)
    Free update: Download latest XtoolC App with new features from Google Play or Apple Store.

    X100C reads PIN CODE via dongle and does key programming via OBD2 socket with your cell phone.

    Language: English, more language will be added.

    Here is part of X100C pin code reading function list, more models will be added one by one:
    Auto Maker Model Year Chip Type Remarks
    Mazda CX-3 2015+ smart PCF7953 ID46
    Mazda CX-3 2012+ smart PCF7953 ID46
    Mazda 2 2014+ smart PCF7953 ID46
    Mazda 3 2013+ smart PCF7953 ID46
    Mazda 6 2013+ smart PCF7953 ID46
    Mazda 2 2002 - 2013 4D ID63
    Mazda 3 2002 - 2012 4D ID63
    Mazda 5 2002 - 2012 4D ID63
    Mazda 6 2014 - 2012 4D ID63
    Ford Focus3/Cmax 2010+ - DST80+ mechanical
    Ford Focus3/Cmax 2010+ - DST80+
    Ford Kuga2 2014+ - DST80+ mechanical
    Ford Kuga2 2014+ - DST80+
    Ford MondeoMK4/SMax facelift 2010+ - DST80+ mechanical
    Ford MondeoMK4/SMax facelift 2010+ - DST80+
    Ford Fiesta 2014+ - DST80+ only mechanical
    Ford Bmax     only mechanical
    Ford Custom     only mechanical, not fully supported
    Ford Fiesta
    Ford Bmax
    Ford Ecosport
    Peugeot 1007
    Peugeot 206
    Peugeot 207
    Peugeot 208
    Peugeot 2008
    Peugeot 301
    Peugeot 306
    Peugeot 307
    Peugeot 308
    Peugeot 3008
    Peugeot 406
    Peugeot 407
    Peugeot 4007
    Peugeot 508
    Peugeot 5008
    Peugeot 607
    Peugeot 806
    Peugeot 807
    Peugeot Bipper
    Peugeot Expert
    Peugeot Partner
    Citroen C2
    Citroen C3
    Citroen C3 Picasso
    Citroen C3 Pluriel
    Citroen C4 Cactus
    Citroen C4 Picasso
    Citroen C5
    Citroen C8
    Citroen C-Elysee
    Citroen xsara Picasso
    Citroen Berlingo 2
    Citroen Berlingo 3
    Citroen Jumper
    Citroen Jumpy
    Citroen DS3
    Citroen DS4
    Citroen DS5

    Support both iOS and Android

    Recommended APP: X-100 C (search and download it from Apple store and GooglePlay Store)
    OS Device Mode
    Apple iOS
    (Requires iOS4.3 or later)
    IPod touch iPod Touch 1st  generation,  2nd  generation, 3rd  generation, 4th generation
      iPhone iPhone, iPhone 3, iPhone 3GS, iPhone 4, iPhone4s, iPhone 5, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iphone 7, iphone 7
      Pad iPad, iPad 2, ipad 3, iPad air, iPad Mini 1, iPad Mini 2,
    (Requires OS2.3 or later)
      ll android smart phone and tablet

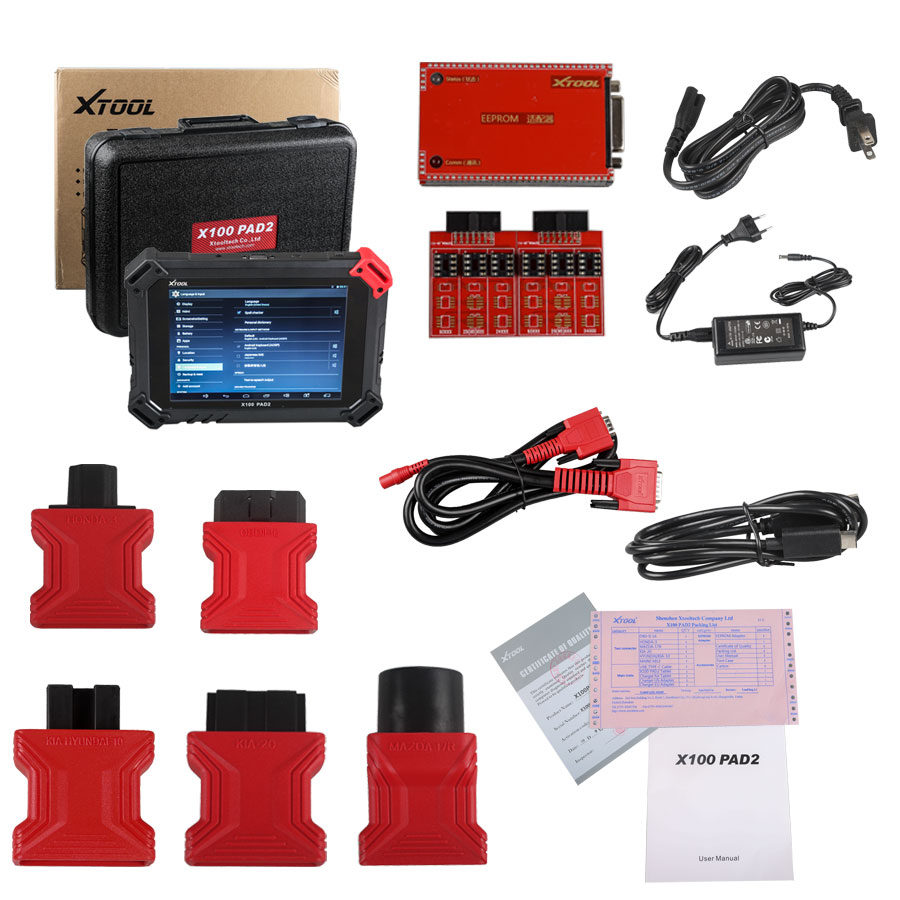

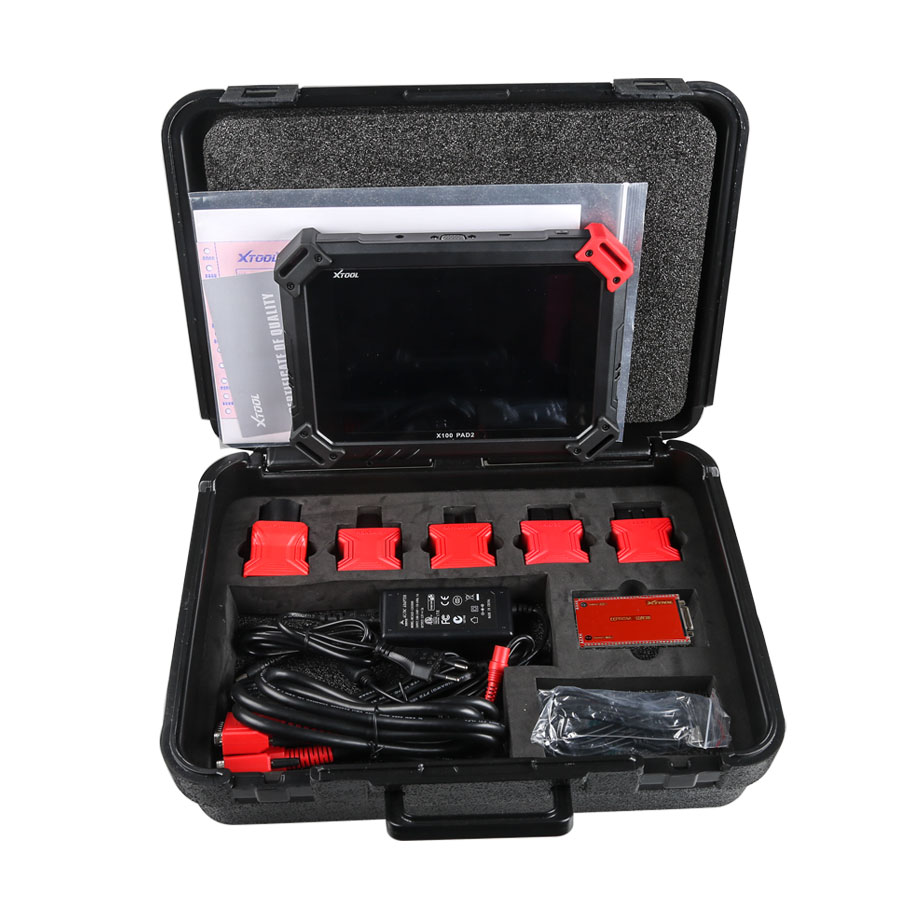

    Package including:
    1pc x OBD II-16
    1pc x HONDA-3
    1pc x KIA-20
    1pc x MAZDA-17R
    1pc x HYUNDAI/KIA-10
    1pc x Main Cable (DB15_Male To VGA_Male)
    1pc x X-100 PAD 2
    1pc x DC12V(AC100~240V) 3ACharger
    1pc x US Power Adapter
    1pc x EU Power Adapter
    1pc x EEPROM
    1pc x USB Type-C to Mini USB cable
    1pc x Type-C cable
    1pc x Certificate of Quality
    1pc x Packing List
    1pc x User Manual

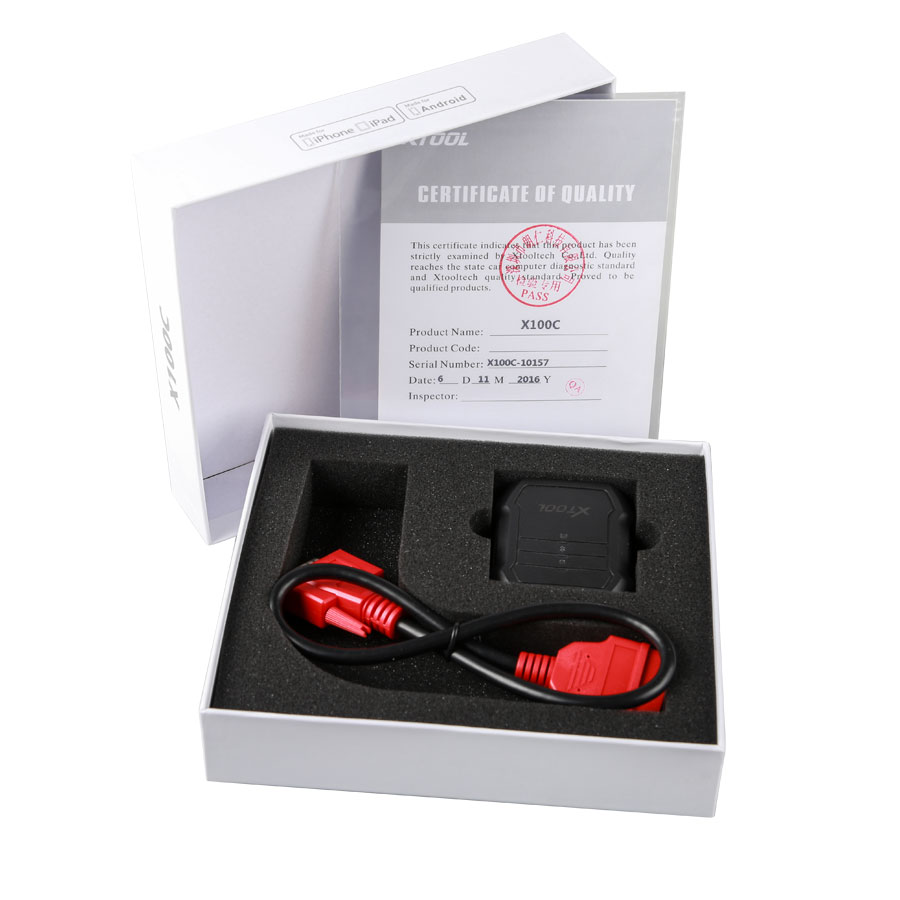

    1pc x   X-100 C
    1pc x   OBD II  Cable
