> Auto Scanner Tools > Autel AL529HD Enhanced Heavy Duty Vehicle Scan TooL AutoLink AL529HD Diagnostic Code Reader Scanner

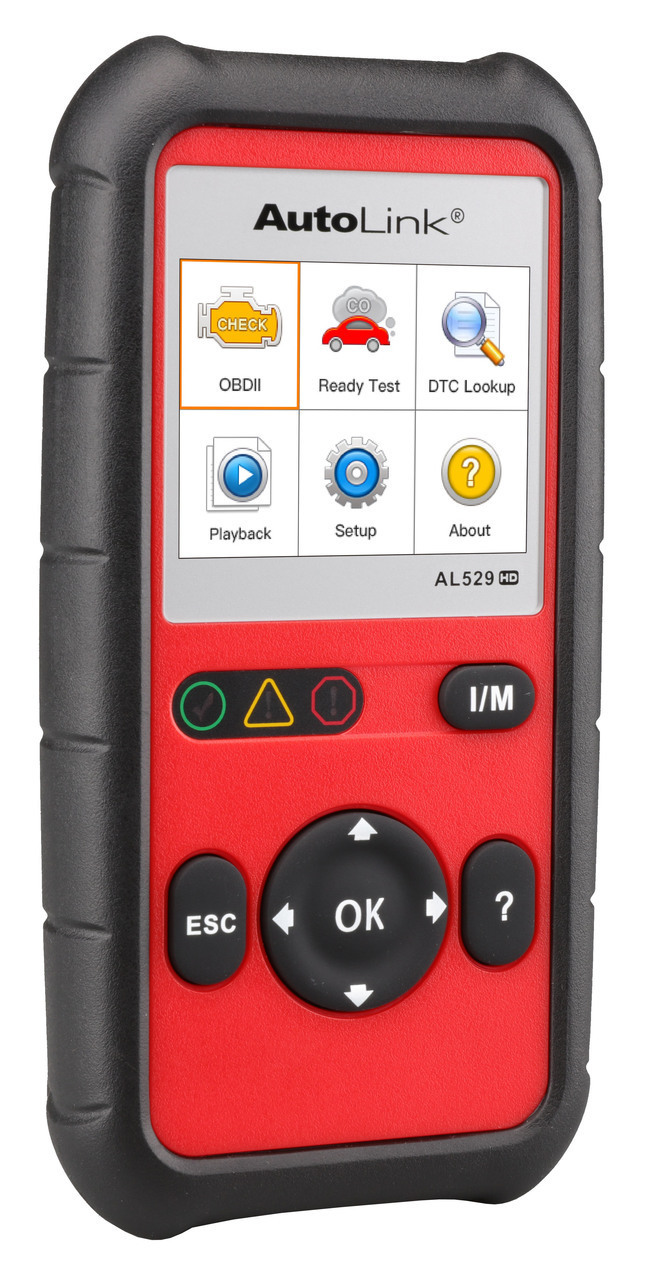

Autel AL529HD Enhanced Heavy Duty Vehicle Scan TooL AutoLink AL529HD Diagnostic Code Reader Scanner
Autel’s latest member of its code reader family of tools, the AL529HD can not only diagnose OBDII/EOBD-compatible vehicles but also heavy duty vehicles utilizing SAE-J1939 and SAE-J1708 protocols.
Autel AL529HD Features:
1.Compatible with Heavy Duty Vehicles utilizing SAE-J1939 and SAE-J1708 protocols
2.Compatible with domestic, Asian and European vehicles, 1996 and newer. OBDII/EOBD compatible vehicles (ISO9141, ISO14230, ISO15765, SAE-J1850 VPW, SAE-J1850 PWM)
3.AutoVIN function for quick manufacturer-specific code identification
4.Reads enhanced codes in Powertrain system for Ford, GM and Chrysler
5.Enhanced OBDII Mode 6 access
6.Retrieves generic (P0, P2, P3 and U0), manufacturer-specific (P1, P3 and U1) and pending codes
7.Retrieves vehicle identification information (VIN, CALID and CVN)
8.Easily determines the cause of the Check Engine Light/ Malfunction Indicator Light (MIL)
9.Turns off Check Engine Light, clears codes and resets monitors
10.Views freeze frame data
11.Reads live PCM data stream
12.Displays live O2 sensor test data
13.Graphs data
14.Reads, stores and plays back live sensor data
15.Troubleshooter code tips aid technician in efficient vehicle diagnostics and repair.
16.Patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification
17.Color-coded LEDs and built-in speaker provide visual and audible tone for readiness verification
18.Multilingual (including English, Spanish and French) menus and DTC definitions.
19.Internet Updatable
20.Prints data via Windows PC
Autel AL529HD Specifications:
Display 2.8-inch LCD (320x240 dpi)
Connectivity USB mini 2.0 OBD II DB15
Operating Temp. 0℃ to 60 ℃ (32℉ to 140℉)
Storage Temp. -20℃ to 70 ℃ (-1℉ to 158℉)
External Power 9.0 to 28.0 V power provided via vehicle battery
Dimensions (LxWxH) 183 mm (7.2”) x 91 mm (3.58”) x 33 mm (1.3”)
Weight 242 g (0.533 lb.)

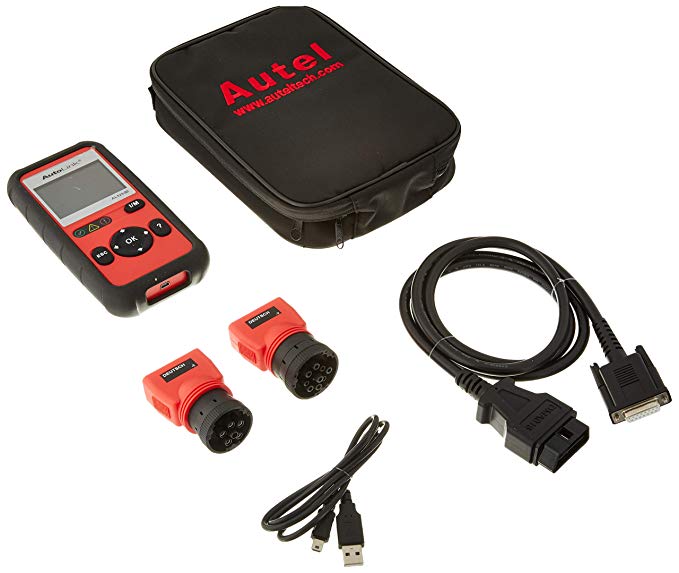

Accessories:
Code Reader
DEUTSCHE-6 Adapter
DEUTSCHE-9 Adapter
User Manual
Carrying Case
Quick Reference Guide
Main cable
Mini USB Cable
Autel AL529HD Enhanced Heavy Duty Vehicle Scan TooL AutoLink AL529HD Diagnostic Code Reader Scanner
Autel’s latest member of its code reader family of tools, the AL529HD can not only diagnose OBDII/EOBD-compatible vehicles but also heavy duty vehicles utilizing SAE-J1939 and SAE-J1708 protocols.
Autel AL529HD Features:
1.Compatible with Heavy Duty Vehicles utilizing SAE-J1939 and SAE-J1708 protocols
2.Compatible with domestic, Asian and European vehicles, 1996 and newer. OBDII/EOBD compatible vehicles (ISO9141, ISO14230, ISO15765, SAE-J1850 VPW, SAE-J1850 PWM)
3.AutoVIN function for quick manufacturer-specific code identification
4.Reads enhanced codes in Powertrain system for Ford, GM and Chrysler
5.Enhanced OBDII Mode 6 access
6.Retrieves generic (P0, P2, P3 and U0), manufacturer-specific (P1, P3 and U1) and pending codes
7.Retrieves vehicle identification information (VIN, CALID and CVN)
8.Easily determines the cause of the Check Engine Light/ Malfunction Indicator Light (MIL)
9.Turns off Check Engine Light, clears codes and resets monitors
10.Views freeze frame data
11.Reads live PCM data stream
12.Displays live O2 sensor test data
13.Graphs data
14.Reads, stores and plays back live sensor data
15.Troubleshooter code tips aid technician in efficient vehicle diagnostics and repair.
16.Patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification
17.Color-coded LEDs and built-in speaker provide visual and audible tone for readiness verification
18.Multilingual (including English, Spanish and French) menus and DTC definitions.
19.Internet Updatable
20.Prints data via Windows PC
Autel AL529HD Specifications:
Display 2.8-inch LCD (320x240 dpi)
Connectivity USB mini 2.0 OBD II DB15
Operating Temp. 0℃ to 60 ℃ (32℉ to 140℉)
Storage Temp. -20℃ to 70 ℃ (-1℉ to 158℉)
External Power 9.0 to 28.0 V power provided via vehicle battery
Dimensions (LxWxH) 183 mm (7.2”) x 91 mm (3.58”) x 33 mm (1.3”)
Weight 242 g (0.533 lb.)
Accessories:
Code Reader
DEUTSCHE-6 Adapter
DEUTSCHE-9 Adapter
User Manual
Carrying Case
Quick Reference Guide
Main cable
Mini USB Cable
