Autel MaxiFlash Elite J2534 ECU Programming Tool Reliable MaxiFlash Device Works with Maxisys 908/908P Update Online



As a multi-protocol Pass-Thru vehicle interface, MaxiFlash Elite is a fully compliant SAE J2534-1 & SAE J2534-2 (March 2006) device. Specially designed to provide users with convenient PC communication and ECU reprogramming capabilities on any modern vehicle diagnostic bus, MaxiFlash Elite offers the most significant features desired by OEM customers: reliability, fast performance and flexibility.



Autel MaxiFlash Elite J2534 ECU Programming Device Features and Functions:

1. Fully compatible with both SAE J2534-1 and J2534-2 reprogramming standards

2. Performs the standard PassThru J2534 functionality

3. Compatible for Toyota Techstream, for Volvo VIDA, for Honda HDS, for Jaguar, for Land Rover IDS and for BMW 3G for OEM diagnostics

4. Fast performance ensures quickly reprogramming even the newest controllers

5. Wireless with advanced networking functions

6. Built-in wireless and data storage

7. Rugged design capable of withstanding harsh environments

8. Internet upgradeable and updateable



Notice:
1. MaxiFlash Elite  can work together with Autel Maxisys 908 /  908P  to support more cars

2. If you work it alone, it can only support for Toyota Techstream, for Volvo VIDA, for Honda HDS, for Jaguar/Land Rover IDS and for BMW 3G for OEM diagnostics (Need to Get Software Yourself)
3. For programming functions, customers need to have online account and password



Autel MaxiFlash Elite J2534 ECU Programming Device Specification:

Communications ： Wireless BT V2.1 + EDR,USB 2.0

Wireless Frequency ：Wireless BT V2.1+EDR, 2.4GHz

Input Voltage Range ：12VDC to 24VDC

Supply Current：170mA @ 12VDC 100mA @ 24VDC

Operating Temperature ：0°C to +60°C (ambient)

Storage Temperature： -65°C to +100°C (ambient)

Dimensions：Length: 149 mm (5.87") Width: 86mm (3.38") Height: 35 mm (1.28")

Weight：0.29kg (0.64lb)

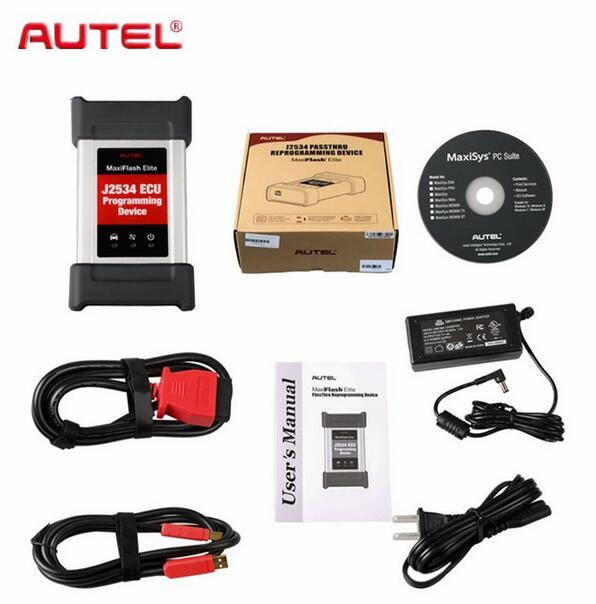

Package Including:

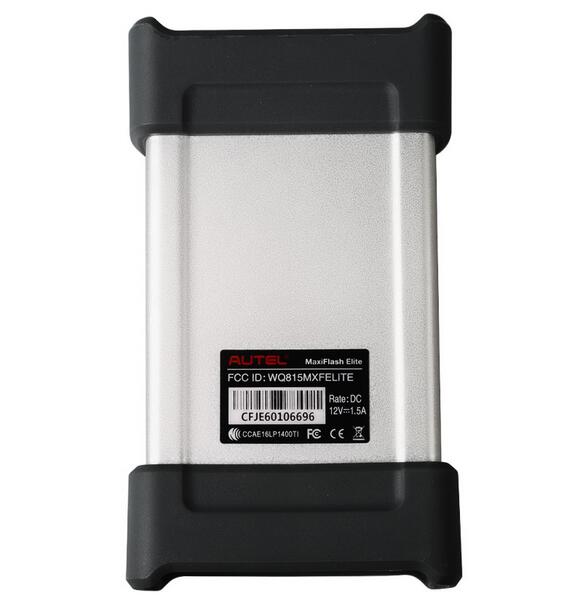

1pcs x J2534 ECU Programming Device

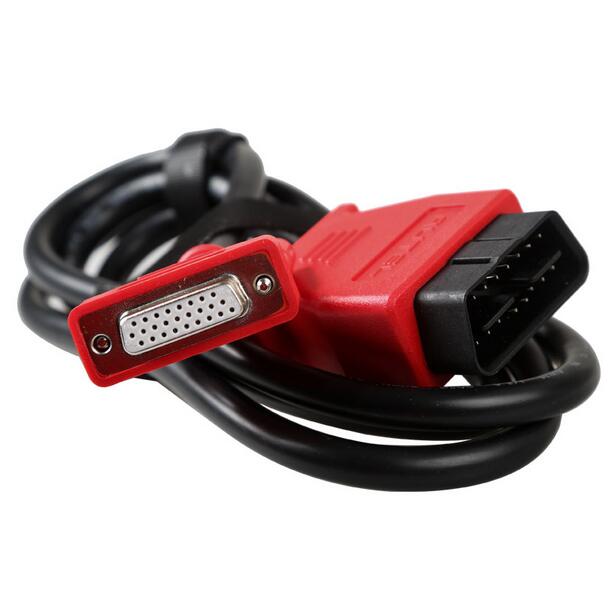

1pc x MVCI to OBDII Cable

1pc x Wi-Fi Antenna

1pc x USB Cable

1pc x OBDII 16PIN Cable

1pc x User's Manual

1pf x Ethernet Serial Cable

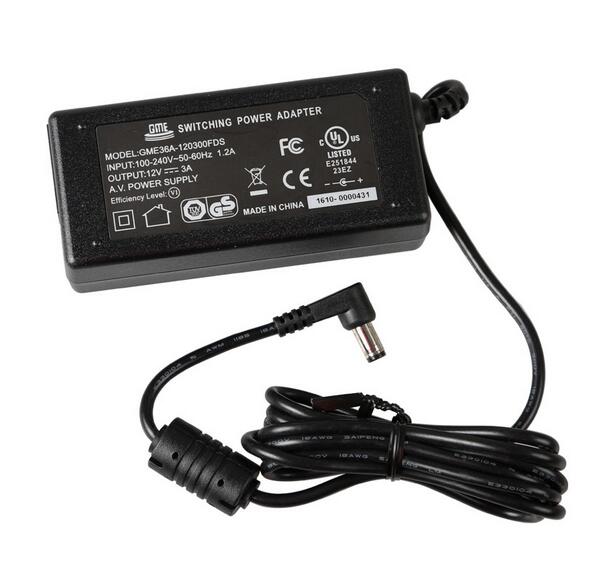

1pc x AC/DC External Power Adapter

1pc x CD
