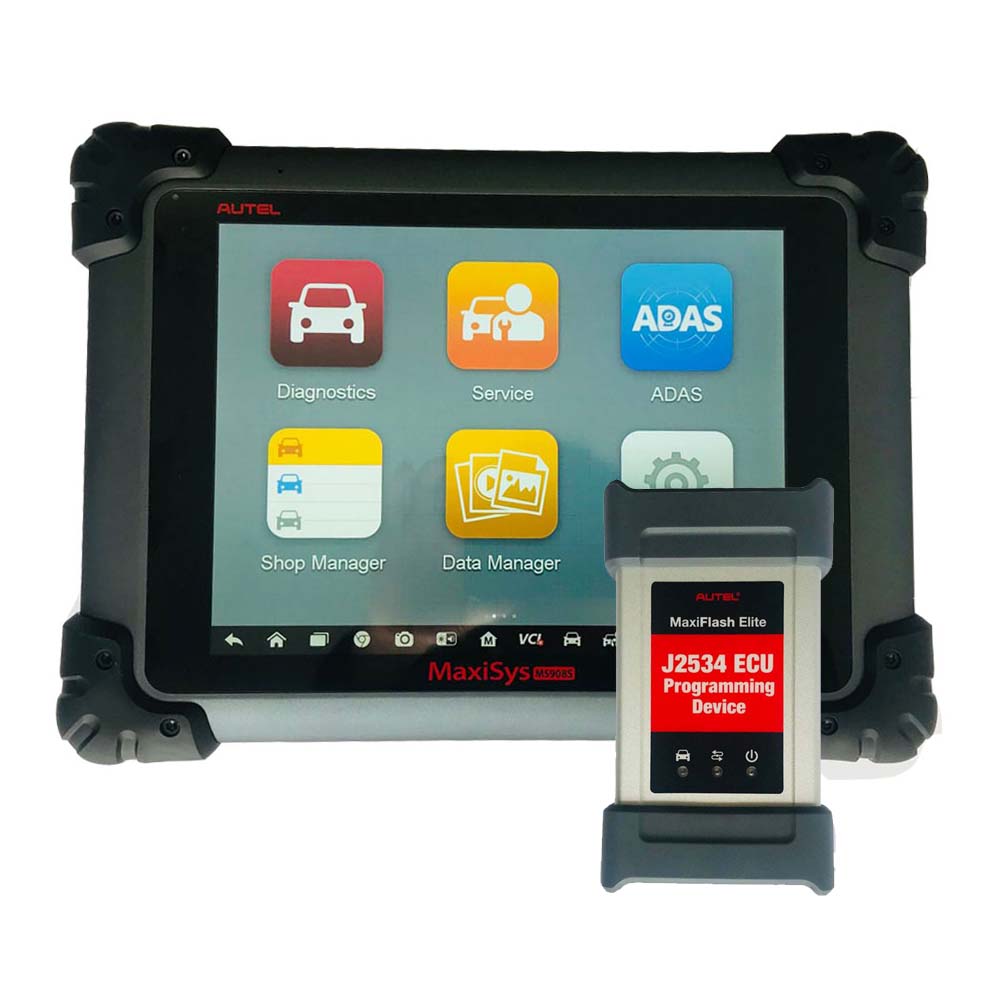

    Autel Maxisys MS908S PRO MS908SP upgrade of MS908P OBD Full System Diagnostic with MaxiFlash Elite J-2534 programming

    • Item No.  A298
    • History: 191  sold
    • Market Price: US$2,496.00
      Shop Price: US$2,080.00You save US$416.00
      Quantity
      Total
      continue
    • Quantity:  426
    • Weight:  12.0KG
    • Rank:  comment rank 4.5 () Write a Review
      Rated 4.5/5 based on 56 customer reviews
    • Following the purchase of goods to reach the number that you can enjoy a range of preferential price:
      QTY Unit Price
      5 US$1,999.00
      11 US$1,959.00
    • This goods is Free shipping!

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video

    Download

    Original Autel Maxisys MS908SP MS908S PRO  Wifi OBD Full System Diagnostic with MaxiFlash Elite J-2534 programming


    MS908SP is the MS908P update version. Autel MS908S Pro can replace Maxisys MS908P. MS908S Pro comes with Autel Maxiflash Elite J2534 ECU Programming Device also. Autel MS908SP also offering 2 years free update. For more details about Maxisys MS908S Pro, welcome to contact our sales.


    Top 4 Reasons to Get MS908SP MS908S PRO:
    1. Software Version: Every Car Model Software Has A Different Version.
    2. Wi-Fi Technology: The VCI connects wirelessly to the main unit with Long-Range Class 1 Bluetooth
    3. Update:  2 Year Free Update Online, Contact our sales, you can add 1 more year free update,after 2 years,900USD/year.
    4. Shipping by DHL All Around the World, 3-5 Days Delivery
    Language: English


    Difference between MS908SP and MS908P

    1.Operating System:

    MS908SP:AndroidTM 4.4.2, KitKat

    MS908P :AndroidTM 4.0, Ice Cream Sandwich


    2.Processor

    MS908SP:Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)

    MS908P :Samsung Exynos Quad-Core Processor 1.4GHz


    3.Memory

    MS908SP:2GB RAM & 64GB On-board Memory

    MS908P :2GB RAM & 32GB On-board Memory


    4.Connectivity

    MS908SP:Wi-Fi (802.11 a/b/g/n/ac)
                       USB: 2.0
                       BT v.2.1 + EDR
                       SD Card (Support up to 32GB)
                       HDMI

    MS908P :Ethernet: RJ45 Ethernet Connection,
                     Cellular: 3G/4G
                     module: WCDMA

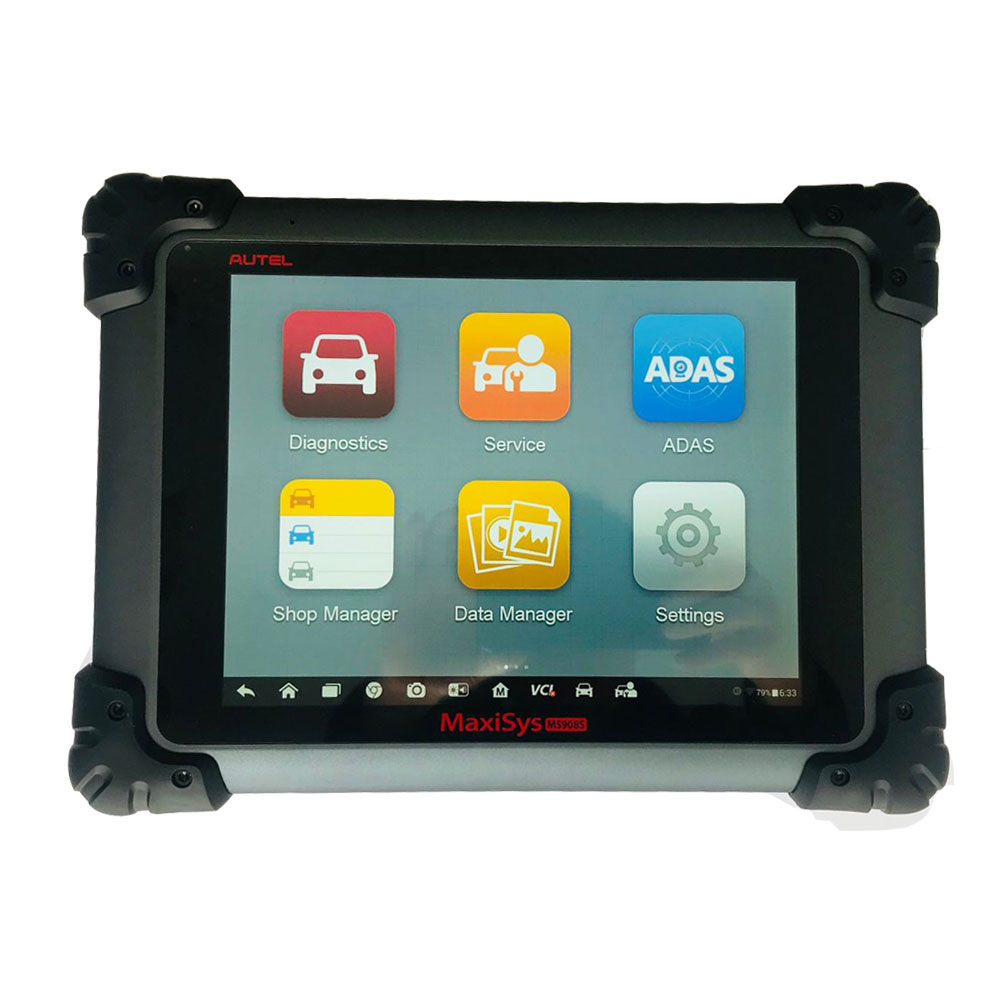

    Autel Maxisys MS908SP MS908S PRO Display:


    How to use ECU programming on Autel Maxisys Pro:






    Description:
    One of the MaxiSys series devices, the MS908S Pro Diagnostic Platform bases on the revolutionary Android multitasking operating system, utilizes the powerful Cortex A7+A15 six-core processor, and equips with 9.7-inch LED capacitive touch screen. Supporting J2534 ECU Programming Device is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues. MS908S Pro is an ideal tool for a truly trouble-free diagnosis of a maintenance plant by quickly, efficiently and effectively diagnosing automotive faults, managing customer data, and standardizing business processes.

    Comparison between MS908SP and other Autel Diagnose Systems




    AUTEL MAXISYS MS908S Pro itself has already supported ECU programming function for BENZ and BMW cars, if you need to get support for more car models, you must use J2534 device along with OEM software to implement this function. J2534 DEVICE can not only use with AUTEL MAXISYS Pro , but also can work on other OEM software.

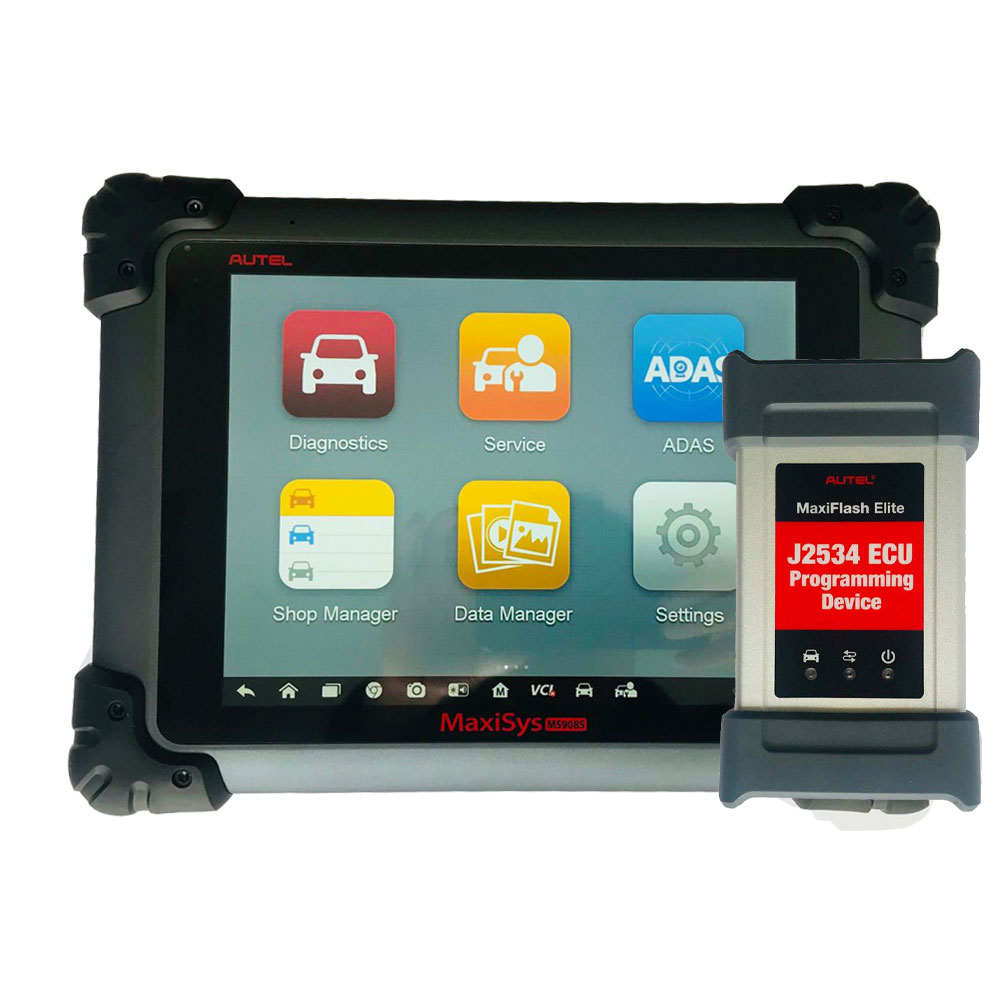

    Using additional OEM software, the MaxiFlash Pro can be used as a Pass-Thru diagnostics tool as well, which allows users to read and clear Diagnostic Trouble Codes (DTCs) and data log PIDS, collect sensor data and log generic OBDII data etc.


    LIST OF AUTOMAKERS’ SERVICE WEBSITES
    BMW: http://www.bmwtechinfo.com/
    Mini: http://www.minitechinfo.com/
    Porsche: http://www.porsche.com/
    Chrysler, Jeep,Dodge: http://www.techauthority.com/
    Ford, Lincoln, Mercury: http://www.motorcraft.com/
    Land Rover: http://www.landrovertechinfo.com/
    Volvo: http://www.volvotechinfo.com/
    Cadillac, Chevrolet,Daewoo, GM, GEO,Pontiac, Buick,Saturn, SAAB, : http://www.gmtechinfo.com/
    Acura, Honda: http://www.serviceexpress.honda.com/
    Isuzu: http://www.isuzutechinfo.com/
    Mazda: http://www.mazdaserviceinfo.com/
    Mercedes: http://www.startekinfo.com/
    Mitsubishi:
    http://www.mitsubishitechinfo.com/
    Nissan: http://www.nissan-techinfo.com/
    Toyota, Lexus, Scion: http://techinfo.toyota.com/
    Volkswagen: http://www.erwin.volkswagen.de/erWinVW/
    Audi: http://erwin.audi.de/erWinAudi/


    NOTE: When reprogramming onboard, always make sure the vehicle battery is fully charged and in good working condition. During reprogramming there is a risk of having the operation failure if voltage falls below the proper operating voltage. Sometimes a failed operation can be recovered, but there is a chance that failed reprogramming could ruin the control module. We recommend connecting an external battery charger to the vehicle to ensure a successful operation.


    MS908SP MS908S PRO Specification:

    Operating System: AndroidTM 4.4.2, KitKat

    Processor: Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
    Memory: 2GB RAM & 64GB On-board Memory
    Display: 9.7 inch LED capacitive touch screen with 1024x768P resolution
    Connectivity: Wi-Fi (802.11 a/b/g/n/ac)
    USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI

    Camera (rear): Rear-facing, 5.0 Mexgapixel, AF with Flashlight
    Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
    Audio Input/Output: Microphone, Dual Speakers, 4-Band 3.5 mm stereotype/standard headset jack
    Power and Battery: 11000 mAh 3.7 V lithium-polymer battery, Charging via 12 V vehicle power
    Input Voltage: 12 V (9-24 V)
    Power Consumption: 6.5 W
    Operating Temperature: -10 to 55°C(14 to 131°F)
    Storage Temperature: -20 to 70°C(-4 to 158°F)
    Housing: Strong plastic housing with protective rubber boot
    Dimensions (W x H x D): 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
    Weight: NW: 1.42 kg (3.13 lb), MaxiSys GW: 8.655 kg (19.08 lb) / MaxiSys Pro GW: 8.052 kg (17.75 lb)


    MS908SP MS908S PRO Vehicle List:
    AUDI, BENZ, BMW, DACIA, EU FORDFord, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE,GM, CHRYSLER, FORD,SUZUKI, KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HONDA, ACCURA, MAZDA.



    MS908SP MS908S PRO Software Advantage:
    1. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
    2. Easy and intuitive navigation makes finding what you need simple and fast
    3. Open source Android Operating System for fast boot-up and multitasking
    4. Displays live data in text, graph, analog and digital gauge for easy data review and analysis
    5. Configures display options, sets triggers, records and playbacks results with one touch
    6. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

    MS908SP MS908S PRO Feature:
    1. 9.7 inch 1,024x768 LED-backlit glossy widescreen Multi Touch display with IPS technology
    2. Extraordinarily powerful Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
    3. Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
    4. Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
    5. Built-in 5-megapixel rear camera with autofocus and flashlight
    6. Unique shop tough ergonomic design features strong rubber protection and housing;

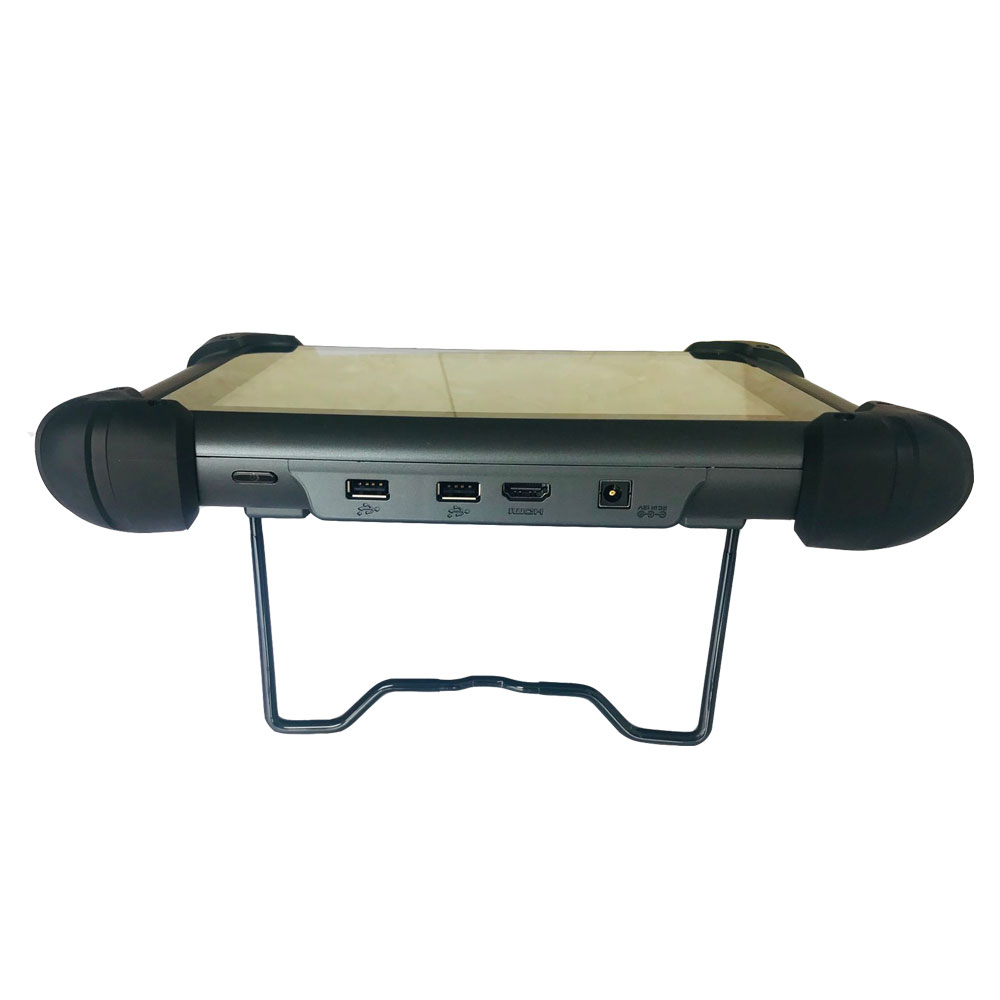

    7. USB, audio and auxiliary ports make it easy to connect accessories
    8. Complete capabilities for codes, live data, actuation tests, adaptations, coding and ECU programming
    9. Internal reliable and fast 64GB Solid State Drive for better performance.

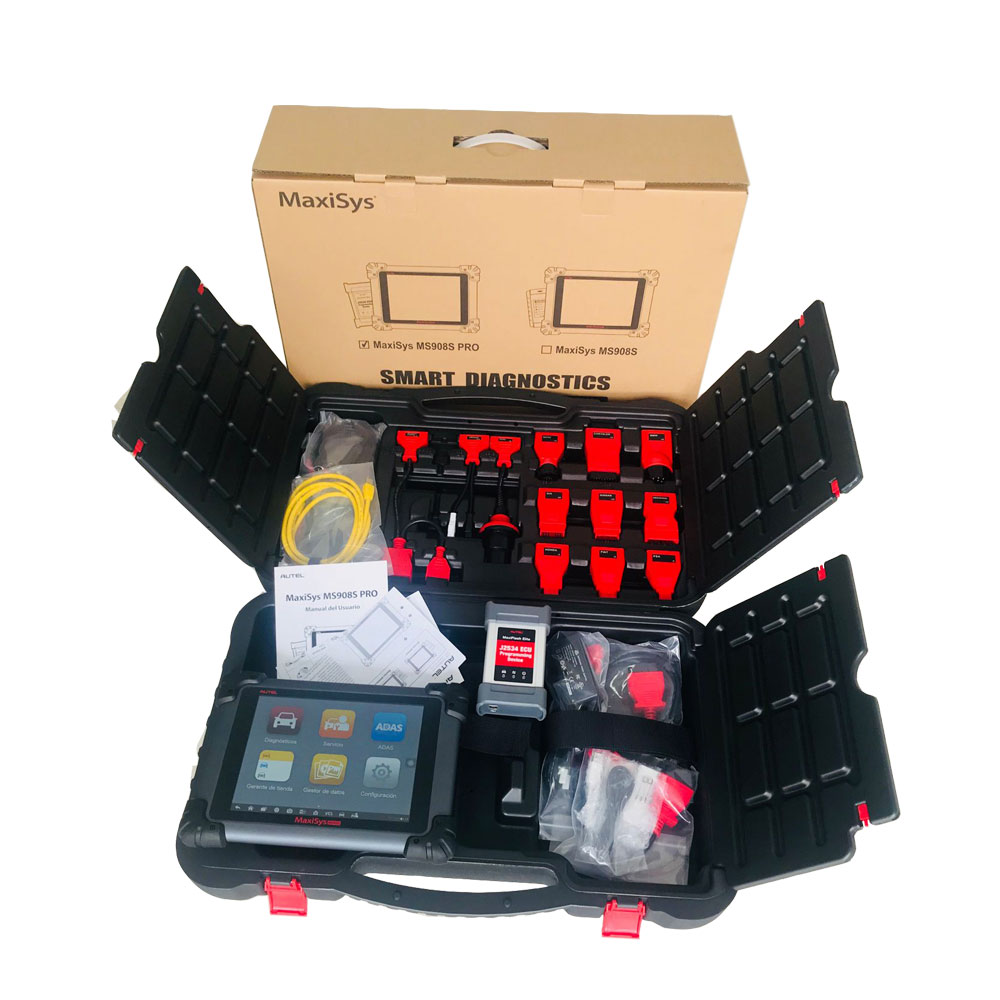

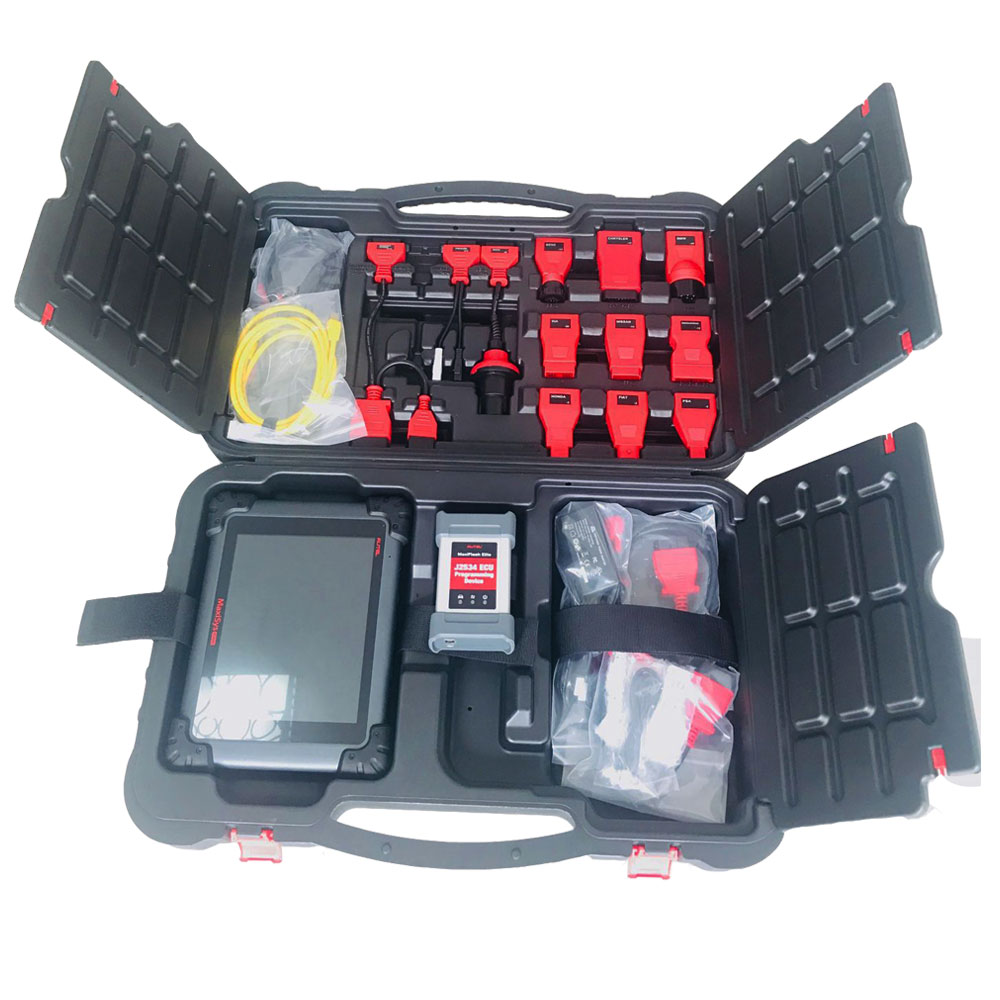

    Autel MaxiSys Pro MS908SP Package List

    1. Main part
    Quick reference guide
    Lighter Fuse
    Main cable

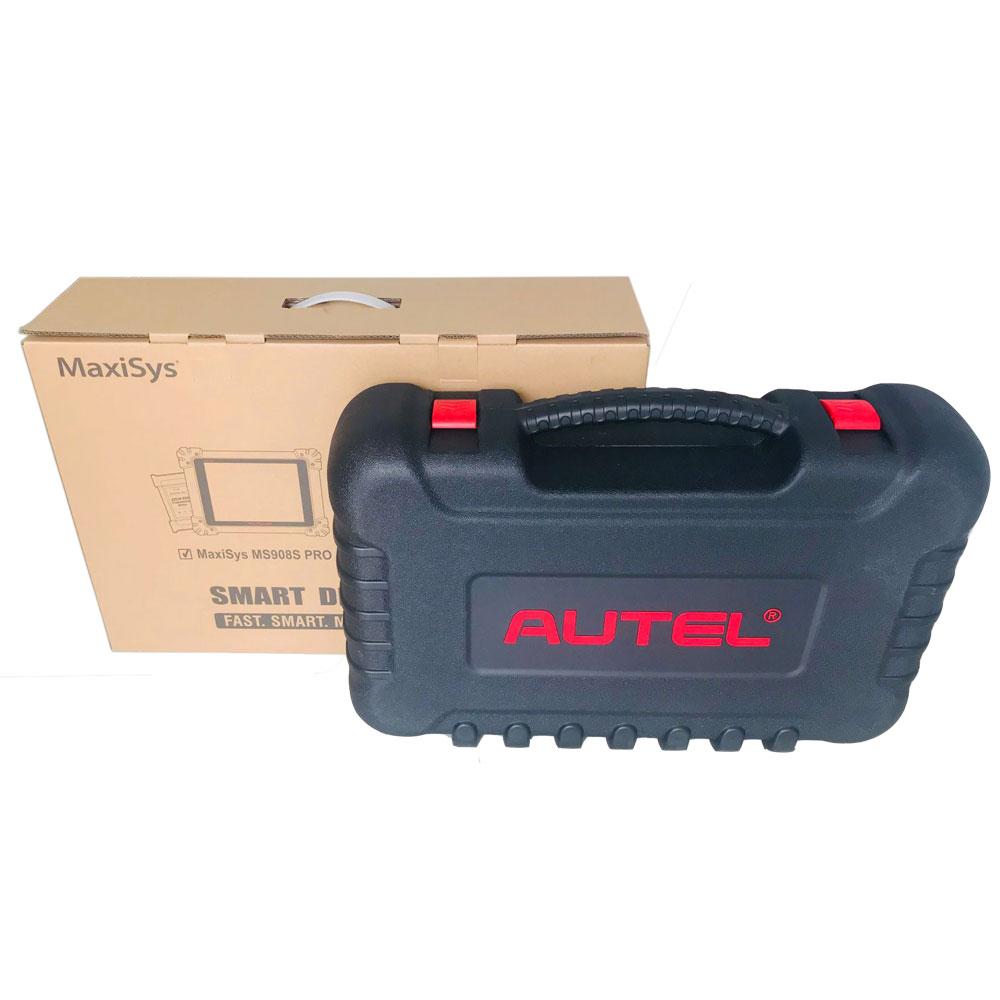

    Protective carrying case
    USB Cable
    User’s Manual
    Cigarette Lighter
    Compact Disc (CD)
    AC/DC External Power Adapter
    Clipper Cable
    Capacitive Stylus Pen
    Soft Cloth
    Packing List
    Mini USB Cable
    Ethernet Serial Cable

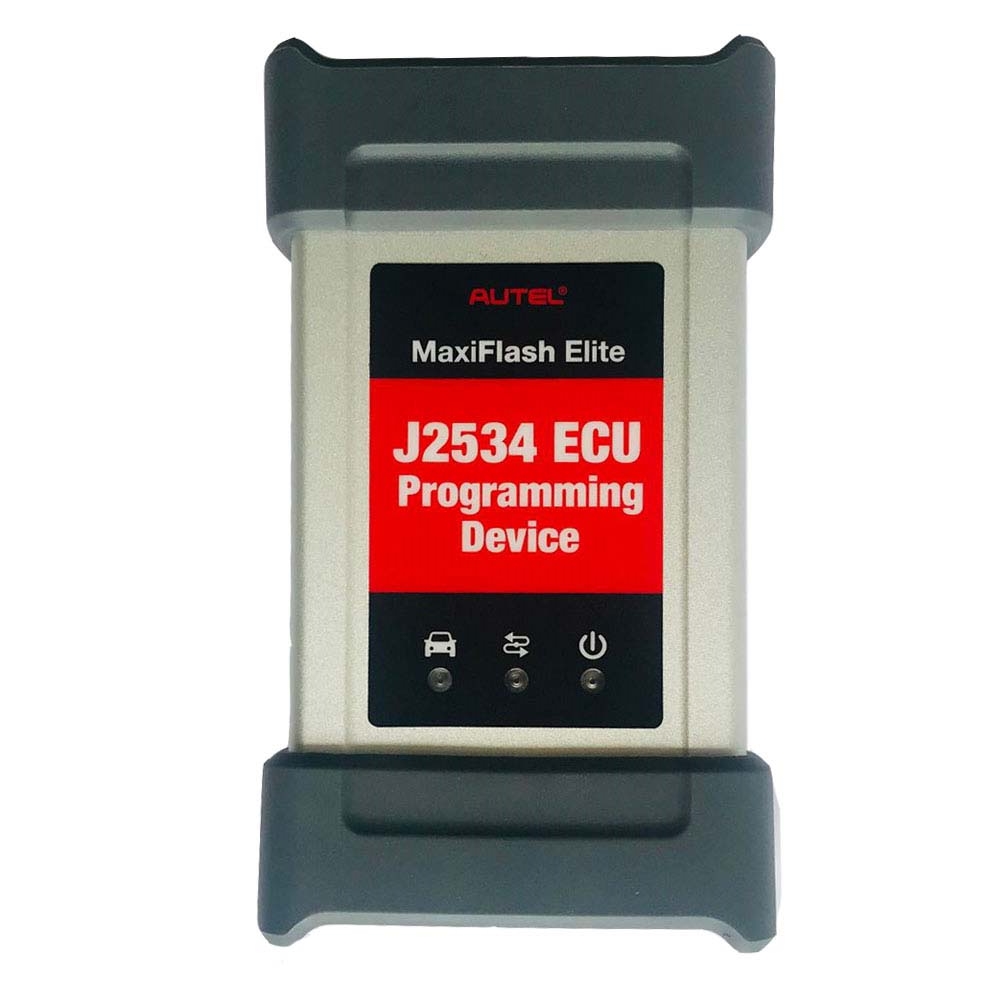

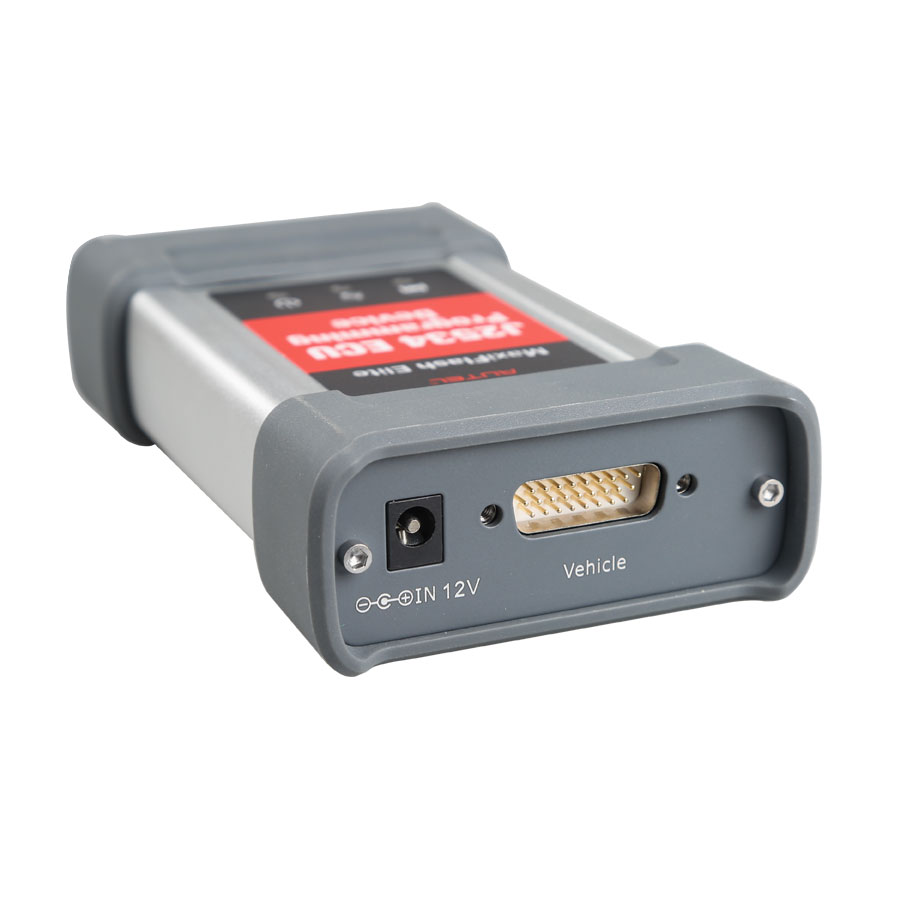

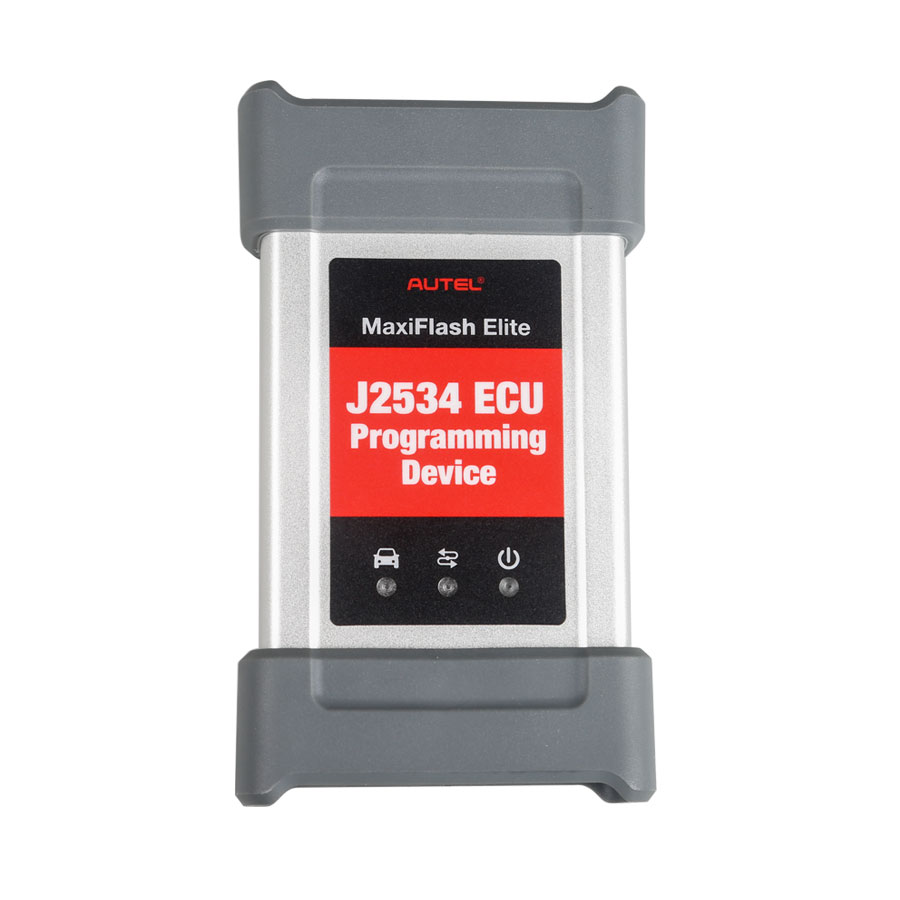

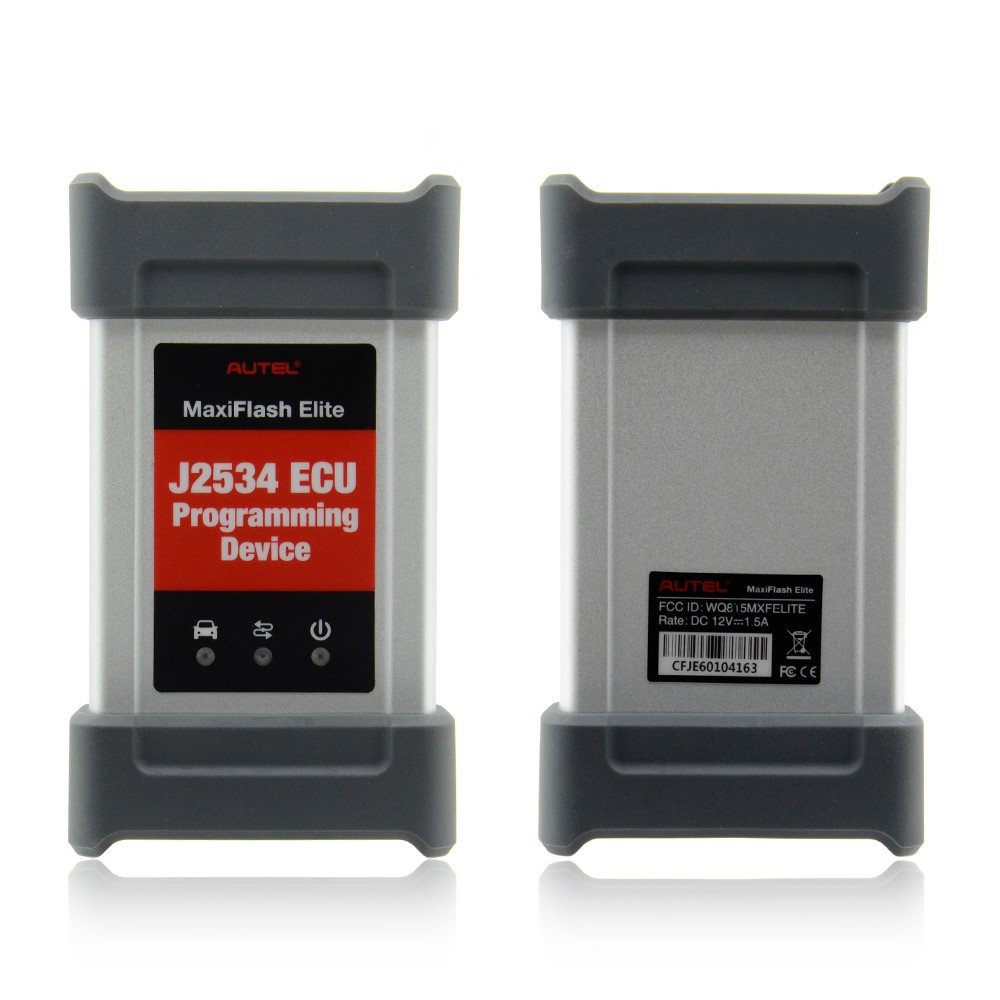

    MaxiFlash Elite

    2. Adaptor
    GM/Daewoo-12 adaptor
    PSA-2 adaptor
    Fiat-3 adaptor
    Audi-2+2 adaptor
    BMW-20 adaptor
    Benz-38 adaptor
    Kia-20 adaptor
    Mitsubishi/Hyundai-12+16 adaptor
    Nissan-14 adaptor
    Honda-3 adaptor
    Chrysler-16 adaptor

    Benz-14 adaptor (Optional)


    AUTEL MaxiSYS Pro MS908P FAQ:

    Q1:Can I use it to do gearbox programming of the Toyota MMT and Mitsubishi?
    A1:Sorry, it can not.

    Q2: Can I connect the MaxiSYS Pro MS908P with my car in other way? Such as the bluetooth. Or I can only connect through the cable?
    A1:The device include one Ipad with one diagnostic box. The diagnostic box communicate with the Ipad by bluetooth. But diagnostic box need to connect cars by cable or connector.

    Q3: Can I use the AUTEL MaxiSYS Pro MS908P to program the ECM module?
    A3: Some cars can do. Some cars can not.

    Q4: What is the difference between the AUTEL MaxiSys MS908 and the AUTEL MaxiSYS Pro MS908P?
    A4:AUTEL MaxiSYS Pro MS908P can do the programming function, while the MS908 can not.
