    New Arrival Autel Maxidas DS808 Auto Diangostic Tool Perfect Replacement of Autel DS708

    • Item No.  A151-1
    • History: 231  sold
    • Quantity
      Free Shipping
    • Quantity:  99
    • Weight:  4.0KG
    • Rank:  comment rank 5 () Write a Review
      Rated 5/5 based on 4 customer reviews
    • This goods is Free shipping!
    • Member Benefits  Shipping  Return Policy




    Technical Support


    Download & Technical Support

    Autel Maxidas DS808 Professional Automotive Diagnostic Tool Perfect Replacement of Autel DS708 Free Shipping


    We can offer you one year of free online upgrades

    The Autel Maxidas DS808 is an upgrade of Autel Maxidas DS708. Compared to its predecessor, the DS808 boasts of some very powerful features.

    Language: English

    You won’t find another scan tool with better help and support than the DS808. This professional automotive diagnostic scanner comes with the cloud-based MaxiFix – an online community with lots of proven diagnostic and repair tips. If that doesn’t satisfy your needs you can contact Autel remotely using interactive data logging sessions and they will offer comprehensive diagnostic guidance.

    Autel Maxidas DS808 Support Customized Languages besides English and Spanish. If you need to change device languge, please send us serial number and your location first. And it will cost usd120.

    Autel Maxidas DS808 Features:
    Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
    Exceptional OE-Level system coverage for all electronic systems
    Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
    Smart AutoVIN technology for identifying vehicles easily
    Automatic system and software updates with real-time push message notifications via Wi-Fi
    Instant remote control tech support anytime, anywhere
    Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
    Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
    One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
    Convenient data management system for managing internal program applications and reviewing data

    Autel Maxidas DS808 Diagnostic Function:
    1.retrieve ECU information,
    2.read & erase DTCs
    3.view live data
    4.perform active tests.
    The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, such as engine, transmission, antilock brake system (ABS), airbag system (SRS) and more.

    Besides the basic OBD diagnostic functions (like reading and erasing codes, live data and active tests), the Maxidas DS808 also supports special functions. They include:
    1.TPMS programming,
    2.Oil reset,
    3.EPB service,
    4.automatically bleed the ABS module,
    5.SAS calibration,
    6.DPF registration,
    7.Relearn the crankshaft position sensor, and so many more.

    Included is the Smart AutoVIN technology which identifies vehicles with ease.

    An Introduction Video about Autel Maxidas DS808:

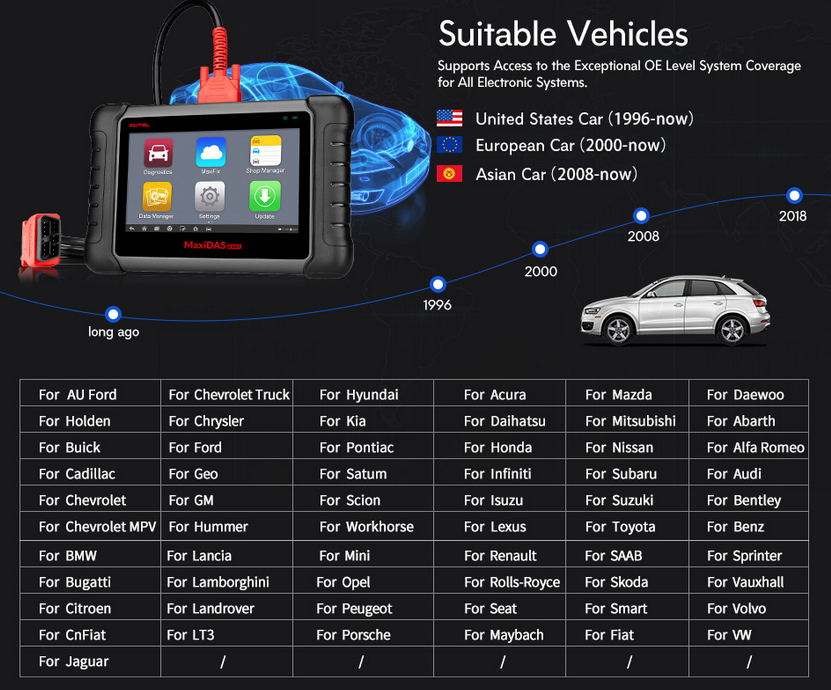

    Autel Maxidas DS808 Vehicle List:
    1. European vehicle list:

    2. USA vehicle vist:

    3. Asia vehicle list:

    Autel Maxdidas DS808 Update:

    1.  Make sure the Display Tablet is connected to a power source with stable access to the internet.

    2.  Tap the Update application button from the MaxiDAS Job Menu; or tap the update notification message when received one; or tap the
    Update icon on Vehicle Menu in Diagnostics application. The Update application screen displays.
    3.  Check all available updates: If you decide to update all the items, tap the Update All button.If you only want to update one or some of the item(s), tap the
    Update button on the right column of the specific item(s).
    4.  Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume from the break point.

    5.  When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced.

    Autel Maxdidas DS808 Screen Display:

    Operating system

    1.Based on Android 4.4.4, this scan tool features a 1.5GHz Cortex-A9 processor and 32GB memory support. The OS and processor account for its ability to multitask and perform faster than most other professional automotive diagnostic scanners.

    2.On its part, the large memory allows you to organize files and applications conveniently. In fact, the DS808 could easily be the best in the organization of vehicle records, customer information, and diagnostic files.

    3.The OS and software update automatically with real-time push message notifications thanks to the built-in Wi-Fi module.

    Maxidas DS808 Specification:
    Recommended Use                             Indoor
    Operating System                                  Android™ 4.4.4
    Processor                                               Cortex-A9 processor (1.5 GHz)
    Memory                                                    32GB
    Display                                                     7-inch LCD capacitive touchscreen with 1024x600 resolution

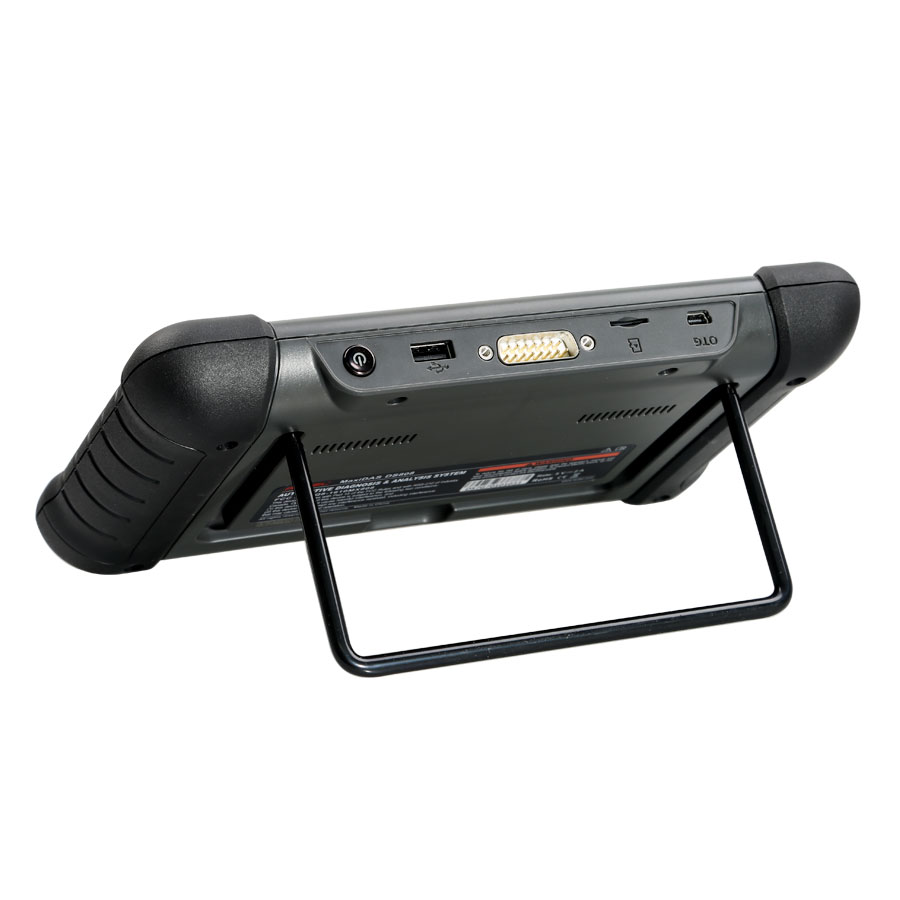

    Connectivity                                             Mini USB 2.0 •    USB 2.0 •    Wi-Fi •    Micro SD card (supports up to 32GB)
    Sensors                                                   Ambient light sensor for brightness auto changing
    Audio Input/Output                                  Input: N/A •    Output: buzzer
    Power and Battery                                  3.7 V/3200 mAh lithium-polymer battery •    Charges via 5 VDC power supply
    Tested Battery Life                                 Around 4.5 hours of continuous use
    Battery Charging Input                          5 V/1.5 A
    Power Consumption                             500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
    Operating Temp.                                    -10 to 60°C(14 to 140°F)
    Storage Temp.                                        -20 to 70°C (-4 to 158°F)
    Operating Humidity                               5% - 95% non-condensing
    Dimensions (W x H x D)                       237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
    Net Weight                                              788 g (2.42 lb.)
    Supported Automotive Protocols        ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM,           ISO11898(Highspeed,Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

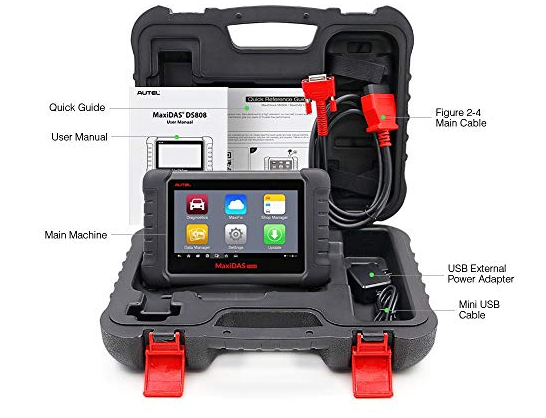

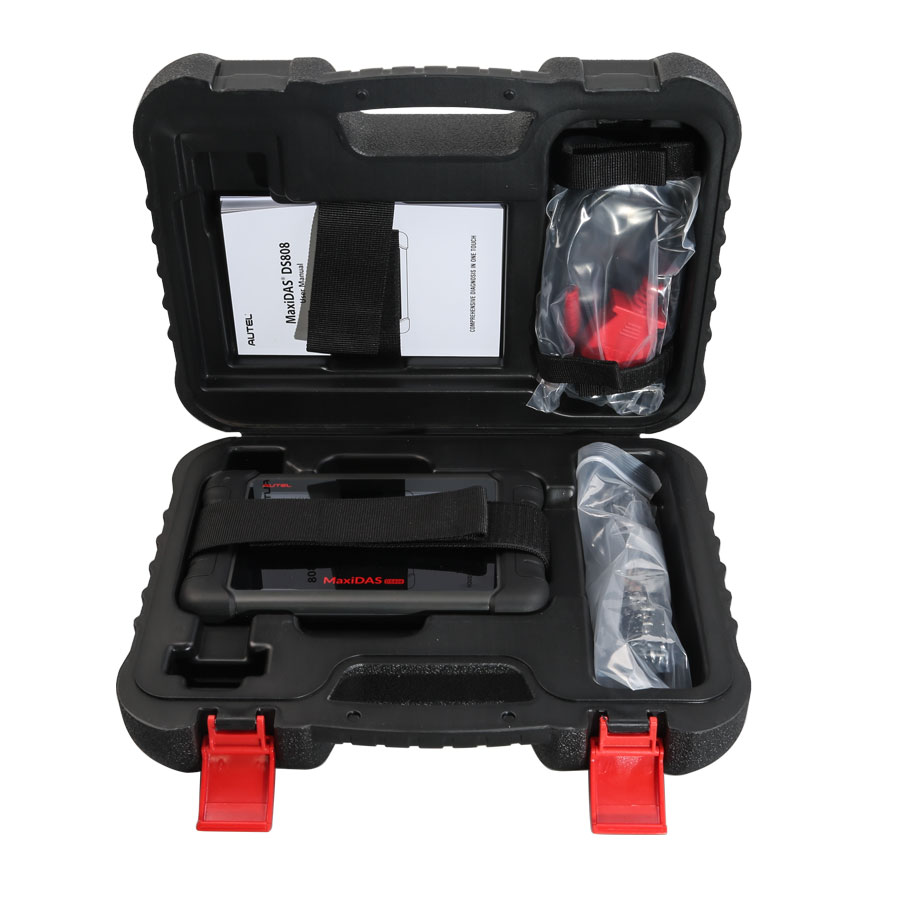

    Autel DS808 Package List:

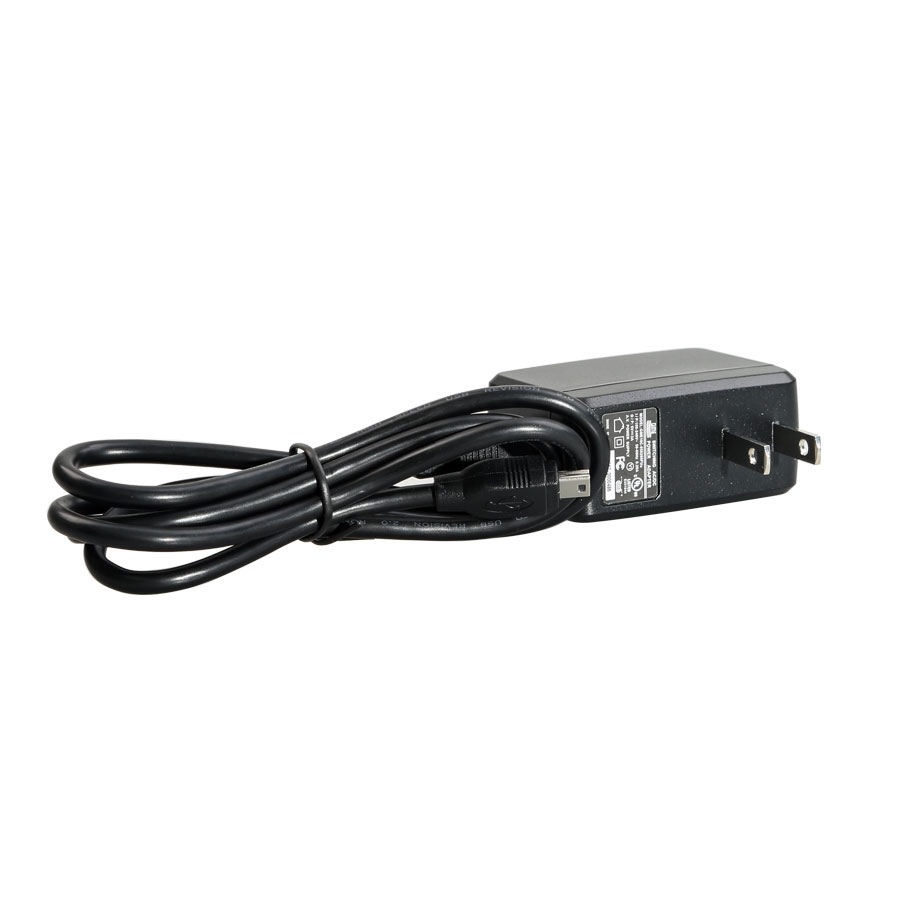

    USB External Power Adapter
    USB External Power Adapter

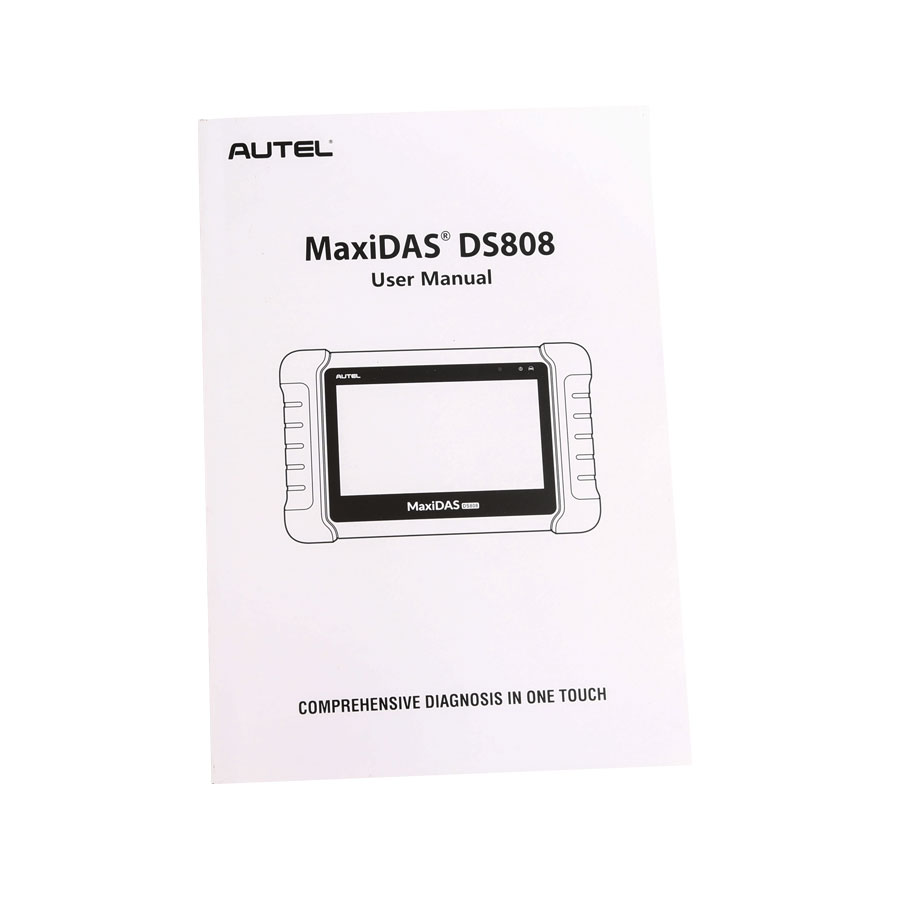

    User Manual

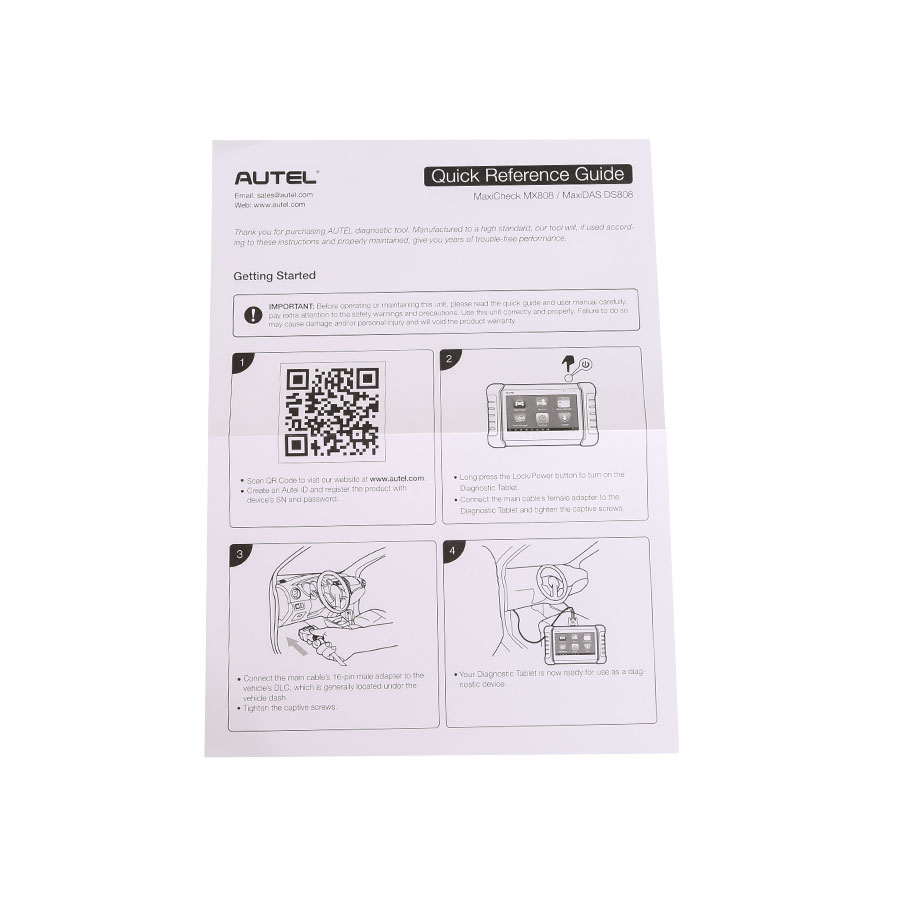

    Quick reference guide

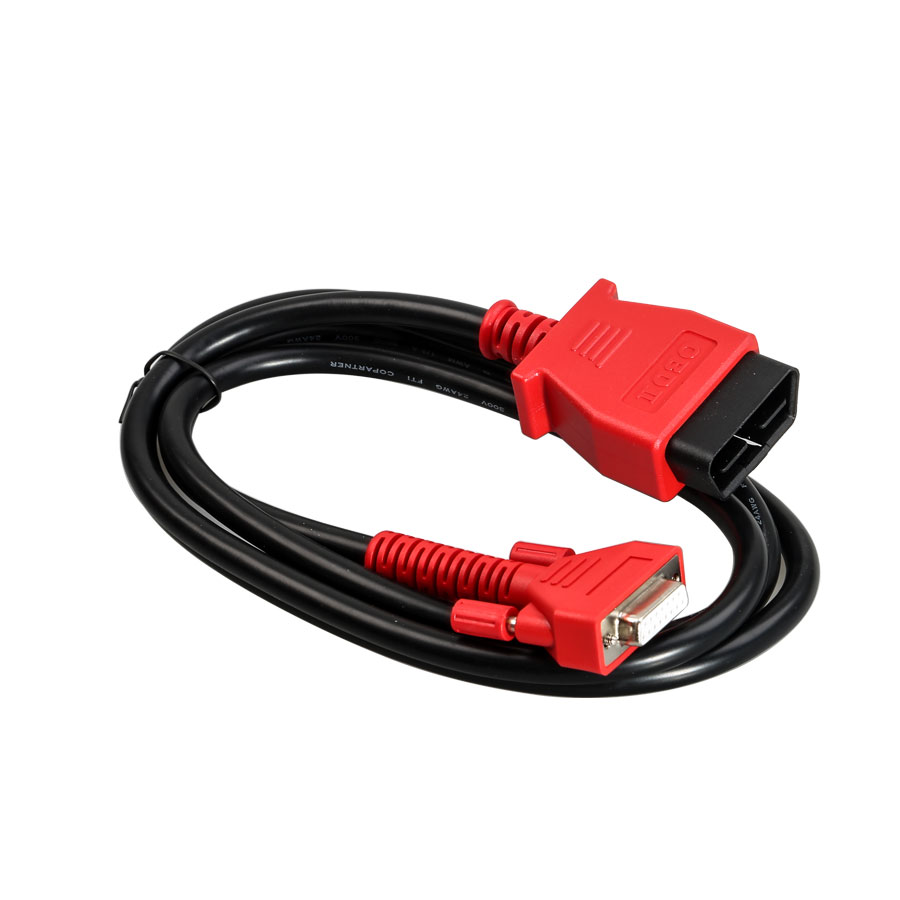

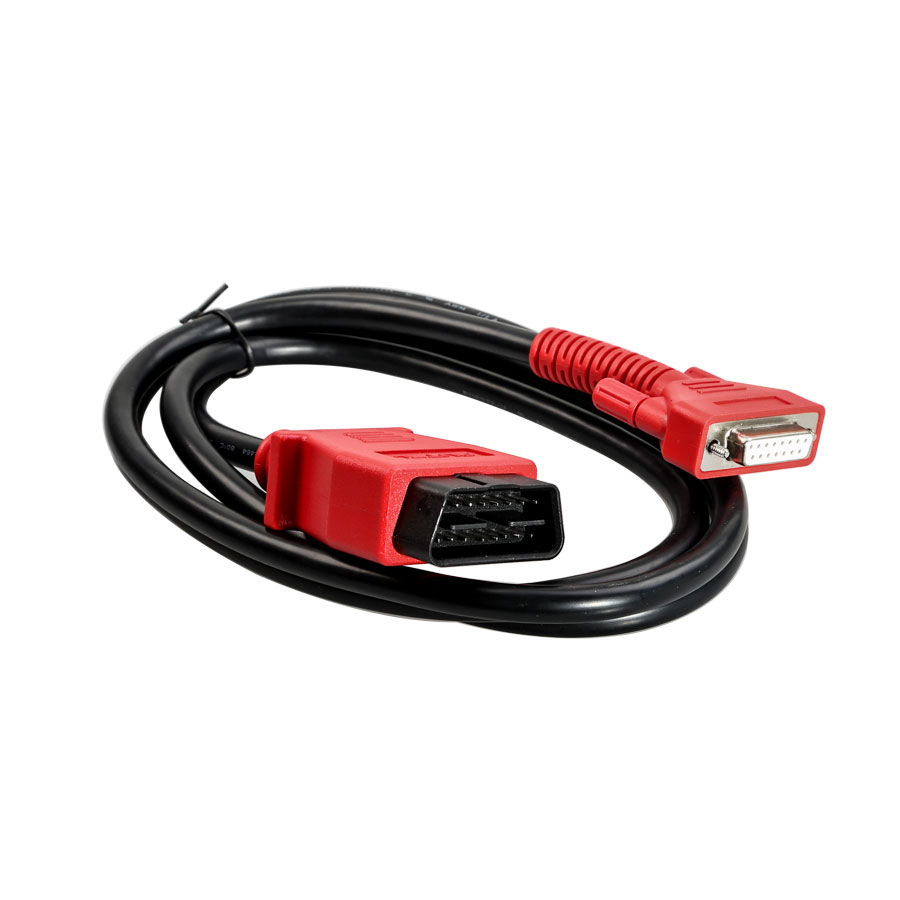

    Main cable

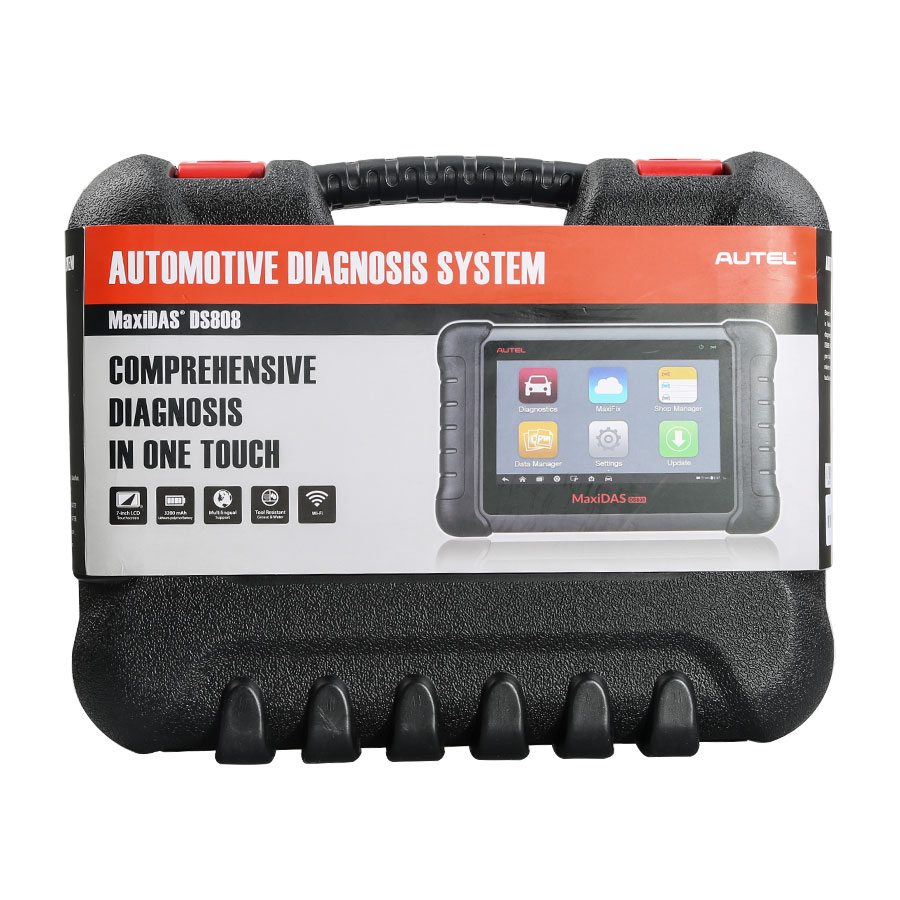

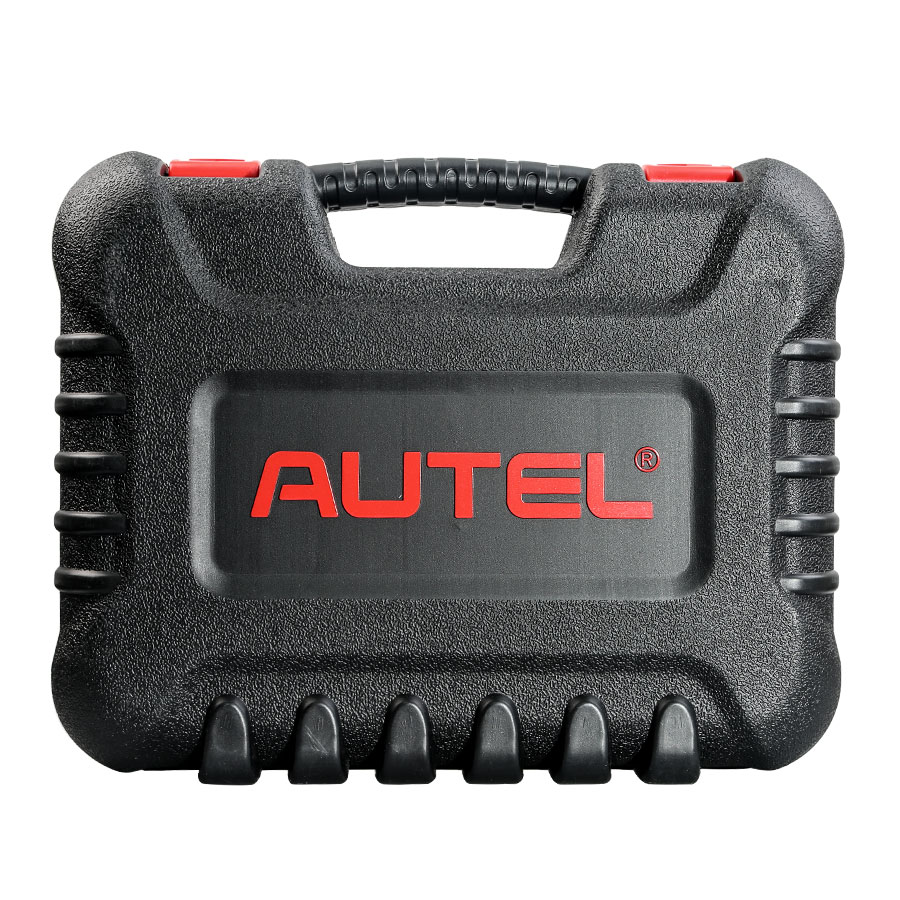

    Carry Case Mini
    USB Cable

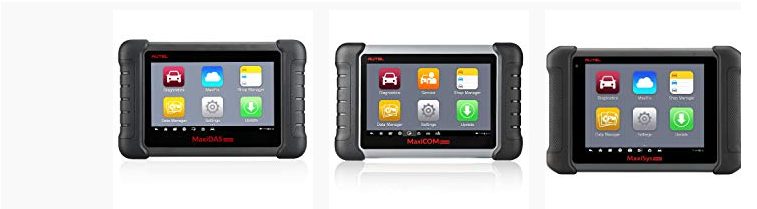

    Autel Maxidas DS808 vs MS906 vs. MK808 Comparison Chart:

    Who is it built for?

    It is designed for professional mechanics and auto service operators. The efficient file management system is particularly a handy tool for organizing customer data.

    If you have this professional automotive diagnostic scanner you will find it very easy to keep records of vehicles, their VIN, diagnostic histories and so much more.
