    CAT ET 3 Cat Caterpillar ​Communication Adapter 3 with 2019A Caterpillar Electronic Technician software

    • Item No.  A154
    • History: 144  sold
    • Please select the laptop you want:


    • Market Price: US$660.00
      Shop Price: US$550.00You save US$110.00
      Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 3-5 days »
      continue
    • Quantity:  280
    • Weight:  7.5KG
    • Rank:  comment rank 4.5 () Write a Review
      Rated 4.5/5 based on 10 customer reviews

    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    CAT ET 3 Cat Caterpillar Communication Adapter 3 with 2019A Caterpillar Electronic Technician software




    2019A Cat ET software as Cat Caterpillar ET 2018C Software update version, 2019A Caterpillar Electronic Technician softwarer With CAT ET 3 Cat caterpillar adapter 3 support caterpillar diagnostic till 2019.



    Highlights of CAT Caterpillar ET diagnostic adapter iii:
    1.It is the latest generation of the CAT Communication Adapter group, and replaces the CAT Comm Adapter II.
    2.This is the only recommended communication device for CAT, and the only datalink device that will allow you to properly communicate with a CAT engine on dual datalinks.
    3.This function is needed for some CAT ET (Electronic Technician) functions.
    4. Latest version is 2019A.
    5.
    Designed to run with Microsoft Windows XP or windows7 32bits
    6. We'd like to recommend you to select it with second hand dell d630 laptop, we will install the software before ship, so you can get it work directly after you receive it.
    7. please pay attention to the T410 laptop is the second laptop, not new.


    Product Description

    CAT Caterpillar ET Diagnostic Tool from Caterpillar provide the capability to access Electronic Control Modules (ECMs) from a personal computer. Many job-critical tasks can be performed with an electronic service tool. The user can display the status of a group of parameters (temperatures, pressures, etc.) simultaneously, view active and clear logged diagnostics, display the current configuration of an ECM and much more. The service tool works with a communication adapter to allow connection to an ECM. A graphical interface makes this software quick to learn and easy to use. A separate pull-down menu for each function enhances the "ease of use." The version and identification of the ECM is automatically retrieved and is displayed on a summary screen when the program is started. Diagnostic tests and calibrations can also be performed.


    CAT Caterpillar ET Diagnostic Tool enable service technicians to reprogram ECMs, reconfigure control system parameters, fine tune performance or diagnose the root cause of a failure the first time. These powerful tools allow service personnel to display and analyze vital performance and health information from any system quickly and accurately. The service tool communicates with any system using ATA (J1708), J1939 or the Caterpillar proprietary data link networks. The service tools provide information and features needed to help a technician diagnose problems and perform repairs and to customize and personalize the operation of a product. By allowing customers to design flexibility and configurability into a product, Caterpillar service tools stretch beyond the capabilities of preprogrammed ECMs or onboard display systems.


    CAT3 how to install and active the software:


    CAT III Diagnostic Tool Install Video:

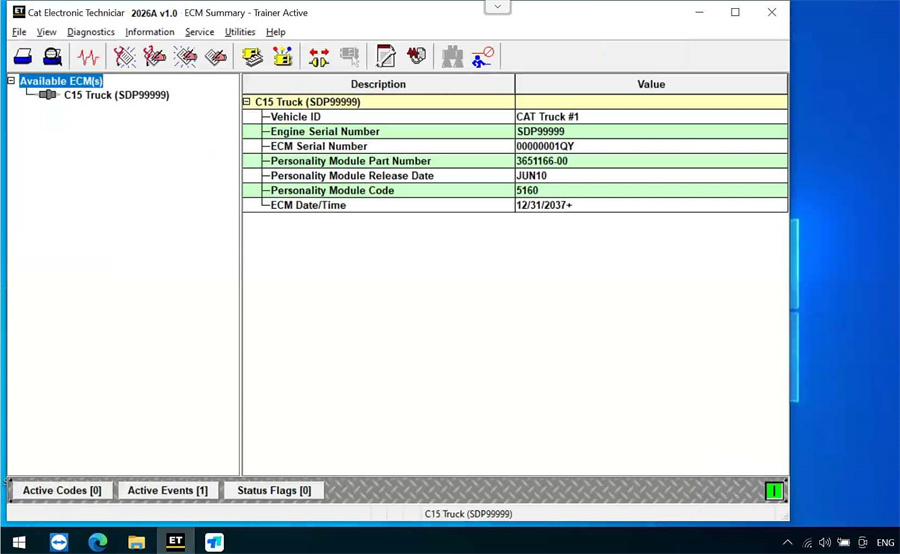

    Cat et Caterpillar Electronic Technician Software 2019A V1.0:

    Type of catalogue: Caterpillar Electronic Technician Diagnostic Software

    Make: Caterpillar

    Region: WorldWide all region

    Support Multi-languages:English, Chinese, Danish, French, German, Italian, Japanese, Portuguese, Russian, Spanish

    Support All cars of CAT


    Support car list of CAT Caterpillar ET Diagnostic Tool :


    Features

    Display, graph and log status parameters.

    Retrieve prognostic data including histograms, engine totals for fuel used and miles traveled.

    View active diagnostics and clear logged diagnostics. View events where irregularities have occurred and have been logged by the ECM.

     Perform calibrations to enhance performance of the ECM.

     Customize the ECM with application-specific settings.

     Over 100 custom Diagnostic, Information and Service features including:

      - 2D and 3D Histogram plotting capability (engine software

        support required).

      - Custom Status screen groups

      - Snapshots (Download and display snapshot data recorded by the

        ECM)

      - Configuration Aid that allows upload/download of same

        configuration to multiple control modules


    Customised Service Tool Options

    Customized service tool name

    Customized graphics for the splash screen and icons

    Customized installation

    Aftermarket differentiation, i.e., the tool for one customer does not work on the product of another customer.

    Licensing options for customer management

    Flash programming of the ECM(s)

    Training demonstration allows familiarity with the tool's primary functions without connecting to ECM(s)

    Perform customized diagnostic tests to identify harness problems, cylinder or component failures (Automatic Cylinder Cutout with cylinder to cylinder fueling comparison)


    Software has been installed on Lenovo T410 Laptop, ready to work

    Lenovo T410 Laptop:

    Brand: Lenovo

    Screen Size:14.0

    Memory: 4GB

    Memory (RAM): Intel(R)Core(TM)I5 CPU+

    Type: Laptop/Notebook

    Condition: Used

    An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.

    Processor Speed: 2.53GHz


    Caterpillar ET Software 2019 Function:

    This diagnostic app allows you to:

    View active and logged diagnostics.

    View events where irregularities occurred and were logged by the ECM.

    View the status of a group of parameters (temperatures, pressures, etc.) simultaneously.

    Record and log performance data.

    Graph a group of status parameters.

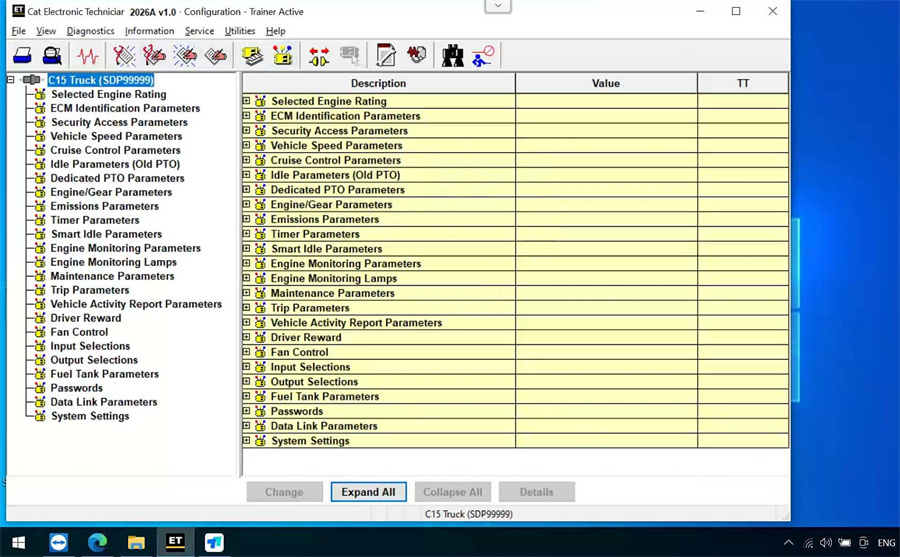

    View the current configuration of an ECM.

    Change ECM configurations.

    Perform diagnostic tests.

    Perform calibrations.

    Print reports and diagnostic results.

    Please keep in mind that some ecm settings for example, speed limit requires factory password. The factory password generator is not included in this application


    What's New

    What's New - 2019A

    ECM Naming Changes

    Certain ECMs connect to the service tool over two data links at the same time. The service tool shows a message popup when the ECM is only detected on one link. The service tool has been changed to add the text **INCOMPLETE** in the ECM name when the connection is incomplete. Service tool features that display a connection icon also use a new icon for an incomplete connection.


    What's New - 2018C

    No significant new features or feature enhancements


    What's New - 2018B

    CEOS Fleet Configuration File TOP

    A CEOS (Customer Electronic Option Selection) Fleet Configuration File can be created/modified for an engine using the Service Tool. This is available in connected and disconnected mode.

    Error When Launching Service Tool

    There is a Microsoft issue with upgrading libraries during an installation involving certain versions of the C++ redistributable. After a successful service tool installation, when trying to run the service tool for the first time, one of the following errors may occasionally appear: “The entry point could not be located in api-ms-win-crt-runtime” or “The program can't start because mfc140u.dll is missing from your computer.” If either of these messages is displayed, please let us know and we will send you to step by step troubleshooting guide. This procedure requires administrator rights.

    Service Tool License Corruption Issues with Windows 10 Updates

    Windows 10 updates 1709 and 1803 will corrupt service tool licenses. Future Window 10 updates may do the same

    If either of license error messages is displayed, please let us know and we will send you to step by step troubleshooting guide.


    What's New - 2018A

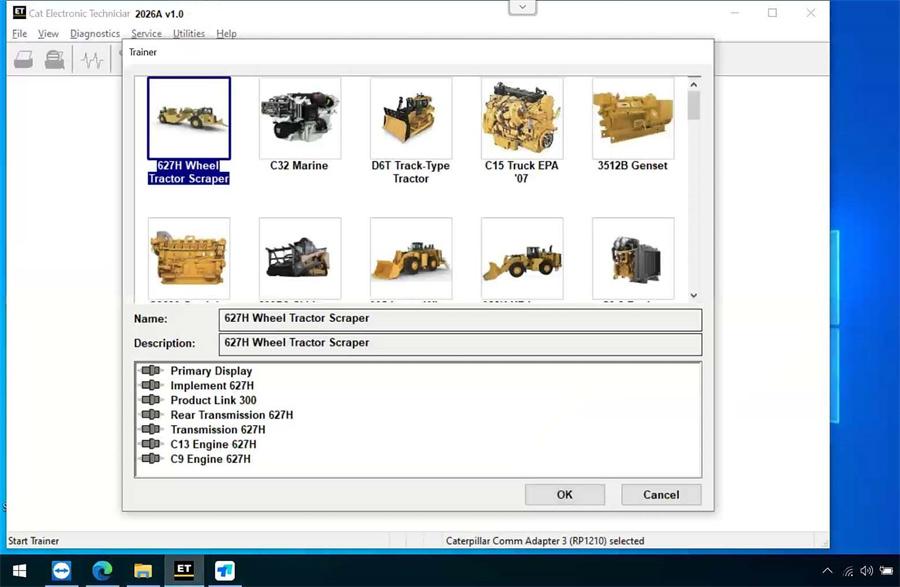

    Trainer Update - 988K XE Wheel Loader

    The 988K XE Wheel Loader has been added to the Trainer application.


    What's New - 2017C

    Preferences Option to Save a Product Status Report to PDF

    The Preferences dialog for the Product Status Report has changed. The dialog contains a new checkbox to automatically save a Product Status Report as a PDF file when the report is created. The service tool will continue to automatically save Product Status Reports as an XML file.


    What's New - 2017B

    Product Status Report Updates

    The Product Status Report has been updated to include certain history features supported by the ECM, such as the after-treatment Regeneration History and the Service Test History.

    Winflash Screen Update

    The screen for the Winflash feature has been updated. A new Expand All button opens all sections of the screen to show all details for ECMs detected by WinFlash. A new Collapse All button hides all sections of the screen, except for header rows showing detected ECM names.


    PC, Communication Hardware, and Cable Requirements

    To run the service tool, the next PC, communication hardware, and cable requirements must be met. NOTE: The minimum PC Configurations should not be used as a standard when buying new personal computers for service tool purposes. If the existing equipment meets these minimum requirements, it will run the service tool.


    PC Requirements

    Recommended Configurations

    PC containing a 2.0 GHz dual-core processor

    3GB RAM

    3GB of the available hard disk drive

    DVD-ROM drive (optionally)

    15.4-inch XGA Screen (1280x1024 compatible)

    Microsoft Windows™ 7 Professional or Windows 8 Professional, Windows 10 Professional (Not tested with Home Edition) (Note: Windows 8 RT is not supported)

    RS232 port with 16550AF UART or compatible (for use with Comm Adapter II)

    USB 1.1 or 2.0 port (for use with Comm Adapter 3)

    Ethernet RJ45 connector

    Built-in pointing device or mouse

    For security purposes, Microsoft Internet Explorer version 11 or newer or Microsoft Edge is recommended.

    Note: The most recent version of Microsoft Internet Explorer may not be validated to work with the service tool.

    Wi-Fi (for the Wireless Comm Adapter 3)


    Minimum Configurations

    PC containing a Pentium 2 GHz processor or greater

    1GB RAM

    500MB of an available hard disk drive

    CD-ROM drive

    Super VGA monitor or display (1024x768)

    Microsoft Windows™ 7 Professional or Windows 8 Professional, Windows 10 Professional (Not tested with Home Edition) (Note: Windows 8 RT is not supported)

    RS232 port with 16550AF UART or compatible (for use with Comm Adapter II)

    USB 1.1 or 2.0 port (for use with Comm Adapter 3)

    Ethernet RJ45 connector

    Built-in pointing device or mouse

    For security purposes, Microsoft Internet Explorer version 9 or newer is recommended. Note: The most recent version of Microsoft Internet Explorer may not be validated to work with the service tool.


    Communication Hardware

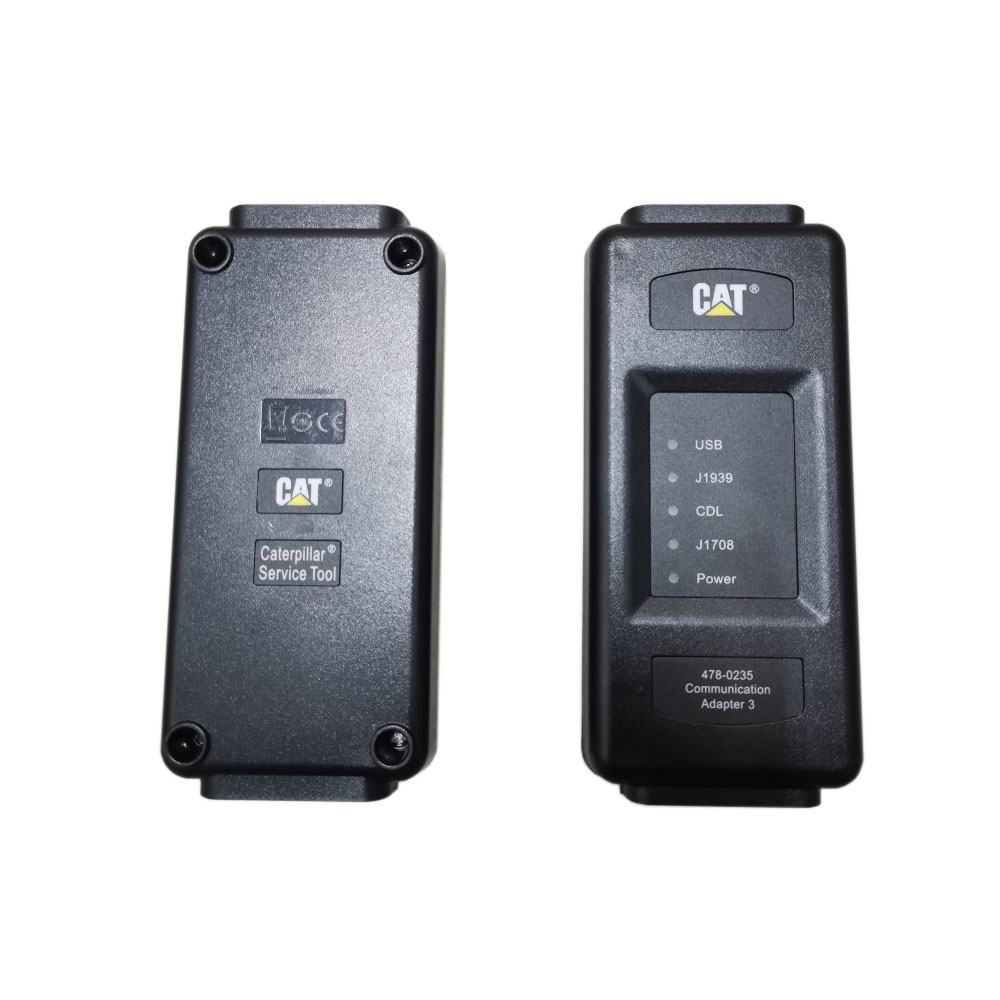

    Caterpillar Communication Adapter III

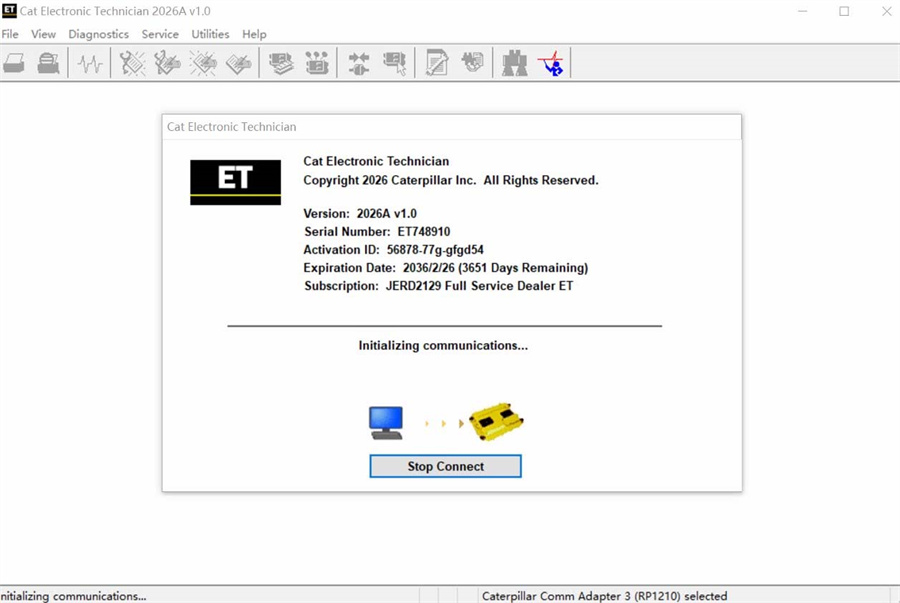

    Configuring Cat Electronic Technician to use the Communication Adapter 3

    For Cat Electronic Technician to work with the Communication Adapter 3, the settings must be changed to select the Communication Adapter 3 as the Communication Interface Device:

    Step 1 Start Cat Electronic Technician.

    Step 2 Click the Stop Connect button when it appears.

    Step 3 Select the Utilities menu.

    Step 4 Choose “Preferences > Modify...”.

    Step 5 Select the Communications tab.

    Step 6 Select Cat Comm Adapter 3 (RP1210) and click OK.

    NOTE: Because a growing number of products require multiple data link service, the “Enable Dual Datalink Service” checkbox has been pre-selected.

    Servicing ECMs on more than one data link requires this check box to be enabled.

    Failure to do this will result in undetected ECMs and reduced functionality.

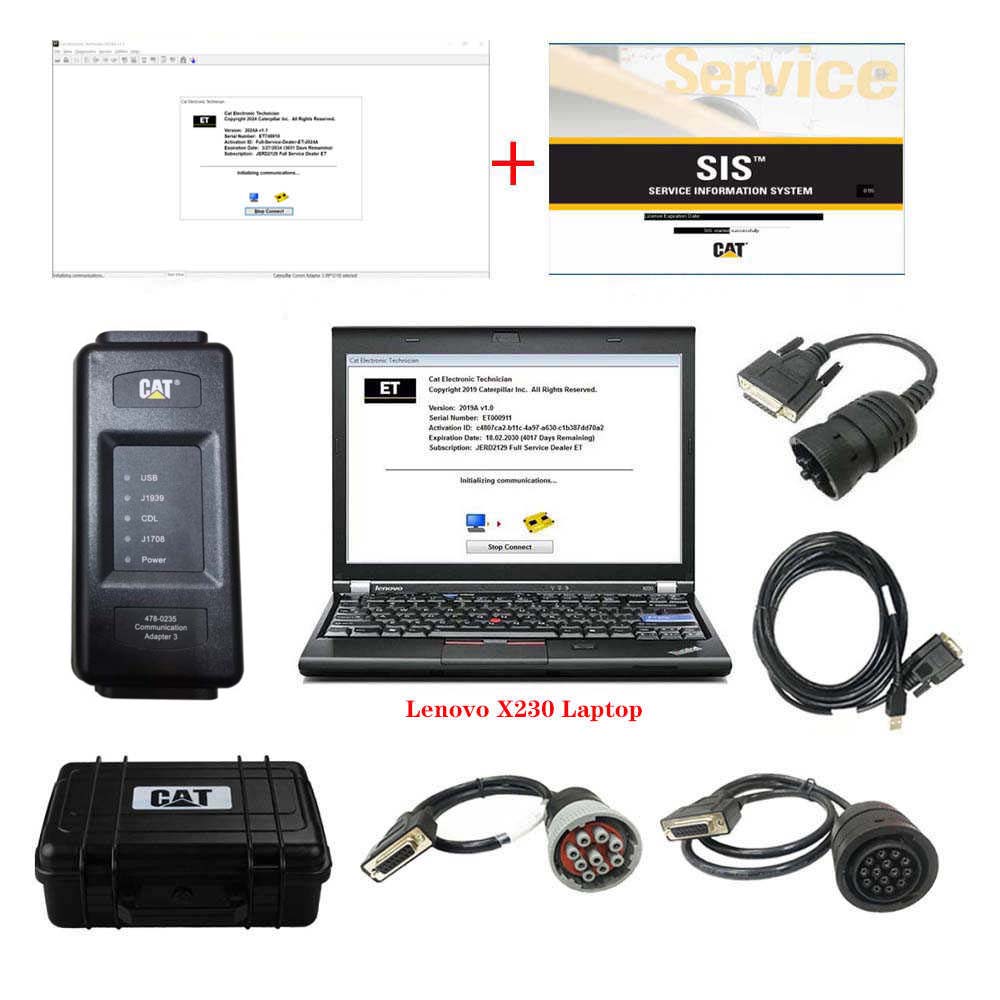

    Package 1:

    1.Real CAT et3 Comm Adapter III

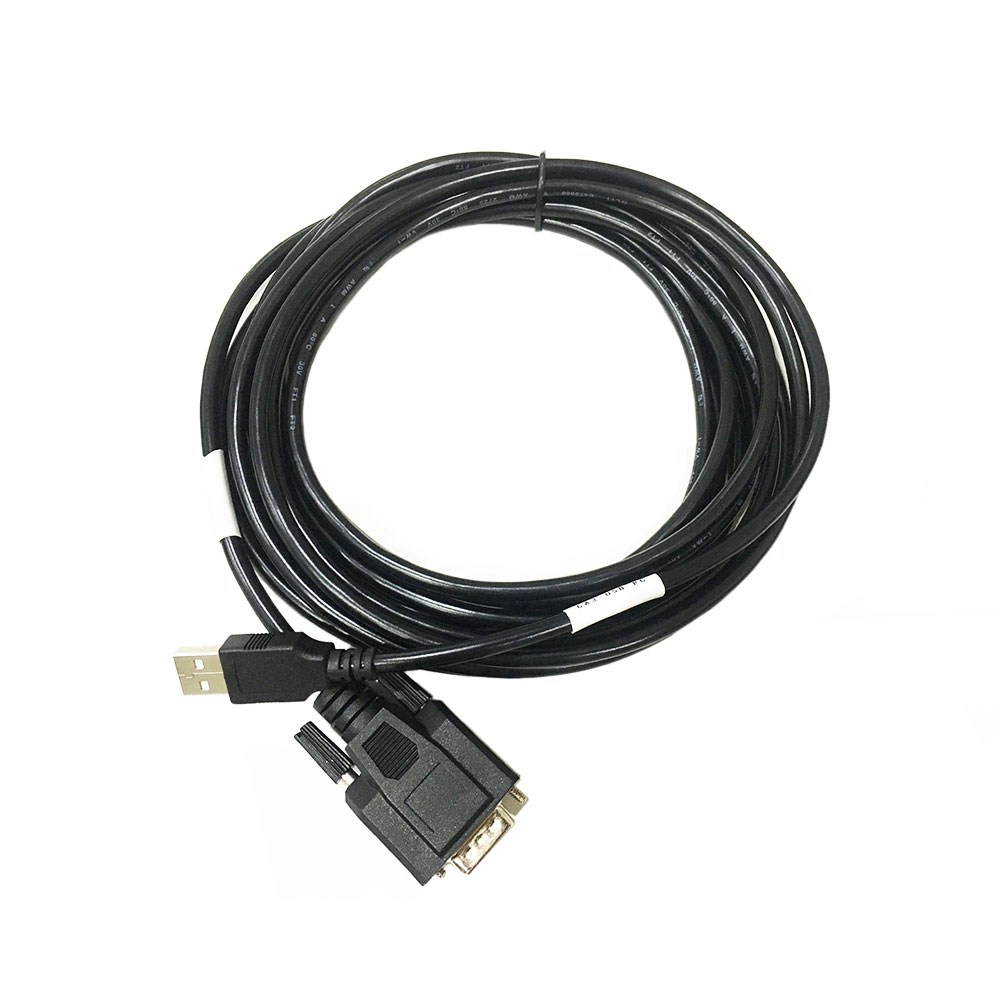

    2.USB Cable (From device to your computer)

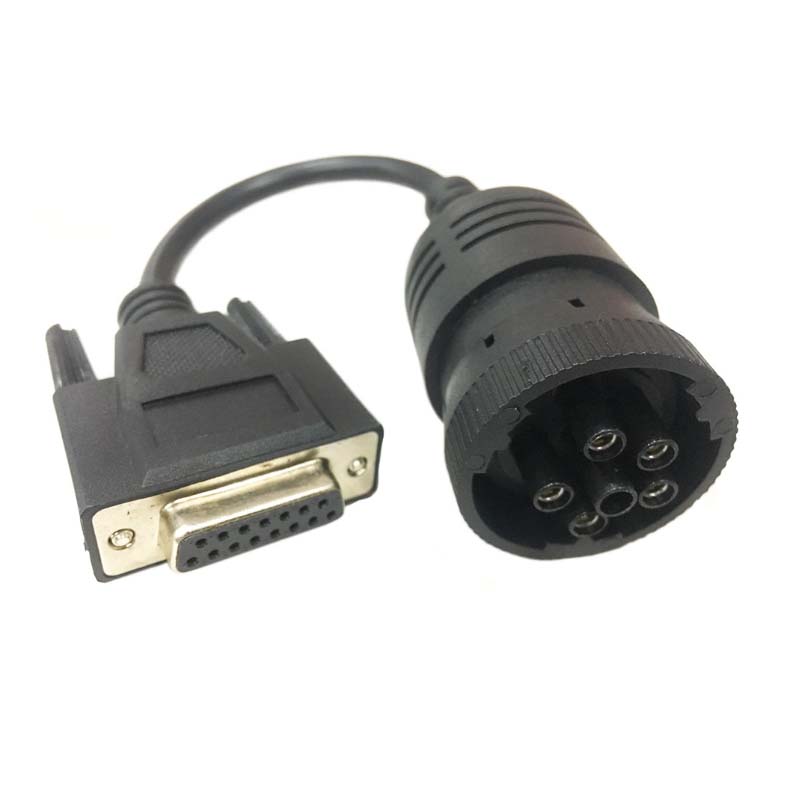

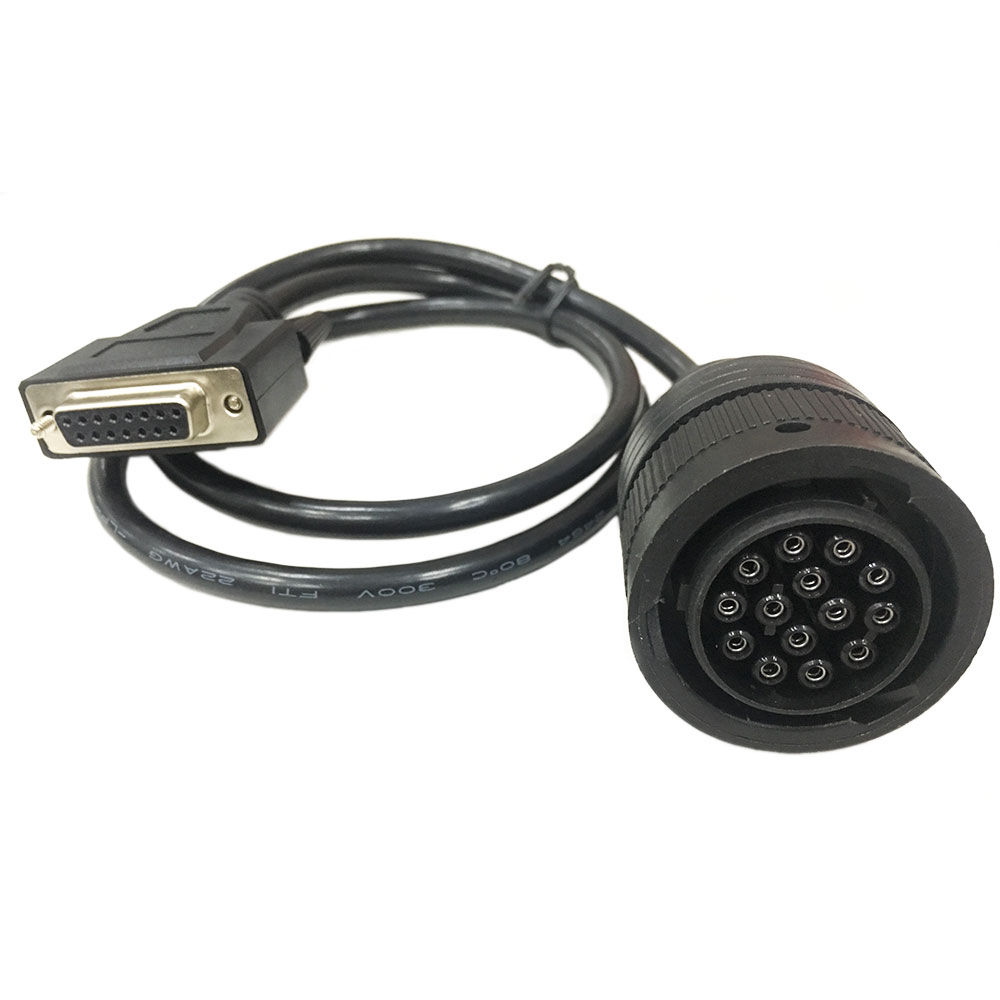

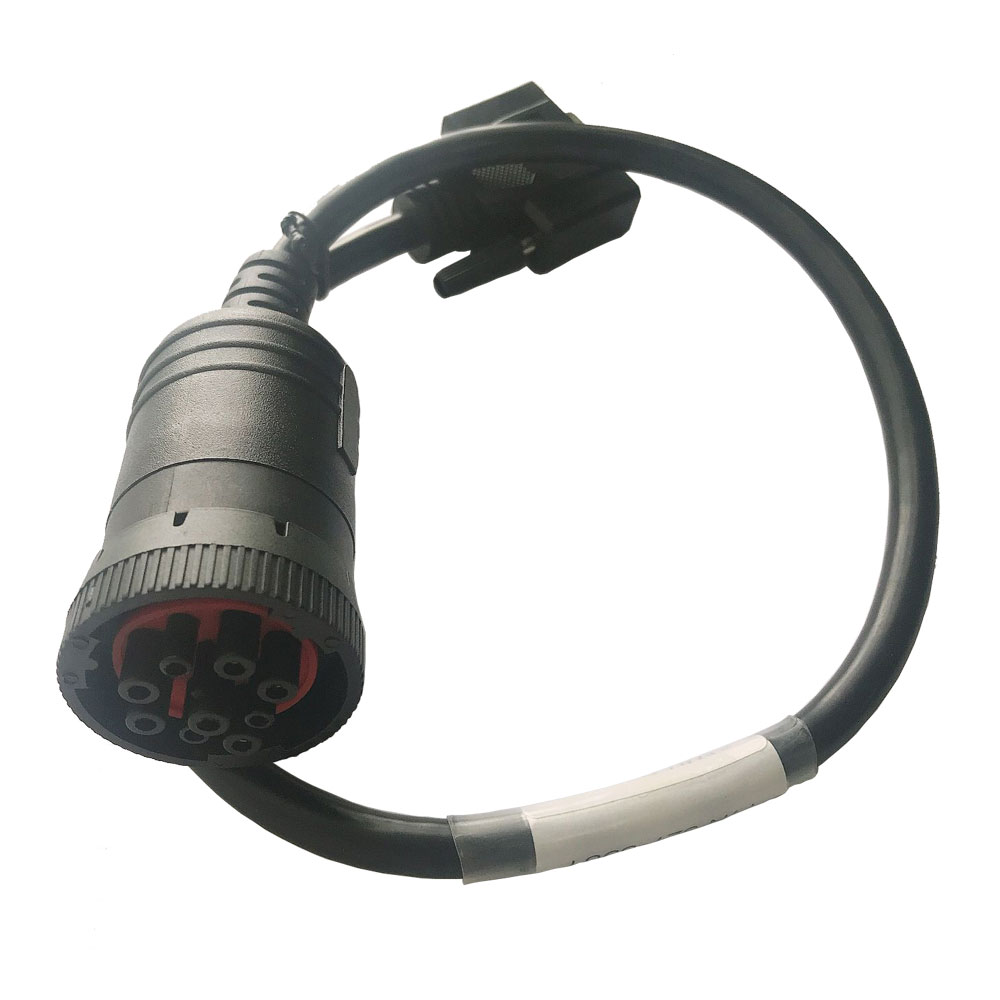

    3.J1939/J1708 9PIN Cable (from device to your truck)

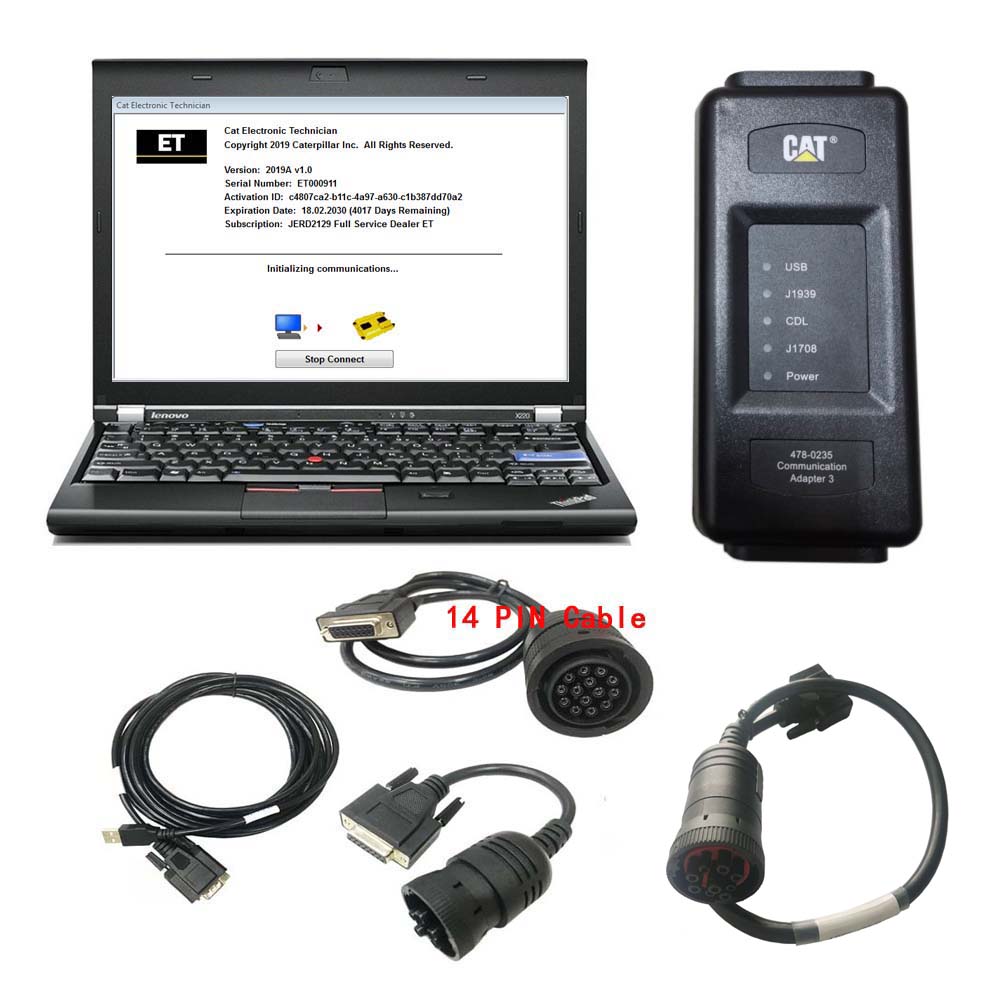

    Package 2 :

    1.Used Lenovo T410 Laptop

    2.Real CAT et3 Comm Adapter III

    3.USB Cable (From device to your computer)

    4.J1939/J1708 9PIN Cable (from device to your truck)

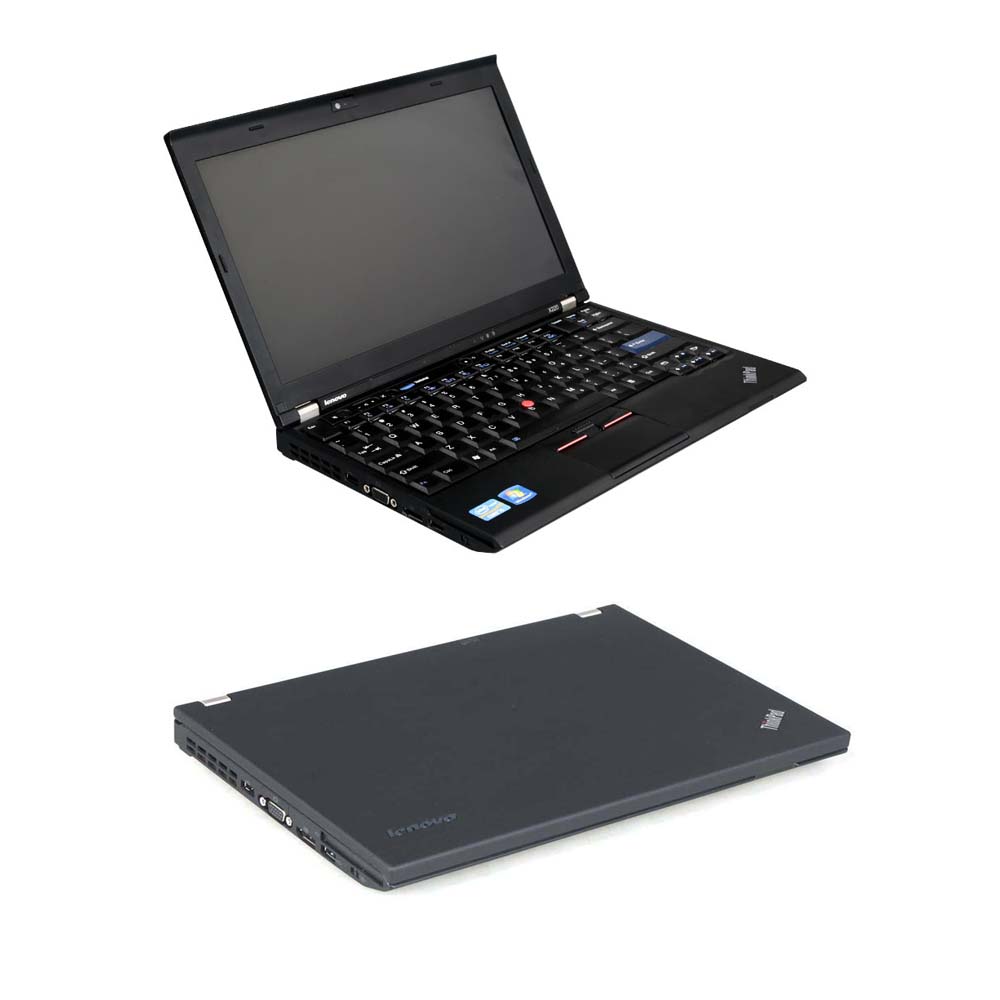

    Lenovo T410 Laptop :
    Brand: Lenovo
    Screen Size:14.0
    Memory: 4GB
    Memory (RAM): Intel(R)Core(TM)I5 CPU+
    Type: Laptop/Notebook
    Condition: Used
    An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.
    Primary Drive: DVD+/-RW Processor Speed: 2.53GHz
    Processor Configuration: Dual Core
