    Best Quality CAT Caterpillar ET Diagnostic Adapter III Cat Communication Adapter 3 2019C Version

    • Item No.  A153
    • History: 158  sold
    • with/without 14PIN cable::

    • Market Price: US$837.60
      Shop Price: US$698.00You save US$139.60
      Express Shipping Service    Estimated delivery time: 3-5 days »
    • Quantity:  170
    • Weight:  3.0KG
    • Rank:  comment rank 4.5 () Write a Review
      Rated 4.5/5 based on 26 customer reviews

    • Member Benefits  Shipping  Return Policy




    Technical Support


    Download & Technical Support

    Best Quality CAT Caterpillar ET Diagnostic Adapter III  Cat Communication Adapter 3 2019C Version  (Real Caterpillar ET3 Adapter III)

    Top 6 Reasons To Get CAT Caterpillar ET Diagnostic Tool Adapter III
    1. Latest Version:2019C
    2. Supported Operating System: Windows 7 32 bit, Wnidows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit
    3. We will activate it after installing 2019C version software.
    4. Supported Language:Chinese(Simplified),Danish,German(Germany),French(France),Portuguese (Portugal),Japanese,Spanish (tradition),Italian(Italy),English(America)
    5. Support All cars of CAT

    6.Publication date: 10.2019 year

    Caterpillar ET 2019C is a good replacement for the CAT ET 2018b, 2019A,2019B Electronic Technician Diagnostic Software. 2019C Caterpillar Electronic Technician softwarer With CAT ET 3 Cat caterpillar adapter 3 support caterpillar diagnostic till 2019.

    CAT Caterpillar ET Install Video:

    Support car list of CAT Caterpillar ET Diagnostic Tool :

    CAT ET installation instruction,please download from here: ET installation instruction

    Product Description

    CAT Caterpillar ET Diagnostic Tool from Caterpillar provide the capability to access Electronic Control Modules (ECMs) from a personal computer. Many job-critical tasks can be performed with an electronic service tool. The user can display the status of a group of parameters (temperatures, pressures, etc.) simultaneously, view active and clear logged diagnostics, display the current configuration of an ECM and much more. The service tool works with a communication adapter to allow connection to an ECM. A graphical interface makes this software quick to learn and easy to use. A separate pull-down menu for each function enhances the "ease of use." The version and identification of the ECM is automatically retrieved and is displayed on a summary screen when the program is started. Diagnostic tests and calibrations can also be performed.

    CAT Caterpillar ET Diagnostic Tool enable service technicians to reprogram ECMs, reconfigure control system parameters, fine tune performance or diagnose the root cause of a failure the first time. These powerful tools allow service personnel to display and analyze vital performance and health information from any system quickly and accurately. The service tool communicates with any system using ATA (J1708), J1939 or the Caterpillar proprietary data link networks. The service tools provide information and features needed to help a technician diagnose problems and perform repairs and to customize and personalize the operation of a product. By allowing customers to design flexibility and configurability into a product, Caterpillar service tools stretch beyond the capabilities of preprogrammed ECMs or onboard display systems.

    Display, graph and log status parameters.
    Retrieve prognostic data including histograms, engine totals for fuel used and miles traveled.
    View active diagnostics and clear logged diagnostics. View events where irregularities have occurred and have been logged by the ECM.
     Perform calibrations to enhance performance of the ECM.
     Customize the ECM with application-specific settings.
     Over 100 custom Diagnostic, Information and Service features including:
      - 2D and 3D Histogram plotting capability (engine software
        support required).
      - Custom Status screen groups
      - Snapshots (Download and display snapshot data recorded by the
      - Configuration Aid that allows upload/download of same
        configuration to multiple control modules

    Customised Service Tool Options
    Customized service tool name
    Customized graphics for the splash screen and icons
    Customized installation
    Aftermarket differentiation, i.e., the tool for one customer does not work on the product of another customer.
    Licensing options for customer management
    Flash programming of the ECM(s)
    Training demonstration allows familiarity with the tool's primary functions without connecting to ECM(s)
    Perform customized diagnostic tests to identify harness problems, cylinder or component failures (Automatic Cylinder Cutout with cylinder to cylinder fueling comparison)

    Original Factory Caterpillar ET3 Adapter III Compare With OEM Caterpillar ET Diagnostic Adpater III
    1. Original Factory CAT ET can use once pluged, no need install the USB drive, the software can automatic realize it for ET3 Adapter, and the machine can automatic weld the high quality Circuit board, quality will be more reliable.
    2. The OEM Caterpillar ET Diagnostic Adapter III need use USB Drive to install, and need choose the COM Port, and  in the software ET also need choose ET2 then can be used.

    The Details as follows:

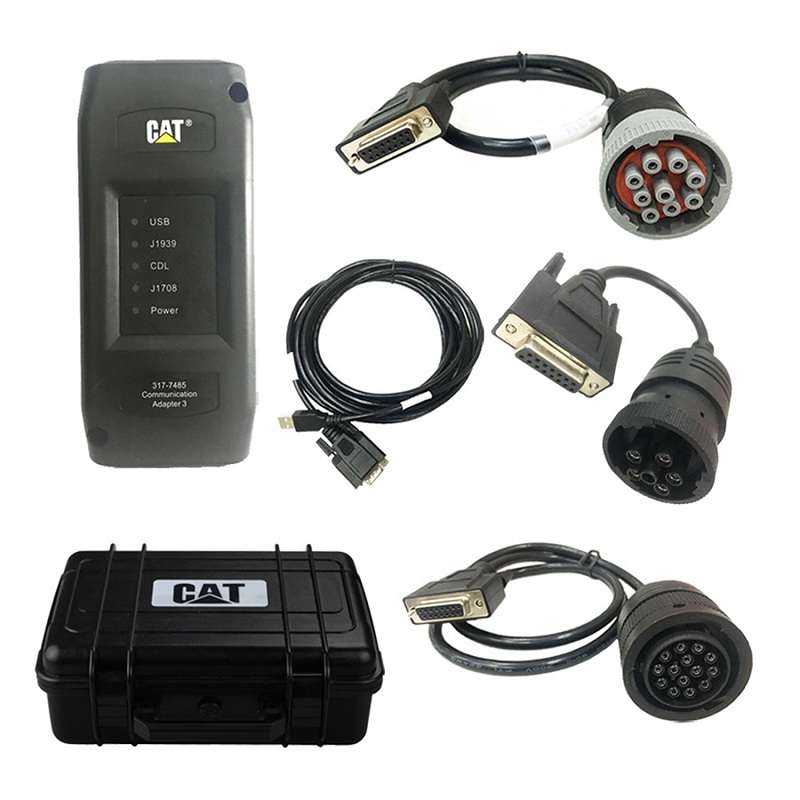

    Package 1:

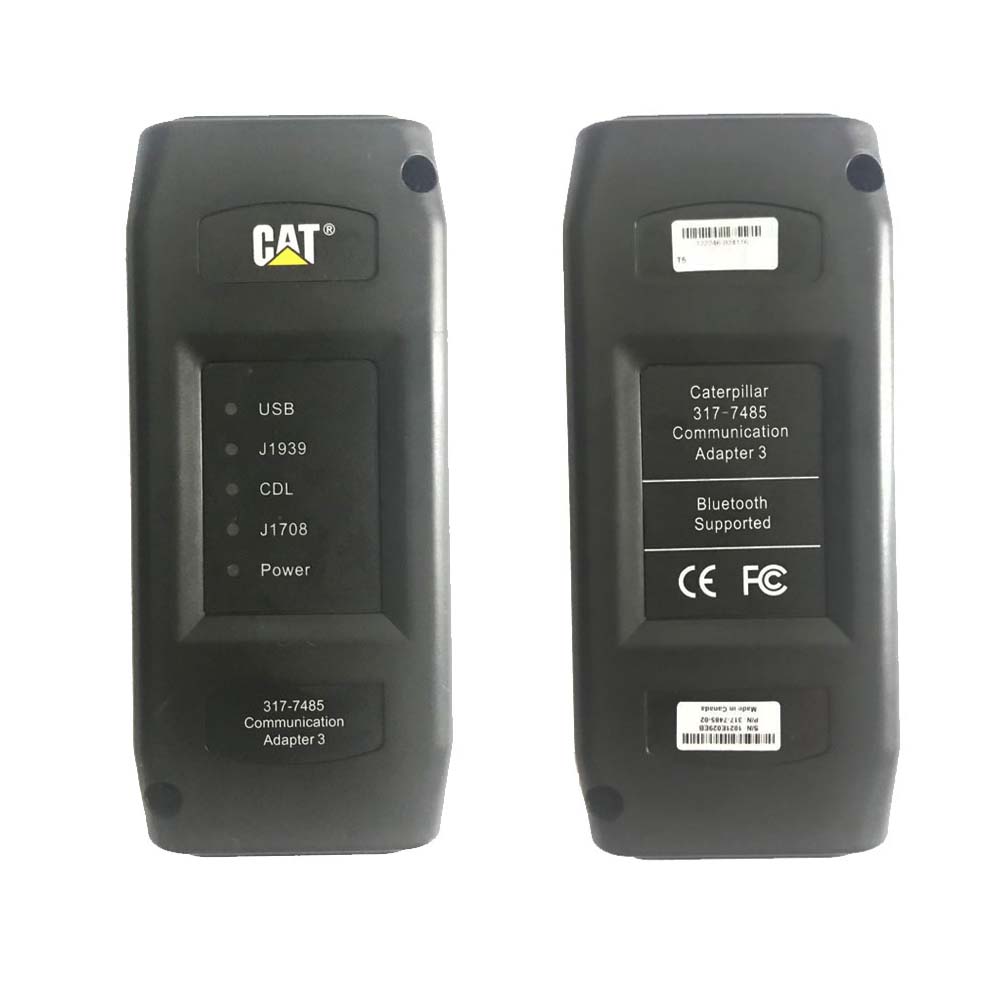

    1.Real CAT et3 Comm Adapter III (it's real cat et 3,not adapter 2,please check Communication port)

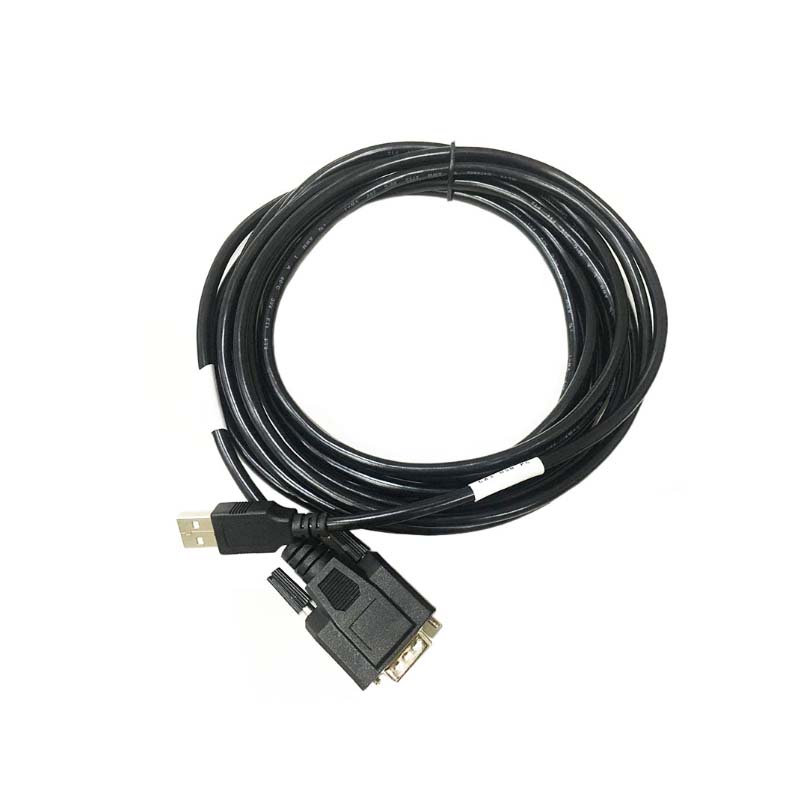

    2. USB Cable (From device to your computer)
    3.ET software DVD (for windows XP or windows7 32bit system)
    4.9pin Cable(for old truck)

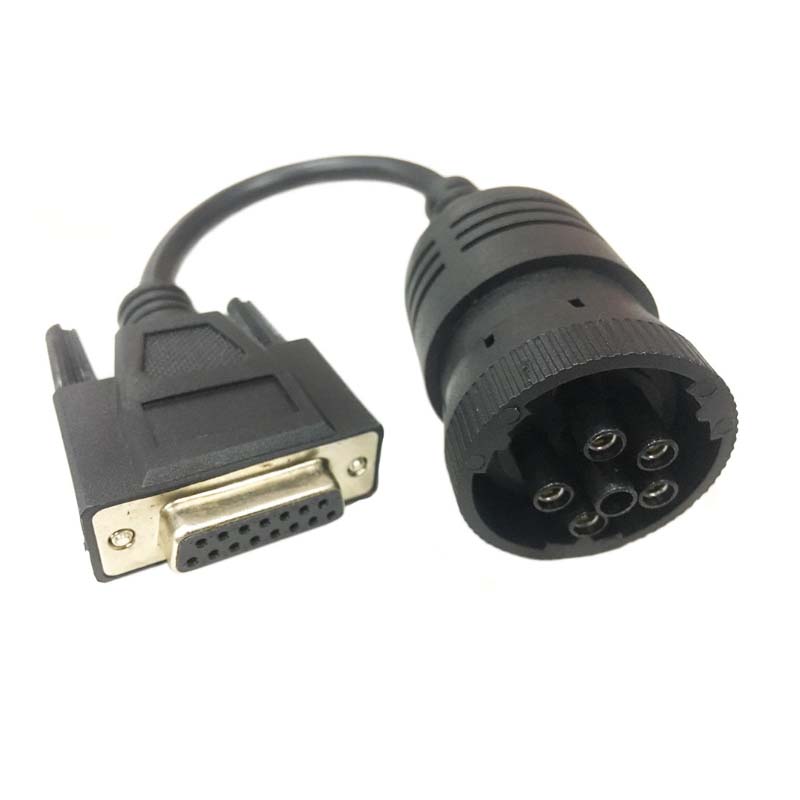

    5.6pin Cable(for old truck)

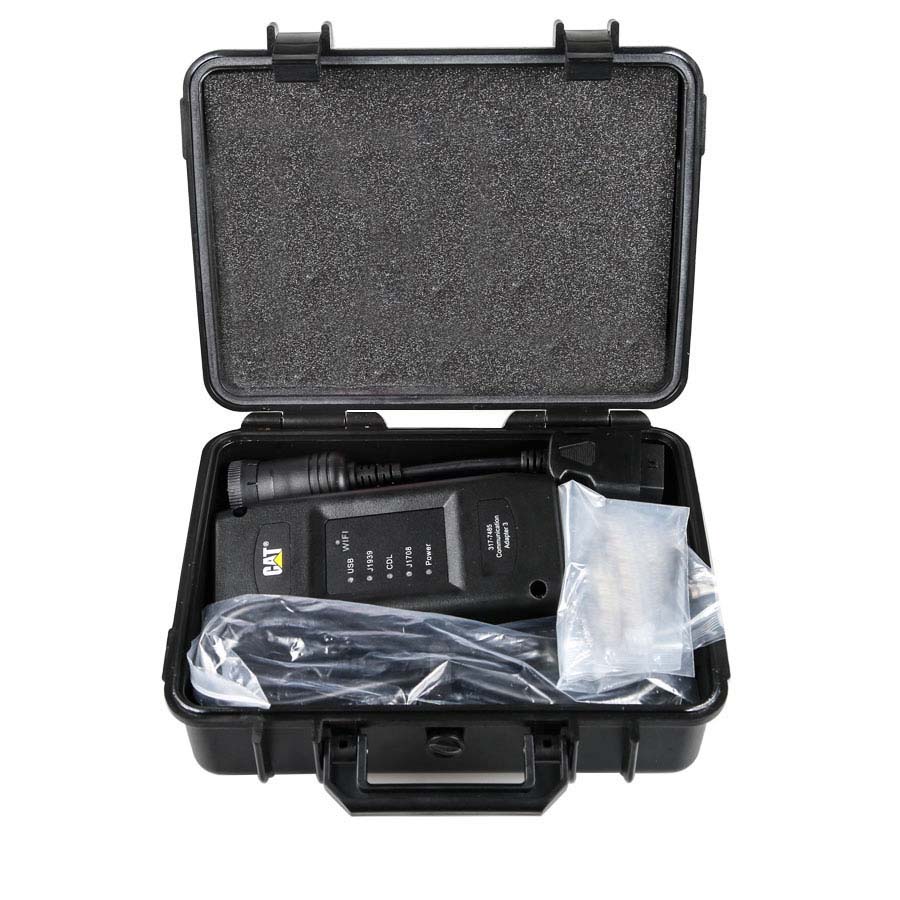

    6.Plastic box

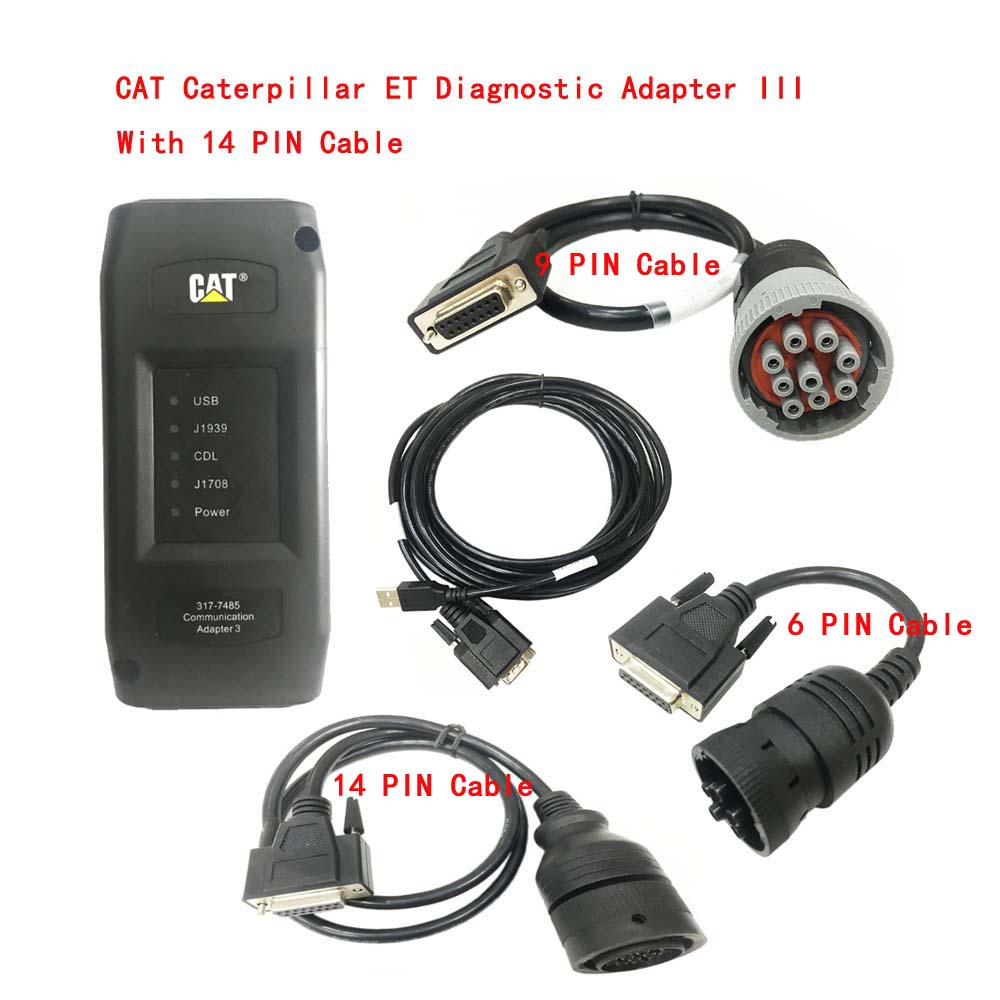

    Package 2:

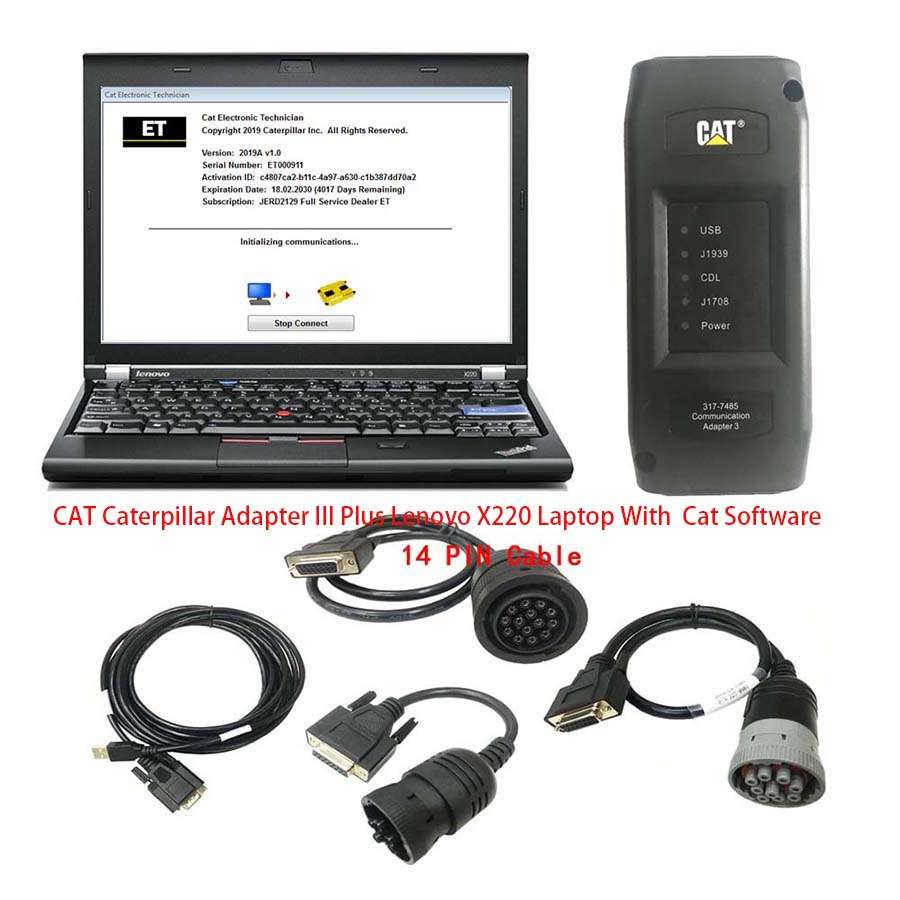

    1.Real CAT et3 Comm Adapter III (it's real cat et 3,not adapter 2,please check Communication port)
    2.USB Cable (From device to your computer)
    3.ET software DVD (for windows XP or windows7 32bit system)
    4.9pin Cable(for old truck)
    5.6pin Cable(for old truck)

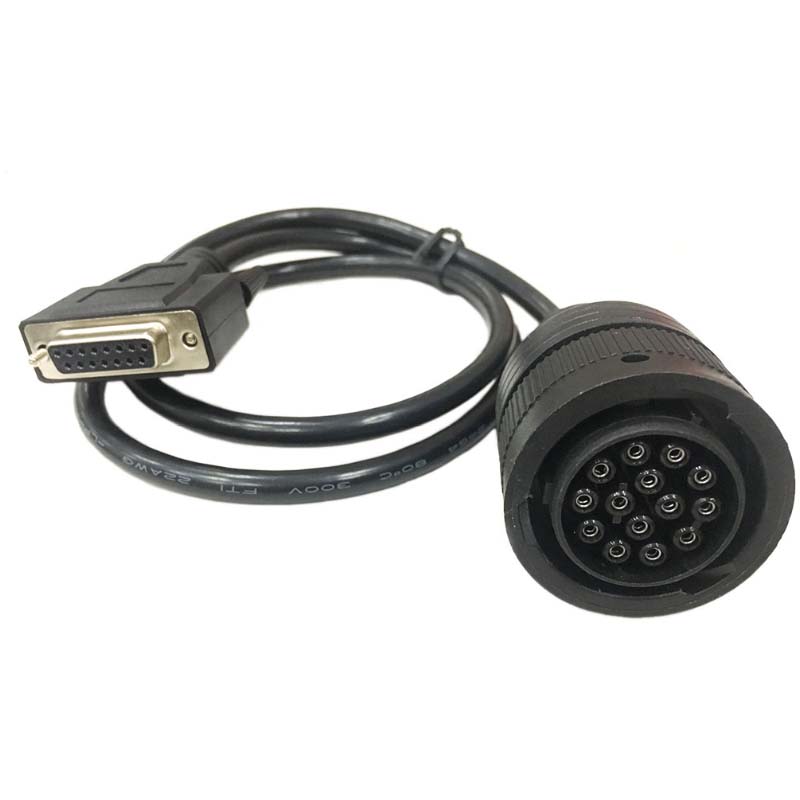

    6.14Pin Cable (diagnose part new cars)
    7.Plastic box

    2019C Cat et Diagnostic Software PC Requirements:

    Recommended Configurations:

    PC containing a 2.0 GHz dual-core processor

    3GB RAM

    3GB of available hard disk drive

    DVD-ROM drive

    15.4 inch XGA Screen (1280x1024 compatible)

    Microsoft Windows™ 7 Professional or Windows 8 Professional, Windows 10 Professional (Not tested with Home Edition) (Note: Windows 8 RT is not supported)

    RS232 port with 16550AF UART or compatible (for use with Comm Adapter II)

    USB 1.1 or 2.0 port (for use with Comm Adapter 3)

    Ethernet RJ45 connector

    Built in pointing device or mouse

    For security purposes, Microsoft Internet Explorer version 9 or newer is recommended.

    Caterpillar ET Software 2019 Function:

    This diagnostic app allows you to:

    View active and logged diagnostics.

    View events where irregularities occurred and were logged by the ECM.

    View the status of a group of parameters (temperatures, pressures, etc.) simultaneously.

    Record and log performance data.

    Graph a group of status parameters.

    View the current configuration of an ECM.

    Change ECM configurations.

    Perform diagnostic tests.

    Perform calibrations.

    Print reports and diagnostic results.

    Please keep in mind that some ecm settings for example, speed limit requires factory password. The factory password generator is not included in this application

    What's New

    What's New - 2019C

    Indication of Selected Communications Adapter

    The service tool now displays the selected communications adapter when the service tool is disconnected. The adapter name is displayed in the status area at the bottom right of the service tool window.

    End of Support for Windows 7

    Microsoft is ending extended support for Windows 7 as of January 2020. The service tool will be ending support for Windows 7 as of the 2020A release.

    What's New - 2019B

    Automatic Product Status Report (PSR) Upload

    The service tool includes a new tool that automatically uploads Product Status Reports. The tool scans for newly generated Product Status Reports and uploads them when an internet connection is available. The default is that automatic report uploading is enabled. The Preferences dialog has an option to disable the tool.

    What's New - 2019A

    ECM Naming Changes

    Certain ECMs connect to the service tool over two data links at the same time. The service tool shows a message popup when the ECM is only detected on one link. The service tool has been changed to add the text **INCOMPLETE** in the ECM name when the connection is incomplete. Service tool features that display a connection icon also use a new icon for an incomplete connection.

    What's New - 2018C

    No significant new features or feature enhancements

    What's New - 2018B

    CEOS Fleet Configuration File TOP

    A CEOS (Customer Electronic Option Selection) Fleet Configuration File can be created/modified for an engine using the Service Tool. This is available in connected and disconnected mode.

    Error When Launching Service Tool

    There is a Microsoft issue with upgrading libraries during an installation involving certain versions of the C++ redistributable. After a successful service tool installation, when trying to run the service tool for the first time, one of the following errors may occasionally appear: “The entry point could not be located in api-ms-win-crt-runtime” or “The program can't start because mfc140u.dll is missing from your computer.” If either of these messages is displayed, please let us know and we will send you to step by step troubleshooting guide. This procedure requires administrator rights.

    Service Tool License Corruption Issues with Windows 10 Updates

    Windows 10 updates 1709 and 1803 will corrupt service tool licenses. Future Window 10 updates may do the same

    If either of license error messages is displayed, please let us know and we will send you to step by step troubleshooting guide.

    What's New - 2018A

    Trainer Update - 988K XE Wheel Loader

    The 988K XE Wheel Loader has been added to the Trainer application.

    What's New - 2017C

    Preferences Option to Save a Product Status Report to PDF

    The Preferences dialog for the Product Status Report has changed. The dialog contains a new checkbox to automatically save a Product Status Report as a PDF file when the report is created. The service tool will continue to automatically save Product Status Reports as an XML file.

    What's New - 2017B

    Product Status Report Updates

    The Product Status Report has been updated to include certain history features supported by the ECM, such as the after-treatment Regeneration History and the Service Test History.

    Winflash Screen Update

    The screen for the Winflash feature has been updated. A new Expand All button opens all sections of the screen to show all details for ECMs detected by WinFlash. A new Collapse All button hides all sections of the screen, except for header rows showing detected ECM names.

    PC, Communication Hardware, and Cable Requirements

    To run the service tool, the next PC, communication hardware, and cable requirements must be met. NOTE: The minimum PC Configurations should not be used as a standard when buying new personal computers for service tool purposes. If the existing equipment meets these minimum requirements, it will run the service tool.

    Minimum Configurations

    PC containing a Pentium 2 GHz processor or greater

    1GB RAM

    500MB of an available hard disk drive

    CD-ROM drive

    Super VGA monitor or display (1024x768)

    Microsoft Windows™ 7 Professional or Windows 8 Professional, Windows 10 Professional (Not tested with Home Edition) (Note: Windows 8 RT is not supported)

    RS232 port with 16550AF UART or compatible (for use with Comm Adapter II)

    USB 1.1 or 2.0 port (for use with Comm Adapter 3)

    Ethernet RJ45 connector

    Built-in pointing device or mouse

    For security purposes, Microsoft Internet Explorer version 9 or newer is recommended. Note: The most recent version of Microsoft Internet Explorer may not be validated to work with the service tool.

    Communication Hardware

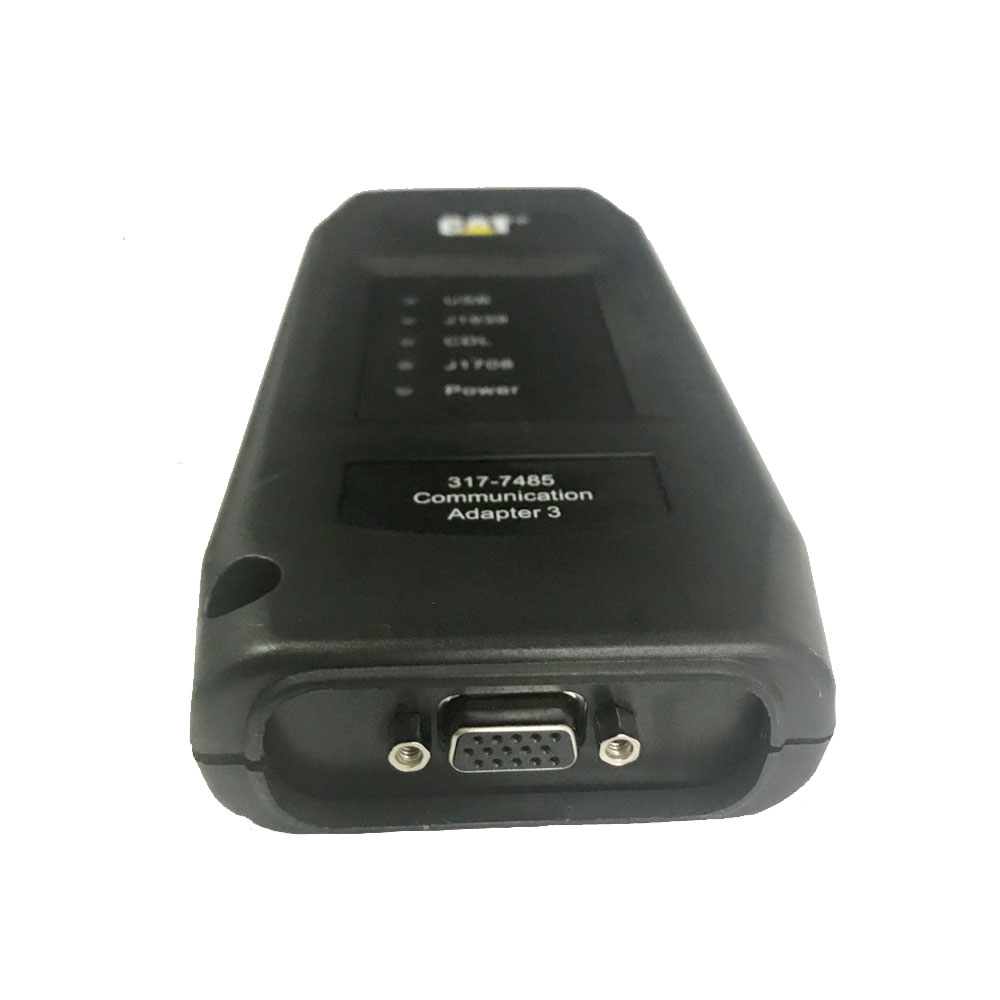

    Caterpillar Communication Adapter III

    Configuring Cat Electronic Technician to use the Communication Adapter 3

    For Cat Electronic Technician to work with the Communication Adapter 3, the settings must be changed to select the Communication Adapter 3 as the Communication Interface Device:

    Step 1 Start Cat Electronic Technician.

    Step 2 Click the Stop Connect button when it appears.

    Step 3 Select the Utilities menu.

    Step 4 Choose “Preferences > Modify...”.

    Step 5 Select the Communications tab.

    Step 6 Select Cat Comm Adapter 3 (RP1210) and click OK.

    NOTE: Because a growing number of products require multiple data link service, the “Enable Dual Datalink Service” checkbox has been pre-selected.

    Servicing ECMs on more than one data link requires this check box to be enabled.

    Failure to do this will result in undetected ECMs and reduced functionality.
