    Cat Caterpillar ET 2023A 2022A 2019C Software Caterpillar Electronic Technician With 1 Time Free Activation

    • Item No.  RD150-1
    • History: 228  sold
    • Different software version:


    • Quantity
      Total
      Shipping:
      Free Shipping
      continue
    • Quantity:  271
    • Weight:  500.0gram
    • Rank:  comment rank 4.5 () Write a Review
      Rated 4.5/5 based on 7 customer reviews
    • This goods is Free shipping!
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    Cat Caterpillar ET 2023A 2022A 2019C Software Caterpillar Electronic Technician With 1 Time Free Activation

    Note:
    1.After receiving the payment, we will send you the software by email.
    2. we will remote help customer installed and activation for a single PC by Teamviewer!


    Diagnostic Software Caterpillar ET 2023A (replaces CAT ET 2022A, 2021C):
    1.Latest Caterpillar ET 20223 Software to work with CAT/CAT3 Truck Scanner
    2.With one free activation, can send software online
    3.Support Multi-languages: English, Chinese, Danish, French, German, Italian, Japanese, Portuguese, Russian, Spanish
    4.OS: Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit

    PC, Communication Hardware, and Cable Requirements
    To run the service tool, the next PC, communication hardware, and cable requirements must be met.
    NOTE: The minimum PC Configurations should not be used as a standard when buying new personal computers for service tool purposes. If the existing equipment meets these minimum requirements, it will run the service tool.

    PC Requirements
    Recommended Configurations
    PC containing a 2.0 GHz dual-core processor
    3GB RAM
    3GB of the available hard disk drive
    DVD-ROM drive (optionally)
    15.4-inch XGA Screen (1280x1024 compatible)
    Microsoft Windows™ 7 Professional or Windows 8 Professional, Windows 10 Professional (Not tested with Home Edition) (Note: Windows 8 RT is not supported)
    RS232 port with 16550AF UART or compatible (for use with Comm Adapter II)
    USB 1.1 or 2.0 port (for use with Comm Adapter 3)
    Ethernet RJ45 connector
    Built-in pointing device or mouse
    For security purposes, Microsoft Internet Explorer version 11 or newer or Microsoft Edge is recommended.
    Note: The most recent version of Microsoft Internet Explorer may not be validated to work with the service tool.

    Caterpillar electronic technician 2021B with WinFlash future is an updated version of the caterpillar dealer diagnostic software that can help technicians to diagnose existing and potential problems with their electronically controlled Caterpillar Engines and Machines.

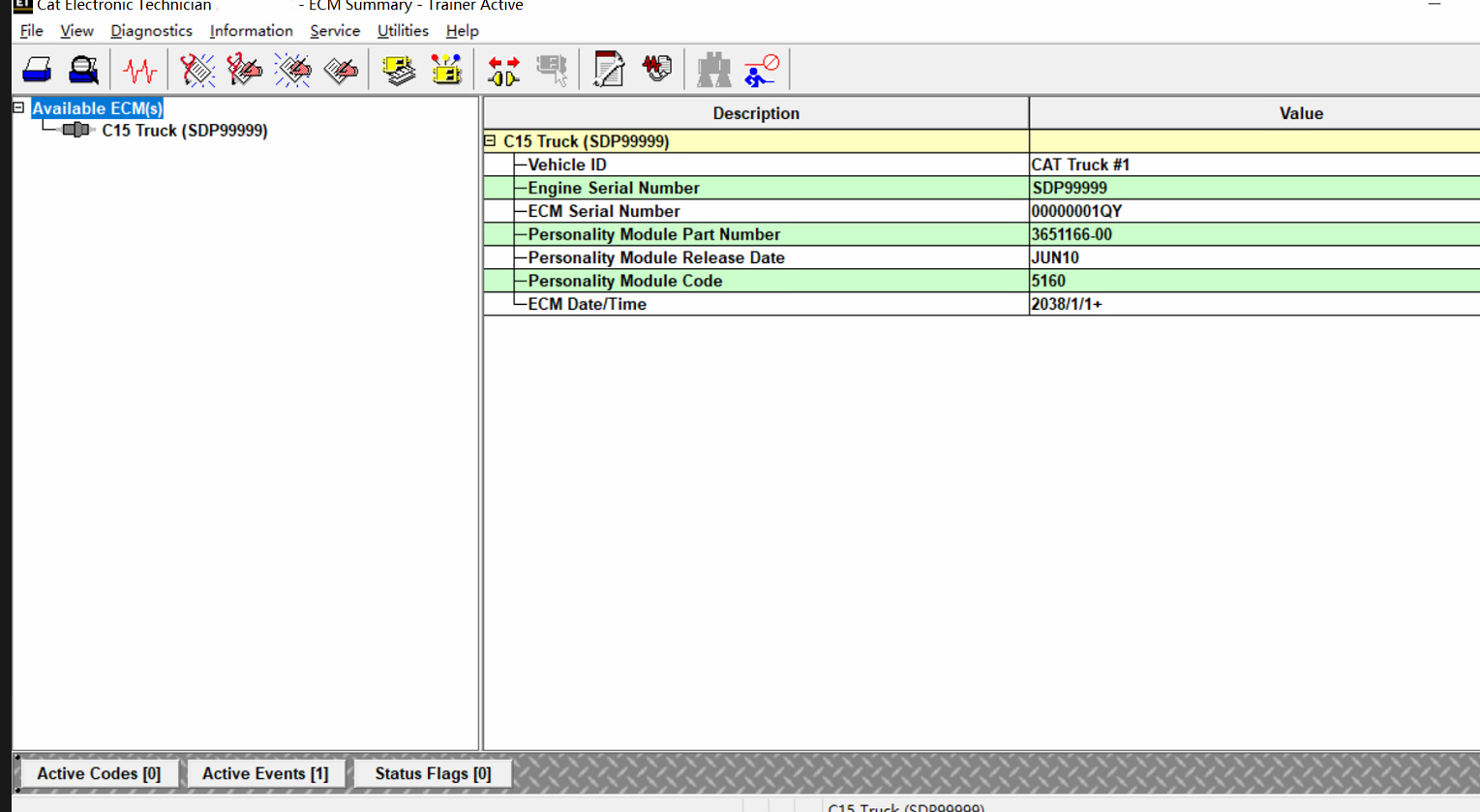

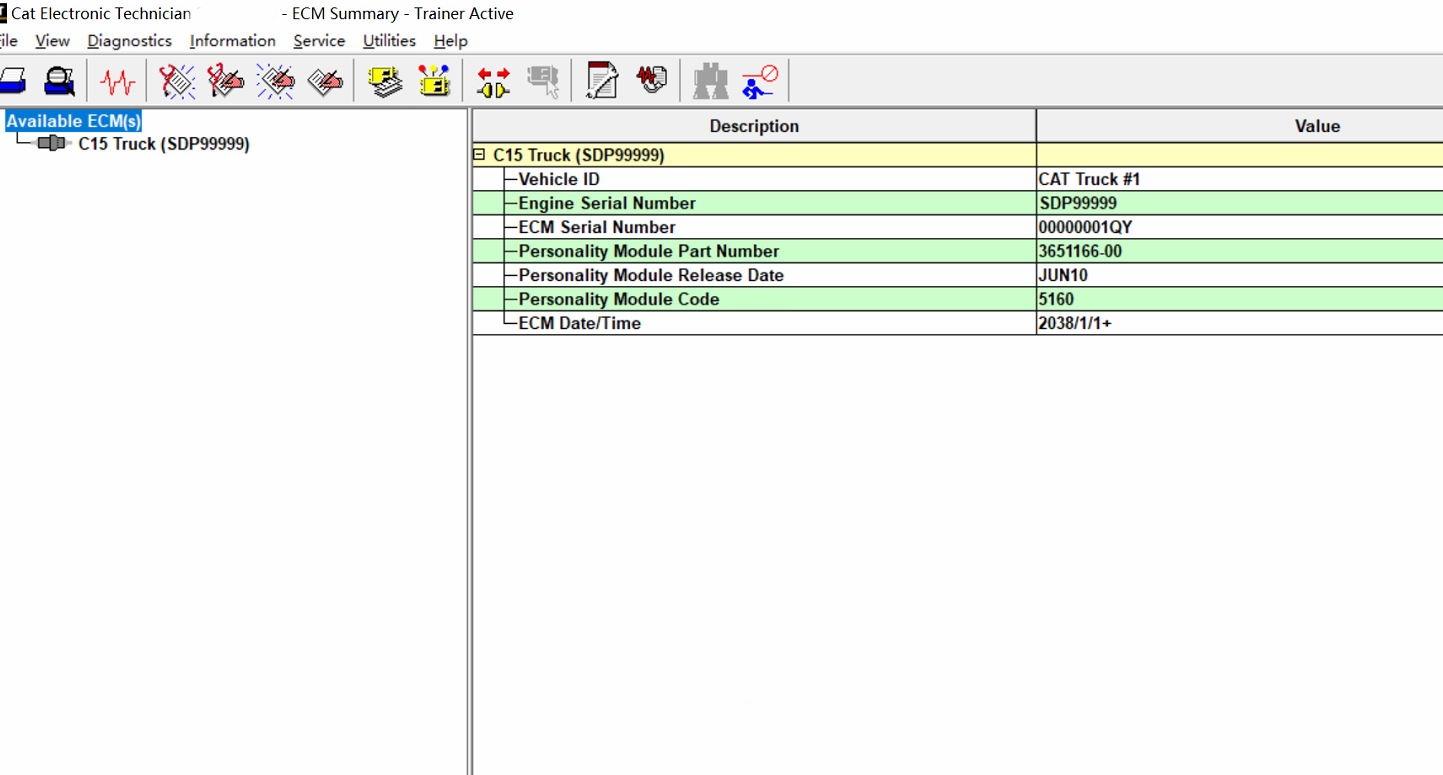

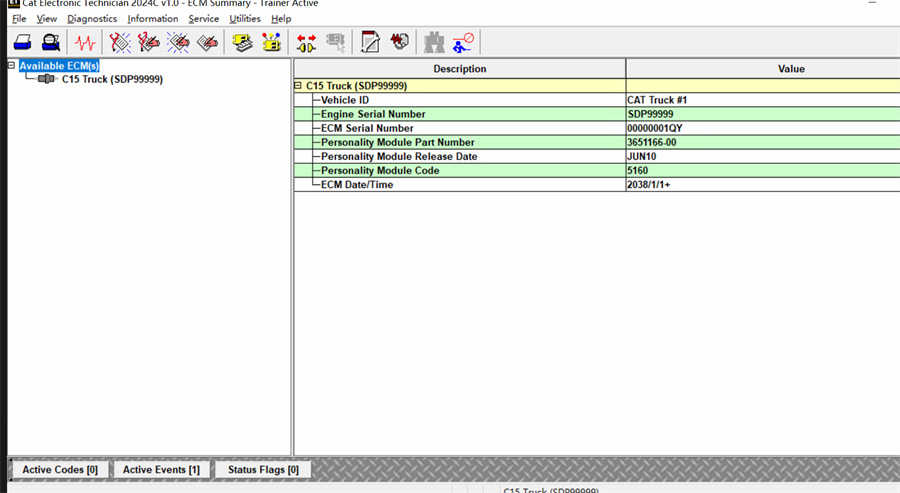

    To get the vehicle information the Cat ET software must be connected to the Electronic Control Module (ECM). For this purpose, you need a suitable diagnostic link adapter (DLA), for instance, Genuine CAT Comm Adapter III.

    The laptops with ARM CPUs (Snapdragon 8cx, Microsft SQ1, etc) type are not supported!

    The list of supported CAT machines and engines can be found below:
    Engines:
    Electric Power
    Electric Power Generation
    Industrial
    Marine Power Systems
    Oil and Gas

    Machines:
    Articulated Trucks
    Asphalt Pavers
    Backhoe Loaders
    Cold Planers
    Compactors
    Dozers
    Drills
    Excavators
    Feller Bunchers
    Forest Machines
    Forwarders
    Harvesters
    Hydraulic Mining Shovels
    Knuckleboom Loaders
    Material Handlers
    Motor Graders
    Off-Highway Trucks
    Pipelayers
    Road Reclaimers
    Site Prep Tractors
    Skid Steer and Compact Track Loaders
    Skidders
    Telehandlers
    Track Loaders
    Underground - Hard Rock
    Underground - Longwall
    Underground - Room and Pillar
    Utility Vehicles
    Wheel Dozers
    Wheel Excavators
    Wheel Loaders
    Wheel Tractor-Scrapers

    What's New - 2022A
    Microsoft® Windows™ 11 Compatibility

    Service tool testing has been performed and the service tool is compatible with Windows 11.

    ECM File Replacement Compare Feature

    The service tool now has an ECM Replacement File Compare feature for troubleshooting purposes. This feature allows the user to compare one ECM replacement file with another from within the ECM Replacement feature screen. The feature will highlight the differences between the selected files as a whole or the user may select the “only show differences” checkbox.

    Configuration Group Headings on ECM Replacement Feature

    In order to help the user find ECM replacement configuration items easier, configuration items in the ECM Replacement, Fleet Configuration, and Product ECM features are now grouped under their group sub-headings, as is done in the main configuration feature.

    What's New - 2021C
    Feature Protection System Password Copy

    The Feature Protection System (FPS) has a new "Easy Copy" link to copy passwords in a single operation. The service tool can automatically obtain the passwords from the clipboard and populate the FPS dialog. The service tool dialog also has a new "Easy Paste" button that allows the user to paste data of the correct format from the clipboard. Passwords can still be pasted using customary copy/paste operations, such as the context menu or the CTRL + V hotkey combination.

    Screen Resolution Requirement Update

    The minimum requirement for screen resolution has been updated to 1366x768, or at least 1366 pixels horizontally and at least 768 pixels vertically. The recommended screen resolution is at least 1600x1200. The service tool window displays with a minimum size of 1024x680.

    What's New - 2021B
    End of Support for Windows 8

    Microsoft is ending extended support for Windows 8 as of January 2023. The service tool will be ending support for Windows 8 after the 2021C release.

    Calibration Images

    Images attached to calibration instructions will no longer need to be opened manually to be viewed by a technician. The service tool will now have split user interface windows for calibrations that display pictures. This will allow the technician to see the images without having to navigate away from the instructions. Images may be opened into individual windows and resized for better clarity. The user interface for calibrations that do not display pictures will remain unchanged.

    Default PC Browser

    The service tool will no longer automatically launch web pages in Microsoft Internet Explorer. Web pages will now launch in whatever application is configured as the default internet browser. Certain web pages require a specific browser and may launch in a different browser.

    What's New - 2021A
    No significant new features or feature enhancements

    What's New - 2020C
    No significant new features or feature enhancements

    What's New - 2020B

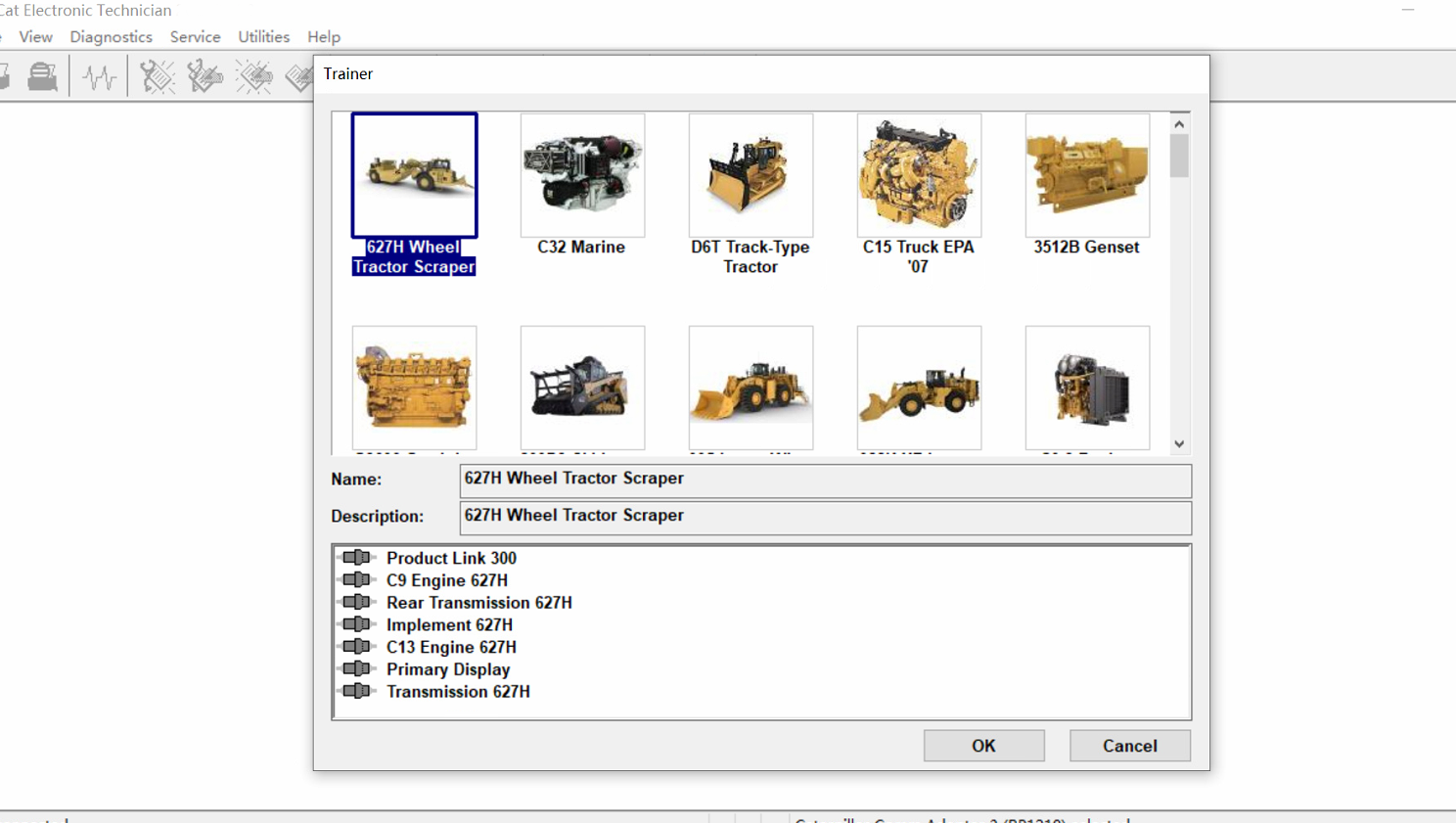

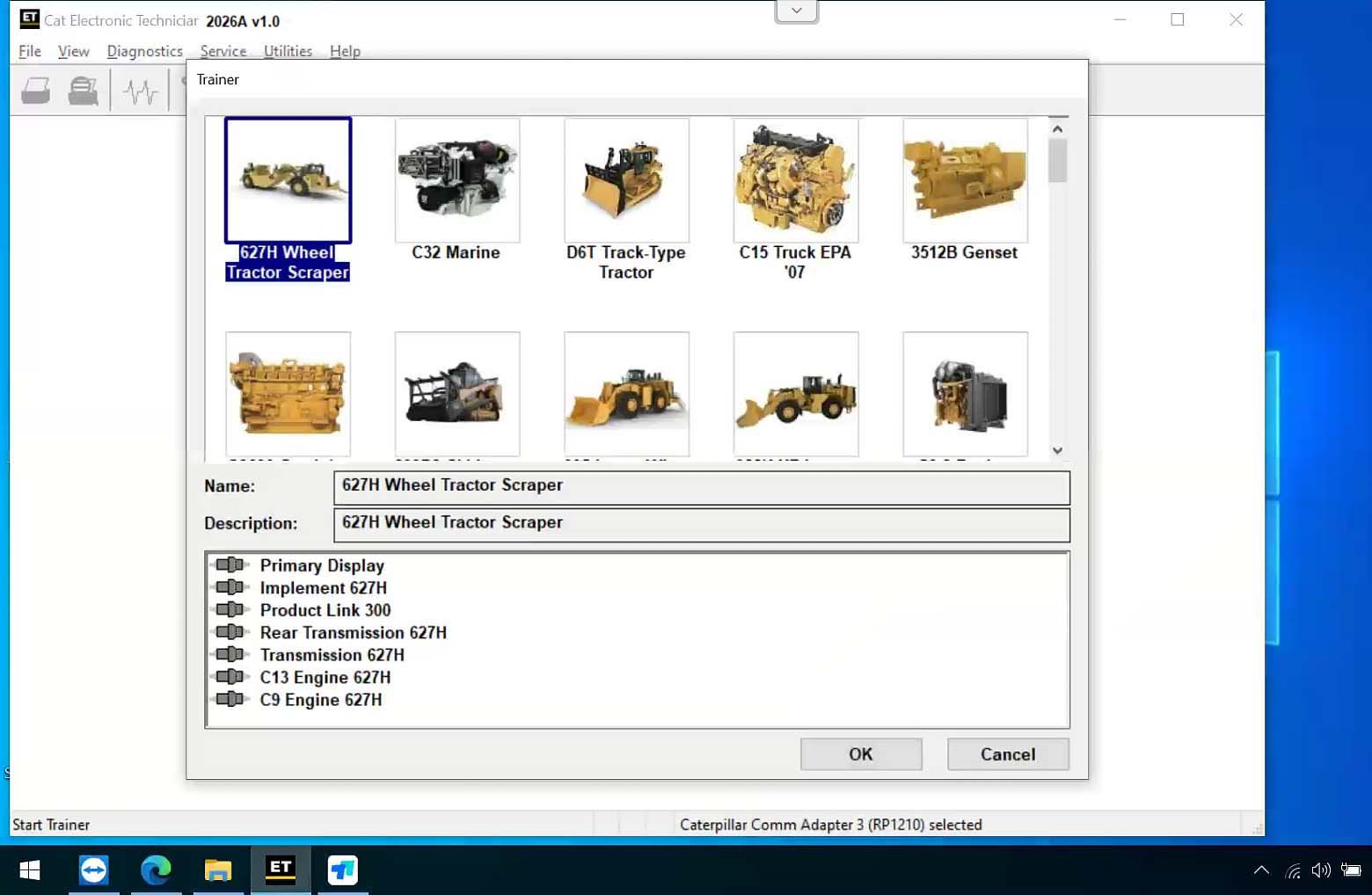

    Trainer Update – 299D3

    The 299D3 Skid Steer Loader has been added to the Trainer application.

    What's New - 2020A
    Product Status Report Updates

    The Product Status Report has been updated to include throttle configuration information.

    Built-in Factory Password Generator

    The experimental feature allows you to decode (18-Bit passwords not supported) factory passwords

    What's New - 2019C
    Indication of Selected Communications Adapter

    The service tool now displays the selected communications adapter when the service tool is disconnected. The adapter name is displayed in the status area at the bottom right of the service tool window.

    Communication Hardware
    Caterpillar Communication Adapter III

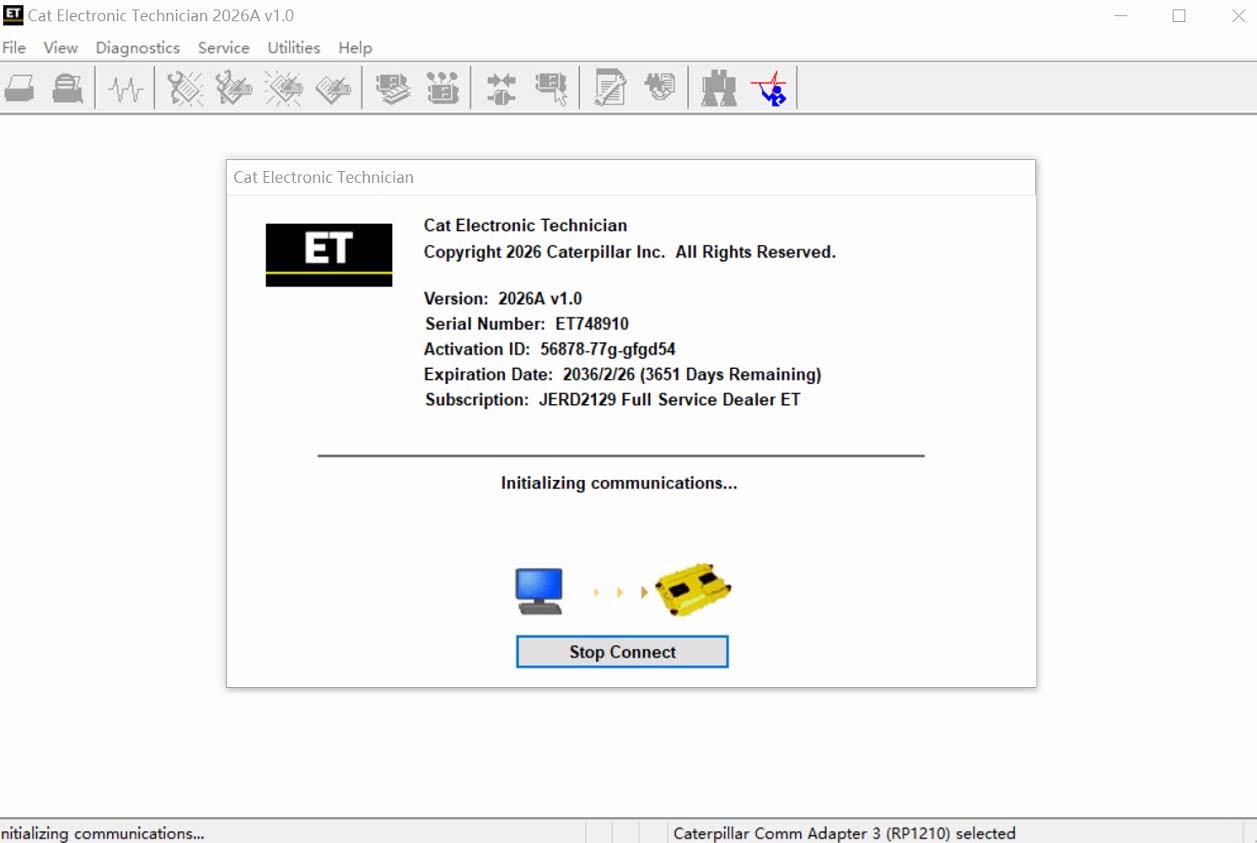

    Configuring Cat Electronic Technician to use the Communication Adapter 3
    For Cat Electronic Technician to work with the Communication Adapter 3, the settings must be changed to select the Communication Adapter 3 as the Communication Interface Device:

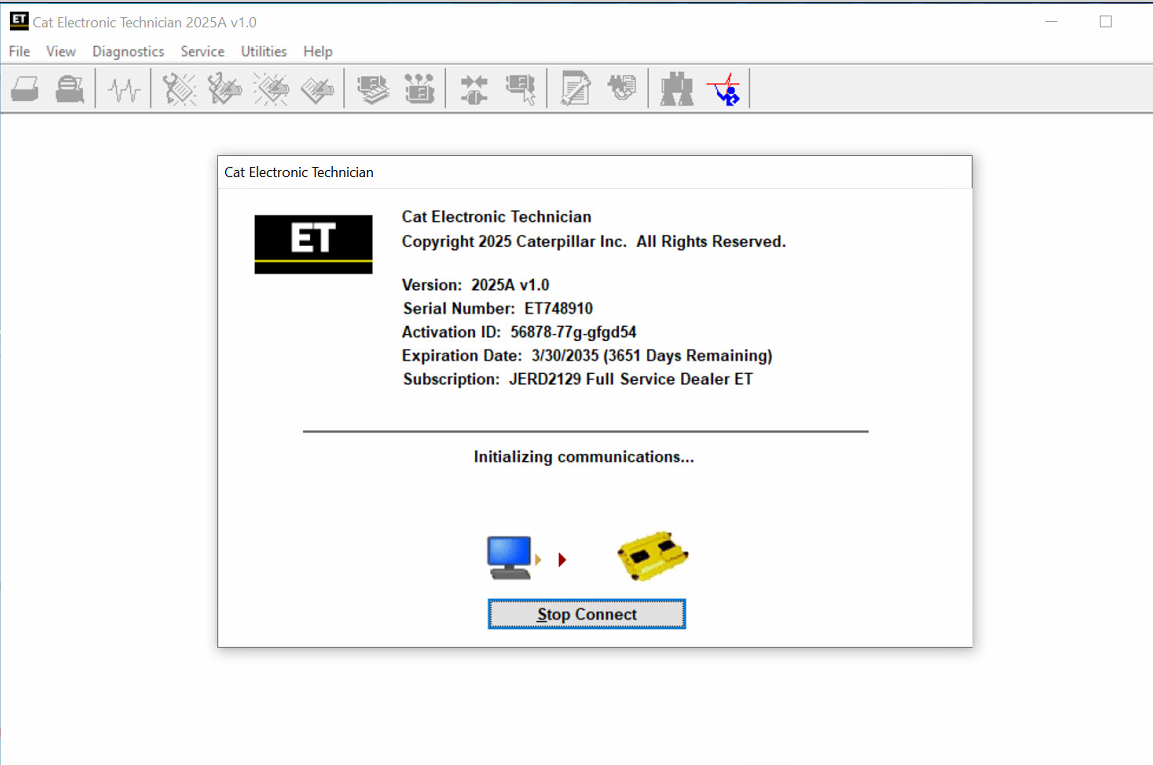

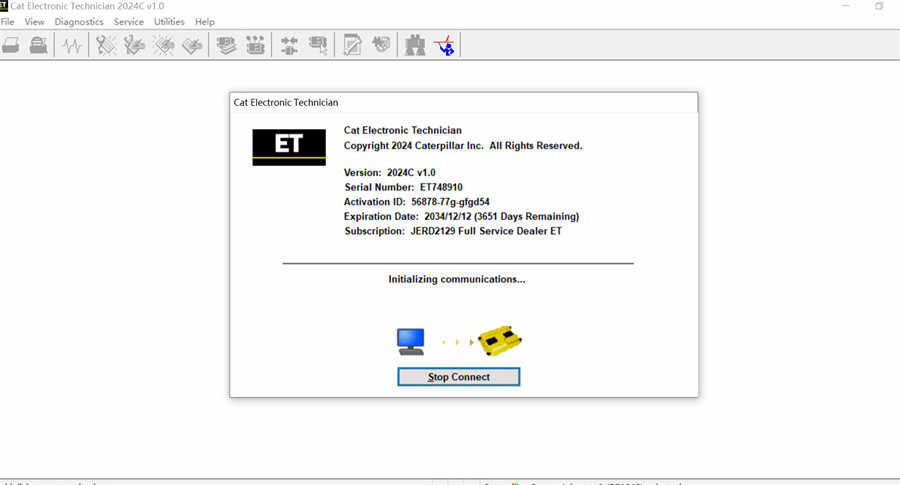

    Step 1 Start Cat Electronic Technician.
    Step 2 Click the Stop Connect button when it appears.
    Step 3 Select the Utilities menu.
    Step 4 Choose “Preferences > Modify...”.
    Step 5 Select the Communications tab.
    Step 6 Select Cat Comm Adapter 3 (RP1210) and click OK.
    NOTE: Because a growing number of products require multiple data link service, the “Enable Dual Datalink Service” checkbox has been pre-selected.
    Servicing ECMs on more than one data link requires this check box to be enabled.
    Failure to do this will result in undetected ECMs and reduced functionality.

    Package Includes:
    1pc x Caterpillar ET 2023A/2022A/2019C software (Can choose to send online)
