FVDI2 ABRITES Commander For Peugeot Citroen (V6.7)


Top 4 Reason To Get FVDI2 For Peugeot Citroen:

1. Software Version: V6.7

2. Languages: English, French, Turkish

3. Buy Peugeot Citroen software, Get Hyundai/Kia/Tag Key Tool software free, besides you can get free 20 Digit Nissan Pin Code Calculator Software too
4. Update: If you want to update your FVDI ABRITES Commander to 2016 FVDI2, need to ship back complete package, and it will cost usd280. If the old usb dongle not in the package, it will cost total usd330 then.

Note:
Support Computer System: Windows XP


When obtaining authorization, operate by following the next steps:
Step 1. Connect the Softdog to FVDI2. Do not connect Softdog to the computer, otherwise the Softdog green light or red light will on, and result in authorization fail.

Step 2. Use USB cable to connect FVDI2 and the computer, but do not connect FVDI2 to the car. Wait until FVDI2 green light on and Softdog red light on, you succeed getting authorization. If FVDI2 red light on or Softdog green light on, repeat the above steps.

After get authorization for FVDI2, follow the next steps to connect.
Step 1. Connect the Softdog to FVDI2 (Note: do not connect Softdog to the computer).
Step 2. Use USB cable to connect FVDI2 and the computer. Wait until FVDI2 green light on and Softdog red light on, connect Softdog USB cable to the computer. During the procedure, the Softdog red light keeps on (Note: do not connect FVDI2 to the car)
Step 3. Till the above 2 steps work well, connect FVDI2 to the car.

Description:

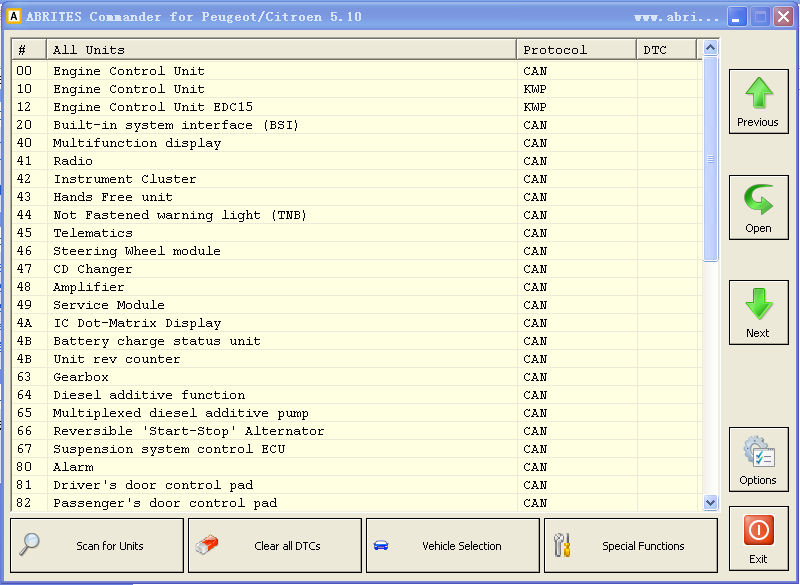

ABRITES Commander for PSA is a PC - Windows based diagnostic software for Peugeot and Citroen vehicles. Target of our diagnostic software is to provide users all functions of the dealer's equipment plus special features unusual for remaining diagnostic tools.



Functions Included (FVDI2 Interface)

Identification (VIN, Part Number ,production data, producer, manufacturing date ...)

Read and clear diagnostic trouble codes

Clear DTC explanation

Live data display (actual data)

Electronic control unit configuration

Read and Program Engine Control Unit flash memory for tuning purposes by OBDII

Dump Tool - many functions like clear crash data, ...



Special Functions:

PIN code reading by OBDII ( CAN bus)

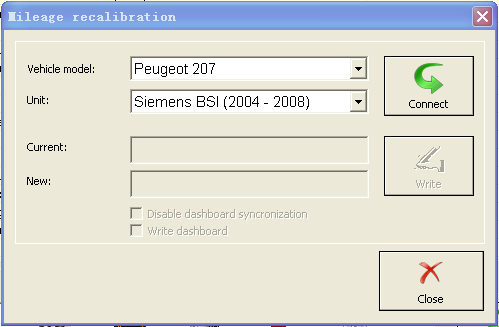

Mileage recalibration by OBDII in BSI module (CAN bus), Instrument cluster ( CAN ), C5, C2

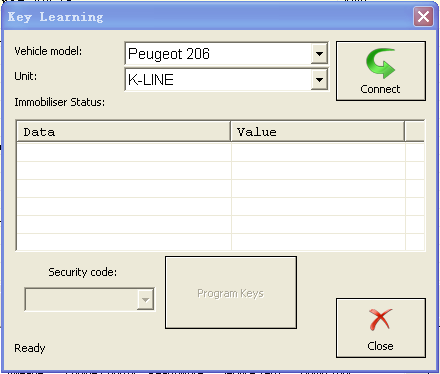

Key programming

Read/Write eeprom from EDC15

Read/Write flash from EDC16

Read/Change Service list

Immobilizer Enable/Disable (EDC15)

Siemens SID80x series (SID801/SID802/SID801A/SID803/SID803A/SID804/SID806) - Flash/Eeprom read/write, Edit servicelist, Read/change PIN code

Do after sales by OBDII

- Peugeot - 206, 306, 307, 406, Partner, Ranch - 2.0 hdi

- Citroen - Berlingo, C5, Picasso, Xantia, Xsara, Xsara Picasso - 2.0 hdi

- Peugeot - 206, 1007 - 1.4 hdi

- Citroen - C2, C3, Saxo - 1.4 hdi



Supported vehicles for PIN Code Reading:

Peugeot 206 (1,4 HDI, 2.0 HDI)

Peugeot 207

Peugeot 306 (2.0 HDI)

Peugeot 307 (2.0 HDI)

Peugeot 307 2005+

Peugeot 308

Peugeot 3008

Peugeot 5008

Peugeot 508

Peugeot 406 (2.0 HDI)

Peugeot 407

Peugeot 607 2006+

Peugeot 807 2006+

Peugeot 1007 (1.4 HDI)

Peugeot Partner (2.0 HDI)

Peugeot Partner 2008+

Peugeot Ranch (2.0 HDI)

Citroen C2

Citroen C3 (1.4 HDI)

Citroen C3 II 2005+

Citroen DS3

Citroen C4

Citroen C4 Picasso

Citroen C4 2011+

Citroen C5 (2.0 HDI)*

Citroen C5 II 2007+

Citroen C6

Citroen C8 2007+

Citroen Picasso (2.0 HDI)

Citroen Xantia (2.0 HDI)

Citroen Xsara (2.0 HDI)

Citroen Xsara Picasso (2.0 HDI)

Citroen Saxo (1.4 HDI)

Citroen Berlingo (2.0 HDI)

Citroen Berlingo 2008+

Lancia Phedra 2008+



Need to Have Special Function PN008



Supported Vehicles for Mileage Recalibration:

Peugeot 207

Peugeot 307 2005+

Peugeot 308

Peugeot 3008

Peugeot 5008

Peugeot 508

Peugeot 407

Peugeot 607 2006+

Peugeot 807 2006+

Peugeot Partner 2008+

Citroen C2

Citroen C3 II 2005+

Citroen DS3

Citroen C4

Citroen C4 Picasso

Citroen C4 2011+

Citroen C5 II 2007+

Citroen C6

Citroen C8 2007+

Citroen Berlingo 2008+

Lancia Phedra 2008+

Related Pictures:

FAQ:

Q:FVDI ABRITES Commander for Peugeot Citroen(V5.1)SV64,does it read BSIimmobilizer code.
A:No,it can’t.

Q:Does it support odometer correction via BSI or Dashboard?
A:Correction odometer via BSI.
　
Q:Computer prompt error code 4 when update fvdi psa?
A:Pls confirm your equipment hardware have been updated, pls check FVDI update instruction as reference.
And you have to pay attention as follow:
1, Pls update it on another laptop, don’t update it on the same laptop. Don’t install other vehicles software on the same laptop.
2, Uninstall anti-virus software when you install “Adobe” file.

Q:If I don't finish update completely, will it have bad Influence to hardware.
A:There will come out some strange problem if don’t finish update completely, the led should be keep green when update it, it meant update normal.
