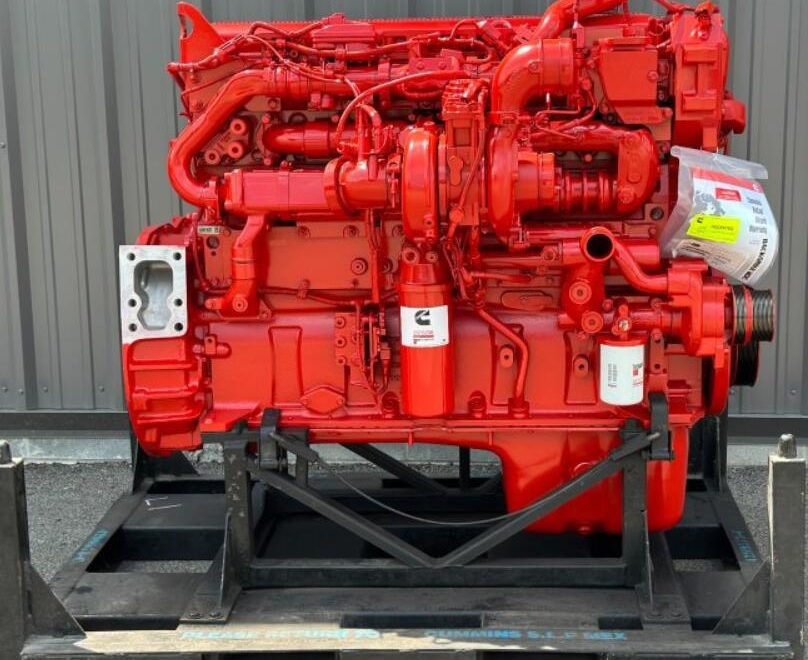

If you’re looking to diagnose and reprogram a Cummins ISX15 engine, here’s a comprehensive guide to the tools and software you’ll need. This guide also includes options that are compatible with Detroit 60 Series engines, providing a versatile solution for users working with multiple engine brands.
1. Diagnostic Software for Cummins ISX15
To perform basic diagnostics such as reading fault codes, viewing live data, and monitoring engine parameters, you’ll need:
- Cummins INSITE Software: This is the OEM diagnostic software for Cummins engines. It allows you to perform comprehensive diagnostics, calibration updates, parameter changes, and more.
2. Pass-Through Interface
A communication adapter is required to connect your laptop running INSITE to the vehicle:
- Nexiq USB Link 2 or Nexiq USB Link 3: Highly recommended for its broad compatibility and reliability.
- Cummins INLINE Adapter: OEM adapter for Cummins engines.
3. ECM Programming Tools
For reading and writing engine programs:
- Calterm: This tool is used to read and write the ECM’s program.
- ECFG Files: You’ll need the correct Engine Control Function Group (ECFG) file specific to your engine and ECM calibration version. These files allow proper editing and flashing of data back into the ECM.
4. Multi-Brand Diagnostic Option
If you are working with both Cummins ISX15 and Detroit 60 Series engines:
- JPRO Diagnostic Software: A robust all-in-one diagnostic platform that supports Cummins, Detroit, Volvo, and other brands. While not as deep as OEM software in functionality, it’s highly effective for general diagnostics.
5. Recommendations
- Invest in a genuine Nexiq USB Link adapter (avoid generic or counterfeit versions) for maximum compatibility and reliability across multiple brands.
- Consider using OEM software for the most accurate and complete diagnostic and programming functions.
- Determine the most common engines and vehicles you service and acquire OEM-level tools for each to ensure proper maintenance and programming.
By using the appropriate tools and software, you’ll be well-equipped to handle diagnostics and programming for both Cummins and Detroit engines, improving your efficiency and capability in the shop or field.
