LAND ROVER OBD2 DIAGNOSTIC SCANNER TOOL since 2000 support 59 systems

LAND ROVER Code Reader Description

  1. Checks Land Rover sold worldwide since 2000, support 59 systems Including Engine, A/T, ABS, Airbag, ENG, Body Control module, Chassis control module, Packing brake control, Steering angle sensor module, Speed control module, etc
  2. Checks the Engine of all vehicle OBDII compliant after 2000.
  3. Reads and erases the trouble codes
  4. Defines the trouble codes on the screen.
  5. English interface
  6. Free upgrade on internet.

Product Features

  1. Works on all 2000 and newer cars & light trucks that are OBD II compliant . Available Functions:

1). Reads and clears generic and manufacturer specific Diagnostic Trouble Codes (DTCs).

2). Determines the malfunction indicator lamp(MIL) status

3). Identifies and displays pending codes.

4). Retrieves VIN(Vehicle Identification No.) on 2002 and newer vehicles that support Mode 9

5). Wider vehicles coverage with CAN protocol support;

6). Displays total # of codes retrieved

7). Code definitions displayed on unit screen; 8). Displays I/M readiness status;

Works with Land Rover sold worldwide since 2000, support 59 systems Including Engine, A/T, ABS, Airbag, ENG, Body Control module, Chassis control module, Packing brake control, Steering angle sensor module, Speed control module, etc Available functions:

1). Reads and clears generic trouble codes of cars using ISO 9141-2 (CARB), ISO 14230 (KWP-2000) and ISO-15765(CAN) protocols.

2). Displays total # of codes retrieved;

3). Code definitions displayed on unit screen;

4). Turns off MIL lights of engine, airbags, ABS, A/T and most other systems

5). Views the ECU information.

6). Reset service for all brands of Land Rover oil reset EPB reset Brake bleeding SLS reset Battery reset.

LAND ROVER DIAGNOSTIC SCANNER Vehicle Coverage

All OBD2 & EOBD compliant vehicles with a 16-pin Interface(include all cars, light trucks and SUVs sold after 2000 and newer sold in the Europe, Japan and Asian Area) CAN,VPW,PWM,ISO9141,KW2000 protocols compliant vehicles Besides, also available for Land Rover after 2000, including Freelander: 1997 and later, Discovery 1995 and later, Range Rover: 1995 and later, Range Rover Sport: 2005 and later, Range Rover Evoque: 2012 and later, Defender: 1997 and later.

Posted in Auto Scanner Tools, Professional Diagnostic Tools | Tagged , , , , | Leave a comment

Compare AURO OtoSys IM100 with OtoSys IM600

The main difference lies in Mercedes-Benz, VW, Audi software and adapters to work with.

Software difference:

Auro IM600 canread PIN/CS from AUDI Q5/A4/A5 2015-2017 and learn keys to Mercedes-Benz, but IM100 cannot work with Mercedes-Benz, VW, Audi for immobilizer functions.

Adapter difference:


IM600 use UP400.IM100 use UP200.

Up200 doesn’t allow for eeprom and use of breakout leads through the custom pinouts.


Edit to update: IM100 is confirmed to have luck with Mercedes-Benz immo.

Now Otosys IM100 with UP400 can work for Mercedes key programming as well as Otosys IM600 does.

Immobilizer functions: Otosys IM100 vs IM600:


Note:图片7This function is supported.

图片8This function is not supported.

Special Declaration:

Some of the listed functions are manufacture dependent. The functions and vehicle coverage expand with new update release.




Posted in Autel tools, Auto key Programmer | Tagged , , , , , , , , | Comments Off

FVDI J2534 Diagnostic Tool for ford and mazda better than vcmii vcm2

FVDI J2534 is a vehicle communication interface device that full compatible with SAE J2534-1 and partly compatible with SAE J2534-2. It supports most of vehicle communication protocols and can be used as PassThru device for many dealer level diagnostic software. And it can be used as a ELM327 device also, support most of ELM327 software.

FVDI J2534 Diagnostic Tool Highlights:

  1. a) High speed host communication. (3M bps)
  2. b) Stable host communication. (with RTS/CTS flow control)
  3. c) Automatically register software and no virtual machine needed.
  4. d) Online software update and keep software latest always.
  5. e) Online firmware update.
  6. f) USB/802.11 selectable host communication.
  7. g) Support ELM327 software by one device.


Technical specifications

  1. a) Voltage & Current requirements

8~32VDC, 100 mA (max), 0.6 Watts @ 12 VDC

Note: protected against reverse battery polarity

  1. b) Vehicle Protocols

ISO9141

ISO14230

J1850 VPW

J1850 PWM(Ford SCP)

ISO11898 HS(500K BPS)

ISO11898 MS(125K BPS)

ISO15765 HS(500K BPS)

ISO15765 MS(125K BPS)

FEPS(Flash EEPROM Program Signal)

Honda SCS

Honda DIAGH

KWP1281

J2819(TP2.0)

  1. c) Supported software for J2534

Ford IDS V110

Mazda IDS V108

  1. d) Supported software for ELM327

ELMconfig

Forscan

FOCCCUS

FF2

  1. e) Vehicle Connection

Molded DLC3(OBDII-16)

  1. f) Dimensions

H:22mm (0.87in) W:54mm (2.13in) L:76mm (2.99in)

  1. g) Weight 50g (1.76oz)
  2. h) Environmental Operating: -20ºC to 45ºC (-4ºF to 113ºF) at 15% to 85% RH

non-condensing






Posted in Car Diagnostic Tools, Professional Diagnostic Tools | Tagged , , , , , , , , | Comments Off

Allscanner VXDIAG Porsche Piwis III with Lenovo T440P Laptop  Porsche Piwis tester III V37.250.020

Allscanner VXDIAG Porsche Piwis III has the same functions with Porsche Piwis.If you want to do online programming,you must have an account online.

VXDIAG Porsche Piwis III Functions & Features:

1.New operation system and more intuitive diagnostic interface

2.New VCI for post-2018 vehicles with DoIP diagnosis

3.Good at maintenance, repair, control units change and programming & setting codes

4.To login for online immobilizer programming

5.To find out leading faults

6.To look for maintenance wiring diagram

7.To support special functions like modification or flashing, with Engineering mode (Development version)

VXDIAG Porsche Piwis III New & Old Cars:

All Porsche from 1998-2018:

Porsche 911(997) (991)

Boxster/Cayman (987)

Cayenne up to MY 2010

Cayenne from MY 2011

Panamera

Especially the latest models:

Paramera (971) 2018

Caynenne (92A) 2018

Macan (95B) 2018

911 (991) 2018

and other old models

Software version is 37.250.015,Developer mode enabled, PIWIS Tester III vehicle coverage up to 2018: 911, Macan, Cayeme, Panamera, Boxter Cayman



Can make License Unlimited


Software Updating



Posted in Auto Scanner Tools, Car Diagnostic Tools, Professional Diagnostic Tools | Tagged , , , , , , , , | Comments Off

VXDIAG MB SD Connect C6 MB Star C6 Benz Diagnostic Tool with DOIP&AUDIO Function

VXDIAG For XENTRY Diagnosis VCI is the latest interface for For Mercedes & SMART vehicles can replace Star C4/C5. VXDIAG For XENTRY Diagnosis VCI acts as a Pass-through Interface, also called Star C6, For Benz C6 multiplexer to provide complete communication between a vehicle and the VXDIAG For XENTRY software loaded on a PC.

VXDIAG MB SD Connect C6 XENTRY Diagnosis VCI Overview:

Compatible Software: XENTRY/Das Software

Support Vehicle: Mercede For Benz & Smart vehicles

DoIP: Support DoIP

Functions: Star Diagnostic & programming (SCN Coding)

XENTRY Software Show:

1

2

3

4

XENTRY Diagnosis VCI Summary:

The new VXDIAG For XENTRY Diagnosis VCI (Vehicle Communication Interface) multiplexer serves as the interface to the vehicle when performing diagnosis and repairs, and programming electric and electronic on-board vehicle systems.

The VXDIAG For XENTRY Diagnosis VCI does not have its own PC core, battery, fan, or display. It is operated using the VXDIAG For XENTRY Diagnosis Pad via WLAN or a USB cable connection.

5

6

7

8

Posted in Auto Scanner Tools, Car Diagnostic Tools, MB Star Diagnostic Tools, Professional Diagnostic Tools | Tagged , , , , , , , , , , , , , , | Comments Off

Program Mazda2 2018 Smart Keyless Entry with Auro OtoSys IM600IM100

There are several key programmers will do Ford/Mazda, but seldom tools cover newer vehicles 2017 up. Both AURO OtoSys IM100/ IM600 Mazda software releases to latest and supports year up to 2018 key programming. Here’s the guide to program smart key for Mazda2 year 2018.

At least 2 keys are required to be learned to start engine

IM100-1

Connect IM100/IM600 host with vehicle via OBD socket

Select IMMO->Select or auto search Mazda->Manual Selection->Mazda2->2017 up->Smart Key->Keyless System (CAN)->Add smart keys

IM100-2

IM100-3

IM100-4

IM100-5

IM100-6

IM100-7

IM100-8

IM100-9

Turn on ignition switch

IM100-10

Auro IM100 detects current number of smart keys: 2

IM100-11

System configuration in progress. Wait for about 7 minutes until you can hear vehicle horn

IM100-12

IM100-13

Depress the brake for A/T vehicles and clutch for M/T vehicles.
Put the smart key close to the START button

IM100-14

3rd key programming succeed

IM100-15

Key learning success. Press Yes to program next key.

IM100-16

Do following procedure:
Turn ignition off.
Depress the brake pedal, put the head of one learned key close to the START button, start the engine for 3s and then turn the ignition off.

Repeat this procedure for each learned key.

IM100-17

Success.

Posted in Auto key Programmer | Tagged , , , , , | Comments Off

Read Kia Ceed 2011 Pin Code and Program Key with Lonsdor K518ISE

Here’s the guide to duplicate a key for the Kia Ceed 2011 with chip PCF7936, pin code calculation and key programming is performed by Lonsdor K518ISE Key Programmer.

Step 1: Calculate Pin Code

Connect K518 host wit vehicle via OBD socket

Select Immobilizer->Kia->Read Pin Code->46 Chip

lonsdor-k518ise-1

lonsdor-k518ise-2

lonsdor-k518ise-3

Turn ignition to ON position

Read pin code in progress

Read Pin code success. The Pin is exactly the same as read by Xhorse VVDI Key Tool.

lonsdor-k518ise-4

lonsdor-k518ise-5

Step 2: Program chip key

Back to Kia menu

Choose Select from type->Immobilizer->Type 1(CAN)

lonsdor-k518ise-6
lonsdor-k518ise-7

Read key number
lonsdor-k518ise-8
lonsdor-k518ise-9

There are 2 keys existed

Select Program key function

Turn on ignition switch

Lonsdor K518 will require to enter Pin code to access

lonsdor-k518ise-10

Programming key…

Program key success. Press Yes to program next key

lonsdor-k518ise-11

Remove 1st key

Place next key and turn on ignition

Follow same procedure to program next key until program complete
lonsdor-k518ise-12

The new key can start car.

Step 3: Program remote control

Select Kia->Select from type->Remote System->16 PIN->Type 4->Program remote

lonsdor-k518ise-13

lonsdor-k518ise-14

lonsdor-k518ise-15

Note: If you are not sure about the system type, try one-by-one until success.

Don’t insert key into ignition

lonsdor-k518ise-16

Program remote control: program LOCK or UNLOCK button for more than 1 s

Remote programming success.

Disconnect Lonsdor K518ISE Key Programming.

Done.

Posted in Auto key Programmer | Tagged , , , , , , | Comments Off

Launch Icarscan OBD2 diagnostic Tool FAQs and Solutions

Q: ICARSCAN registration is unsuccessful
When registering to activate Launch X431 Icarscan, the prompt: the device is already activated by another user or activation failed.

1

A : There are 2 possibilities:
1. Most of the reasons: The customer has registered successfully, but he forgot the user name.
For example, a customer registered to activate Icarscan tool , set the user name as Bin.rabeea91@gmil.com . But when logging in later, use Bin.rabeea91@gmail.com to log in.
the system will think that this is a new user, will request He to activate his Icarscan again.
If the above situation occurs, please check if your username is correct, or contact us to help you find the correct username in our system. Our contact email is < sales@obd2tool.com >
2. Another possibility is that this ICARSCAN Serial Number has not been registered into our sales system. You need to contact us to help you register in our system, you can register normally.

Q: Log in to the Launch Icarscan APP and run the model software appear ErrID:-6

2

The customer gave us the following information:

3

A: Generally, this version of the software has a bug and needs to be contacted by us.
We will solve this problem within two working days. (We will fix the bug and re-release the new version of the software)
A new version of the software has been released and we will notify the customer to update the software of the app.

Q: Use the Launch Icarscan to connect to the car for diagnosis. The final prompt is as follows:

4

A : There are 3 possibilities:
1. It is possible that this version of the software will not be able to test your car.
Please provide us with detailed model information. We will develop this model immediately and update it to the next version of the software.
You can just download the new version and test it.

2. If the prompt is found in different cars, the Icarscan hardware may be damaged and the hardware needs to be sent back for repair.

3. there are other possibilities. For example, there is a problem with the car’s diagnostic seat, the car’s electrical system has been modified, and so on. You can feedback the problem to us in more detail. We can solve it for you faster.

Q: When The launch icarscan app was running, it suddenly stopped. The diagram below:

5

The customer provided the following information:

6
A: Generally, such problems may be caused by too low hardware version or too low car version.

The hardware is automatically upgraded. Only the bluetooth connection box is needed to keep the mobile phone network open, and the App will automatically prompt the firmware to upgrade.

If the hardware upgrade is not resolved, please update your software to the latest version.

If both the hardware and software are upgraded to the latest version, the problem remains. Please provide your icarscan App version and serial number, mobile phone model and android version to us.

We’ll work it out for you in two working days.

Q: Install the Launch icarscan EZdiag APP, and when it is running, prompt: APP EZdiag stopped

7

A: This is usually because the phone’s operating system is not compatible with the icarscan APP.

Customers need to provide:

For App versions, box Numbers, phone models and android versions, it’s best to record a video to locate the problem

According to the information provided by the customer, we will modify our APP to be compatible with the customer’s mobile system.

If you have more questions about LAUNCH ICARSCAN, please contact our sales < sales@obd2tool.com > , our website is www.obd2tool.com

Posted in Launch X431 | Tagged , , , , , , | Comments Off

How to Activate and Update Xtool PS90 Tablet Diagnostic Tool

XTOOL PS90 PRO diagnostic scan tool provides incredible dealer level diagnostics at an affordable price for many small to large workshops. It can scan all systems, modules and even program new keys. You need to register and activate it before using the tablet.

Part 1: Xtool PS90 Activation

1. Connect PS90 with network;
2. Power on PS90 pad, fill in all the required information, then click Activate button;
XTOOL-PS90-1

3. The activation code is on the front page of User Manual in your package;

XTOOL-PS90-2

Input activation code, product serial number (each device will have a serial number and activation code), nickname (workshop’s name or user’s nickname), login account (can be your email address or cell phone number) and password, the system will then save it. Activation is a one time process. The diagnostic application will start after activation.

XTOOL-PS90-3

Notice:

1.  Need to use the email address you registered to log in, so please take down your email address and password in case you forget about it, or we are not responsible for this.
2.  For nickname you can use any name you want.
3.  For login account, please use your valid email address or phone number. Better will not forget it in the future.
4.  For password, you can setup any number you like. The system will save it after done. Activation is a one time process. The diagnostic application will start after activation. After you finish activation, when new software release in future, you can directly update your tool via WIFI.

Part 2: Xtool PS90 Update

Click UPDATE after XTOOL Diagnostic Tool PS90 is connected to the internet, you can then download the latest diagnostic software directly to the PS90.

XTOOL-PS90-4

PS90 updates directly via the Internet using WiFi or wired connection. To access the update application open the PS90 application and click UPDATE , shown below:

XTOOL-PS90-5



www.obd2tool.com

Posted in Xtool Scanner | Tagged , , | Comments Off

New Cummins Tool coming!Cummins INLINE 7 Data Link Adapter Cummins Truck Diagnostic Tool with Cummins Insite 8.3 Software

10070_P_1534820485486



New Cummins engine diagnostic tool Cummins INLINE 7 Data Link Adapter has a faster processor, more robust algorithms, larger memory buffers and more sophisticated filtering than previous models while simultaneously accessing multiple vehicle data channels. INLINE 7 supports USB, WiFi and Bluetooth technologies in a single device. INLINE 7 communicates with your PC and is designed for future capability with mobile products.

1.Hardware: Cummins INLINE 7 Data Link Adapter

2.Software: Cummins Insite 8.3

3.Update Method: update by CDs

4.Multi-language: English(united states)/ Chinese(simplified)/ Danish/ Dutch/ Finnish/ French/ German/ Italian/ Japanese/ Korean/ Norwegian/ Portuguese/ Russian/ Spanish/ Swedish/ Turkish

5.Suggest Operating System: Win7 32 Bit System

6.Connection Method: WIFI/ Bluetooth/ USB

The Heavy Duty Scanner Cummins INLINE 7 data link adapter communicates with your PC using a Universal Serial Bus (USB) through a standard USB connector as well as through WiFi or Bluetooth. INLINE 7 is fully compliant with the Technology and Maintenance Council’s RP1210 standard and supports three simultaneous CAN connections and offers baud rates of 250k, 500k and 1 megabaud.

Cummins INLINE 7 Supports several other protocols:

such as J1708, J1587, ISO 15765, ISO 9141 (K and L line)

The Cummins INLINE 7 DataLink Adapter is designed to function with a wide array of Cummins, OEM and third-party service and information tools, including the following:

Cummins INSITE

Cummins PowerSpec

Detroit Diesel Diagnostic Link

CAT Electronic Technician (On-Highway only)

Navistar® -ServiceMaxx Fleet Pro

Volvo PTT

VCAD Elite Mack/Volvo

V-Mac Service Tools

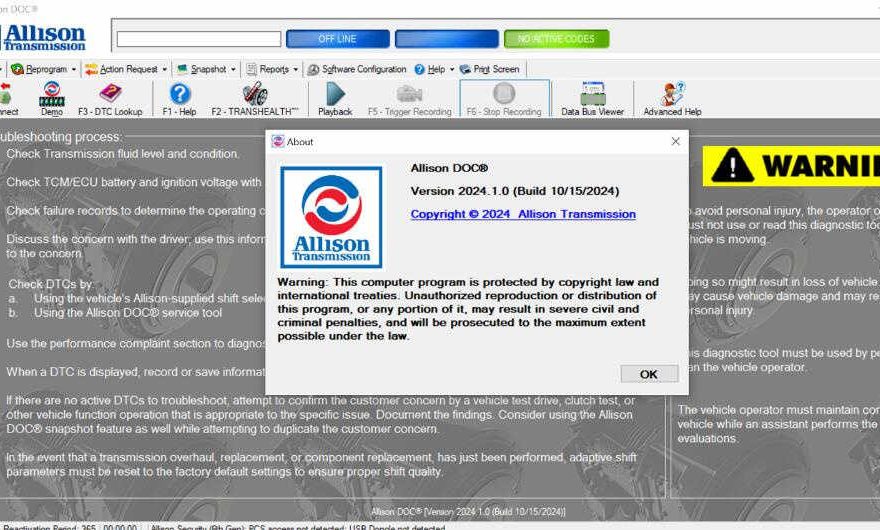

Allison DOC® For PC Service Tool

Allison DOC® for Fleets (1000/2000/3000/4000)

Eaton ServiceRanger

Bendix ACom

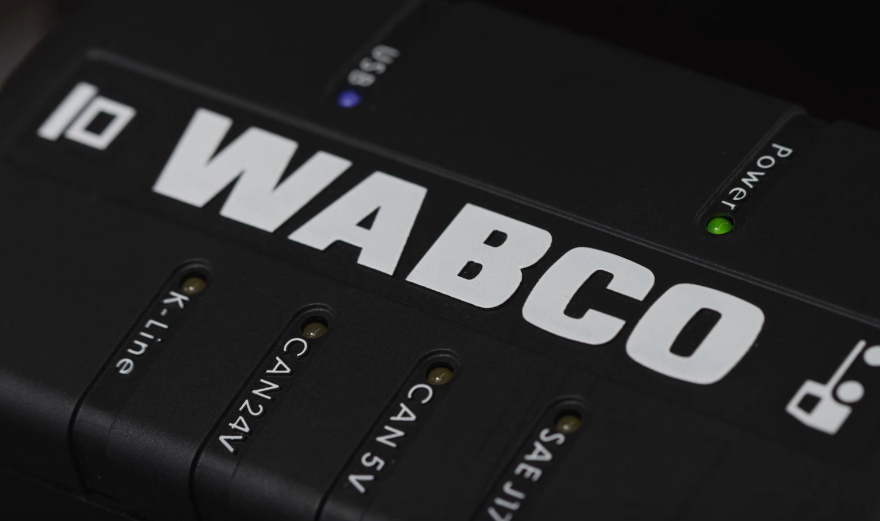

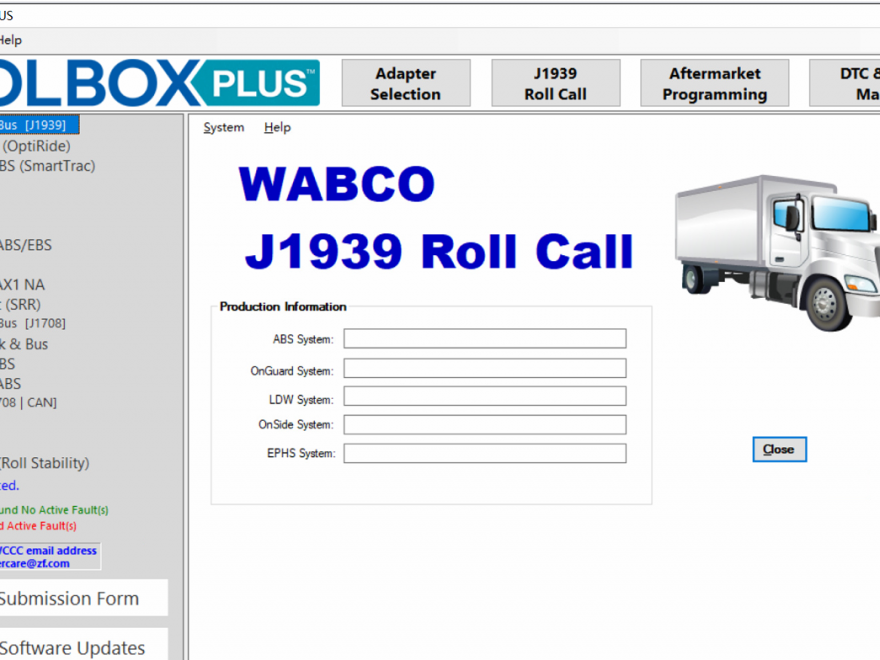

WABCO Toolbox

Freightliner ServiceLink

International DLB, Intune, and IPC v2.02

International ServiceMaxx

PF-Diagnosis

and many more!

Posted in Car Diagnostic Tools, Professional Diagnostic Tools, truck diagnostic tools | Tagged , , , , , , , | Comments Off
