Problem Overview

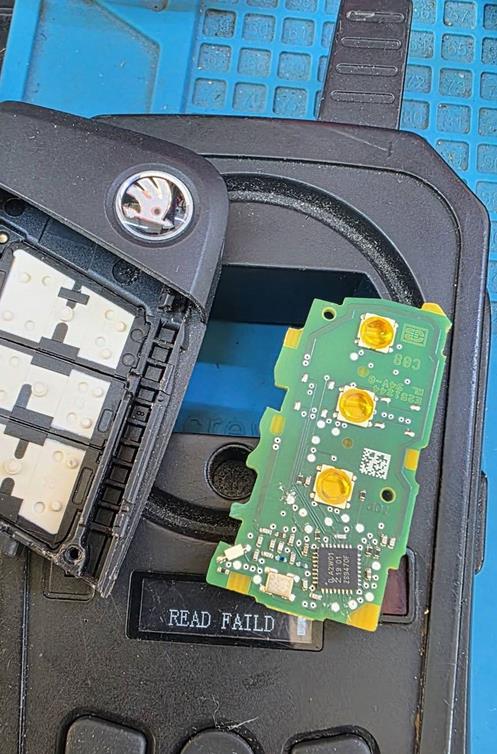

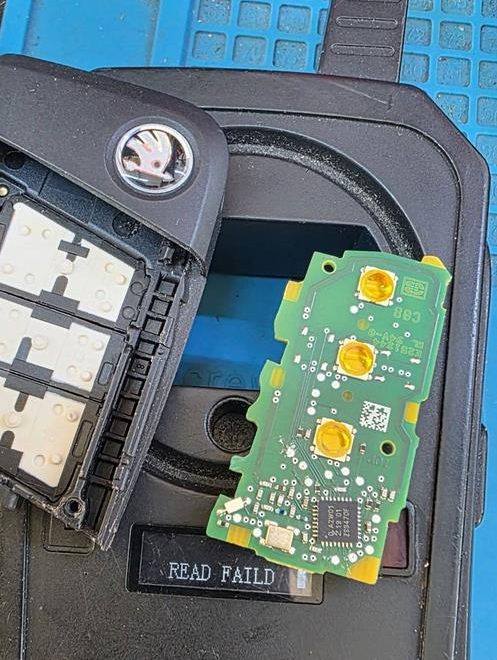

Some users have reported that after reading a Skoda MQB49 5C key using the Keydiy KD-X4 tool, the chip is no longer recognized.
This issue typically appears immediately after attempting to read or program the key. As a result, the key becomes unusable, and the vehicle cannot detect the transponder.
A common question raised is:
Can the coil copper wire affect chip recognition?
The answer is yes — and it’s one of the most frequent causes.
While many assume a software glitch or a “bricked” chip, the root cause is often a mix of physical fragility and data misalignment.
This guide explores how to diagnose and fix these issues effectively using tools like the Keydiy KD-X4, VVDI Key Tool Plus, or Autel IM608.
1. The Hardware Culprit: Induction Coil Failure

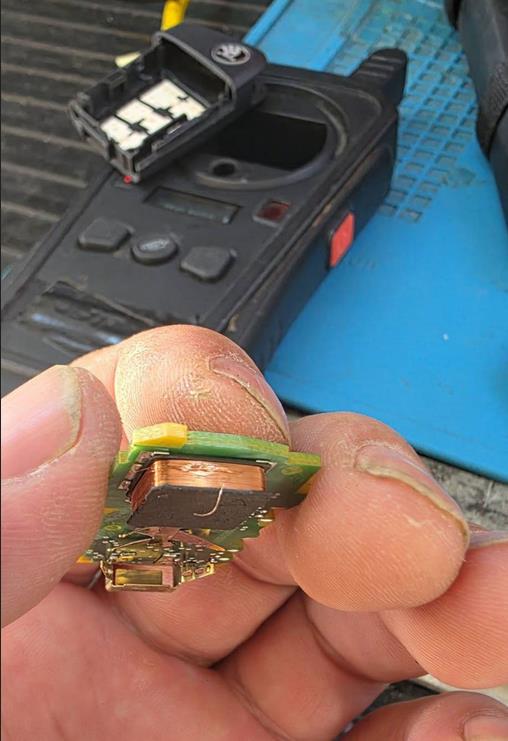

The MQB49 5C transponder relies on a delicate copper induction coil to communicate with the vehicle’s immobilizer ring. Unlike older, sturdier chips, these PCB-integrated coils are highly sensitive.
-
Physical Stress: Opening the key shell with excessive force can micro-fracture the solder joints or the thin copper filament.
-
Thermal Sensitivity: If you are desoldering components to read data, even slight heat bleed can damage the chip’s internal logic.
-
Diagnostic Tip: Use a multimeter to check for continuity across the coil. If the circuit is open, the vehicle cannot “energize” the chip to read its ID.
Pro Tip: If the key is recognized when held directly against the Emergency Start (induction) area on the steering column but fails in the ignition or at a distance, the induction coil is almost certainly the weak link.
2. The Software Culprit: Data Integrity & CS Codes
If the hardware tests fine, the issue is likely “Logical.” The MQB49 system is heavily protected by Component Security (CS) codes.
-
Incorrect Pre-coding: For the vehicle to recognize a new chip, the 16 or 32-byte CS code must be correctly written to the transponder. If the data calculation was off during the “Prepare Dealer Key” stage, the car will reject the chip.
-
Locked Status: Once a 5C chip is successfully (or sometimes unsuccessfully) programmed, it may enter a Locked state. If the programming fails halfway, the chip might be locked to a “null” or “garbage” data set, rendering it unusable for a second attempt.
-
Sync Data Mismatch: MQB systems require precise synchronization data. Using a generic chip that isn’t high-quality (OEM or top-tier aftermarket) often results in intermittent recognition.
3. Step-by-Step Resolution Strategy
If your MQB49 chip is not recognized, follow this diagnostic flow:
| Step | Action | Outcome |
| 01 | Check Chip Status | Use your tool to read the chip. If it says “Locked” but won’t start the car, the data is wrong. |
| 02 | The Coil Test | Verify continuity with a multimeter. If broken, donor a coil from a working board. |
| 03 | Proximity Check | Hold the key against the vehicle’s emergency induction slot. If it works here, the coil is weak. |
| 04 | Re-generate Data | Delete the failed key from the vehicle’s memory and attempt to re-precode a fresh chip. |
🛠️ What You’ll Need for This Repair
To successfully diagnose and fix MQB49 (5C) issues, we recommend the following professional-grade tools:
-
Primary Programmer: Keydiy KD-X4 Remote Generator – Best for chip reading and cloning.
-
Advanced Diagnostic Tool: Autel MaxiIM IM608 Pro II – For complex MQB data calculation.
-
Replacement Hardware: High-Quality MQB49 (5C) Transponder Chips – Don’t risk a ‘Key Not Recognized’ error with generic chips.
Frequently Asked Questions (FAQ)
1. Why is my MQB49 (5C) chip not recognized after programming? Recognition failure is typically caused by one of two issues: a physically damaged or loose induction coil on the key’s PCB, or incorrect Component Security (CS) data written to the chip during the pre-coding phase.
2. How can I test if the key’s induction coil is faulty? You can use a multimeter to check for continuity across the copper coil on the PCB. If there is no continuity, the circuit is broken. Another test is to hold the key against the vehicle’s emergency start induction area; if the car recognizes it there but not from a distance, the coil is likely damaged.
3. Can a locked MQB49 chip be reused if programming fails? Generally, no. Once an MQB49 chip is locked with incorrect or “null” data during a failed programming attempt, it cannot be unlocked or rewritten. In most cases, a new, unlocked transponder is required for a fresh attempt.
4. Does heat damage the 5C transponder chip? Yes. MQB49 boards are highly sensitive to thermal stress. If you apply excessive heat during soldering or desoldering (such as when reading an EEPROM), you risk damaging the chip’s internal logic or the delicate solder joints of the induction coil.
5. What is the most important step in MQB49 key matching? The most critical step is the “Prepare Dealer Key” or pre-coding phase. You must ensure that the 16 or 32-byte CS codes and synchronization data are 100% accurate before writing them to the chip.
