How to use wiTech MicroPod 2 for FIAT 500L

wiTECH Micropod 2 Chrysler diagnostic tool with V17.04.27 wiTECH software can work online and support Chrysler online programming(If you have a account ).

Question: Does your wiTech MicroPod 2 support FIAT 500L (BF)? what’s the price?
Answer: Yes, wiTech supports it.

Part 1: Two Routines that Must Be Run Upon Arrival
Part 2: Maintenance Light (Wrench Light) in EVIC
Part 3: Programming a Key

In detail…

Part 1: FIAT 500L (BF) – Two Routines that Must Be Run Upon Arrival
There are two routines that must be run for the 500L to be taken fully out of shipping mode:
Routine 1: Exit Shipping Mode
* Select the BCM Module.
* Select the Misc Functions
* Select the Exit Shipping Mode
* Follow the prompts on the screen to complete the procedure.

Routine 2: Configure Door Locks
* The 500L ships with the door locks not configured to the vehicle, and also has a flashing door lock light on the dash under the radio.
* This flashing lock LED is to let the technician know that the door locks have not been configured.
* Run the Configure Door Locks routine to correct the situation and stop the blinking LED.
* The Configure Door Locks routine requires a5-digit key code unique to the vehicle VIN. The 5-digit key code can only be obtained from DealerCONNECT by authorized personnel (see Service Manager).
* Select the Vehicle Preparations
* Select the Configure Door Locks
* Select the Continue
* Follow the prompts on the screen to complete the procedure.

Critical Note: In rare cases, a 4-digit key code may be returned by DealerCONNECT for a 500L. Please contact STAR if this occurs.

Part 2: FIAT 500L (BF) – Maintenance Light (Wrench Light) in EVIC

How to Confirm Feature is Disabled:
* Scroll through the EVIC menu and look for an option called Service.
* If this option does not exist, this feature has already been disabled from the vehicle.

SUMMARY
* The FIAT 500L is equipped with a service maintenance light (wrench light) in the EVIC.
* This light is different from the oil maintenance light, and is used to notify customers they have reached a given mileage that calls for maintenance action.
* If a vehicle has the wrench light illuminated (see image below), connect to the vehicle with wiTECH using 14.01 or later software, and the feature will automatically be disabled.

Part 3: FIAT 500L (BF) – Programming a Key

wiTech MicroPod 2 china clone is able to program a new to to US version FIAT 500L (BF)
Procedure:
* Select the BCM module
* Select the Misc. Functions tab
* Select Program Keysand click the Start button
* Ensure key is in the RUN position
* Follow the prompts on the screen to complete the procedure.

Critical notes have been included below—please read!!

IMPORTANT NOTES:

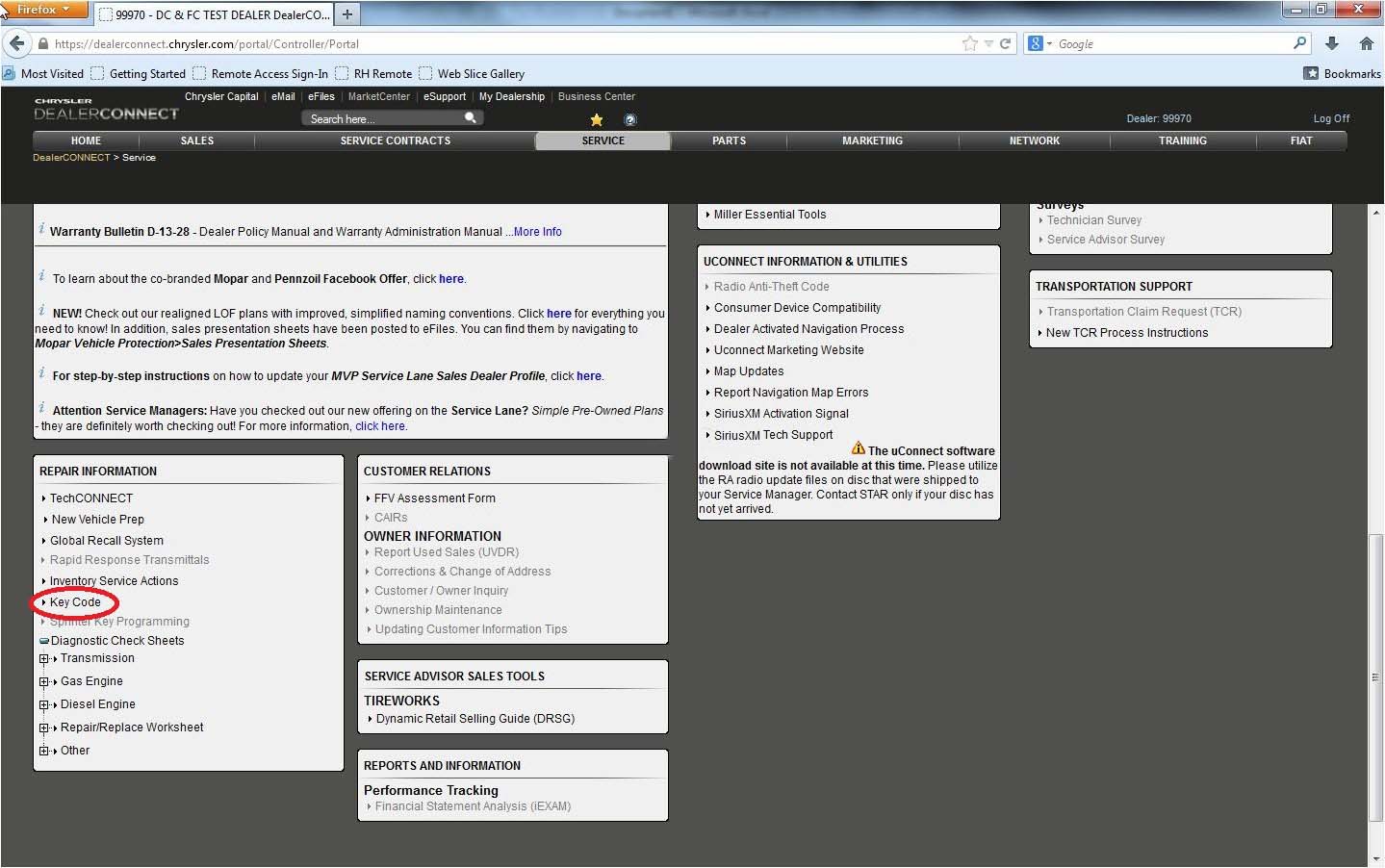

* You will be prompted to enter the 5-digit“electronic code” or “key code” obtained from DealerCONNECT. On the DealerCONNECT menu, click the Service tab, scroll down to theRepair Information box, and find the link with the name Key Code (see below). If the link is grey (not functional), you do not have access. Your Service Manager should have access.

* Allcustomer keys, including any previously programmed and replacement keys, must be learned during this procedure.
* If any previously programmed keys are not reprogrammed during this procedure, they will be permanently disabled.

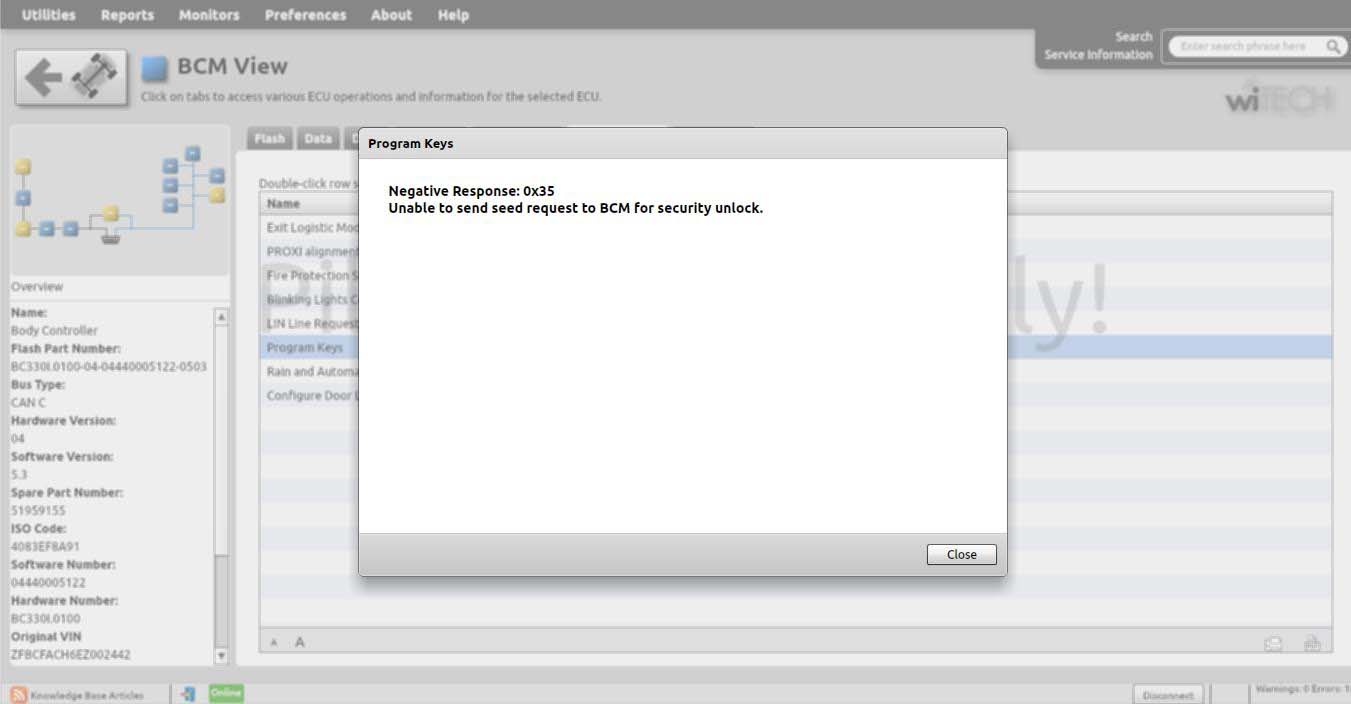

* If a negative response0x35 is received, please verify that 5-digit key code is correct for the vehicle by rechecking in Dealer CONNECT.

* WARNING! If the wrong key code is entered three times in a row it will lock out the BCM for 24 hours.
* In rare cases a four-digit key code is returned by DealerCONNECT for a 500L. Please contact STARif this occurs.

Summary:

* Key programming on the FIAT 500L (BF) requires a 5-digitkey code unique to the vehicle VIN.
* The 5-digitkey code can only be obtained from DealerCONNECT by authorized personnel.
