Why MB Star C4 SD Connect Is Still a Popular Choice for 2013 Sprinter Diagnostics

The 2013 Mercedes-Benz Sprinter W906 uses multiple electronic control units that communicate through the vehicle network. While basic OBD2 scanners can read generic engine faults, they usually cannot access Mercedes-specific diagnostic functions, guided tests, adaptations, or service procedures.

For independent workshops and Sprinter owners, the MB Star C4 SD Connect multiplexer with DAS/Xentry software remains one of the most commonly used solutions because it provides deeper factory-level diagnostic access.

Compared with universal scan tools, MB Star C4 can communicate with systems such as:

Engine Control Module (CDI/ECM)
Transmission Control Module (TCM)
Anti-lock Braking System (ABS/ESP)
Supplemental Restraint System (SRS)
SAM (Signal Acquisition Module)
SCR/DEF emission systems
Instrument cluster and body modules

The key advantage is not only reading fault codes — it is understanding why the fault occurred and what repair procedure should follow.

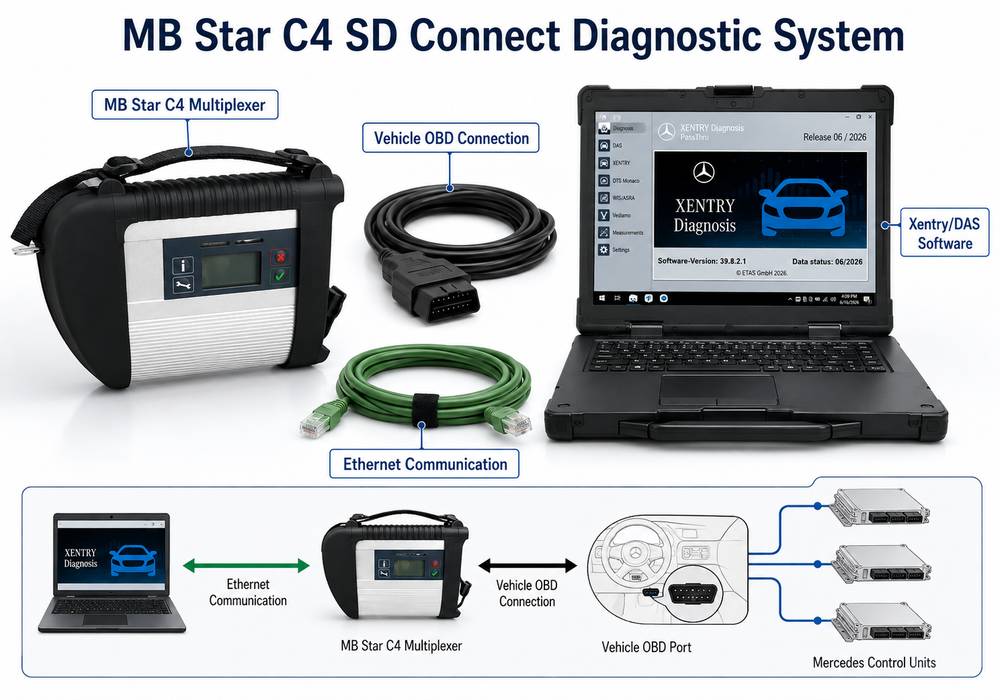

MB Star C4 SD Connect multiplexer and diagnostic accessories for Mercedes Sprinter

Recommended MB Star C4 Diagnostic Tool for Sprinter W906

For professional technicians working on Mercedes-Benz Sprinter W906 models, a stable diagnostic interface is essential for reliable communication with DAS/Xentry software.

The MB SD Connect Compact 4 (MB Star C4) provides professional Mercedes diagnostic capability, including:

Full vehicle system scanning
DAS/Xentry compatibility
Fault code reading and clearing
Live data monitoring
Guided troubleshooting
Adaptation and service functions
DPF and emission system diagnosis

Check the compatible diagnostic solution here:

MB SD Connect Compact 4 Star Diagnostic Tool
https://www.obd2tool.com/goods-334-MB-SD-Connect-Compact-4-Star-Diagnostic-Tool.html

MB Star C4 Diagnostic Software: DAS and Xentry Explained

DAS (Diagnosis Assistance System)

For the 2013 Sprinter W906, DAS is the primary diagnostic environment.

DAS provides:

Vehicle identification through VIN
Control-unit communication
Guided troubleshooting procedures
Actual values/live data
Actuation tests
Adaptation procedures
Fault memory management

DAS is especially useful for older Mercedes commercial vehicles where many diagnostic routines are still handled through the traditional Mercedes workflow.

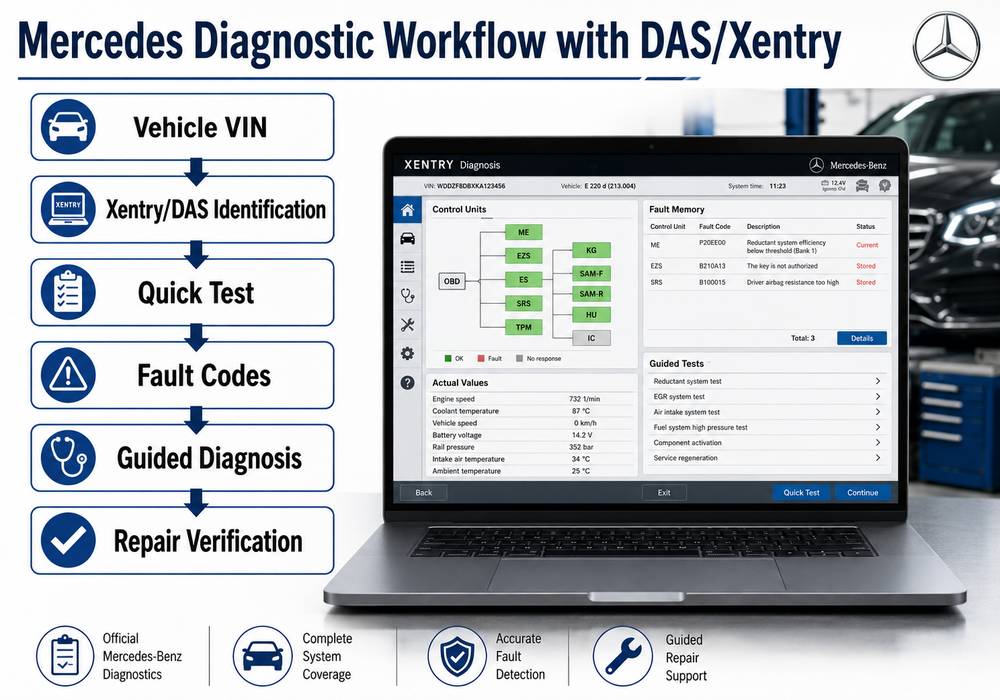

Mercedes Xentry DAS diagnostic workflow using MB Star C4 interface

Xentry Diagnostics

Xentry is the newer Mercedes diagnostic platform.

For Sprinter applications, Xentry can provide:

Full vehicle scans
ECU identification
Fault-code analysis
Live parameter monitoring
Component activation tests
Programming and configuration functions on supported systems

A properly configured MB Star C4 setup allows technicians to switch between DAS and Xentry depending on the vehicle system and repair requirement.

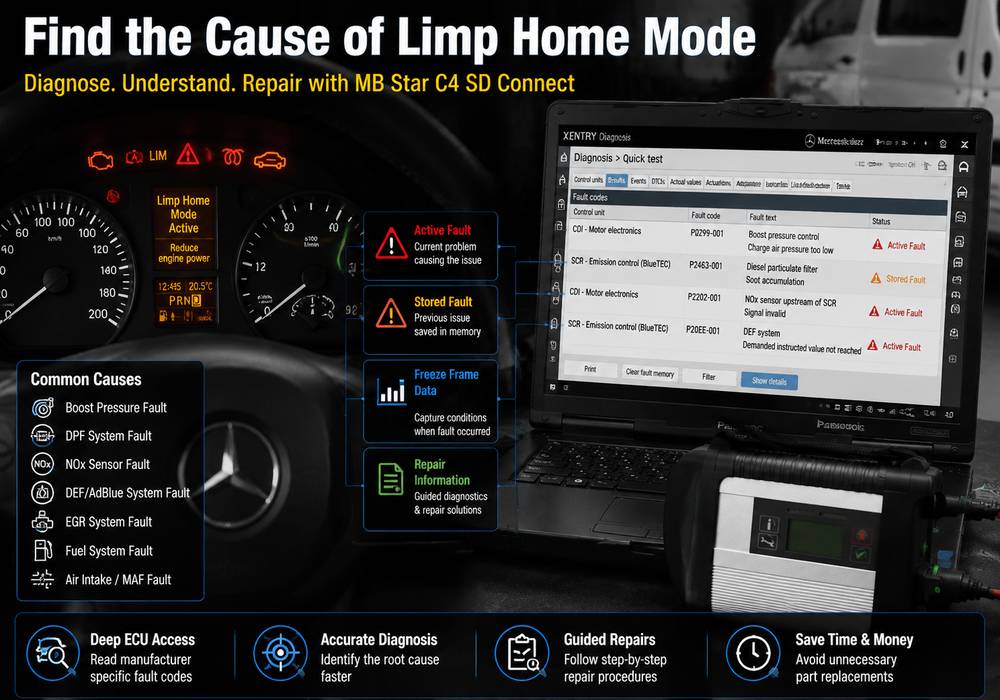

1. Complete Fault-Code Diagnosis and Limp Home Mode Repair

Why Sprinter Enters Limp Mode

Mercedes Sprinter limp mode is commonly triggered when the ECU detects a condition that may affect:

Engine protection
Emissions compliance
Turbocharger operation
Fuel system performance
Transmission protection

Common causes include:

Boost pressure problems
EGR system faults
DPF restriction
DEF/AdBlue faults
NOx sensor failures
Fuel pressure issues
Wiring or connector problems

A generic OBD scanner may only show a P-code.

MB Star C4 provides Mercedes-specific information such as:

Manufacturer fault codes
Control-unit source
Stored vs current faults
Freeze-frame data
Guided diagnostic steps

Recommended Diagnostic Workflow

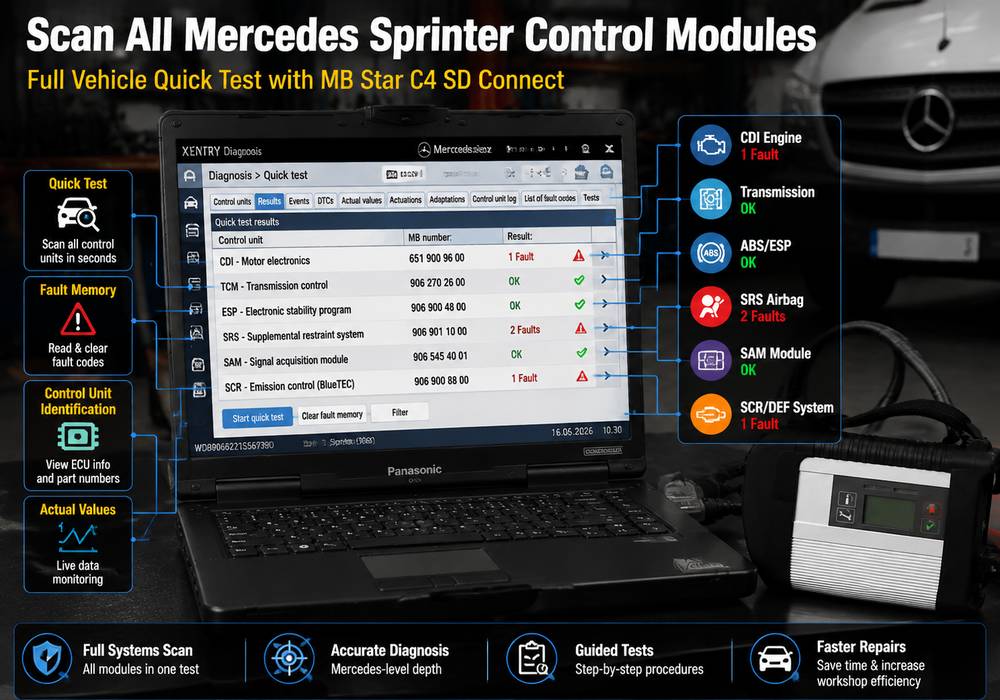

Step 1: Perform a Complete Quick Test

Connect MB Star C4:

Select vehicle model.
Enter VIN automatically or manually.
Run a complete vehicle scan.
Save the diagnostic report.

Check:

CDI engine module
Transmission module
ABS/ESP
SCR system
SAM modules

Do not immediately clear all faults.

A fault history can provide important clues about the original failure.

Step 2: Analyze Current vs Stored Faults

Understanding fault status is important:

Stored Fault

Previous event
May disappear after repair

Current Fault

Active problem
Usually returns after clearing.

Example:

A DPF pressure sensor fault may return immediately if:

Sensor wiring is damaged.
Pressure line is blocked.
Sensor signal is incorrect.

Clearing the code alone will not repair the problem.

2. MB Star C4 DPF Forced Regeneration on Sprinter W906

When Is Forced Regeneration Needed?

The Sprinter diesel particulate filter collects soot during operation.

Normally:

Highway driving
Correct exhaust temperature
Proper sensor readings

allow automatic regeneration.

However, forced regeneration may be required when:

Soot loading is too high.
Automatic regeneration fails
Vehicle remains in limp mode.
Short-distance driving prevents regeneration.

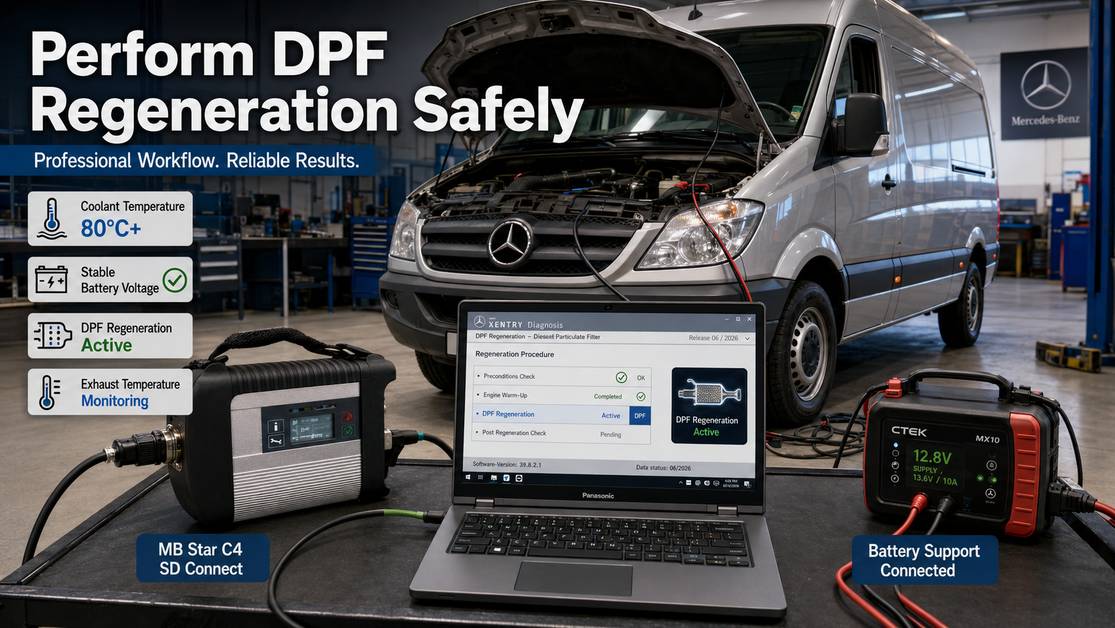

How to Perform DPF Regeneration with MB Star C4

Before starting:

Confirm:

✓ Engine reaches operating temperature
✓ Coolant temperature is approximately 80°C or higher
✓ Fuel level is sufficient
✓ Battery voltage is stable
✓ No critical engine faults are active

A battery support unit is recommended during long diagnostic procedures.

General Procedure

Connect MB Star C4 to the vehicle.
Open DAS/Xentry.
Select CDI control unit.
Check stored and current faults.
View DPF actual values.
Confirm soot load information.
Start the regeneration procedure.
Follow DAS instructions.

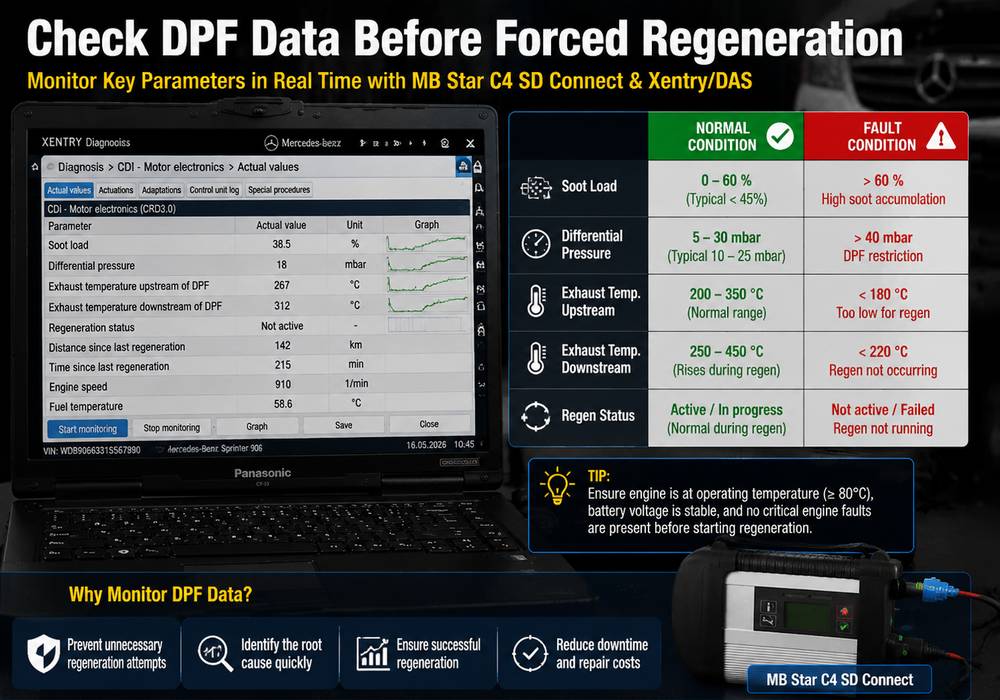

During regeneration monitor:

Engine speed
Exhaust temperature
Differential pressure
Regeneration status

Important DPF Regeneration Troubleshooting

A forced regeneration may fail if:

Differential Pressure Sensor Problems

Symptoms:

Incorrect soot calculation
Regeneration rejected
Abnormal pressure readings

Check:

Sensor wiring
Pressure hoses
Blocked pipes
Sensor values at idle

Exhaust Temperature Sensor Faults

Regeneration requires accurate temperature monitoring.

If the ECU cannot confirm exhaust temperature:

Regeneration may stop
DPF heating may not occur

Excessive DPF Restriction

If the filter is physically blocked, regeneration may not solve the problem.

The correct repair may require:

DPF cleaning
DPF replacement
Root-cause diagnosis

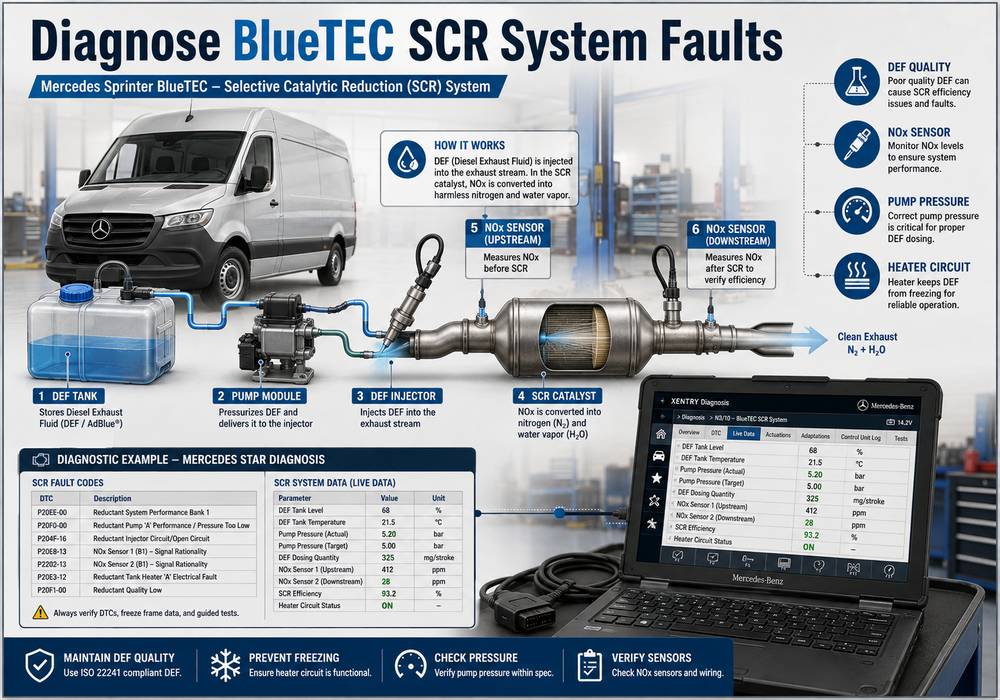

3. DEF / AdBlue System Diagnosis and Reset

The 2013 Sprinter BlueTEC system includes SCR emissions components.

MB Star C4 can assist with:

SCR fault diagnosis
DEF system monitoring
Component testing
Adaptation procedures

Common DEF-related problems include:

NOx sensor faults
DEF quality issues
Heater faults
Pump/module faults
Wiring problems

After DEF Component Replacement

When replacing components such as:

DEF sensors
SCR components
Related control modules

the ECU may require:

Teach-in procedures
Adaptations
Fault clearing
System verification

MB Star C4 helps complete the diagnostic process.

4. ECU Programming, Coding and Sensor Delete Limitations

A common misunderstanding is that MB Star C4 can turn off emission sensors.

What MB Star C4 Can Normally Do

Depending on vehicle and module:

Code replacement modules
Perform adaptations
Update supported control-unit software.
Configure vehicle variants

What Standard Xentry/DAS Does Not Do

Factory Mercedes software is designed for repair according to manufacturer specifications.

It does not provide a simple menu option to:

Disable DPF monitoring
Ignore EGR faults
Turn off DEF warnings.

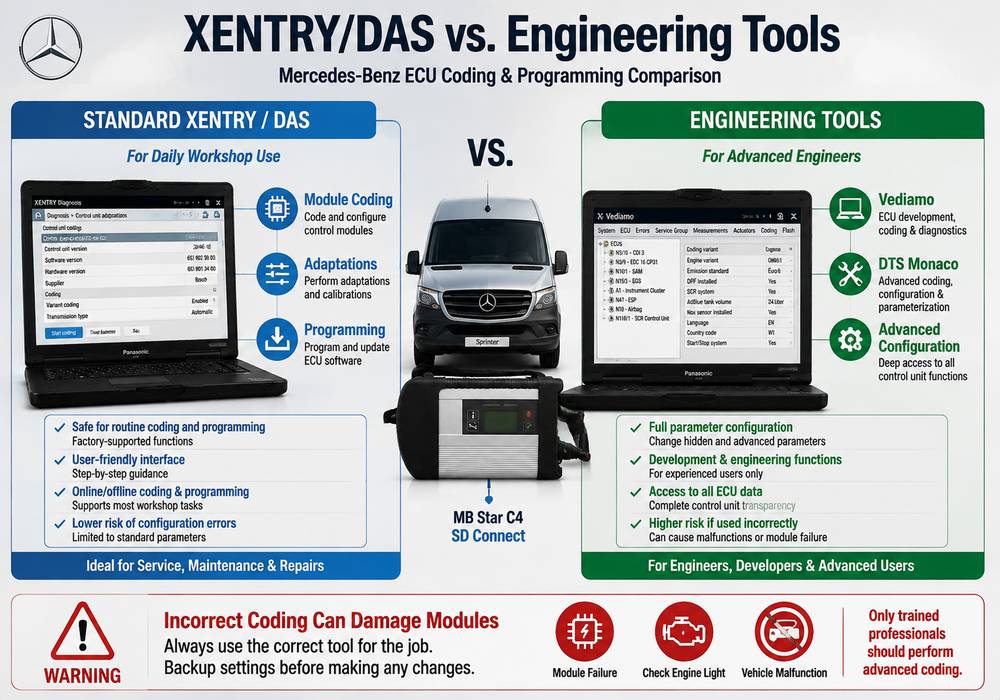

Engineering Software: Vediamo and DTS Monaco

Some MB Star packages include engineering tools such as:

Vediamo
DTS Monaco

These tools provide advanced configuration access.

However:

They require technical knowledge.
Incorrect coding can turn off modules.
Changes may affect vehicle operation and emissions systems.

For complex ECU calibration changes, professional ECU calibration services are normally required.

Choosing a Reliable MB Star C4 Setup for Sprinter Diagnostics

Not all C4 units provide the same experience.

Before purchasing, consider:

1. Communication Stability

A quality interface should provide:

Stable CAN communication
Reliable multiplexer operation
Good PCB quality
Proper cable connections

Communication interruption during coding or programming can create additional problems.

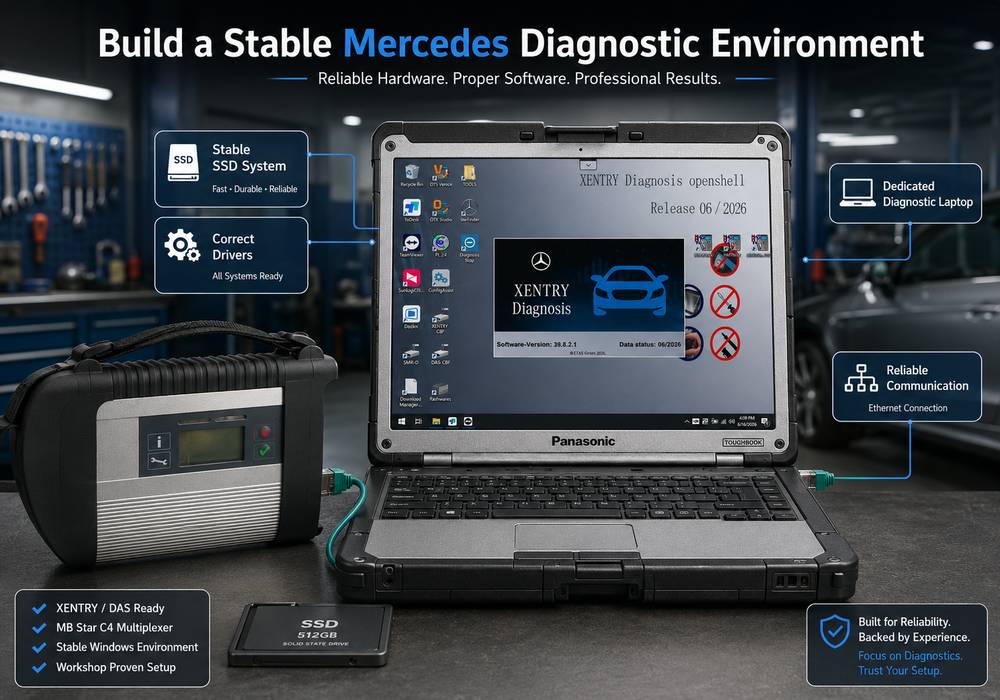

2. Software Environment

Recommended setup:

Dedicated diagnostic laptop
SSD storage
Stable Windows environment
Correct C4 drivers
Proper DAS/Xentry configuration

Many workshop users choose pre-installed SSD or laptop solutions to avoid installation problems.

3. Laptop Recommendation

A rugged workshop laptop is preferred because:

Vehicles are repaired in harsh environments.
Stable USB/network operation is important.
Diagnostic software requires reliable hardware.

Common choices:

Panasonic Toughbook CF series
Industrial Windows laptops

MB Star C4 vs Universal OBD2 Scanner

Function	Universal OBD2 Scanner	MB Star C4
Generic fault codes	✓	✓
Mercedes-specific faults	Limited	✓
DAS guided diagnosis	✗	✓
DPF regeneration	Limited	✓
ECU adaptations	Limited	✓
Module communication	Basic	Full vehicle access
Sprinter W906 support	Basic	Professional level

Frequently Asked Questions

Will MB Star C4 work with a 2013 Mercedes Sprinter W906?

Yes. The 2013 Sprinter W906 is supported through Mercedes DAS/Xentry diagnostic software. It can access major vehicle modules, including the CDI engine, transmission, ABS, SRS,, and body systems.

Can MB Star C4 clear Sprinter limp mode?

It can clear fault codes and help identify the cause of limp mode. However, if the physical problem remains, such as a failed sensor or damaged wiring, the fault will return.

Can MB Star C4 perform DPF regeneration?

Yes. Supported Sprinter models can use DAS/Xentry guided functions for DPF regeneration when operating conditions are met.

Does MB Star C4 delete DPF or EGR sensors?

No. Standard DAS/Xentry software is designed for factory repair procedures and does not provide a simple emissions-delete function.

Is an original Mercedes tool required?

Professional dealers use original equipment, but many independent workshops use MB Star C4-compatible solutions for Mercedes diagnostics and service operations.

Final Recommendation

For a 2013 Mercedes-Benz Sprinter W906, the MB Star C4 SD Connect remains one of the most practical diagnostic solutions for independent repair shops.

Its strengths are:

Deep Mercedes module access
DAS/Xentry guided diagnostics
DPF regeneration capability
DEF system troubleshooting
Accurate fault-code analysis
Professional service functions

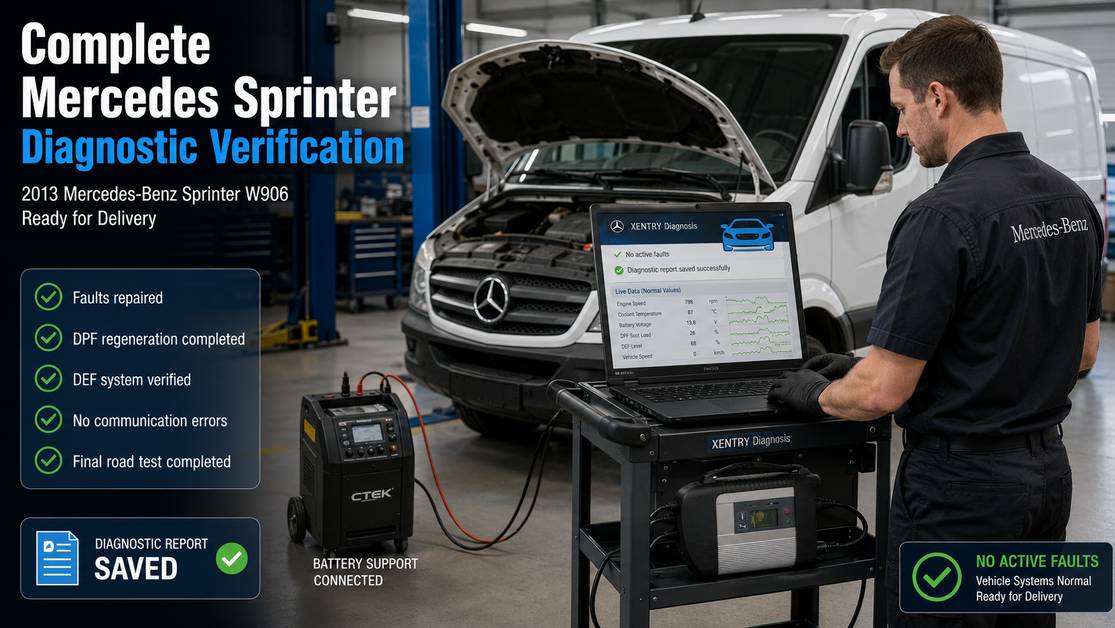

The most important factor is not only owning the interface — it is using the correct diagnostic workflow:

Scan → Analyze → Repair Cause → Perform Adaptation → Verify Repair

A properly configured MB Star C4 setup can significantly reduce downtime and help technicians complete Sprinter diagnostics without unnecessary dealer visits.
