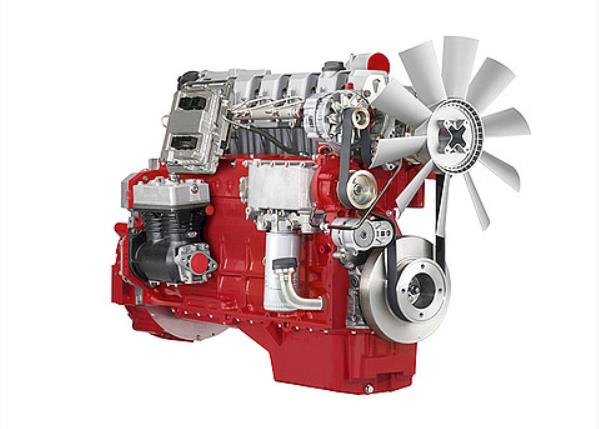

If your Deutz EMR3 engine shows trouble code 87, SPN 97, or the message “WATER IN FUEL”, it usually means the fuel filter water level sensor has detected an abnormal voltage signal. This fault should not be ignored, because water contamination in the fuel system can lead to poor engine performance, sensor errors, and possible damage to fuel components.
In this guide, we explain what Deutz EMR3 error code 87 / 97 means, the possible causes, and how to fix it step by step.
What Does Deutz EMR3 Trouble Code 87 / SPN 97 Mean?
Error description: Water in fuel
System: Deutz EMR3
Fault code: 87
SPN: 97
Blink code: 2 – 2 – 8
This fault indicates that the fuel filter water level sensor voltage measured by the ECU is outside the specified range.
In simple terms, the engine control unit believes there is either water in the fuel or a problem with the sensor circuit, wiring, or connector.
Possible FMI for This Fault
The related FMI may include:
- FMI 3 – Voltage too high or short circuit to +Ubatt
- FMI 4 – Voltage too low or short circuit to -Ubatt
- In some cases, the error mode may not be clearly identifiable
Common Causes of Deutz EMR3 Water in Fuel Fault
Several issues can trigger this code on a Deutz EMR3 engine:
1. Water contamination in the fuel
Water may collect in the fuel filter or separator, especially if the fuel quality is poor or the machine has been exposed to moisture.
2. Faulty fuel filter water level sensor
The sensor itself may fail and send incorrect voltage signals to the ECU.
3. Damaged wiring or cable break
Broken, corroded, or shorted wiring between the sensor and ECU can cause abnormal readings.
4. Poor connector contact
Loose or contaminated connectors may interrupt the signal and trigger the warning.
5. Damaged connection cable
If the cable insulation is worn or the harness is damaged, the ECU may detect incorrect voltage values.
Symptoms of Deutz EMR3 Error Code 87 / 97
When this fault occurs, you may notice the following:
- Warning lamp stays on permanently
- Fault is stored in the error memory
- Engine may use a substitute value
- Reduced reliability of fuel system monitoring
How to Fix Deutz EMR3 WATER IN FUEL Code
Follow these steps to troubleshoot and repair the problem:
Step 1: Check for water in the fuel filter
Inspect the fuel filter and water separator first. If water is present, drain it completely and replace the filter if needed.
Step 2: Inspect the water level sensor
Test the fuel filter water level sensor to confirm whether it is working properly. If the sensor is defective, replace it.
Step 3: Check the wiring harness
Inspect the sensor wiring for:
- Cable breaks
- Short circuits
- Corrosion
- Loose connections
- Damaged insulation
Repair or replace the wiring as needed.
Step 4: Inspect the connector and connection cable
Make sure the connector is clean, dry, and tightly connected. If the cable or connector is damaged, repair or replace it.
Step 5: Clear the fault code and retest
After repairing the issue, clear the code using a compatible Deutz diagnostic tool and run the engine again to verify that the warning does not return.
System Reaction of This Fault
According to the fault description, the Deutz EMR3 system response is:
- System reaction: Warning, substitute value
- Error lamp behavior: Permanent light
- Self-healing: Yes
- Signal priority: 1
This means the system may recover automatically once the root cause is repaired and the signal returns to normal.
Recommended Deutz Diagnostic Software and Tools
To diagnose and clear Deutz EMR3 fault codes more efficiently, you can use professional Deutz software and tools such as:
- Deutz DECOM
- Deutz Serdia diagnostic software
- Deutz Serpic EPC parts catalog
These tools can help identify sensor faults, read ECU data, and perform more accurate troubleshooting.
Conclusion
Deutz EMR3 trouble code 87 / SPN 97 / WATER IN FUEL usually points to a problem with the fuel filter water level sensor, its wiring, or actual water contamination in the fuel system. The most effective repair method is to inspect the fuel filter, drain any water, test the sensor, and check the wiring and connectors carefully.
If the sensor or cable is damaged, replacing the faulty part will usually solve the issue. After repair, use Deutz diagnostic software to clear the code and confirm the engine is operating normally.
FAQ Section
What does Deutz EMR3 error code 87 mean?
Deutz EMR3 error code 87 means the ECU has detected an abnormal signal from the fuel filter water level sensor, often related to water contamination or sensor circuit problems.
What is SPN 97 on a Deutz engine?
SPN 97 refers to a fault related to the water-in-fuel monitoring circuit or sensor signal on the Deutz EMR3 system.
Can water in fuel damage a Deutz engine?
Yes. Water in fuel can cause poor combustion, injector problems, corrosion, and long-term fuel system damage if not fixed quickly.
How do I clear Deutz EMR3 fault code 87?
After repairing the cause of the fault, you can clear the code using Deutz diagnostic software such as DECOM or Serdia.
Will this fault heal itself?
The fault is marked as self-healing, which means it may clear automatically once the sensor signal returns to normal, but the underlying cause still needs to be fixed.
