How to Use PIWIS 4 WiFi for Porsche Diagnostics

This guide explains how to connect a Porsche PIWIS 4 diagnostic interface to a laptop over Wi-Fi for wireless vehicle diagnostics.

Step 1 — Connect PIWIS 4 to the Vehicle

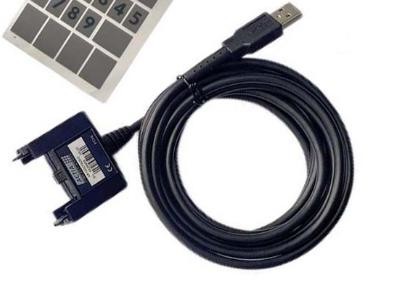

Disconnect the USB cable from the PIWIS 4 interface.

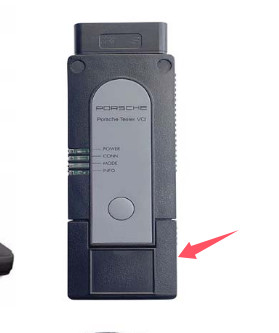

Connect the vehicle communication cable to the bottom connector of the PIWIS 4.
Connect the diagnostic cable to the vehicle.
Switch the vehicle ignition ON.

Wait until the PIWIS 4 powers up and its indicator lights become active.

Step 2 — Connect the Laptop to the PIWIS 4 Wi-Fi Network

Once the PIWIS 4 is powered on:

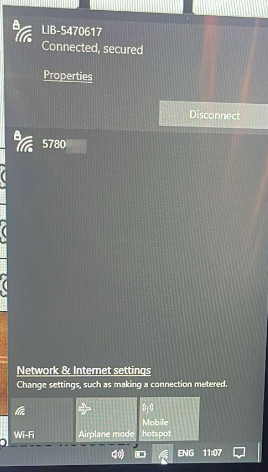

Open the Wi-Fi network list on the diagnostic laptop.

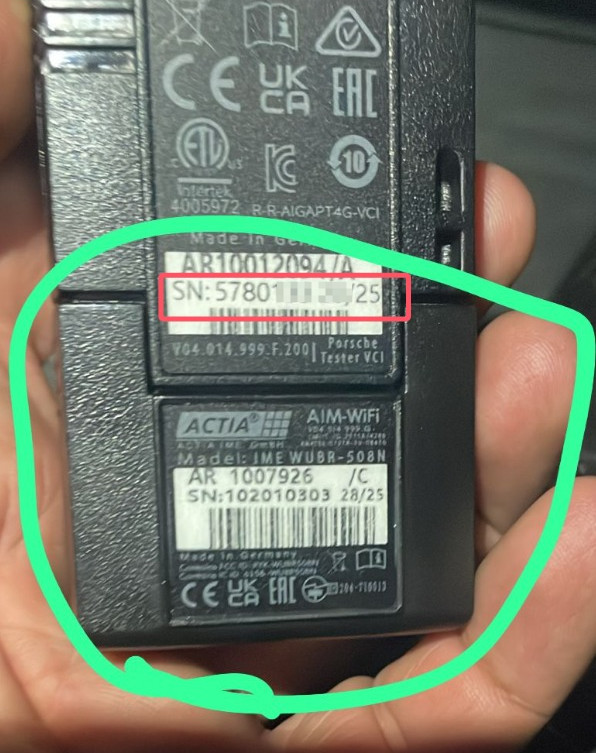

Look for a Wi-Fi network whose name matches the serial number of the PIWIS 4 interface.
Select that network and connect to it.
Enter the Wi-Fi password.

According to this setup, the password may be:

12345678

123456789

If one password does not work, confirm the correct Wi-Fi password supplied with your specific PIWIS 4 unit.

Step 3 — Restart the PIWIS Diagnostic Software

After the laptop is connected to the PIWIS 4 Wi-Fi network:

Close the PIWIS diagnostic software completely.
Launch the software again.

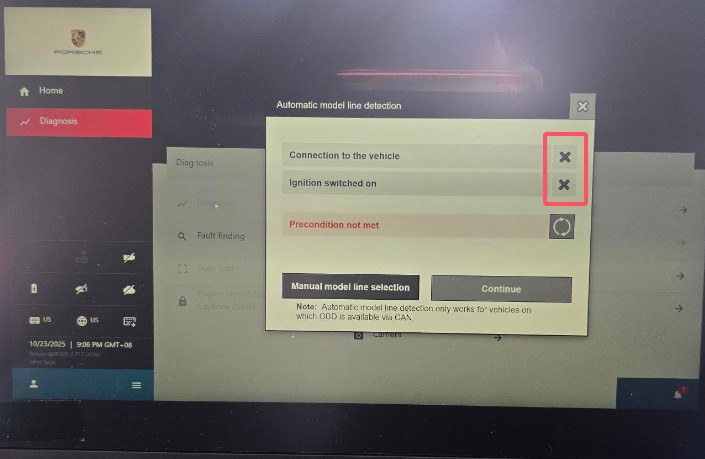

Check the communication/interface status.
Confirm that both required connection checks show Passed or a normal connected status.

If both checks pass, the PIWIS 4 should be ready for wireless vehicle diagnosis.

Quick Connection Checklist

Before starting diagnostics, confirm:

USB cable disconnected
PIWIS 4 connected to the vehicle
Vehicle ignition ON
PIWIS 4 powered normally
Laptop connected to the PIWIS 4 Wi-Fi network.
Correct Wi-Fi password entered.
PIWIS software restarted after Wi-Fi connection
Interface communication checks passed.

If PIWIS 4 Wi-Fi Does Not Connect

Check these items first:

Make sure the PIWIS 4 is powered by the vehicle.
Confirm the laptop is connected to the PIWIS 4 Wi-Fi network rather than another workshop network.
Verify the Wi-Fi network name matches the PIWIS 4 serial number.
Re-enter the correct password.
Disconnect any USB connection before testing Wi-Fi.
Close and reopen the diagnostic software after changing the connection method.
Restart the PIWIS 4 and laptop if the interface still does not appear.

Recommended PIWIS 4 Packages

If you need a complete Porsche PIWIS 4 diagnostic setup rather than only the interface, OBD2Tool offers several laptop configurations for different workshop preferences.

Porsche PIWIS 4 + Panasonic CF54 Laptop

A good option for workshops that prefer a more rugged diagnostic laptop for regular service use.

Product: Porsche PIWIS 4 Diagnostic Tool + Panasonic CF54 Laptop

Suitable for technicians who want:

PIWIS 4 interface and laptop as a complete package
A workshop-oriented Panasonic laptop
Wired and supported wireless diagnostic workflows
A dedicated Porsche diagnostic computer

Porsche PIWIS 4 + Lenovo Yoga 12 Laptop

This package is better suited to technicians who prefer a smaller and more portable diagnostic laptop.

Product: Porsche PIWIS IV + Lenovo Yoga 12 Laptop

Suitable for:

Mobile technicians
Smaller workshop carts
Technicians who prefer a compact laptop
General PIWIS diagnostic work

Porsche PIWIS 4 + Lenovo Yoga 370 Laptop

The Yoga 370 package is another complete PIWIS 4 option for technicians who want a portable Windows diagnostic setup.

Product: Porsche PIWIS 4 Diagnostic Tool + Lenovo Yoga 370 Laptop

Suitable for:

Independent Porsche specialists
Mobile diagnostic work
Workshops wanting a dedicated PIWIS laptop
Technicians who prefer Lenovo hardware

Before Ordering

Before selecting a package, confirm:

Porsche model and model year
Required diagnostic or programming function
PIWIS software version
Laptop configuration
Interface connection method
Whether Wi-Fi operation is required
Any online or account-dependent function you intend to use

For basic diagnostics, all three packages provide a complete PIWIS 4-style hardware-and-laptop solution, but the best choice mainly depends on your preferred laptop format and workshop environment.

Conclusion

Using Wi-Fi with Porsche PIWIS 4 allows the diagnostic laptop to communicate with the interface without a USB cable. The key steps are to power the PIWIS 4 from the vehicle, connect the laptop to the interface’s Wi-Fi network, and restart the diagnostic software so it can detect the wireless connection properly.
