If you’re setting up a laptop for Ford diagnostics and VCI Manager fails to detect your VCM3 device, here’s a practical troubleshooting guide based on real user experiences.
Symptoms
- VCM3 lights up and shows the computer connection icon when plugged in.

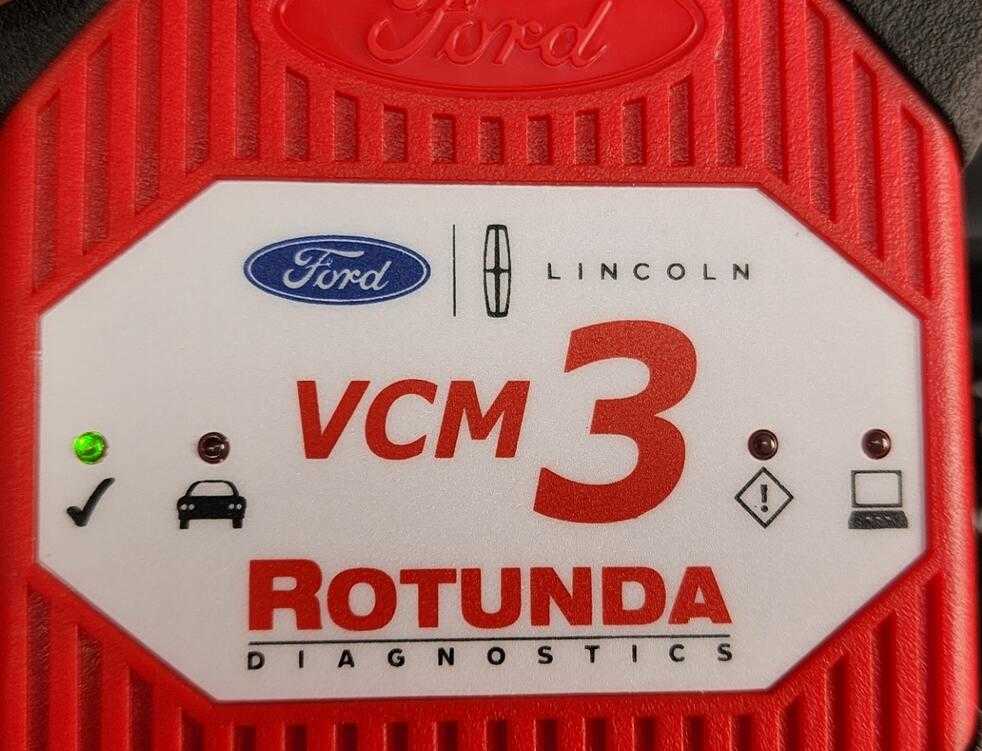

- Green checkmark appears after booting.

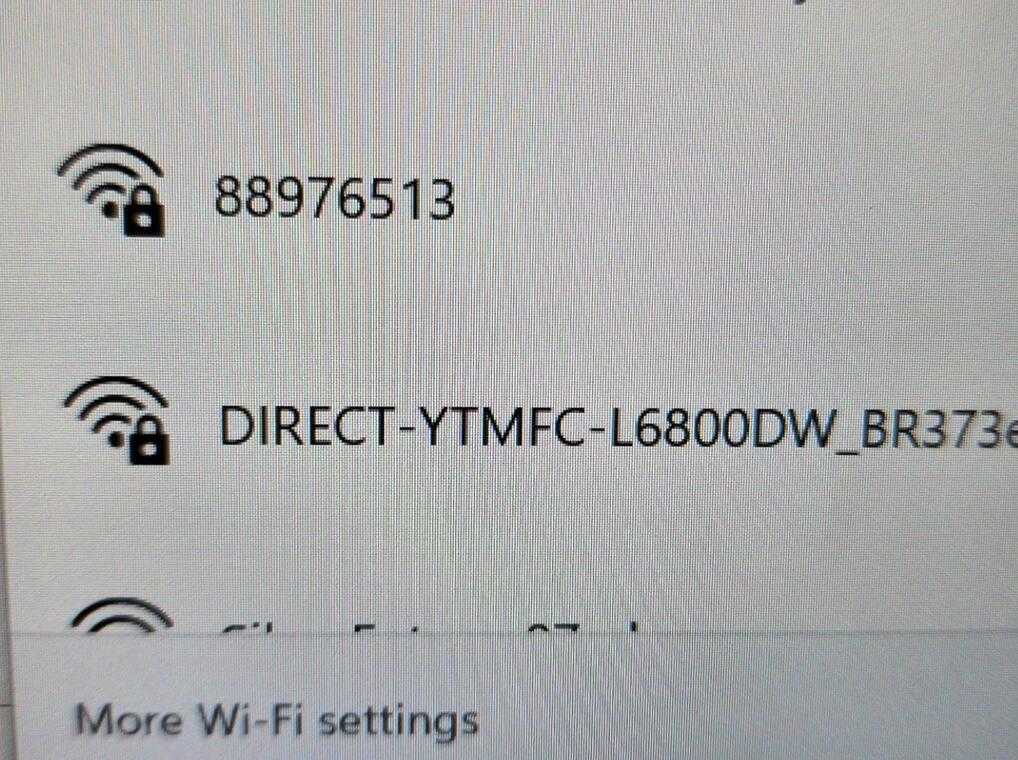

- A new WiFi network appears named after the last 8 digits of your VCM3 serial number.

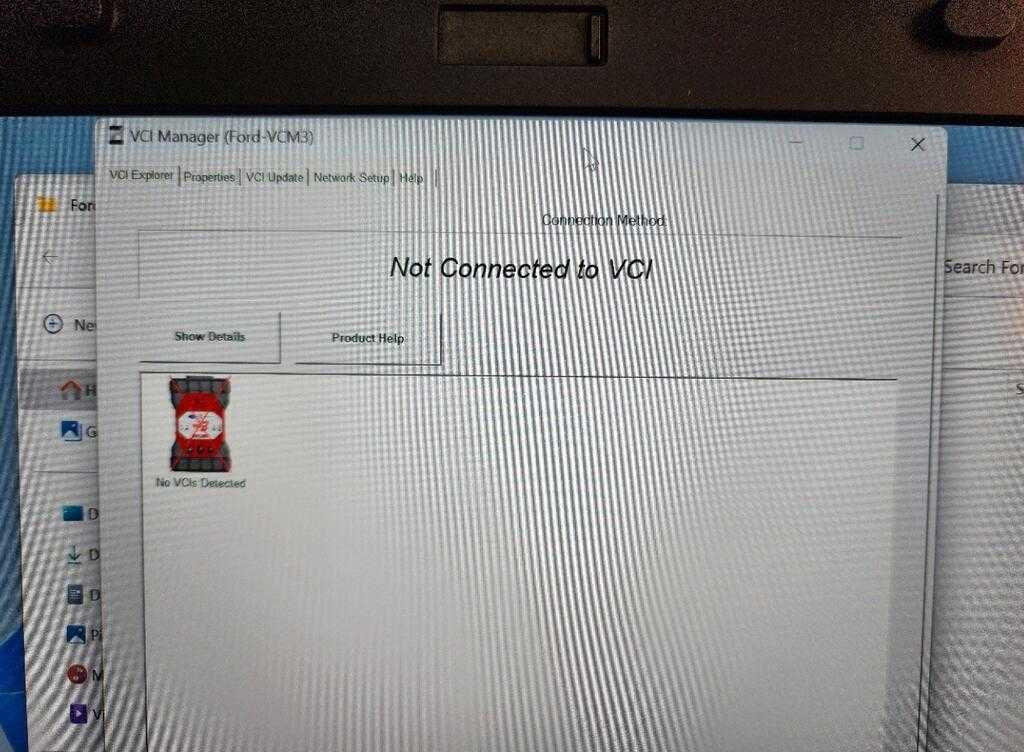

- VCI Manager reports no VCM3 connected.
Initial Troubleshooting Steps
- Run Configuration Utilities:

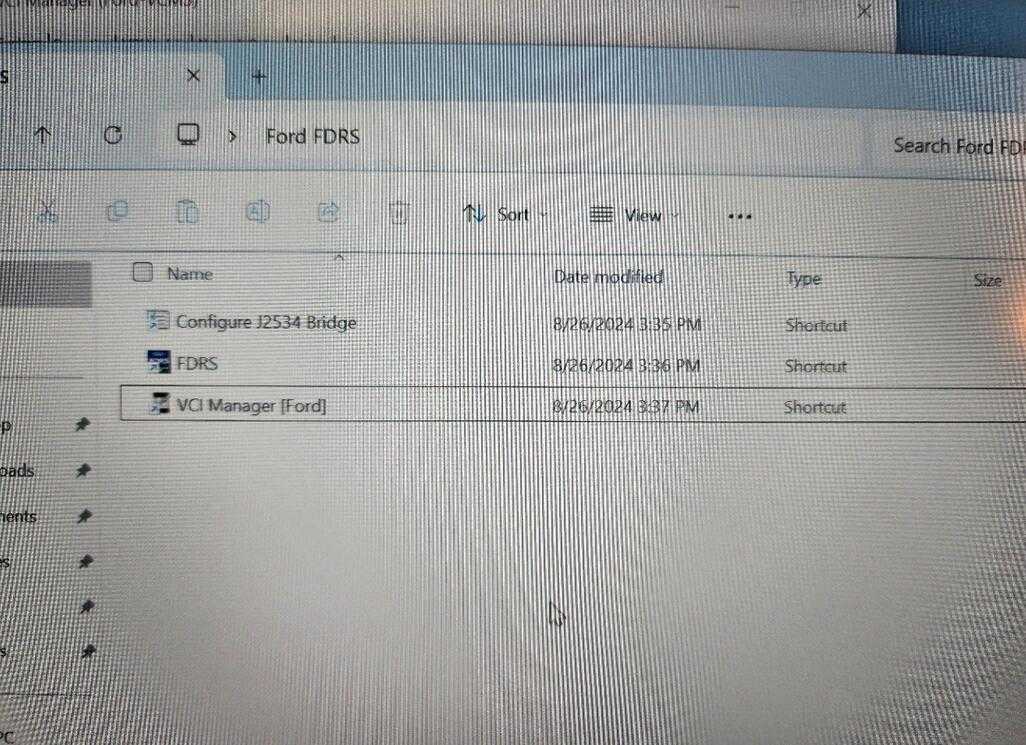

- Launch “Configure J2534 Bridge” and select VCM3.
- Open VCI Manager and choose VCM3 when prompted.
- Check Firewall Settings:
- Ensure FDRS, VCI Manager, and J2534 Bridge are not blocked by your firewall.
- Try Different USB Cables and Ports:
- Use a different USB cable.
- Connect the VCM3 to another USB port.
- Test with a Vehicle Connected:
- Perform the above steps while the VCM3 is connected to a vehicle’s OBD2 port.
Determine Authenticity
- Genuine vs. Clone:
- If you bought it from Amazon or a non-official distributor, there’s a chance it’s a clone.
- Genuine tools often come with warranty stickers and specific hardware identifiers.
- Contact Rotunda and provide the serial number to verify authenticity.
Tips from Users
- If the VCM3 is genuine, try uninstalling and reinstalling the Ford VCI software.
- Use the original USB cable provided with the tool; not all cables are compatible.
- Check under the red rubber cover (next to the SD card slot) for the reset button—if missing, it might be a clone.
Alternative Recommendations
- Consider using a trusted J2534 device like:
- DrewTech CarDAQ-3
- Autel JVCI+
- These tools are compatible with FDRS, IDS, and FJDS.
Conclusion
If VCI Manager still doesn’t detect your VCM3 after these steps, and authenticity is in doubt, returning the unit is likely the best course of action. Reliable alternatives like the VCM2 (for vehicles up to 2020) or a good J2534 interface for newer vehicles may offer better long-term value and support.
For more information about ford,please refer to:Ford Trouble Repair.
