How to do Smart Key AKL Programming on Renault Koleos 2017 with OBDSTAR X300 DP PLUS PAD?

Car model picture:

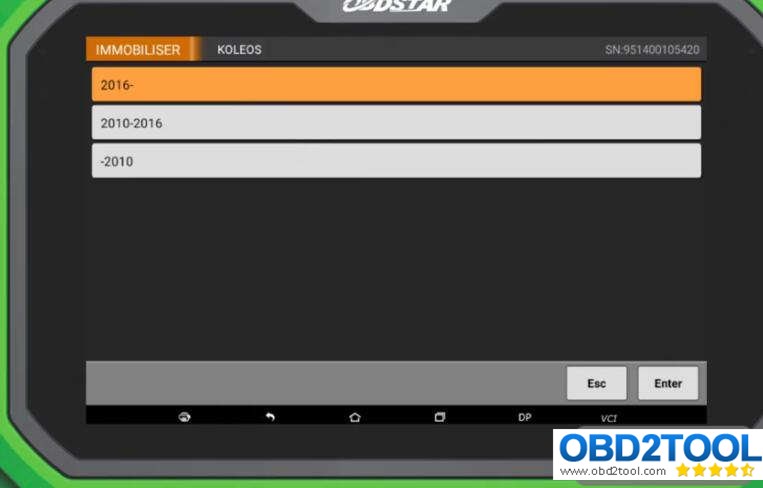

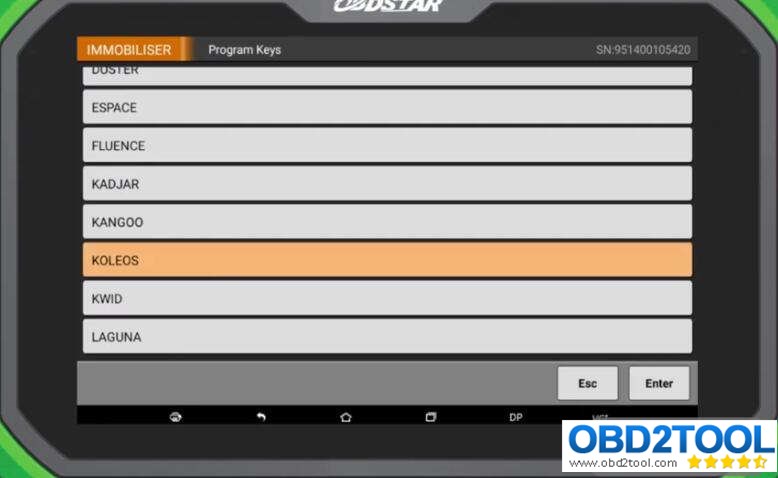

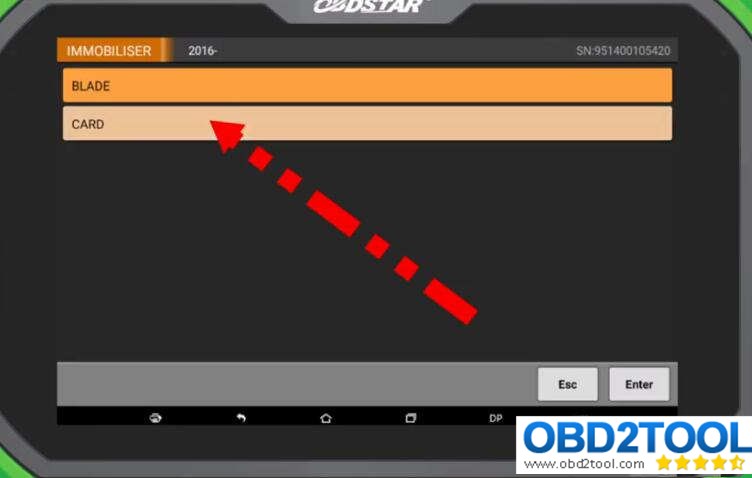

Connect OBDSTAR X300 DP Plus to Renault Koelos OBD port,then enter menu to select “Diag Program”–>”Renault”–>”Program Key”–>”KOLEOS”

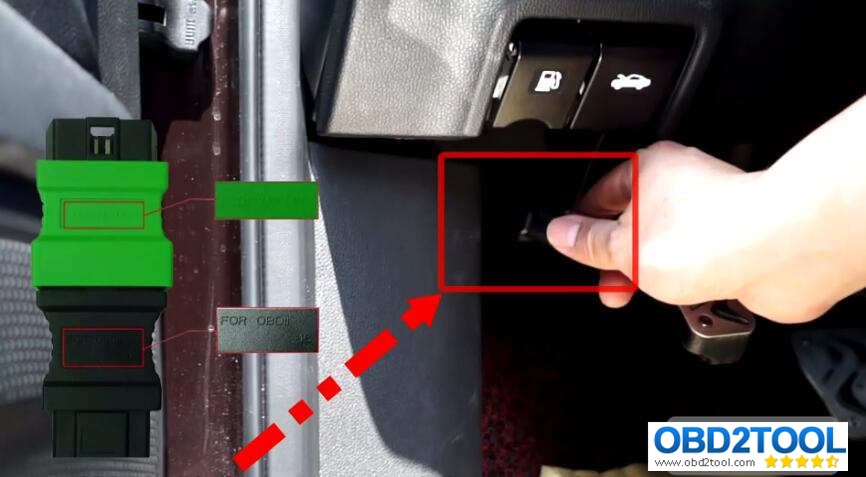

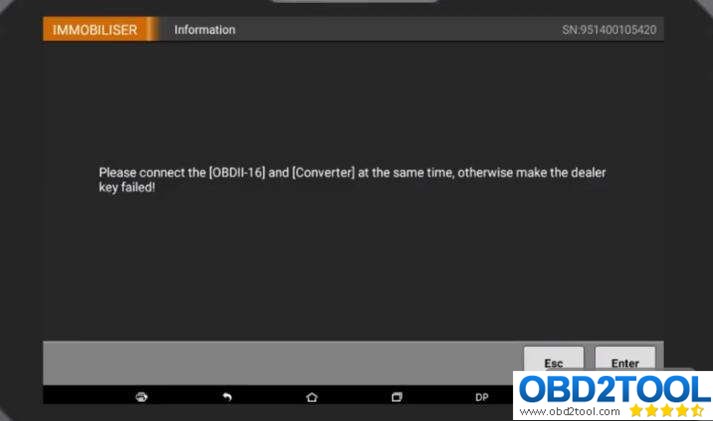

Now connect the [OBDII-16] and [Converter] at the same time,otherwise make the dealer key failed.

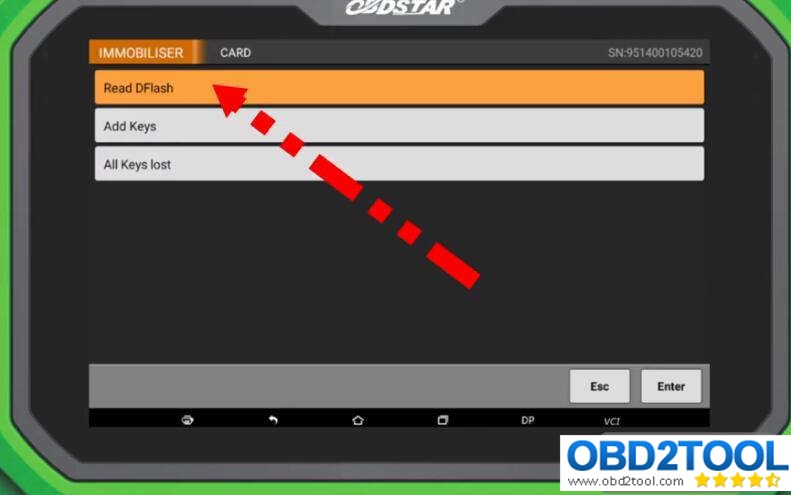

Select “Read DFlash”

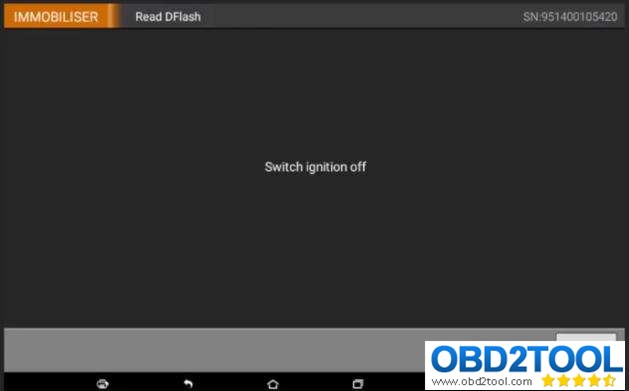

Switch ignition off

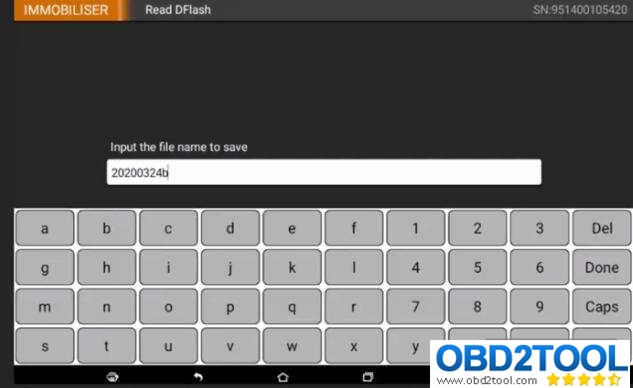

After data reading,please input name to save it

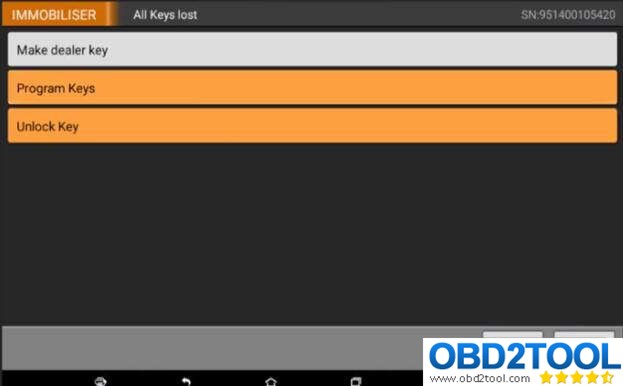

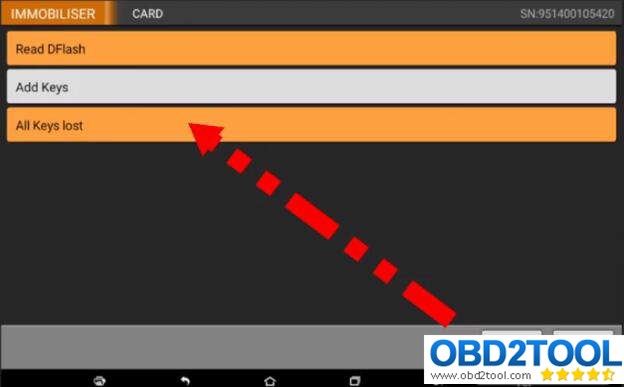

Then back to menu to select “All Key Lost”

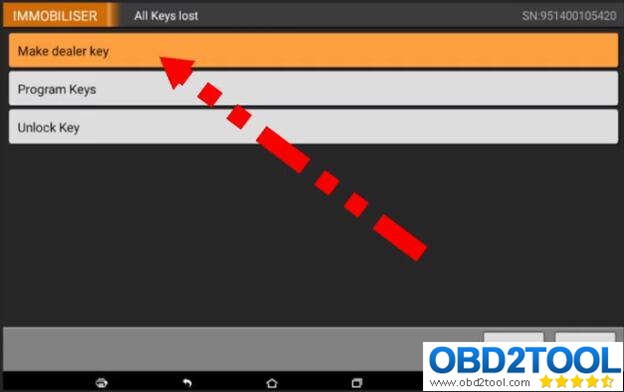

Select “Make dealer key”

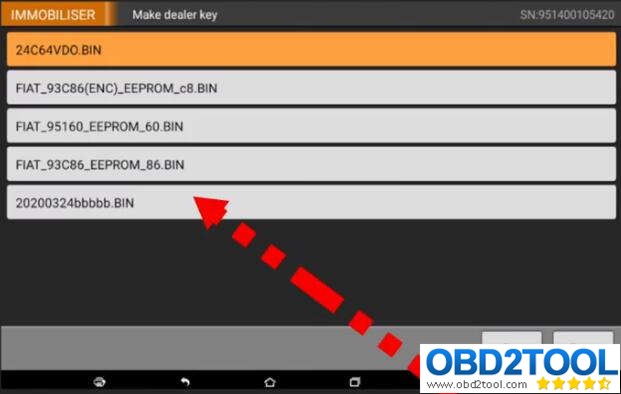

Select the DFlash file you saved before

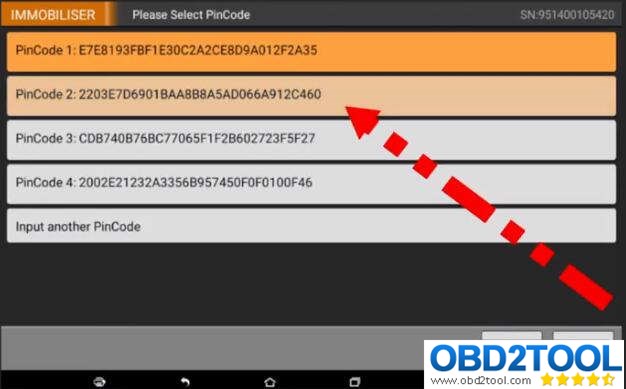

Select “PinCode 2:2203E7D6901BA….”

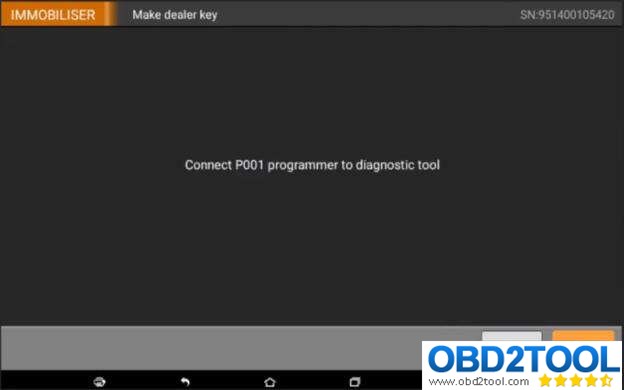

Connect P001 adapter to OBDSTAR X300 Key Master

Put the new key (or key chip) in the P001 programmer

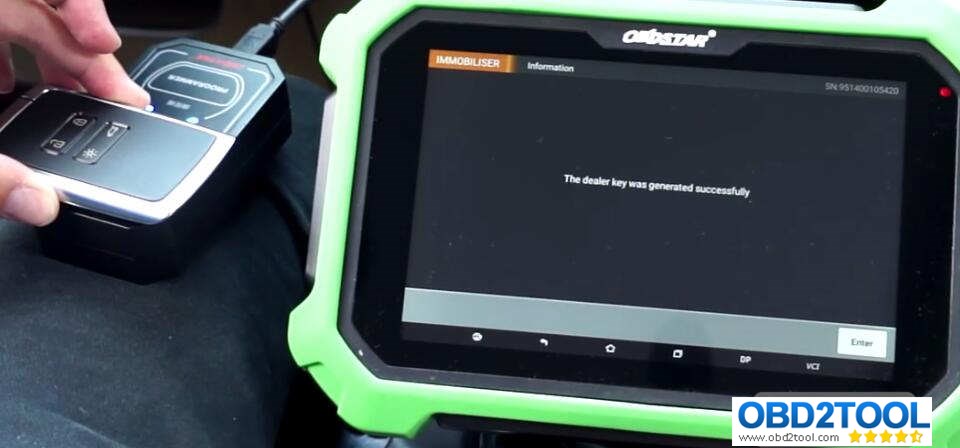

The dealer key was generated successfully

Back to menu to select “Program Keys”

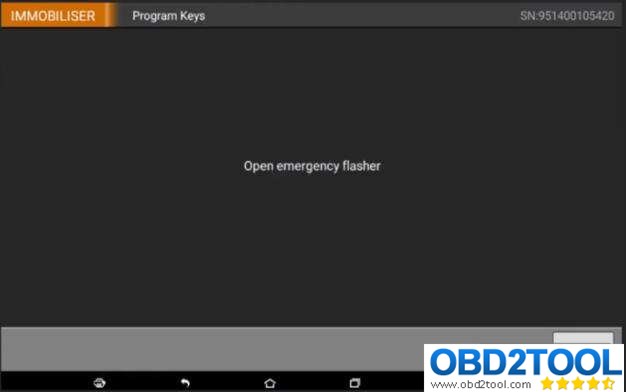

Open emergency flasher

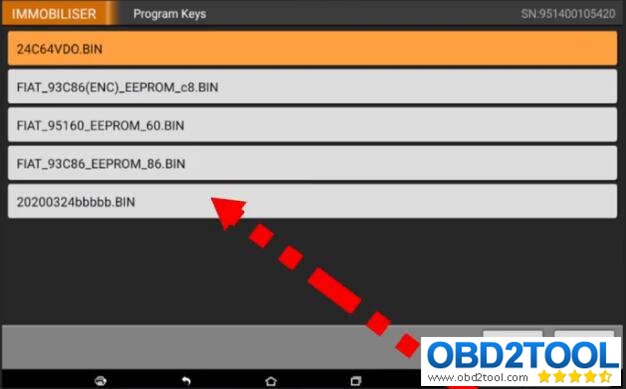

Select “20200324bbbbb.BIN”

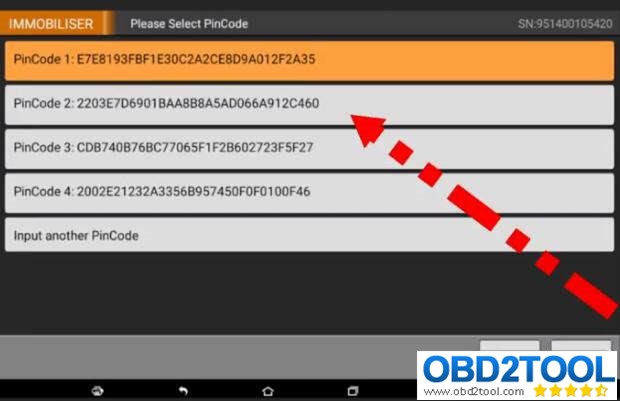

Select “PinCode 2:2203E7D6901BA….”

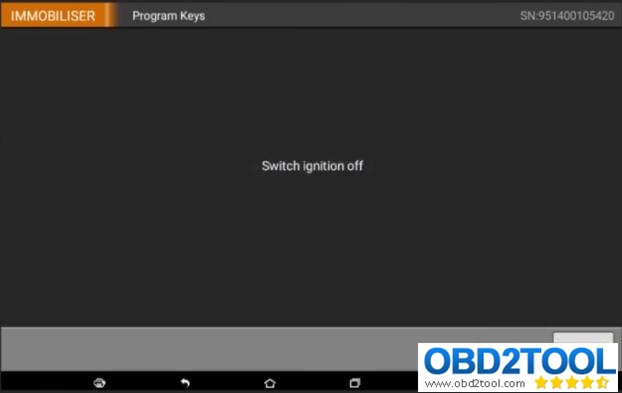

Switch ignition off

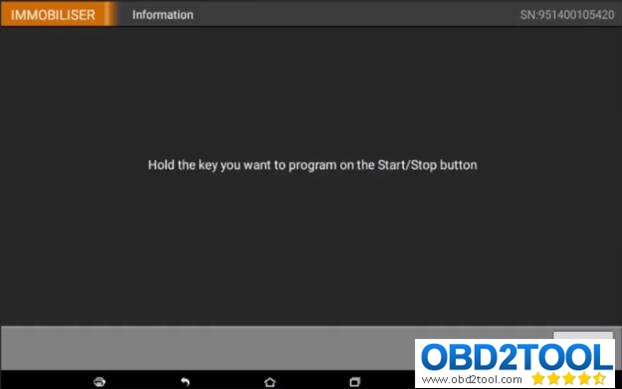

Hold the key you want to program on the Start/Stop button

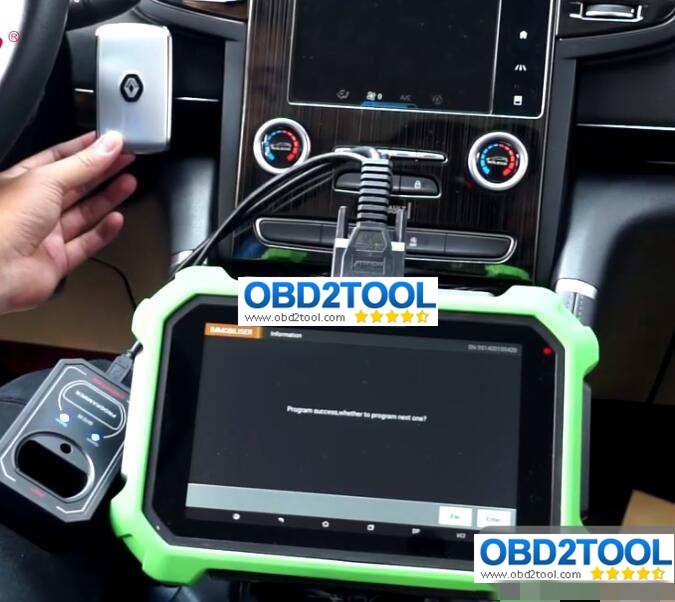

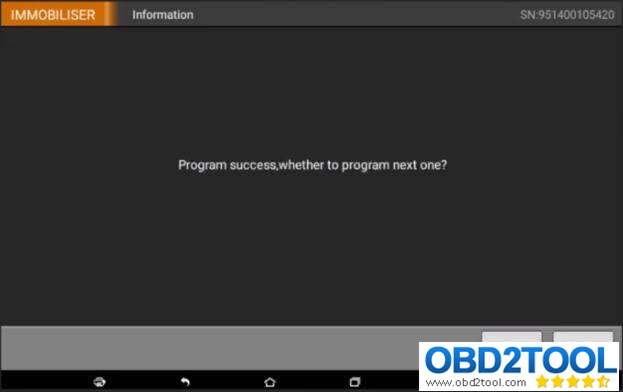

Program success,whether to program next one?

If you need to program next,one just put new key on the Start/Stop button
