If your JCB excavator (e.g., 140 series) displays the fault code C130C-13 – Spool Brake Solenoid Open Circuit, it usually indicates an electrical issue within the spool lock solenoid circuit.
This guide explains the possible causes, diagnostic steps, and effective solutions to resolve the problem.
⚠️ What Does C130C-13 Mean?
The C130C-13 fault code points to an open circuit condition in the spool brake (spool lock) solenoid system. This means the ECU cannot detect proper electrical continuity in the circuit.
🔍 Possible Causes
- Faulty spool lock solenoid coil (internal damage or burnout)
- Disconnected or damaged wiring harness
- Loose or corroded electrical connectors
🛠️ Diagnosis Steps
1. Check Solenoid Coil Resistance
Use a multimeter to measure the resistance of the spool lock solenoid coil.
- Expected value: 37Ω (Ohms)
- If the reading is significantly higher, lower, or infinite → the solenoid is faulty
2. Inspect Wiring Harness

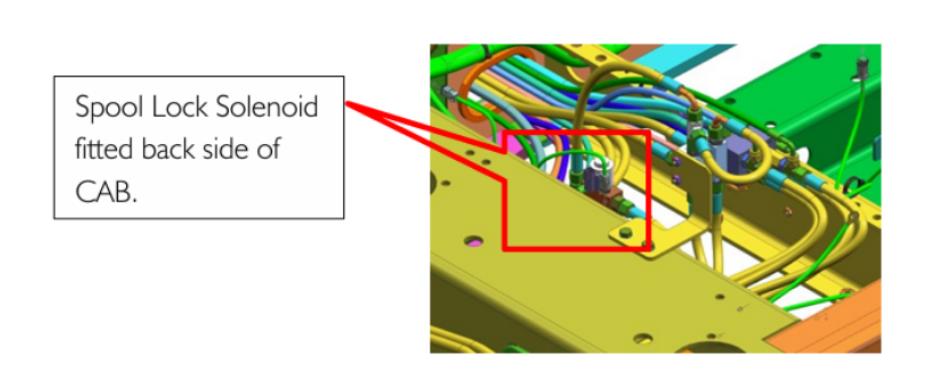

- Check the connection between the spool lock solenoid and the main machine wiring harness
- Look for:
- Loose connectors
- Broken wires
- Corrosion or poor contact
✅ Corrective Actions
✔️ Replace the Solenoid Coil
If resistance is out of specification:
- Replace the faulty spool lock solenoid coil with a new unit
✔️ Repair or Replace Wiring Harness
If wiring issues are found:
- Repair damaged wires or connectors
- Replace the wiring harness if necessary
⚠️ Important Tips
- Always disconnect power before testing electrical components
- Ensure all connectors are clean and securely fastened
- Use OEM-quality replacement parts for reliability
