Mercedes-Benz SCN coding is a secure programming and configuration process used when certain electronic control units are replaced, updated, or adapted to a vehicle.
SCN stands for Software Calibration Number. The process confirms that the software, coding data, vehicle configuration, and control unit are compatible with the vehicle’s VIN and installed equipment.
Unlike a standard diagnostic scan, SCN coding normally requires compatible Mercedes-Benz diagnostic software, authorized online access, a stable vehicle connection, and a technician who understands module programming and post-coding adaptations.
Quick Answer
Choose a Mercedes SCN coding service that offers:
- Authorized XENTRY or DAS access
- A supported Mercedes diagnostic interface
- VIN and part-number compatibility checks
- Stable battery support during programming
- Pre-coding fault scans and configuration backups
- Post-coding adaptations and functional testing
- Clear records of the completed work
Avoid providers that promise universal offline SCN coding, skip compatibility checks, or claim that a basic OBD2 scanner can fully commission replacement Mercedes-Benz control units.
What Is SCN Coding on a Mercedes-Benz?
SCN coding is used to configure an electronic control unit according to the vehicle’s factory specifications.

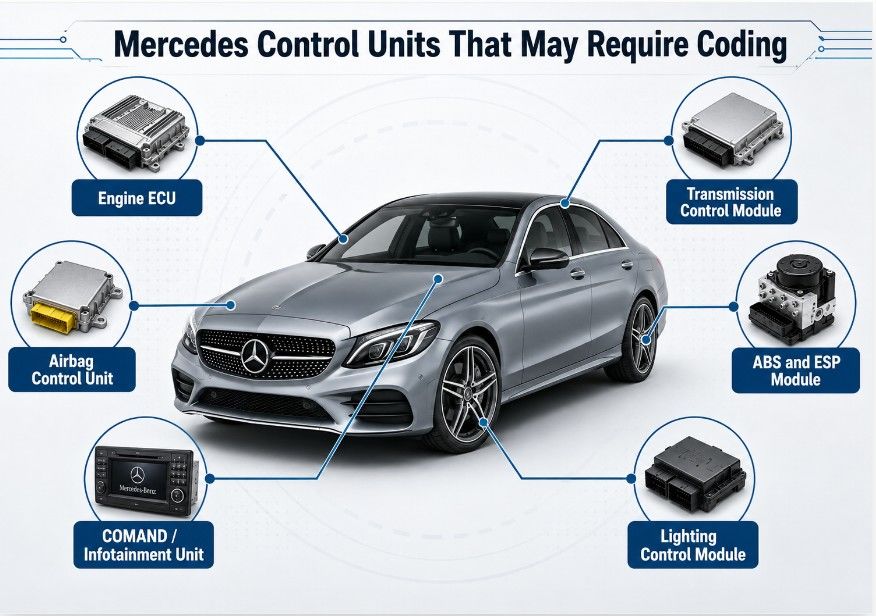

A modern Mercedes-Benz contains numerous control modules for systems such as:
- Engine management
- Automatic transmission
- Airbags and occupant protection
- ABS and electronic stability control
- Infotainment and COMAND
- Climate control
- Lighting
- Driver-assistance systems
- Electronic ignition and access systems
When a programmable module is replaced, or its software is updated, it may need to be coded with vehicle-specific data before it can operate correctly.

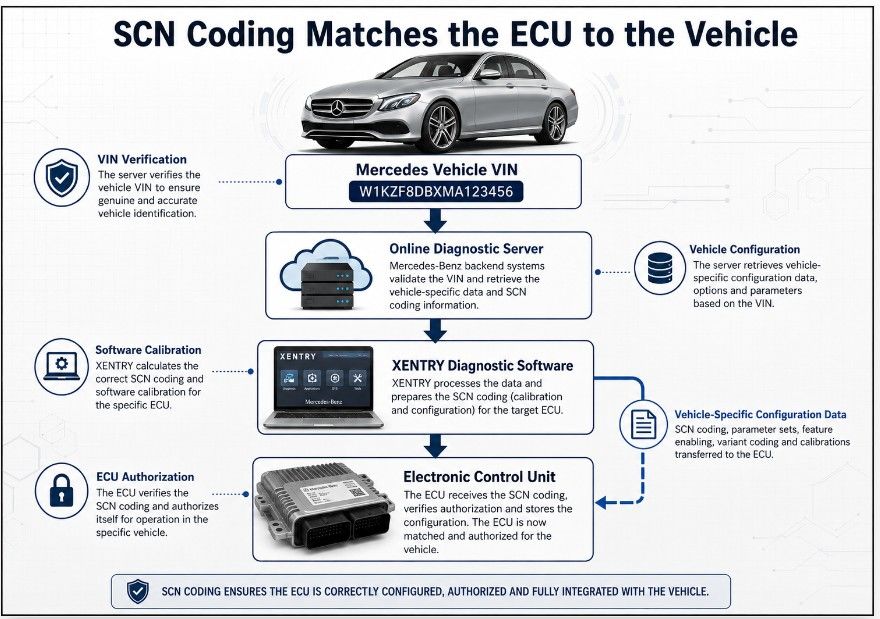

SCN coding helps ensure that the module’s software and configuration match the vehicle’s:
- VIN
- Model and production date
- Engine and transmission
- Installed options
- Emissions configuration
- Regional specifications
- Safety-system equipment
A replacement module may remain inactive, store configuration faults, or operate incorrectly until the required coding and adaptation procedures are completed.
When Is Mercedes SCN Coding Required?
SCN coding may be required after:
- Replacing an engine control unit
- Replacing a transmission control module
- Installing certain airbag, ABS, or stability-control modules
- Replacing an infotainment or COMAND unit
- Updating control-unit software
- Retrofitting compatible factory equipment
- Recovering a module after an interrupted programming session
- Correcting control-unit configuration faults
Not every sensor, actuator, or electrical repair requires SCN coding. The technician should first identify the affected module and confirm the correct Mercedes-Benz repair procedure.

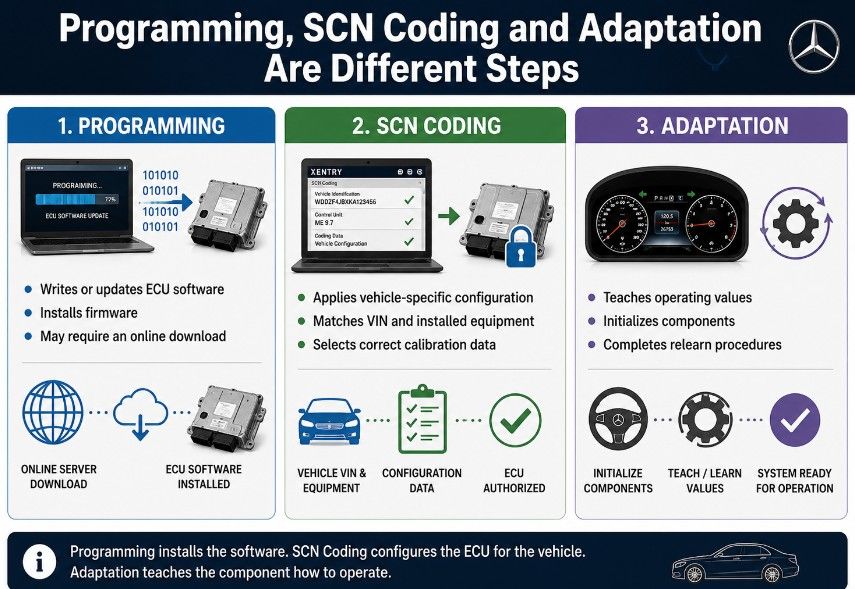

Is SCN Coding the Same as ECU Programming?
No. The terms are related but do not always describe the same process.
ECU programming or flashing
Programming writes or updates the software installed in the control unit.
SCN coding
SCN coding applies the correct vehicle-specific configuration and calibration data.
Adaptation or initialization
Adaptation teaches the vehicle or module values required for normal operation. Examples may include transmission adaptations, steering-angle calibration, window initialization, or component teach-in procedures.
A module replacement may require programming, SCN coding, initialization, and final testing. Completing only one step may not finish the repair.

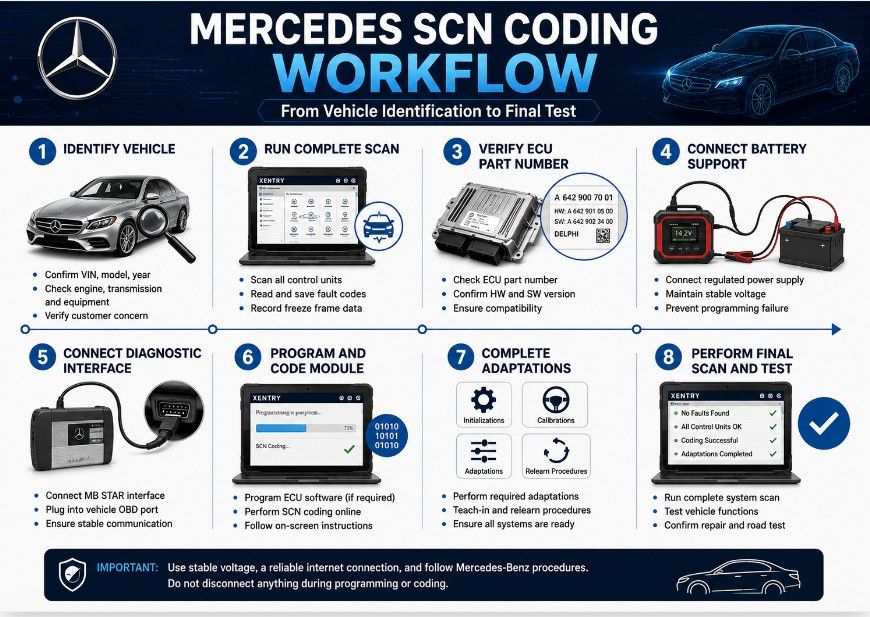

How Mercedes SCN Coding Works
The exact process depends on the vehicle, module, model year, and diagnostic platform. A professional workflow normally includes the following steps.
1. Identify the vehicle and affected module
The technician confirms the VIN, model, production date, engine, transmission, and installed equipment.
2. Run a complete diagnostic scan
Existing and stored fault codes are recorded before programming begins. This helps distinguish the original problem from faults created during replacement or coding.
3. Verify the replacement part
The replacement control unit’s part number, hardware version, and software compatibility are checked against the vehicle.
A physically similar module is not necessarily compatible.

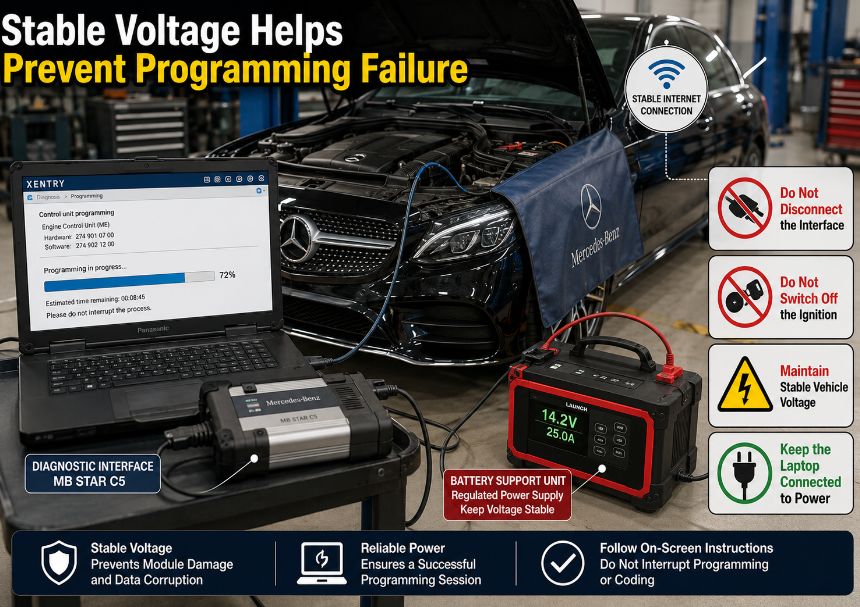

4. Stabilize vehicle voltage
A regulated battery support unit should be connected before programming or coding. Low or unstable voltage can interrupt communication and damage a control unit.
5. Connect the diagnostic system
The technician connects compatible Mercedes-Benz diagnostic software and a supported vehicle communication interface.
6. Perform programming and coding
The software identifies the required coding or software data and completes the applicable online procedure.
7. Complete adaptations
The system may request teach-in, initialization, calibration, or relearning procedures after coding.
8. Perform final testing
The technician clears temporary faults, rescans the vehicle, tests the affected system, and confirms that no relevant warning messages remain.
How to Choose a Mercedes SCN Coding Service
A reliable service provider should be able to explain the complete process before beginning work.
Confirm diagnostic-system access
Ask whether the provider uses authorized Mercedes-Benz diagnostic access for the vehicle and module involved.
The technician should not describe standard variant coding, fault-code clearing, or EEPROM editing as official SCN coding.
Check interface compatibility
The provider should use a stable, supported Mercedes-Benz communication interface suitable for the vehicle.
Older vehicles may use DAS procedures, while newer vehicles are generally serviced through XENTRY workflows.
Verify experience with the specific module.
A technician who regularly codes engine modules may not have the same experience with airbags, transmissions, infotainment systems, or advanced driver-assistance modules.
Ask whether the provider has previously completed the same type of repair.
Require a compatibility check.
Before purchasing or installing a replacement module, provide:
- Full VIN
- Vehicle model and year
- Original module part number
- Replacement module part number
- Clear photographs of both labels
- Current diagnostic fault codes
- A description of the original problem
This information helps prevent purchasing an incompatible control unit.
Ask about battery support.
A stable programming power supply is essential. A normal battery charger may not provide sufficiently regulated voltage for a long programming session.
Confirm backup procedures
Where supported, the technician should record or save:
- Original coding data
- Control-unit identification
- Existing fault codes
- Software and hardware numbers
- Adaptation values
- Vehicle configuration information
Backups do not guarantee that every failed programming session can be recovered, but they provide useful service records.
Ask what happens after coding.
The quoted service should clarify whether it includes:
- Programming
- SCN coding
- Variant coding
- Module initialization
- Adaptation procedures
- Fault-code clearing
- Functional testing
- Road testing when required
A low quote may cover only the coding step and exclude the additional work needed to complete the repair.
SCN Coding Service Options
Authorized Mercedes-Benz dealer
A dealership is often the preferred option for vehicles under warranty, safety-critical control units, complex software campaigns, and cases requiring direct manufacturer support.
Advantages:
- Manufacturer-supported procedures
- Access to current repair information
- Suitable for warranty-related repairs
- Strong support for complex programming cases
Possible limitations:
- Higher labor cost
- Policies may restrict the use of customer-supplied or used modules.
- Appointment availability may vary.
Qualified independent Mercedes specialist
A professional independent workshop may offer authorized diagnostic access and Mercedes-specific programming experience.
Advantages:
- Potentially lower labor cost
- More flexibility with older vehicles
- Direct communication with the technician
- Experience with module replacement and retrofit work
Questions to ask:
- Is the diagnostic access current and authorized?
- Is the replacement part compatible?
- Are programming and adaptations included?
- Will the vehicle receive a final diagnostic report?
Third-party diagnostic and engineering tools
Tools such as advanced programmers or engineering applications may support diagnostics, backup, variant coding, bench work, or specialized repair procedures.
However, these functions should not automatically be described as official online SCN coding.
They may supplement a professional workflow, but their capabilities vary by module, vehicle, software version, and technician experience.
Can a Used Mercedes Control Unit Be SCN Coded?
Sometimes, but not always.
A used control unit may contain the previous vehicle’s VIN, coding data, personalization information, security data, or immobilizer-related information.
Depending on the module, successful installation may require:
- Resetting or preparing the used module
- Transferring data from the original module
- Programming compatible software
- SCN coding
- Variant coding
- Immobilizer or component personalization
- Additional adaptations
Some security-related modules may have restrictions that prevent straightforward reuse.
Always confirm compatibility and available procedures before purchasing a used control unit.
Warning Signs to Avoid
Be cautious when a provider:
- Promises universal offline SCN coding
- Does not request the VIN or module part number
- Claims any replacement ECU will work
- Uses only a generic OBD2 scanner
- Does not connect battery support
- Cannot explain post-coding adaptations
- Guarantees every used module can be reused
- Offers no diagnostic scan before or after the service
- Cannot provide a record of the completed work
- Advises disconnecting the interface during programming
These warning signs increase the risk of incomplete coding, communication failure, incorrect configuration, or control-unit damage.
Mercedes SCN Coding Cost
SCN coding prices vary according to:
- Vehicle model and year
- Type of control unit
- Whether the module is new or used
- Required software updates
- Number of modules involved
- Need for online authorization.
- Additional initialization or adaptation procedures
- Recovery work after a failed programming attempt
- Local labor rates
Request an itemized quotation showing whether the price includes programming, SCN coding, adaptations, testing, and diagnostic reports.
The cheapest service is not necessarily the lowest-cost repair if the vehicle later requires additional recovery work.
Preparing the Vehicle for SCN Coding
Before the appointment:
- Confirm that the replacement module is compatible.
- Charge and test the vehicle battery.
- Provide the full VIN and module part numbers.
- Record current warning messages and symptoms.
- Inform the technician about previous programming attempts.
- Bring all vehicle keys when security or access systems are involved.
- Remove unnecessary aftermarket electrical accessories when advised.
- Ensure the vehicle can remain connected to stable power and internet throughout the procedure.
Do not disconnect the battery, diagnostic interface, laptop, or internet connection while programming is in progress unless instructed by the diagnostic software.
What Should Be Checked After SCN Coding?
After the service, confirm that the technician has:
- Completed a full vehicle scan
- Cleared programming-related temporary faults
- Verified control-unit identification
- Completed required adaptations
- Tested the affected system
- Checked warning lights and instrument messages
- Confirmed communication with related modules
- Performed a road test when appropriate
- Provided a record of the repair
For engine and transmission modules, post-coding evaluation may also include live data, operating temperature, shift quality, fault-code status, and adaptation results.
Safety and Legal Considerations
Incorrect coding can affect safety, security, emissions, and vehicle operation.
Particular care is required when working with:
- Airbag and restraint systems
- ABS and stability-control systems
- Engine and emissions controls
- Transmission control units
- Electronic ignition systems
- Immobilizer and anti-theft modules
- Driver-assistance systems
Use qualified technicians and follow applicable manufacturer procedures and local regulations.
Coding should not be used to bypass emissions systems, theft protection, safety functions, mileage records, or regulatory requirements.
Recommended Mercedes Diagnostic Tools
For Mercedes-Benz diagnostics, ECU programming, coding, and adaptation, explore compatible MB Star C4, C5, C6, and newer diagnostic solutions. Check vehicle, interface, software, and online-access requirements before ordering. Actual online SCN coding requires valid authorized access and is not provided by the diagnostic interface alone.
Send your VIN, model, production year, and required function for a compatibility check before purchase.
Frequently Asked Questions
What does SCN mean on a Mercedes-Benz?
SCN means Software Calibration Number. It relates to the vehicle-specific software and configuration data used when programming or coding certain Mercedes-Benz control units.
Does every Mercedes ECU replacement need SCN coding?
No. Requirements vary by module, vehicle, and repair procedure. Many major programmable control units require coding, programming, personalization, or adaptation, but simple sensors and actuators normally do not.
Can I perform Mercedes SCN coding myself?
SCN coding generally requires compatible Mercedes-Benz diagnostic software, appropriate access credentials, a supported communication interface, stable battery support, and technical knowledge. It is not the same as using a consumer OBD2 scanner.
Can SCN coding be performed remotely?
Some providers can operate diagnostic software remotely, but a compatible interface must still be physically connected to the vehicle. The vehicle also needs stable voltage, reliable internet, and someone present to follow instructions.
Can an offline tool replace online SCN coding?
Offline tools may support certain coding, backup, repair, or engineering functions. They should not automatically be considered a replacement for an authorized online SCN procedure.
Is SCN coding required after battery replacement?
A normal battery replacement does not usually require SCN coding. However, battery registration, system initialization, or fault clearing may be required on some vehicles.
How long does SCN coding take?
The time depends on the vehicle, module, software download, internet connection, and required adaptations. A simple coding operation may be relatively quick, while a complete module replacement and software update can take longer.
Can failed SCN coding damage a control unit?
An interrupted or incorrect programming session can leave a control unit unresponsive or incorrectly configured. Stable voltage, reliable communication, compatible parts, and correct procedures reduce this risk.
Conclusion
Mercedes SCN coding is a vehicle-specific control-unit configuration process, not a simple fault-code reset or feature upgrade.
When choosing a service, prioritize authorized diagnostic access, correct module compatibility, stable programming voltage, experienced technicians, complete adaptations, and post-coding testing.
Before buying a replacement ECU, provide the VIN and original part number to a qualified Mercedes-Benz specialist. Confirming compatibility before installation can prevent unnecessary coding costs, failed programming sessions, and unusable replacement modules.
