    Original Launch X-631+ Wheel Aligner with 8-CCD Sensor

    • Item No.  IC026
    • History: 166  sold
    • Market Price: US$5,496.00
      Shop Price: US$4,580.00You save US$916.00
      Express Shipping Service    Estimated delivery time: 3-5 days »
      Affected by the epidemic, there will be delays in transit time.
    • Quantity:  Out of stock
    • Weight:  380.0KG
    • Rank:  comment rank 5 () Write a Review

    • Member Benefits  Shipping  Return Policy




    Technical Support


    Original Launch X631+ Wheel Aligner

    Language: English

    X631+ Wheel Aligner Description:
    Fast, simple, profitable, the 8-CCD sensor Wheel Aligner from Launch, wireless data transfer with Bluetooth technology or 433 MHz radio module.
    Professional, Reliable, Affordable
    Professional: 20 degree CCD Camera
    6 meter wheel base
    8 toe sensors
    Fast radio data transfer
    Time saving features:
    Standard measurement
    Fast test, short overview of toe, camber, thrust angle in a second
    Additional test, for accident cars
    Lower car function, no need for lowering clamps
    Customer defined car data base
    Reliable: Solid constructions of sensor heads
    Water protected
    Standard batteries
    Standard high quality Pc
    Self centring clamps, optional adapters for Aluminium rims available
    Cable free measurement, removes hassle for broken cables
    Affordable: Unbeatable price / performance ratio
    Designed for long time use

    Target customer:
    Car manufacturer workshops, Independent Workshop or tire service shop with a high amount of wheel alignments.
    Professional, reliable and affordable equipment is needed.
    X-631,the wheel alignment system for passenger cars and light trucks up to 6m wheel base measurement.
    Wheel Alignment measurement is done with 8 CCD Cameras, 4 camber inclinometer, 4 KPI inclinometer and fast 433 MHz radio data transfer between sensor heads and cabinet. The 20 degree CCD camera technology allows precise wireless measurement.
    The robust aluminium casting frame guarantees the precise measurement for long time. The batteries are capable for one day working without recharging.
    The software, a complete bundle of programme and target data, is easy to use and contain nearly all kind of cars worldwide.
    All this together makes this wheel aligner X-631, to one of the best product worldwide.

     * Complete test: The X-631 Wheel Aligner can be used to measure the most wheel alignment parameters, such as front wheel toe-in, front wheel camber, caster, Kingpin inclination, rear wheel toe-in, rear wheel camber, thrust angle, wheelbase difference, tread difference, axle offset, front wheel setback and rear wheel setback, etc.
    * Complete databank: wheel alignment data of over 10,000 vehicle models is stored in the system. User can also add new data to the databank.
    * Kingpin and camber adjustment real time display function.
    * HELP information for vehicle adjustment.
    * Language operating prompt function.
    * Emergency power supply and in-time charging function.
    * The probe rods provide LCD display function.
    * Electronic level function.
    * Black box self-diagnosis function.
    * Front and rear probe rods interchangeable.
    * Special test for Mercedes-Benz and BMW vehicles.

    X631+ Wheel Aligner Features:
    * Infrared 8-beam and 16-sensor loop measurement, accurate and stable.
    * Newly developed CCD signal processing technology, nearly uninfluenced by the strong sunlight.
    * Complete system upgrading function.
    * Unique voice prompt function and visualized animation, very easy to understand.
    * Trustworthy operating system to give more convenient and safe operations.
    * Keyboard quick switch operation.
    * Both special version and common version are provided for user to select.
    * Both normal version and demonstration version are provided to make user's training more convenient and quick.
    * Large capacity (4000mAh) Lithium battery with low power consumption and dormancy mode of design.
    * Camber, toe-in, battery electricity quantity, charging status and electronic level, etc. can be real-time displayed by LCD.
    * In-block type of casting Aluminum alloy probe rods can strongly guarantee the stability and the test precision of the product.

    Item Range
    Front total toe-in ±40
    Front toe-in ±20
    Front camber ±8.0
    Caster ±20
    Kingpin inclination ±20
    Rear total toe-in ±40
    Rear toe-in ±20
    Rear camber ±8.0
    Thrust angle ±5.0

    X631+ a set of two
    710*770*1375, 85KG
    1230*935*755, 151KG

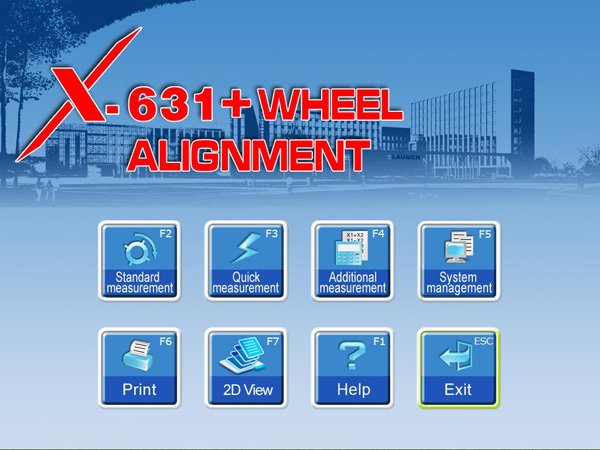

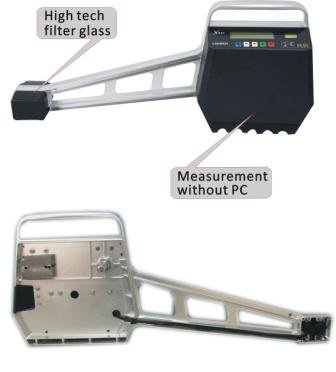

    Launch X631+ Wheel Aligner related pictures:
