    PS2 professional diagnostic tool Truck + Car

    • Item No.  A220
    • History: 162  sold
    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
    • Quantity:  Out of stock
    • Weight:  10.0KG
    • Rank:  comment rank 4 () Write a Review
      Rated 4/5 based on 1 customer reviews
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video

    Download & Technical Support

    PS2 professional diagnostic tool Truck + Car





    Product Info
    SUPPORTS OVER 10 KINDS OF DIESEL TRUCK MODELS, INCLUDE VOLVO, SCANIA, MAN, MERCEDES BENZ, ISUZU, MACK, CUMMINS, HINO, DAF, HYUNDAI, IVECO,FUSO,ERF,ASTRA, BREMACH ETC   Product Attribute  SUPPORTS BOTH BLUETOOTHAND DIRECT PLUGIN DIAGNOSIS;

    Product Parameters
    1. operating system: WINCE 5.0 operating platforms
    2. CPU: SAMSUNG 32 bits processors, basic frequency is 400MHZ random memory: SDRAM 64M
    3.programming memory: FLASH 64M ,supports SD card slot-in and slot-out
    4.mainframe battery: rechargeable battery3500m/Ah
    5.mainframe power supply: DC12V/24V
    6.mainframe power: 25W
    7.printer: Mini high-speed thermal sensitive printer
    8.screen: 8 inches real-color touch-screens, 800×600 with LED back-light
    9.relative humidity: <90%, temperature: -20-50
    10.wireless communication: blue-teeth

    Product data
    Information about PS2 heavy duty:
    SUPPORTS BOTH BLUETOOTH AND DIRECT PLUGIN DIAGNOSIS;
    SUPPORTS OVER 10 KINDS OF DIESEL TRUCK MODELS, INCLUDE VOLVO, SCANIA, MAN, MERCEDES BENZ, ISUZU, MACK, CUMMINS, HINO, DAF, HYUNDAI,  IVECO, FUSO,ERF,ASTRA, BREMACH ETC;
    FUTURE UPDATES: NISSAN UD, RENAULT,SINOTRUCK. ALL COMING SOON !
    A DETAILED FUNCTION LIST CAN BE DOWNLOADED HERE
    ALTERNATIVELY, YOU MAY ASK ONE OF OUR SALES TEAM MEMBERS

    Illustration of PS2 main unit
    A. Front-View
    B. Back- view
    C. Illustration of the various connect points on top of the main unit:
    Power switch: For powering the main unit on and off
    USB connection: Used for connecting to a laptop or pc to view data
    VGA connection: Used for connecting to an external monitor (800×600 pixels)
    Main port connection: Connects main unit to vehicle diagnostic port
    power connection: Used for an external power supply
    Touch screen pen: Used for touch screen


    D. Illustration of the various connect points on bottom of the main unit:
    serial port: Uses in the main body debugging.
    SD card slot: uses for SD card
    paper outlet: use for mini printer


    E.  Function of VCI diagnostic box:
    The VCI box communicates with PS2 mainframe and vehicle. It is also called lower-position machine box. This diagnostic box has two connections: DB15 and OBD II. The main testing line connects PS2 mainframe with DB15. The OBDII connection could link with the testing adapter (vehicle with OBDII adaptor could directly link with PS2 mainframe)
    PS2 mainframe with no main testing line also can do diagnosis as the bluetooth communication module has been installed into the VCI diagnosis box. Please change the setting from “on-line diagnosis” to the “wireless diagnosis” on the menu if you are wondering to use it with wireless!


    F.   Using the multi-jumper box
    Tip: If you use the OBD testing connectors for direct connection, can only detect the standard diagnostic connector pin out on the connected system (pin 7 for ISO diagnosis, pins 2 and 10 for SAE diagnosis, 6 and 14 pins for the CAN diagnosis). This is usually the engine control system, some cases may find other systems. All diagnostic criteria did not take out the plug pins on the OBD system must use the test connection with the million a jumper box to the jumper connection test. In the use of million a jumper box to the jumper connection test, click on that connection as follows:
    the multi-jumper box with cables
    Ground
    power lines
    signal lines

    note of the side hole on multi-jumper box , it is visible on the label place of the box back

    PS2 technical parameters:
    operating system: WINCE 5.0 operating platforms
    CPU: SAMSUNG 32 bits processors, basic frequency is 400MHZ random memory: SDRAM 64M
    programming memory: FLASH 64M ,supports SD card slot-in and slot-out
    mainframe battery: rechargeable battery3500m/Ah
    mainframe power supply: DC12V/24V
    mainframe power: 25W
    printer: Mini high-speed thermal sensitive printer
    screen: 8 inches real-color touch-screens, 800×600 with LED back-light
    relative humidity: <90%, temperature: -20-50
    wireless communication: blue-teeth


    Package parameters:

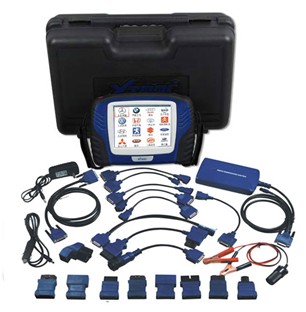

    machine composition: mainframe with SD card, touching pen, testing adapters, group of lines, SD card adaptor, operation manual and outside suitcase
    overall size: 305.2×215.2×85mm
    weight: 9.5KG
