CR803 JOBDII Code Reader

AUTOSNAP®  CR803 JOBD Code Scanner a handheld device to diagnose your vehicle. It supports all OBDII/EOBD & JOBD compliant vehicles to enable car owner or technicians to accurately diagnose engine problems. This code scanner has a simple and robust design, to make your vehicle service experience much easier!

Features
1.Works on all after 1996 OBD II compliant US, European and Asian vehicles
2.Support all JOBD protocols of Japanese vehicles
3.Easily determines the cause of the Check Engine Light (MIL)
4.Turn off Check Engine Light (MIL) and clear codes
5.Software upgradeable via standard USB cable
6.Supports CAN (Controller Area Network), all other current JOBD and OBDII/EOBD protocols and with reading and clearing DTC:
TOYOTA    HONDA    DAIHATSU    MITSUBISHI    MAZDA    NISSAN   SUZUKI    SUBARU   OBDII/EOBDII

Specifications
· Display: Backlit, 160x160 pixel
· Operating Temperature: 0 C to 60°C (32 to 140F°)
· Power: 10 to 15 volts provided via vehicle battery
· Dimensions:  Length  191 mm   Width   93 mm   Height  29 mm

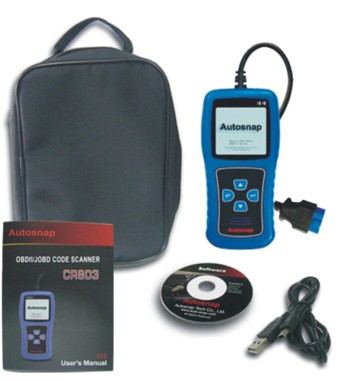

Contents
· Main Unit
· User's Manual
· CD Software
· USB Cable
· Carry Case

Packaging Standard

Item Name	Description
Unit Packing Size	191mmx 93mm x 29mm (L*W*H)
Unit Packing Weight	0.7 kg
Large Packing Box Size	450mmx 370mm x 410mm (L*W*H)
Large Packing Box	20 pcs
