Introduction

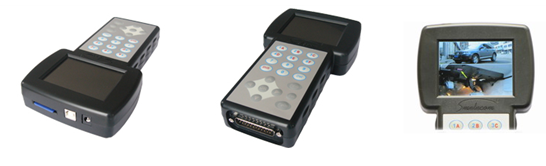

DATA SMART3+ is a hand-held multi-function programmer for digital odometers, airbag modules, car radios and car immobilizers.
Powered by two CORTEX ARM cores, speeds up to 200MHZ., With SD card interface to load and save files, USB port for update by
the Internet, 320*240 TFT LCD with 256K colors to show pictures and help files in great detail. Integrated CAN-BUS / J1850 /
CCD-BUS / ISO9141 / SPI protocols in one multifunctional interface.


Advanced Characteristics
Self-test function integrated within the system.
Advanced operation environment, by extended menu and picture guidance.
Integrated data backup function to enable safe working procedure s.
Log-file function integrated in to soft ware ; this will be a step forward in the tools operation and development.
Hex editor integrated in to software.
Advanced security integrated into hardware.


Immo full package
Immo full package: Main hardware,Transponder adapter, OBD cables, USB cable, Power cables, with full soft.
software: OBD functions for Immo are all active .
Ford / Mazda: Key learning by OBD2 (not need code) for CAN-BUS cars.
4th Generation of VW Immo:
1.Make dealer keys by Megamos48 chip (using transponder adapter).
2.Key learning by OBD2 (not need code , not need online).
3.Cover all VW / SKADA / SEAT cars that use NEC+24C64 or NEC+24C32 or Micronas or 9s12xhz512(1M80F) MCU in dashboard.
4th Generation of AUDI Immo:
1.A6 / Q7
2.A3 / TT / R8 07-UP


Manual for DATA Smart 3+
Data Smart 3+ Vehicle List
