Descriptions for V-checker Smart Trip Computer A603-Trip Computer+GPS+TPMS-Optional



Features:

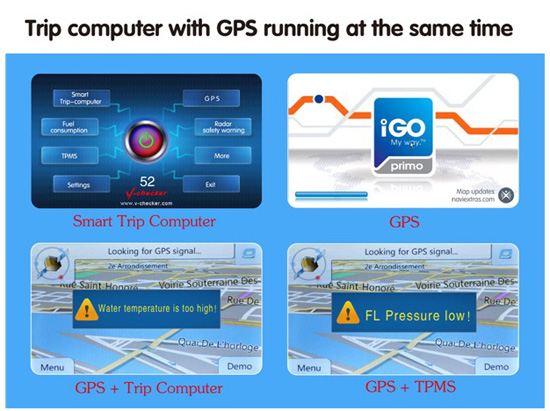

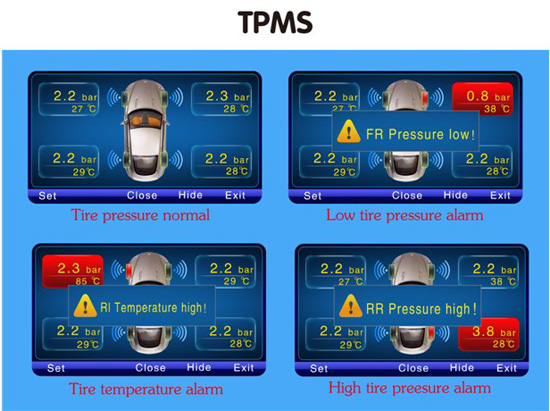

* Trip Computer + GPS Navigator + TPMS (Optional function, plus 129.99USD) + Oil statistics.

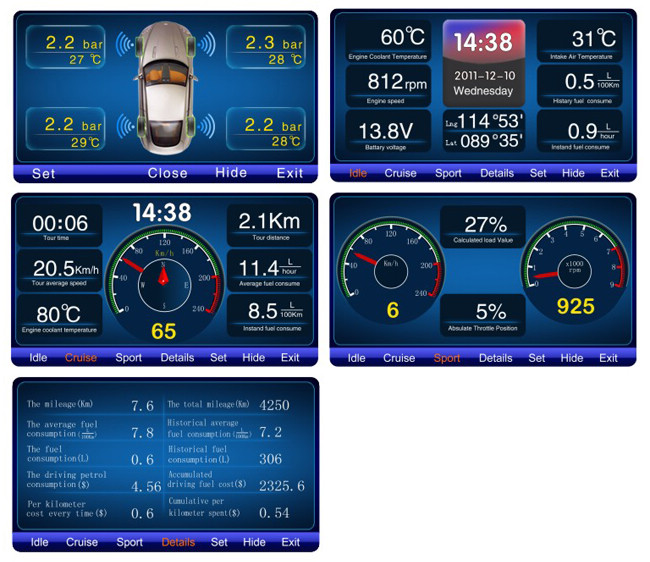

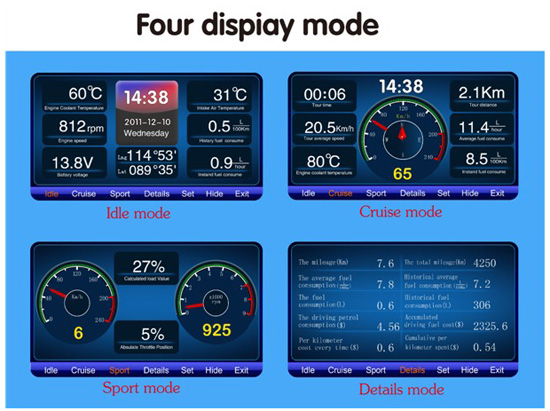

* Four display mode: Ide, Cruise, Sport, Details.

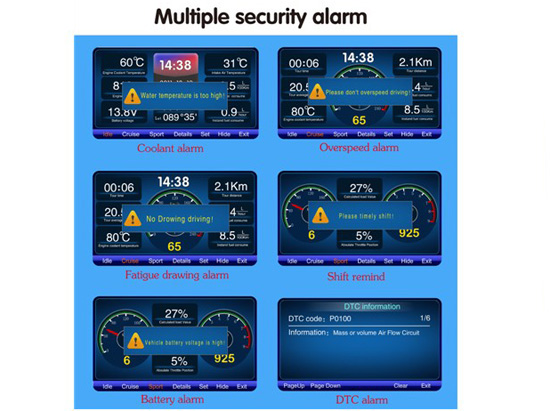

* Multiple security alarm: Trouble code, Water temperature, Fatigue dricing, Over-speed, Shift reminding, Regular maintenance
tips, etc.

* Multiple fault diagnosis: Read DTC, Clear DTC.

* Multiple fuel consumption: Static instant fuel consumption (L/H), Dynamic instant fuel consumption (L/100Km), Average
consumption from cumulative total, etc.

* Real time display vehicle information: Vehicle speed, Instant fuel consumption, Intake air pressure, Acceleration, Coolant
temperature, Oxygen sense voltage, etc.

* Applicable models: all modeles support the OBD standard.

* Language: Chinese, English, Spanish, Germany, etc.

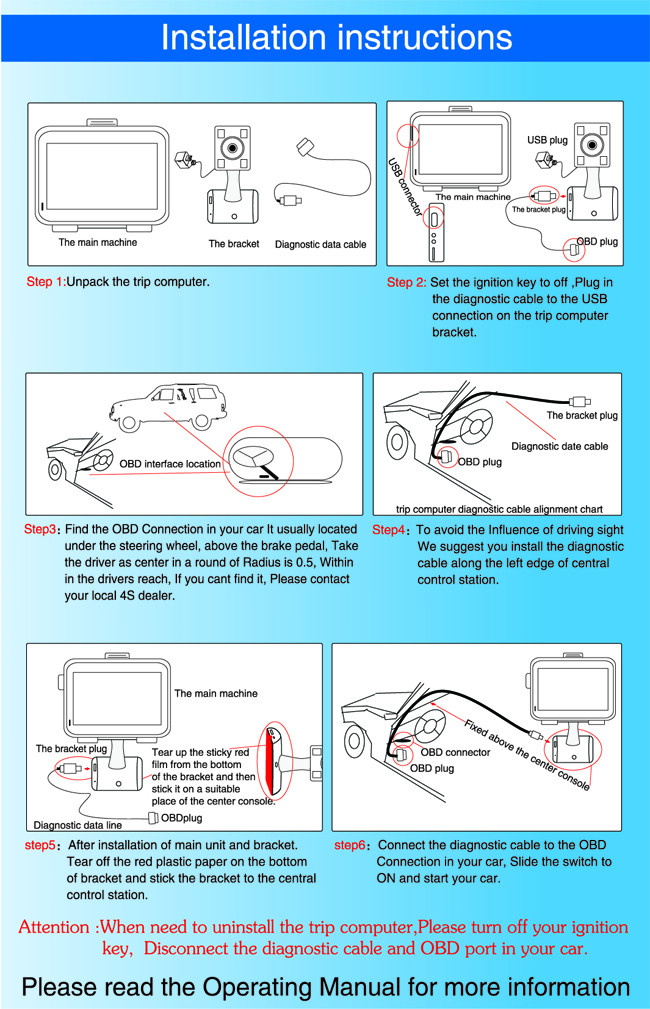

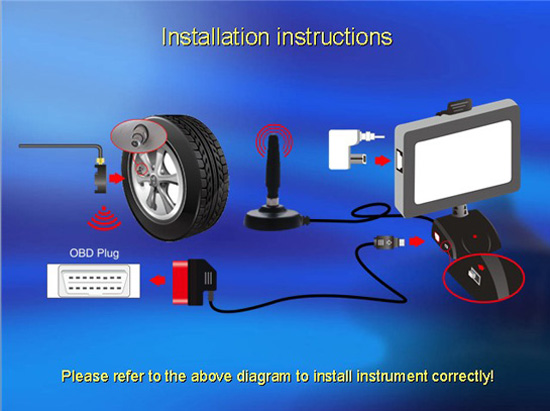

* No need to rewire the original car line, to avoid dismantling the installation, plug and play, easy to use.

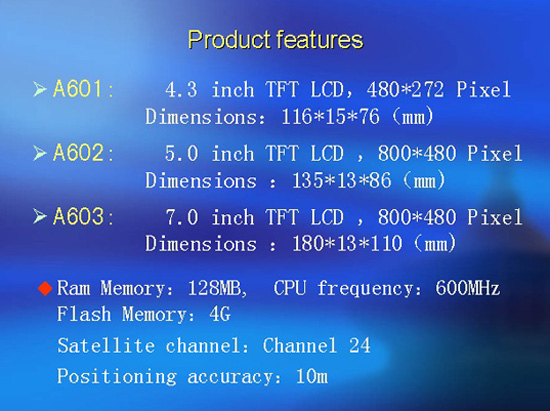

Host specifications:

LCD display: 7.0 inch TFT LCD, 800*480 pixel

OS: Wince. NET 6.0

Dimensions: 116 * 15 * 76 (mm)

GPS modules: high sensitivity receiver antenna

CPU: Mstar Semiconductor ARM9-MSB2521

Atenna sensitivity: -159dBm

CPU frequency: 600MHz

Receiving frequency: 1.5754GHz

Ram Memory: 128MB

Satellite channel: Channel 24

Flash Memory: 4G

Positioning accuracy: 10m

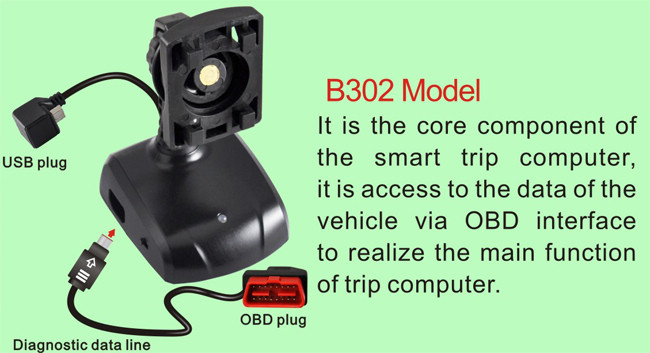

B302 Specifications:

Voltage: 8~36V

Electric Current (Charge status): 600mA

Electric Current (Normal status): 50mA

Standby Power: 0.6W
