Launch X431 GX3 Multi-language diagnostic tool with 110 Softwares

Update methods: Email update
Language: English Only

X431 GX3 Description:

X431 GX3 is a new automotive diagnostic product and designed by LAUNCH with the technology of 'Open Control Platform for Vehicle' representing the highest level of automotive diagnostic technology in the world. It has the function of read DTCs, read datastream, actuation test, sensor waveform display and ECU coding. It's faster to communicate with cars than X-431 by integrated structure to save time in work. It can test most of cars by using the unique 16 PIN connector which integrates the function of all 16 PIN connectors of X-431. 24V operating voltage capability is added to work with different kinds of batteries. It is easier and more conveniet to operate than X-431 based on the smart design.

Launch X431 GX3 Function:

read DTCs,read datastream, actuation test, sensor waveform display and ECU coding

Launch GX3 Specification:

 1.Features

1)Inherited with all diagnosis function of X-431
2)Faster communication with cars than X-431 by integrated design to save time in work
3)All inclusive software coverage - European, American and Asian
4)24V operating voltage capability is added to work with different kinds of batteries

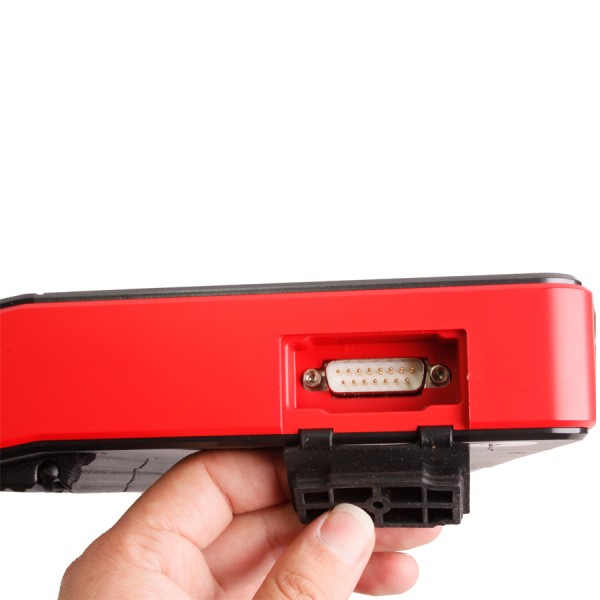

5)Test most of cars by using unique & integrated 16 PIN connector
6)Easier and more conveniet to operate than X-431 based on the smart design
7)Upgrade software through email.

2.X431 GX3 Parameter:

Dimension:60CM*17CM*42CM
Linux
Memory:16M
CF Card:512M
Main Unit I/O:Universal serial port/parallel port
Power Supply:DC 12V / 24V
Power:Approx. 9W
Screen:240X320 LCD touch screen with background light

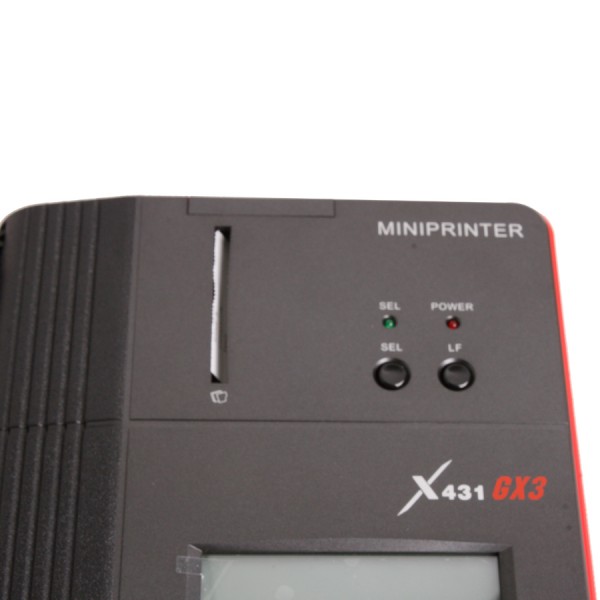

Printer:Mini high speed thermal printer
Ambient Temperature:-15°C～50°C
Relative Humidity:<90

Engineer version x431 gx3 Software List:
   1 ROMEO
   2 AUDI
   3 BXGM
   4 BMW
   5 CHRYSLER
   6 CITROEN
   7 DAEWOO
   8 INDONESIADAIHATSU
   9 DAIHATSU
   10 DEMO
   11 FIAT
   12 AUSTFORD
   13 EUROFORD
   14 USAFORD
   15 GAZ
   16 GM
   17 HOLDEN
   18 HONDA
   19 HYUNDAI
   20 IRCITROEN
   21 IRKIA
   22 IRPEUGEOT
   23 TLISUZU
   24 JPISUZU
   25 JAGUAR
   26 KIA
  27 LANCIA
   28 LANDROVER
   29 MAHINDRA
   30 MARUTI
   31 MAZDA
   32 BENZ
   33 MITSUBISHI
   34 NISSAN
   35 EOBD2
   36 OPEL
   37 GMSA
   38 PERODUA
   39 PEUGEOT
   40 PORSCHE
   41 PROTON
   42 RENAULT
   43 ROVER
   44 SAAB
   45 SEAT
   46 S
   47 SMART
   48 SSANGYONG
   49 SUBARU
   50 SUZUKI
   51 INDONESIASUZUKI
   52 TATA
   53 TOYOTA 4
   54  SPRINTER
   55 VAZ
   56 VAUXHALL
   57 VOLVO 4
   58 VW
   59 BJXD
   60 FLYER
   61 CHZY
   62 CHSUZUKI
   63 CHANGANFORD
   64 CALM
   65 CALMZY
   66 CHANGCHENG
   67 CHANGCHENGZY
   68 CHANGFENG
   69 LIEBAOZY
   70 DADI
   71 SHUGUANG
   72 SHUGUANGZY
   73 DFPEUGEOT
   74 DFHONDA
   75 FUKANG
 76 YUEDA 2
   77 DONGNAN
   78 GZHONDA
   79 HAFEI 23.00
   80 HMAZDA
   81 HANGTIANMIT_TY
   82 HANGTIANMIT
   83 HCBMW
   84 JAC
   85 LIUWEI_TY
   86 MEIYA
   87 LIFAN
   88 NJFIAT
   89 BRILLIANCE
   90 QIRUI
   91 QNLHZY
   92 HEIBAO
   93 SHVW
   94 SHUANGHUAN
   95 WEICHAIZY
   96 WEILI
   97 JINLONG
   98 SPARK_TY
   99 CHDAIHATSU
   100 YQVW
   101 JIQING
   102 JIQINGZY
   103 YQJC
   104 HAOQING
   105 DGZHONGSHUN
   106 ZHONGSHUNZY
   107 ZHONGXING
   108 ZHONGXINGZHY 2
   109 ZHONGTAI
   110 ZHONGTAIZY

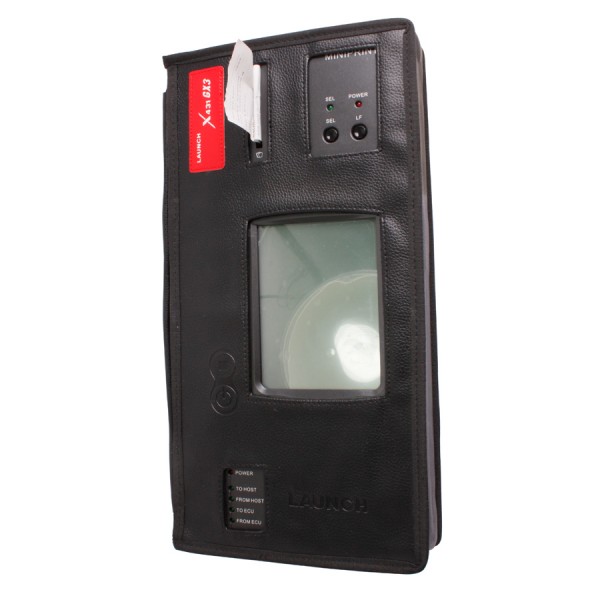

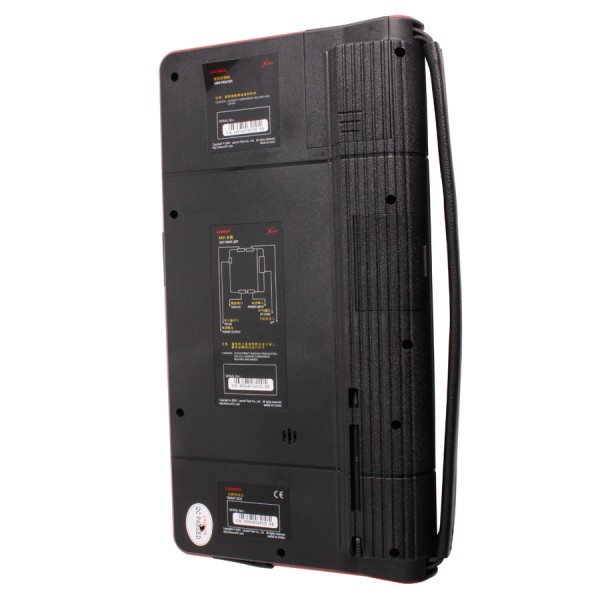

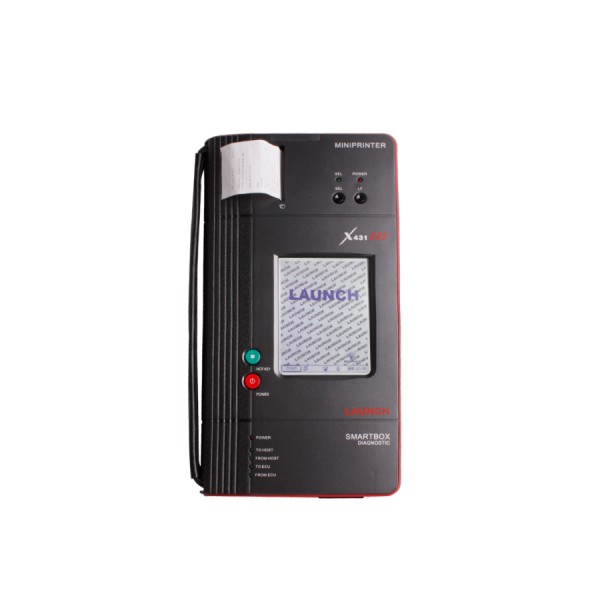

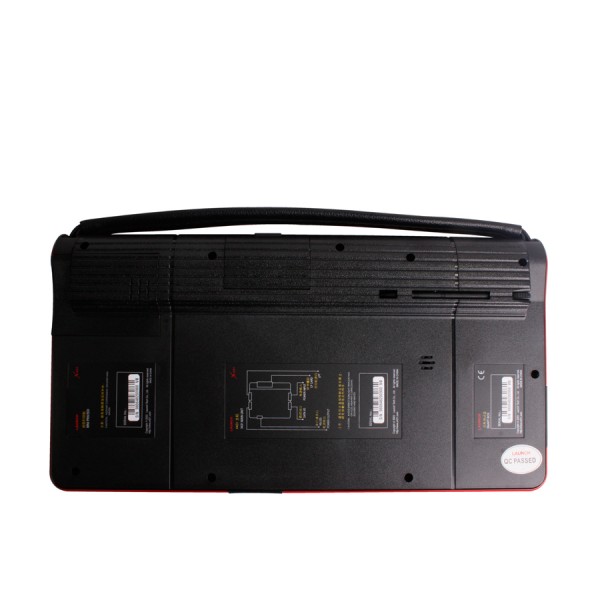

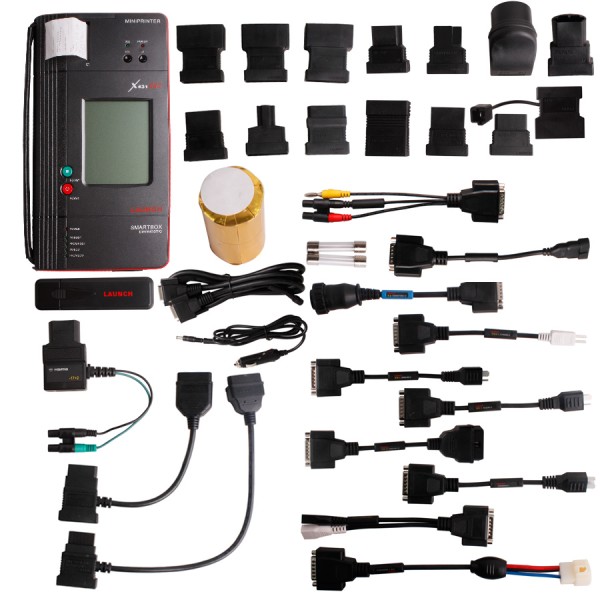

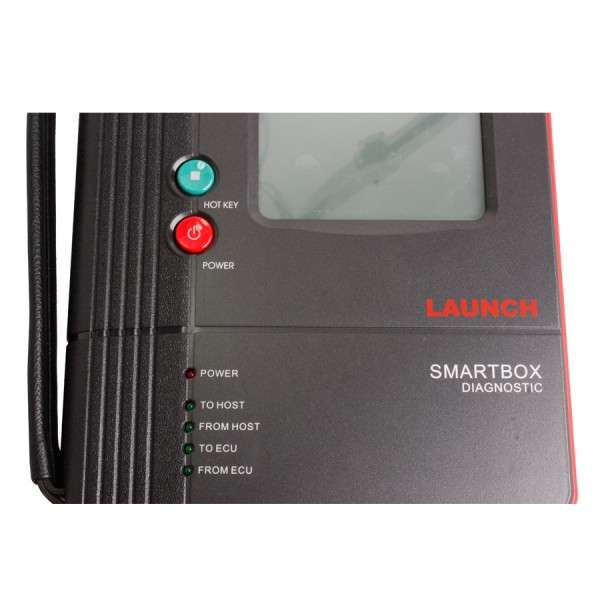

X431 GX3 Picture Display:
