Launch X431 IV Auto Scanner Master Update Version

Please kindly note:
1. Dealer Code: 86A
2. Update: Free Online Update for One Year [After one year, update costs 999USD/Year]
3. Supported Languages: English, German, Spanish, Portuguese, Turkish, Russian, French, Polish, Italian, Japanese, Hungarian, Dutch, Greek, Arabic, Serbian, Romanian, Farsi, Simplified Chinese, Traditional Chinese
(All the languages do not support to all the car modules, some modules only have English Version, please pay attention to it.)

4. Support Australian Holden and Ford, Indian cars,Malaysian cars

5. For Gasoline /Diesel cars,support up to 70 car models

7. Allows you to print vehicle fault data out.

Launch X431 IV Specifications:

1.CE certification

2.New X-431 scanner

3.Display Screen: 240X320 LCD

4.CF Card: 1GB
5. There is no Ford 20pin Connector in this package. if you want, you need to buy Ford 20pin Connector separately

Description:
Launch X431 IV Auto Scanner--- X431 Master perfect replacement. Better performance than X431 Master, can support Australian Holden and Ford, Indian car model, and also support 12V/24V car models.

X431 IV Auto Scanner is the newly auto scanner from LAUNCH, which improved the features and function based on all feedback from the user's served by the X431 in their respectively fields of works. Compact Smartbox , main unit, printer, powerful diagnostic functions, fast and convenient update, universal 16PIN connectors, make it the first choice for technicians. X-431 IV Auto Scanner is the standard equipment for technicians.

Launch  X431 IV Performance / Speed:

The X-431 IV Auto Scanner is now a whole unit (permanently connected) means the communication time between Smartbox and main unit is reduced.

Appearance: The X-431 IV Auto Scanner has a new designed and cover made from high quality materials to stand in a new market.
Connector: The X-431 IV Auto Scanner has a new connector to replace all CAN Bus and OBD Connector called OBDII 16E connector.
Power source: The X-431 IV Auto Scanner can support 12V and 24V means not only small vehicles but also big vehicles can tested.
Speed: faster than X-431 Master
Measurement: smaller than X-431 Master

Launch X431 IV Supported Car List:

Acura, Changan, Daweoo, Gaz, Hafei, Huachen, Jiao, Lexus, Xiali, Xinkai, Benz, Fiat, Holden, Maruti, Opel, Peugeot, Saab, Ssangyong, Tata, Changhe, Flyer, GMSA, Infiniti, Mahindra, Perodua, Proton, Qirui, Tlisuzu, Zhongshun, EOBD2, Euroford, GM, Jaguar, Renault, Smart, Sprinter, USAFord, VAZ, VW, Changcheng, Dacia, Ford, HaoQing, Jinlong, Liuwei, Rover, ZhongTai, ZhongXing, Bxfiat, HM, Isuzu, Jacty, JPIsuzu, Mazda, Seat, Skoda, Suzuki, BMW, Daihatsu, Mitsubishi, Porsche, Toyota, Volvo, Audi, Chrysler, Citroen, Hyundai, Kia, Lancia, Landrover, Nissan, Romeo and Subaru.

Launch x431 IV Feature:

Operating System: LINUX

Memory: 16M

CF Card: 1GB

Main Unit I/O: Universal Serial Bus /Standard Parallel port

Main Unit Voltage: DC12V / 24V

Main Unit Power: approximately 9W

Printer: Thermal mini-printer

Display Screen: 240X320 LCD with touch screen and backlit

Components: Main unit, SMARTBOX and MINIPRINTER

Ambient temperature: -10-55°C

Relative Humidity: <90%


X-431 IV Oversea Full Configuration Software List


No.	Origin	Software Name	Version	No.	Origin	Software Name	Version
1	-	Demo Software	V14.40	33	Europe	BMW diagnostic software	V46.10
2		Smart OBDII diagnostic software	V22.14	34		Citroen diagnostic software	V40.54
3	America	America Ford diagnostic software	V41.91	35		Europe Ford diagnostic software	V41.10
4		Chrysler diagnostic software	V28.04	36		Fiat diagnostic software	V32.90
5		GM diagnostic software	V42.90	37		Jaguar diagnostic software	V18.13
6		X431, Acura Diagnostic Software	V10.41	38		Lancia diagnostic software	V15.80
7		X431, INFINITI Diagnostic Software	V10.40	39		Landrover diagnostic software	V31.50
8		X431, Lexus Diagnostic Software	V10.80	40		Opel diagnostic software	V40.00
9	Australia	Australia Ford diagnostic software	V25.12	41		Peugeot diagnostic software	V42.50
10		Holden diagnostic software	V40.01	42		Porsche diagnostic software	V20.24
11	Brazil	Brazil GM diagnostic software	V13.00	43		Renault diagnostic software	V40.90
12		X431, Brazil Fiat diagnostic software	V10.02	44		Romeo diagnostic software	V18.60
13	China	Brilliance Auto diagnostic software	V30.00	45		Rover diagnostic software	V23.02
14		BYD diagnostic software	V17.20	46		Saab diagnostic software	V22.00
15		Changan vehicle diagnostic software	V15.00	47		Seat diagnostic software	V26.32
16		ChangCheng diagnostic software	V32.00	48		Skoda diagnostic software	V26.32
17		Changhe diagnostic software	V20.00	49		Smart diagnostic software	V17.26
18		Chery diagnostic software	V55.00	50		Transporter&V-Class diagnostic software	V19.51
19		GEELY diagnostic software	V17.00	51		Volkswagen diagnostic software	V26.32
20		Gonow Auto diagnostic software	V12.01	52		Volvo diagnostic software	V41.64
21		HaFei diagnostic software	V25.00	53	India	Mahindra diagnostic software	V11.02
22		JAC car diagnostic software	V18.01	54		MARUTI diagnostic software	V14.02
23		Jiangling diagnostic software	V12.30	55		TATA diagnostic software	V13.02
24		SGMW diagnostic software	V20.10	56	Japan	Daihatsu diagnostic software	V19.92
25		Tianjin FAW diagnostic software	V16.40	57		Honda diagnostic software	V44.00
26		Xiamen Golden diagnostic software	V13.00	58		JPIsuzu diagnostic software	V13.30
27		XinKai Diagnostic software	V11.02	59		Mazda diagnostic software	V38.20
28		ZhongShun diagnostic software	V12.01	60		Mitsubishi diagnostic software	V29.90
29		Zhongxing diagnostic software	V21.00	61		Nissan diagnostic software	V41.51
30		ZOTYE diagnostic software	V17.00	62		Subaru diagnostic software	V21.80
31	Europe	Audi diagnostic software	V26.32	63		Suzuki diagnostic software	V33.02
32		Benz diagnostic software	V45.91	64		Toyota diagnostic software	V47.00

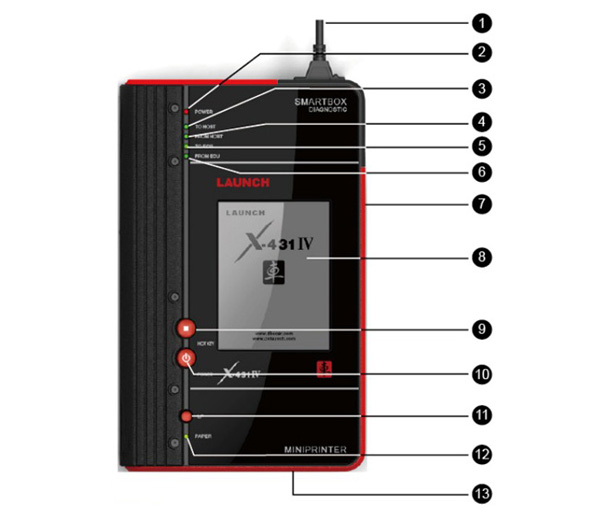

1, Diagnostic connector (rotatable)

2, SMARTBOX Power indicator

3, Indicator to show SMARTBOX sending data to the main unit

4, Indicator to show SMARTBOX receiving data from the main unit

5, Indicator to show SMARTBOX sending data to ECU

6, Indicator to show SMARTBOX receiving data from ECU

7, Serial port (to connect with PCLINK for extending functions)

8, Touch screen

9, HOTKEY button

10, Power button

11, Printer LF button (paper feed)

12, Printer ready indicator

13, Paper out (printed the data)

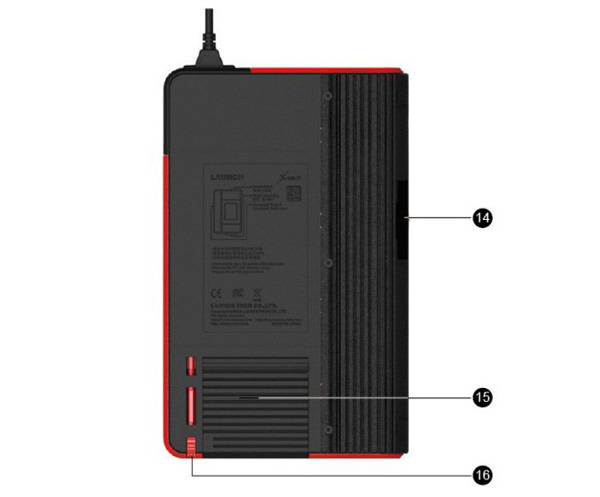

14, CF card slot (to install CF card)

15, Printer cover (to install printing paper)

16, Stylus slot ( to place the stylus)

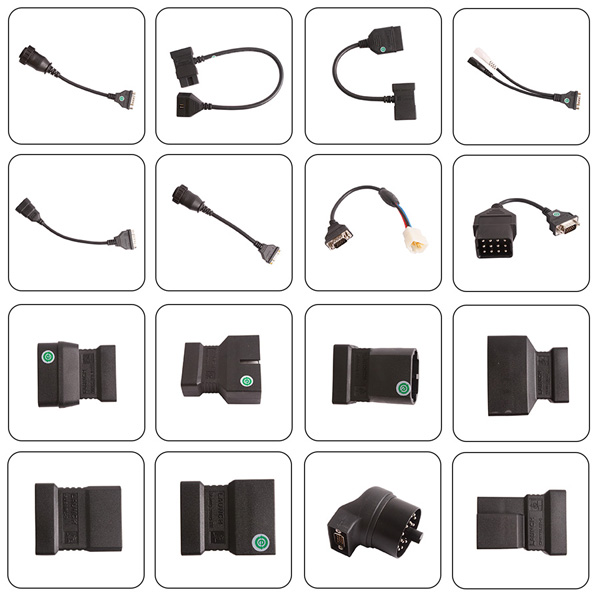

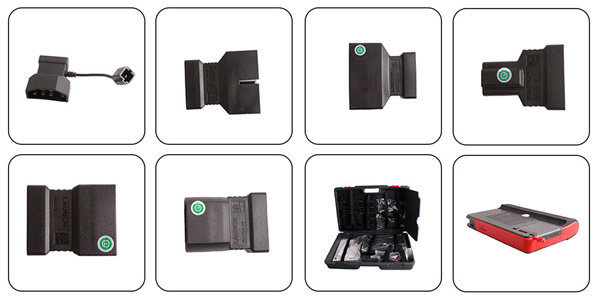

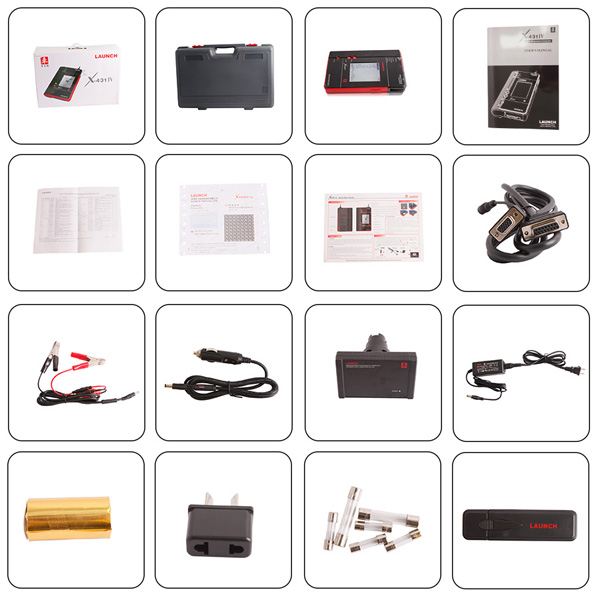

Packing list pictures:
