    Launch X431 GDS Scopebox

    • Item No.  A259
    • History: 23  sold
    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
    • Quantity:  Out of stock
    • Weight:  10.0KG
    • Rank:  comment rank 5 () Write a Review
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video

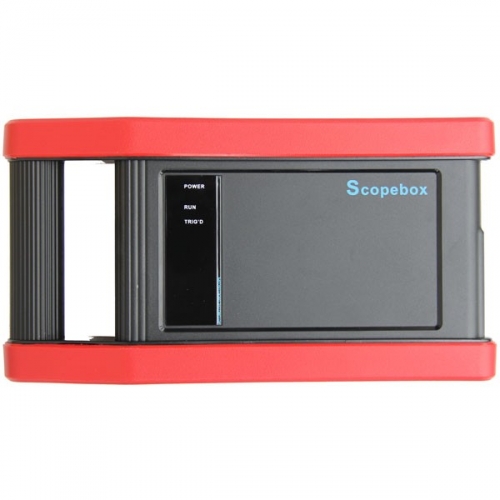

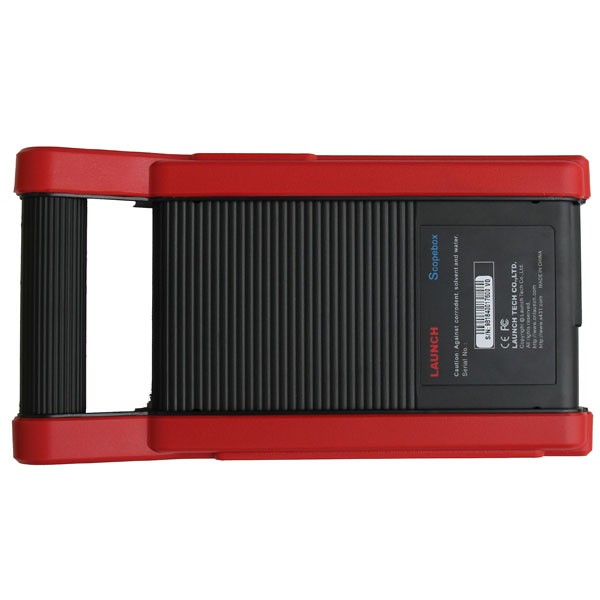

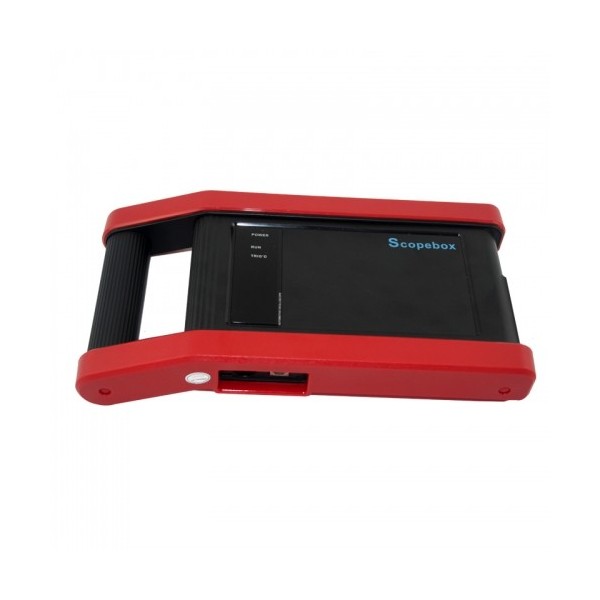

    Launch X431 GDS Scopebox



    Launch X-431 X431 GDS Description:

    X-431 GDS is a new generation of state-of-the-art integrated vehicle diagnose product with a color LCD developed by LAUNCH. It provides an optional function of "Sensor Simulation", this function include "DC voltage simulation", "Fixed frequency simulation", "Predefined waveform simulation" and "Hand-drawing waveform simulation". It can transform all kinds of running parameters, such as vehicle speed, coolant temperature, engine RPM, air flow, throttle opening, etc., into the electronic signal for vehicle computer which can optimize the engine running status based on the above-mentioned parameters to keep the engine working in a prime status.
    Meanwhile, X-431 GDS also integrates automobile Multimeter, by which, you can perform voltage, resistance or frequency test. Click to perform voltage test, resistance test or frequency test (This function utilizes the same hardware device as sensorbox).
    Sensorbox can be connected to X-431 GDS main unit via USB data cable. The customers can choose the products according to their own requirement.


    Launch X431 GDS Scopebox Description:
    The Launch Scopebox allows you to transform your Launch X431 GDS or X431 Europad into a 4 channel Lab Scope, which can quickly identify, locate and isolate suspect & intermittent signals.

    These signals can then be analysed by the Scopebox, which may reveal whether or not there are actually any faults with the sensors, actuators, circuits or electronic control units. This helps you save time when running a vehicle diagnostic, and also reduces the costly expenditure spent on unnecessary replacement parts.
    The scopebox can record and display electrical signals and their waveforms, as well as compare and examine them according to pre-determined parameters.


    These parameters include:
    Amplitude - the signal's maximum voltage
    Form - the shape of the signal,
    Pulse Width - the signal's duty cycle or time interval
    Array - the repetition characteristics of the signal

    Launch X431 GDS Scopebox features
    Contains an integrated library of standard waveforms
    Waveform auto-set up on all of the 4 channels
    Each channel can act autonomously, allowing for a clean signal with no interference

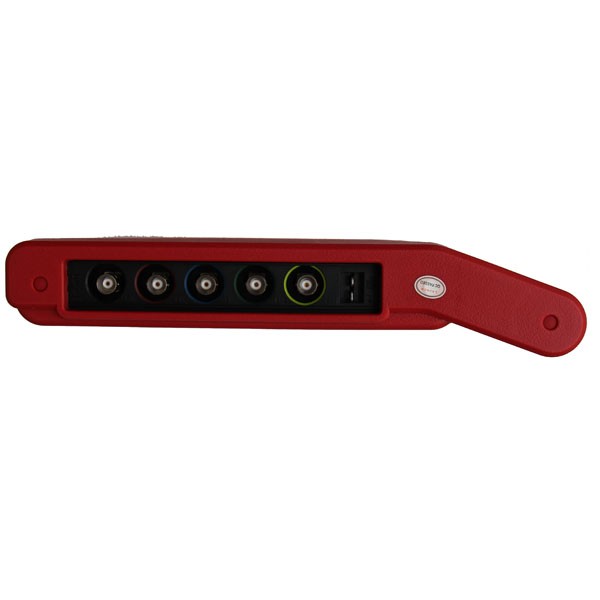

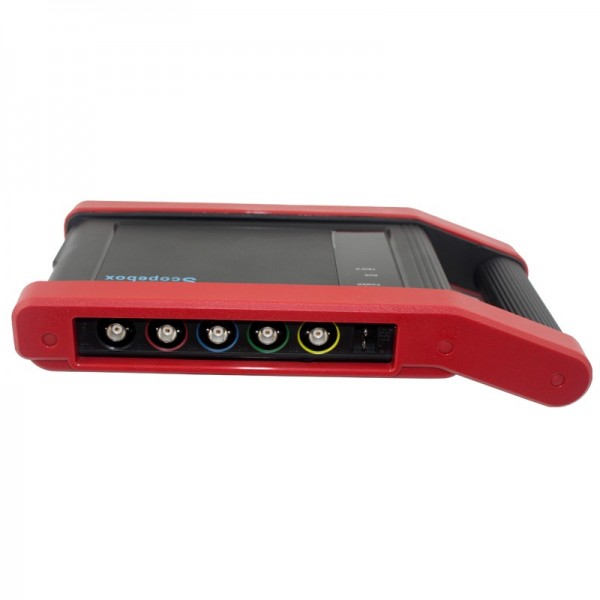

    Quality twist and lock BNC connectors
    Simple & intuitive interface
    Contains a selection of standard ignition adapters
    Includes ignition set-up pre-selects
    extremely fast capture of "glitch" occurrences with advanced triggers
    In-built square wave signal generator guarantees the verification of accuracy and calibration
    All saved waveforms can be recorded, saved and printed
    Playback at different speeds to assist in examination & analysis
    Separate scopebox module allows for remote GDS/EuroPad display viewing via a single USB cable
    All software comes pre-installed
    Connect to the x431 GDS/Euro Pad via USB
    Contains the highest sampling rate in the industry to better catch even the smallest glitch
    Bandwidth: 20MHz
    DC Accuracy +/- 1%

    Specification
    Scopebox: 4 channels
    highest sampling frequency 150MHZ
    max storage depth 64MSa
    8-bit resolution

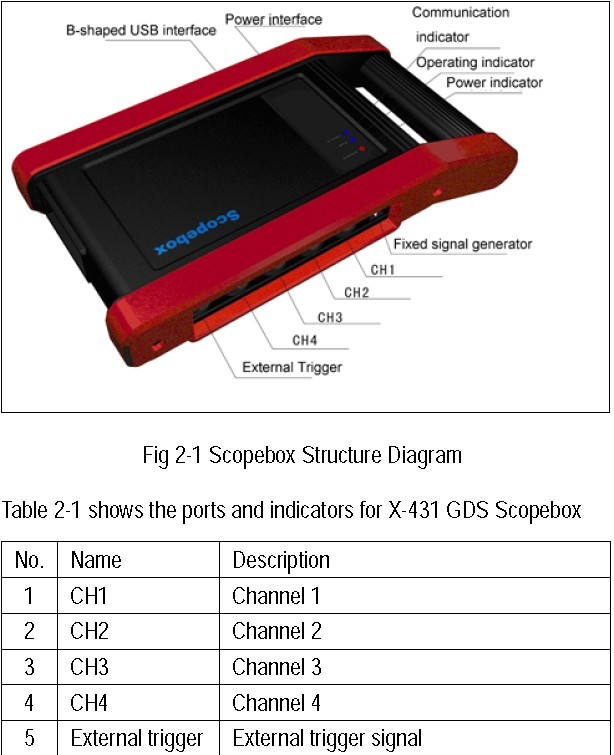

    Scopebox structure:
