    Launch X431 GDS Sensorbox

    • Item No.  A257
    • History: 186  sold
    • Market Price: US$585.60
      Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
    • Quantity:  Out of stock
    • Weight:  5.0KG
    • Rank:  comment rank 5 () Write a Review
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video

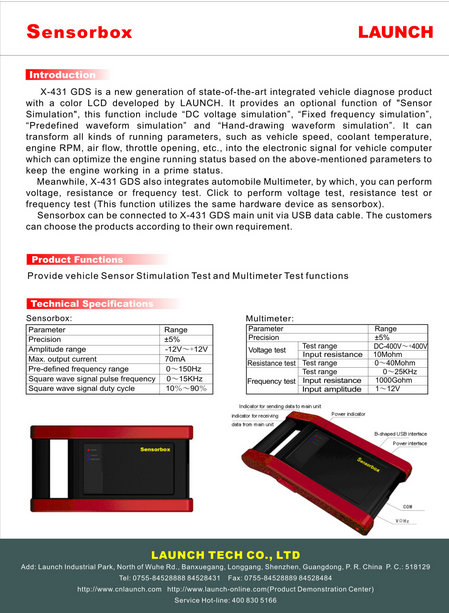

    Launch x431 GDS Sensorbox



    Launch x431 GDS Sensorbox Description:

    X-431 GDS is a new generation of state-of-the-art integrated vehicle diagnose product with a color LCD developed by LAUNCH. It provides an optional function of "Sensor Simulation", this function include "DC voltage simulation", "Fixed frequency simulation", "Predefined waveform simulation" and "Hand-drawing waveform simulation". It can transform all kinds of running parameters, such as vehicle speed, coolant temperature, engine RPM, air flow, throttle opening, etc., into the electronic signal for vehicle computer which can optimize the engine running status based on the above-mentioned parameters to keep the engine working in a prime status.
    Meanwhile, X-431 GDS also integrates automobile Multimeter, by which, you can perform voltage, resistance or frequency test. Click to perform voltage test, resistance test or frequency test (This function utilizes the same hardware device as sensorbox).

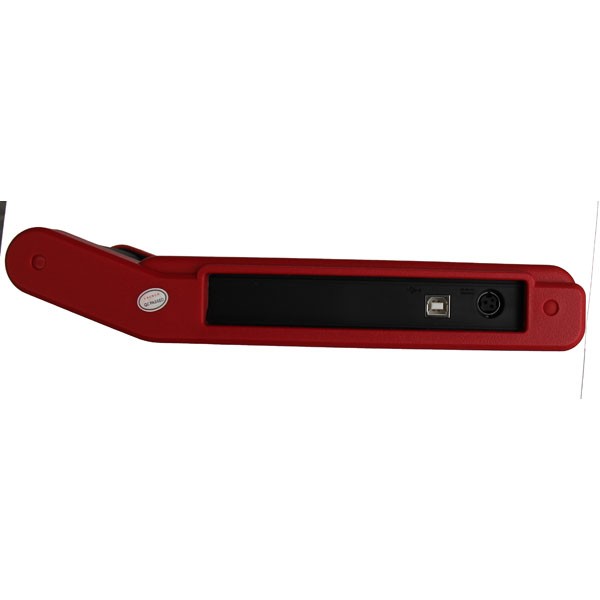

    Sensorbox can be connected to X-431 GDS main unit via USB data cable. The customers can choose the products according to

    Launch X431 GDS Sensorbox Funtion:
    For use in conjuncture with the Launch X431 GDS and X431 Europad, The X431 Sensorbox allows you to convert your X431 into a sensor simulator.
    If you suspect that your sensor is malfunctioning, all you need to do is use the Sensorbox to stimulate it with a suitable waveform and you will know within seconds whether or not there is an issue.
    If you require a variant waveform that too is no issue. Using your finger, simply draw the desired waveform onto the GDS, press start and the Sensorbox will produce your new waveform.
    In addition to this function, the Sensorbox also gives you the power to create and alter other types of signal parameters; including coolant temperature, Mass Air flow, Injector, Throttle Position and many more.
    The Sensorbox also comes with an in-built Multimeter function, which allows you to view voltage, resistance and frequency on its digital display. You are also able to print out these results using the GDS.

    Launch X431 GDS Sensorbox Features
    Allows the user to substitute known good waveforms for isolated elements that could not otherwise have been authenticated
    Contains an integrated library of standard waveforms
    Wave forms can be altered or made from scratch using nothing more than your finger tip and the screen
    Allows you to test DC voltage, fixed frequency, predefined waveforms and hand drawn waveforms

    Launch X431 GDS Sensorbox Technical Specifications
    Precision: +/-5%
    Amplitude Range: -12V / +12V
    Maximum Output Current: 70mA
    Predefined Frequency Range: 0-150Hz
    Square Wave Signal Pulse Frequency: 0-15KHz

    Launch X431 GDS Multimeter Technical Specifications
    Precision: +/-5%
    Voltage Test Range: DC -400V / +400V
    Voltage Test Input Resistance: 10Mohm
    Resistance Test Range: 0-40Mohm
    Frequency Test Range: 0-25KHz
    Frequency Test Input Resistance: 1000Gohm

    Frequency Test Input Amplitude: 1-12V
