Autel MaxiDiag Elite MD802 all system+DS model

Vehicle Coverage: Include MD701, MD702, MD703, MD704.

Free Update for One Year, After One Year, Will Cost USD100 Per Year

What is DS model?

Autel Maxidiag Elite MD802 for all System+data stream function.

Autel MaxiDiag Elite MD802 Features
Autel MD802 can do it all-reads and clears trouble codes on either the basic 4 systems (engine, transmission, ABS and airbag) or all the systems
Turns off warning lights for all major Asian vehicle
Reads live datastream
Supports all 10 test modes of the latest J1979 OBD II test specs,including Read Codes, Erase Codes, Live Data, Freeze Frame,I/M Readiness, O2 Mon.Test, On-Board Mon.Test, Component Test and Vehicle Information
Enhanced OBD II Mode 6
OBD II code tips guide technicians to the root cause of trouble code faster
Data graphing
One year free software upgrade
Prints data via PC

MaxiDiag Elite MD802 Specifications
Display                                     TFT color display (320 x 240 dpi)
Operating Temperature        0 to 60°C (32 to 140 °F)
Storage Temperature            -20 to 70°C (-4 to 158°F)
External Power                        12.0 to 18.0 V power provided via vehicle battery or adapter

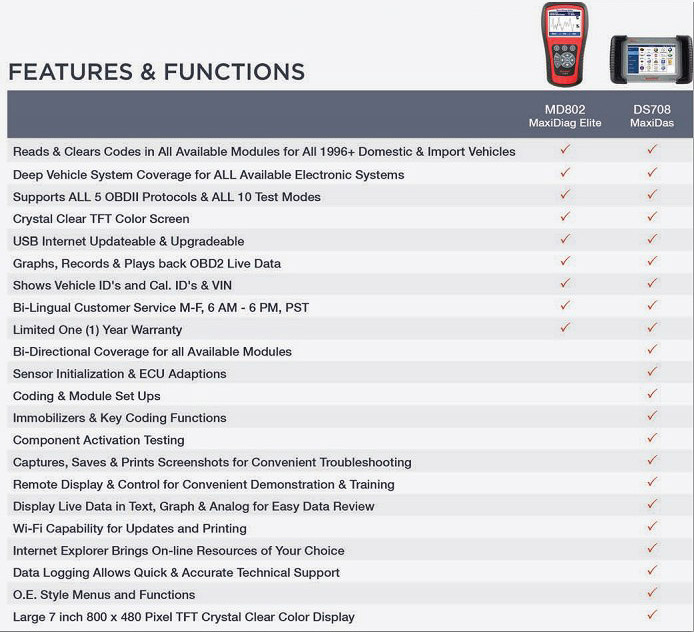

MD802 VS DS708:

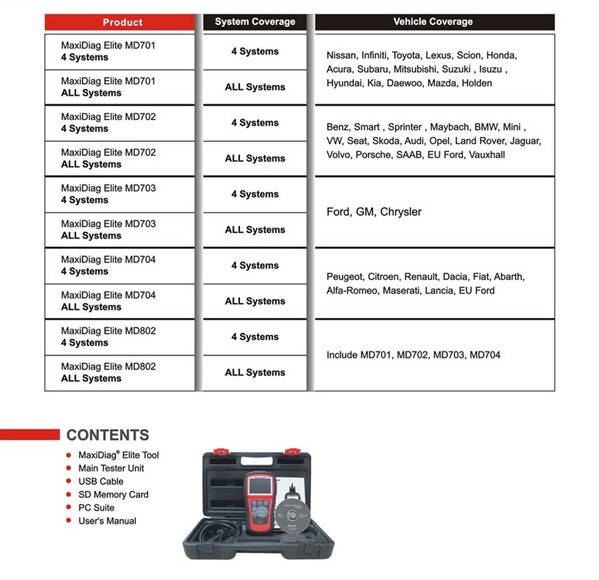

(MD701,MD702,MD703 and MD704, MD802) Difference Between 4 System and MD802 Full System:

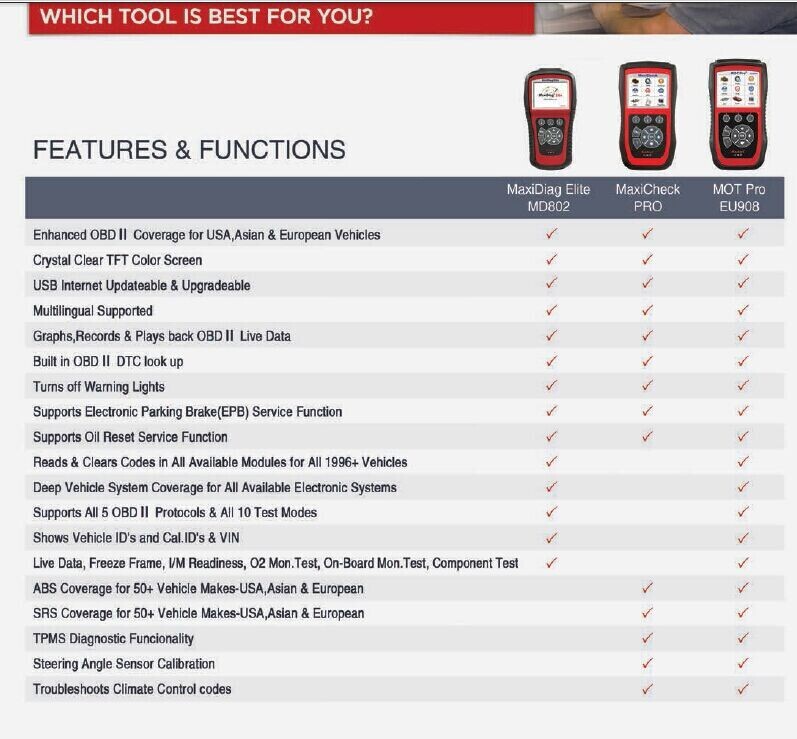

Comparation From MD802, MaxiCheck and EU908:

The Aute MD802 Description:

Diagnose OBDII/EOBD & PRE-OBDII VEHICLE

1. The MaxiDiag? Elite MD802 is the most advanced and multifunctional scan tool powered by its exclusive technology

2. designed for technicians to troubleshoot either the basic four systems or all systems for most of major vehicles on the road today

3. This new diagnostic platform delivers fast and easy diagnosis at the right price

4. With the optional OBD-I adapter set, The MaxiDiag? Elite MD802 can diagnose older vehicles. makes your vehicle service experience much more pleasant

Vehicle Coverage

Nissan, Infiniti, Toyota, Lexus, Scion, for Honda, Acura, Subaru, Mitsubishi, Suzuki, Isuzu, Hyundai, Kia, Daewoo, Mazda, Holden, Bens, Smart, Sprinter, Maybach, BWM, Mini, VW, Seat, Skoda, Audi, Opel, Land Rover, Jaguar, Volvo, Porsche, Saab, EU Ford, Vauxhall, Ford , GM, Chrysler, Peugeot, Citroen, Renault, Dacia, Fiat, Abarth, Alfa-Romeo, Maserati, Lancia.

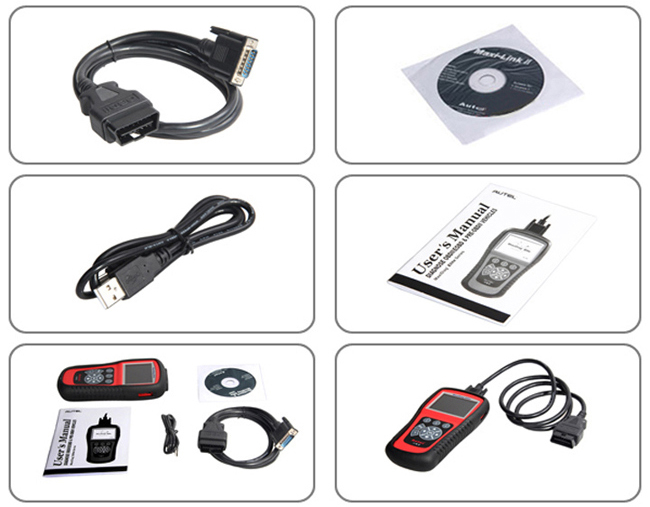

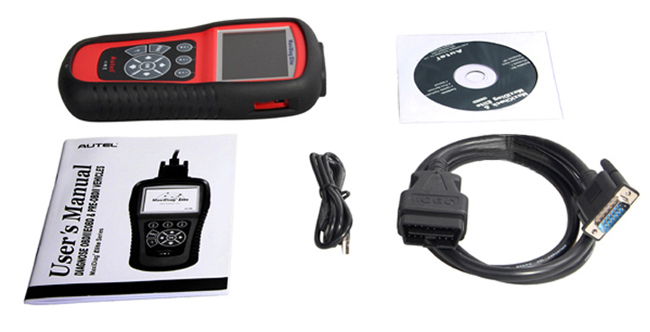

Autel MaxiDiag Elite MD802 Accessories

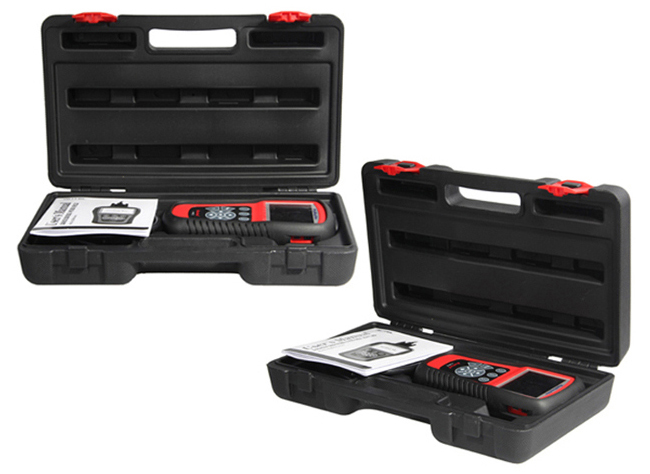

Carry case
SD Card
CD
USB Cable
OBDII Cable
User's Manual

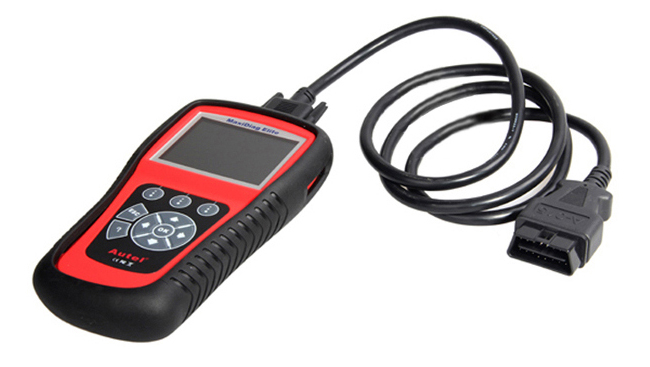

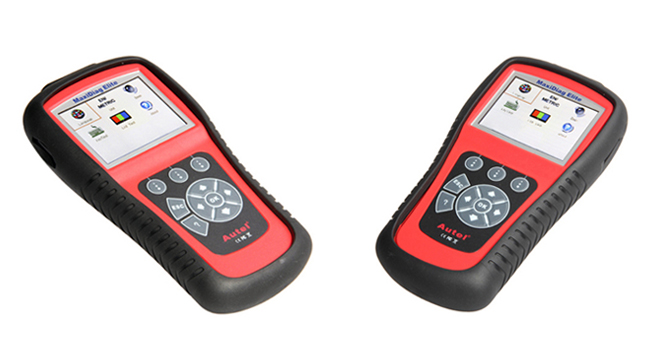

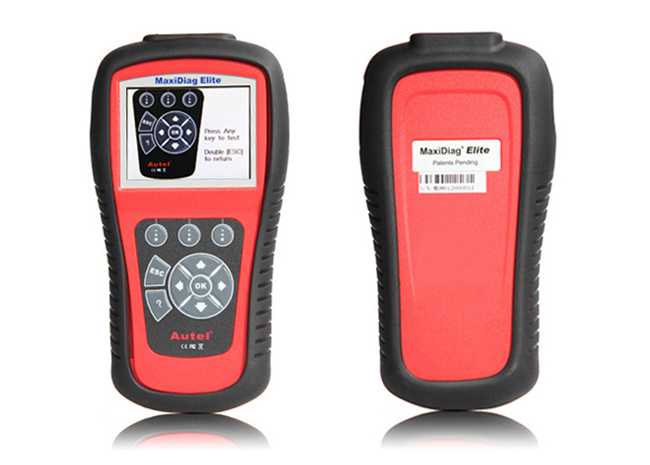

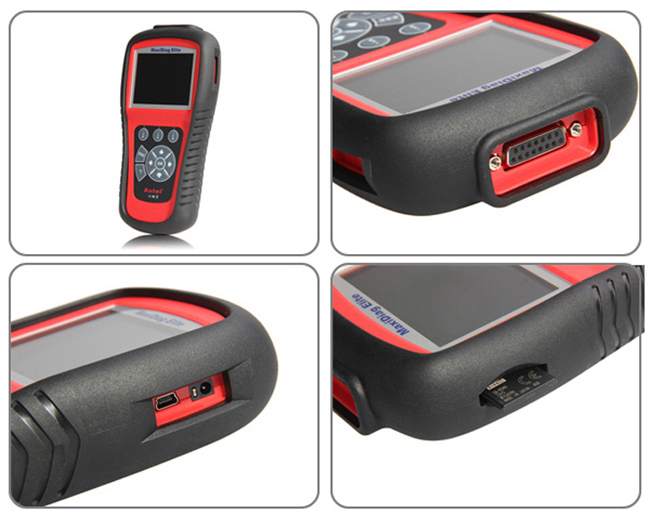

Autel MaxiDiag Elite MD802 Display:

User Comment(Total 2 User Comment Num)

• by Jeff Thompson,Apr 11,2020


  Second purchase. This time it is the right model. Has already served it’s purpose.

  Reply #1 by Vivian Apr 11,2020
  Thanks for your feedback

  Vivian

  ---

• by Emil Yanakov,Nov 12,2014


  hi, please tel me I want chrysler adapter ford ds708 will it work with this md802 if I buy the cable

  Reply #1 by OBD2TOOL Nov 12,2014
  Dear friend,
  Thank you vfor your suport,It will work with this md802 if I buy the cable.
  Please feel free to contact us,if neccesarry.
  Best regards

  OBD2TOOL

  ---
