TOYOTA DENSO Diagnostic Tester IT2 TOYOTA Diagnostic tool for TOYOTA and SUZUKI V2017.12

1. Software Version: 2017.12
2. Supported Multi-Languages: English, French, German, Italian, Spanish, Chinese
3. Update By Software Card. （ buy the Latest Software Card）

Notice:
This Toyota IT2 Can only Do North America Area Suzuki.  If you want professional Suzuki diagnostic tool, Please Choose GM TECH2+ Suzuki 32MB Card.

Denso IT2 for Toyota Functions:
All type of Toyota(made after 2000) and Lexus included read code, clear code , data flow, action testing and guard against theft initialization function. And it also supports OBD-II.

1. Main Function
Read wrong code
Clean wrong code
Reade data stream
Draw data stream curved shape
Setting system
Control unit programming
Self test function
Record and review function

2. Test System
Engine
Automatic transmission
ABS
Controlled traction differential
Stability control
Airbag security
Central doorlock
Meter  cruise suspension air-conditioning
Electronical control turning system

3. Digital Multimeter
Electrical system test
Voltage frequency  duty cycle

Toyota Denso IT2 Specification:
1. Feature
Source voltage DC 10-32V
Power consumption normail:7w(12VDC) charging:10w(12VDC)
Operation temp: 0~45°C
Storage temp: -10~ 60°C
LCD Display 5.7 inch
Touch panel input: by finger or stylus pen
Key four(up, down, two function keys)
Built-in clock for a time stamp
PC communication PC card slot CF x 1ch
USB Host: 1ch function:1 ch
Serial 1ch ( RS-232C)
Vehicle communication CAN, ISO9141
Back up power supply lithium-ion battery 7.4v 1000mAH

2. Character:
1) Touchscreen & back lighting control
2) Easy & quick

After Service:
1) Guarantee: one year, from the date equipment arrival
2) Upgrade free for two year
3) Upgrade method: Email

SUZUKI SDT Examples for Testing the Vehicle
SUZUKI SDT is the SUZUKI company professional diagnostic tool for the Suzuki car. It have diagnostic function,oscillograph function, multimeter function.
It's a very usefull machine to help you repair the SUZUKI car.

1. Equipment  Online
1) turn on the equipment power
2.) to be connected with OBD diagnostic cable

2. Star the Equipment
Turn on the power,entering into the interface then click the "automation"button

Package List:
1. Mainframe -- 1pc
2. OBD-II -- 1pc
3. Charging line -- 1pc
4. Lin line -- 1pc
5. Measuring leads for multimeter 1 -- 1pc
6. Measuring leads for multimeter 2 -- 1pc
7. Card -- 3pcs(V2017.1 Toyota, V2017.12 Suzuki and Blank Card for backup)

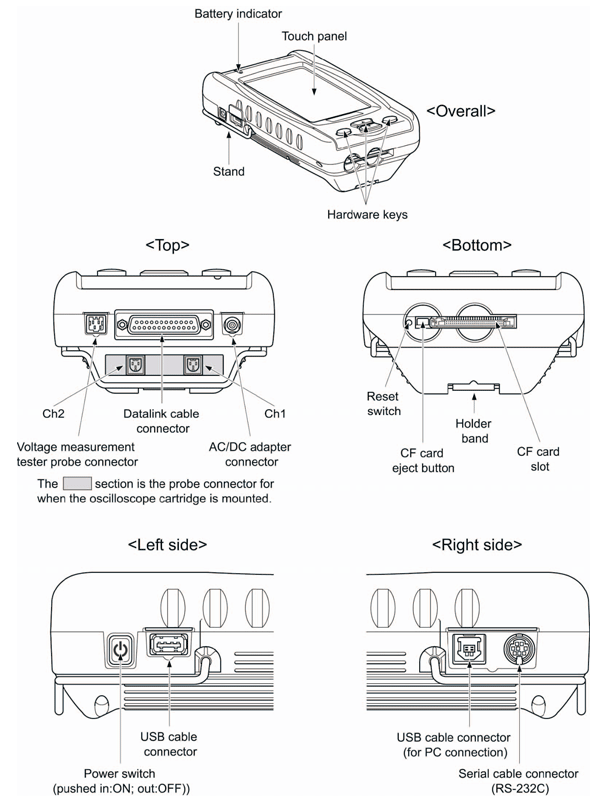

Toyota ITS2 Names of the Parts:
The names of the Intelligent Tester II parts are as follows.



FAQ:
Q1: is Toyota Denso IT2 with CF card?
A1:yes, Toyota IT2 is with CF card, there is a CF card slot at the back of Toyota IT2 main unit. When you use the main unit, please do not take it off, CF card is used to store the tested result. Please refer "Toyota ITS2 Names of the Parts".

Q2: Can i use this product to do airbag coding?
A2: Yes,you can.It can do airbag coding and simple ecu programming.

Q: How many pieces of card in the package of Toyota IT2?
A: There are 3pcs of cards: Toyota card, Suzuki card and one blank card for backup, as for the software version, please pay attention to our newest notice.

Q: Does TOYOTA IT2 have touch-screen calibration?
A: yes, it has. The touch-screen calibration is optional in the menu bar.

Q: Which tool can make key and program ECU for Toyota 2010-2012?
A: Advice you use Allscanner IT3, Toyota IT2 and X-VCI Toyota.

Q: Can Toyota intelligent tester IT2 read smart key information?
A: Toyota it2 can program key but can’t read smart key information.
