Original Wellon GP-2 Programmer Update Online

Wellon GP-2 Programmer is original programmer,supports PC hosted mode and stand-alone mode.It supports multi-language and online update. Not need exterior adapter for mostly devices.

Online Update!
Supported Language: English, Korean, Polish, Italian, Portuguese, Chinese(Simplified), Chinese(Traditional)

Feature:
Electrical spec. of the AC adapter: AC input 100V to 240V, 50/60Hz, DC output 9V/2.0A; power:18W .
48 Pin ZIF socket with universal pin-drivers.
Support PC hosted mode and stand-alone mode
Interface with LAPTOP, PC or compatibles through USB port
Accepts standard file formats: JEDEC, INTEL (Extended) HEX,HOLTEK,EMC(.CDS),INTEL HEX16, Motorola S record
Manages 16 and 32-bit word split (Set Programming)
Features Test Vector capability and multiarray fuse map editor
Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices
Optimum programming for each individual device
Automaticly Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC
Device insertion and poor-pin-contact check
Support 1.5v Low voltage devices
Not need exterior adapter for mostly devices.
Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters
Auto-run mode starts programming automatically upon detection of chip insertion
Supports WindowsXP/Vista/ Windows 7 (32bit and 64bit)

PC Hosted Mode Device Support: VIEW
PROM: N/CMOS E(E)PROM, SeriesE(E)PROM, and FLASH Memory
PLD: CPLD, EPLD, GAL,PEEL,PALCE and more
Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc.

Stand-Alone Mode Device Support: VIEW
 PROM: N/CMOS E(E)PROM, SeriesE(E)PROM, and FLASH Memory
 PLD: CPLD, EPLD, GAL,PEEL,PALCE and more
 Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc.

IC Test:
 TTL (74 series), CMOS (40/45 series) Logic IC
 DRAM (4164, 41464 ...), SRAM (2114, 6116 ...) memory device

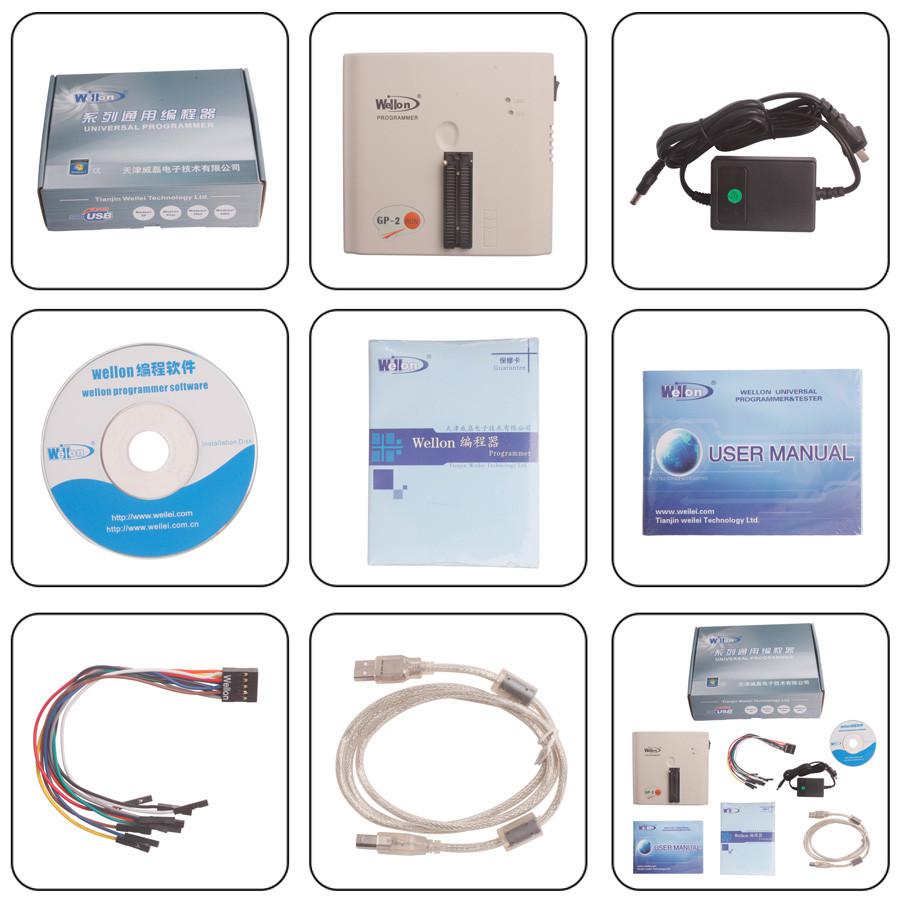

Wellon GP-2 Programmer Package List:
