4-IN-1 VAG TOOL KIT

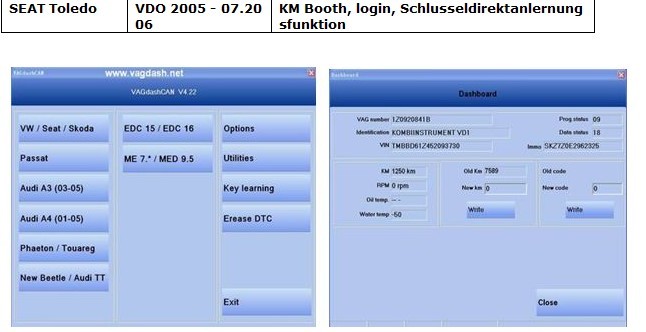

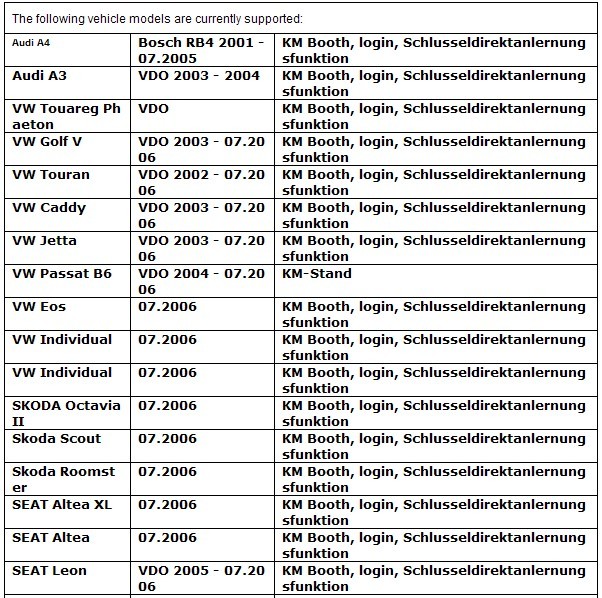

1.VAG DASH COM +CAN



NEW: EDC16 / EDC15 / ME7 via the OBD EEprom read and write (EDC15/ME7 completely KM EDC16 currently stand will be constantly expanded.

expanded.After a lengthy development phase, we are proud
Our new product to introduce:
VAG vehicles that the new generation.
These are now on the diagnostic socket set.
From the Volkswagen Touran, new combi-tools installed,
only via the CAN-diagnosis can be addressed.
The VAGdashCAN determines the LOGIN and allows an adjustment or recovery of the KM-stand.
A special highlight is the Schlusselanlernungsfunktion.
Pushing a button allows you to teach key
and without waiting 5 minutes
and without that all semi-key must be available.
In addition, some extra features, in everyday life workshop a valuable aid.
This includes, inter alia, the diagnostic capability of each joint in the vehicle CAN controllers.
Now you can order for these vehicles the error memory read and delete.
A valuable extension of your spectrum.

Secure your market advantage, by selecting one of the first to of this exceptional software.





 2.VAGDASHCOM

VAGdashCOM is the unique advanced diagnostic tool to read out the internal memory of your Instrument cluster
You can display the login code, recalibrate the odometer and rewrite the EEpromdata in case of changing an instrument.

VAGdashCOM covers up the models 1998-2004 such as:
Golf IV
Passat
Polo 6N
Eurovan T4
Eurovan T5
Skoda
Seat
Audi A3 / A2 / A6
Audi A4 till 2000



All those models with communication via K-line

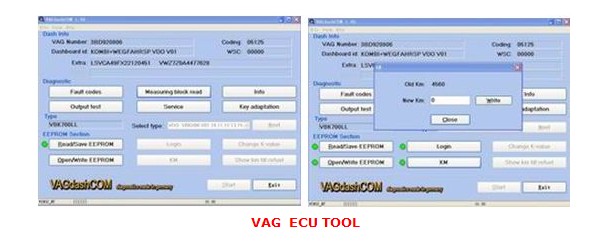

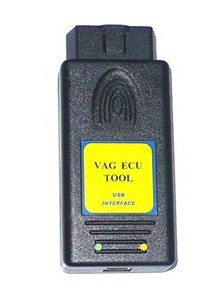

3.VAG ECU TOOL

The tool for the complete access to all EEpromdaten with VAG-engine control units of type EDC15 and ME7.
 Read and write access to the EEprom.
 Reading the secret odometer (if stored in the engine control unit)
 Immo-off function, login display, VIN change - everything about the diagnosis socket - not removing the ECU.
 With the write function is motor control "cloning" - no need to teach.
 Indispensable for workshops, recovery or Chiptuning.



Functions of the program:
 serial EEprom read and save
 EEprom checksum checking and correction
 IMMO on / off
 EEprom from a file and write (clone function)
 Read / write access to the login
 Read / write access to the chassis number
 Read / write access to the Immobilizernummer
 Kilometers Motronic in the read and write (if available)
 In the ME7 .** controllers can also perform the following functions:
 Offset channels
 Mixture enrichment
 Idling torque change
 Lambda value
 Idle speed change
 Correct charge (only for Turbo engines)
 Ignition timing change



 supports the following types of motor control of BOSCH:
 EDC15
 EDC15VM
 EDC15P
 EDC15P +   BOSCH ME7.5
 BOSCH ME7.5.1
 BOSCH ME7.1
 BOSCH ME7.1.1

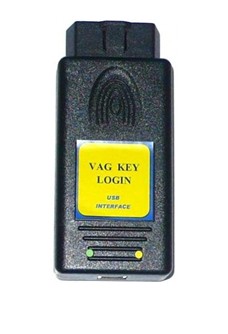

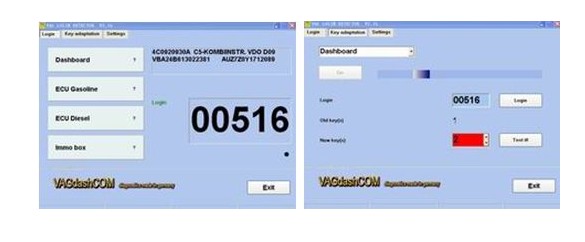

4、VAG KEY LOGIN

The tool used to determine the login code in many VAG-no speedometer,

Engine ECUs and Immobilizer box. The integrated software make this the perfect tool for the key service Included are the special OBD connection interface, USB cable and the software on CD.

The following control and tachometer options are supported:

 VDO speedometer VW / Audi 1998-2005 (with Seat / Skoda partly until 2006)
 Motometertachos VW 1998-2004 (Golf, Passat)
 Magneti Marelli M73 tachometers 1998-2001 (eg, TT, Beetle)
 EDC15 VM 2000-2004 (eg T4, Golf4, Passat 3BG with distributor injection pump)
 EDC15 P + 2000-2004 (all PumpeDuse, Golf4, Passat, A4, A6)
 ME 7.5 (eg, 1.8T, TT, V5)
 ME 7.1.1 (eg, R32, Audi V6)
 Temic IMMO the boxes of the LT's to the Year 2005
 Most models of the white boxes Audi 12polig 1994-1998
 6 pin boxes VW 1994-1998 (only with key semiskilled readable)
